Масляный карман

Oil Pocket Application
Calculation of the dimensions of the plain bearing oil pocket not included in the drawing.

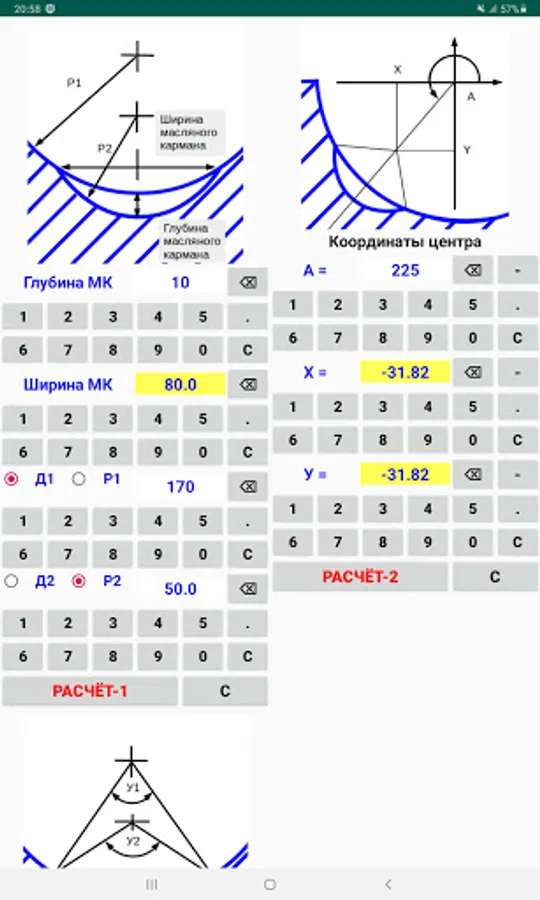

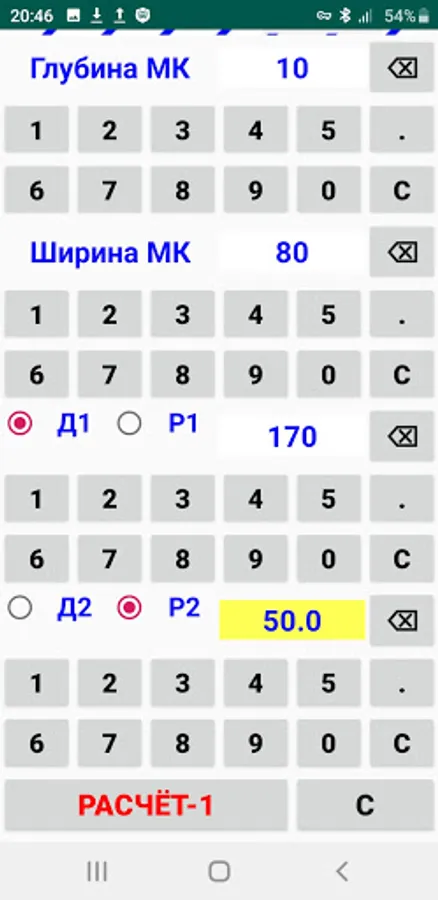

Calculation-1. (Screen 1. Column 1)

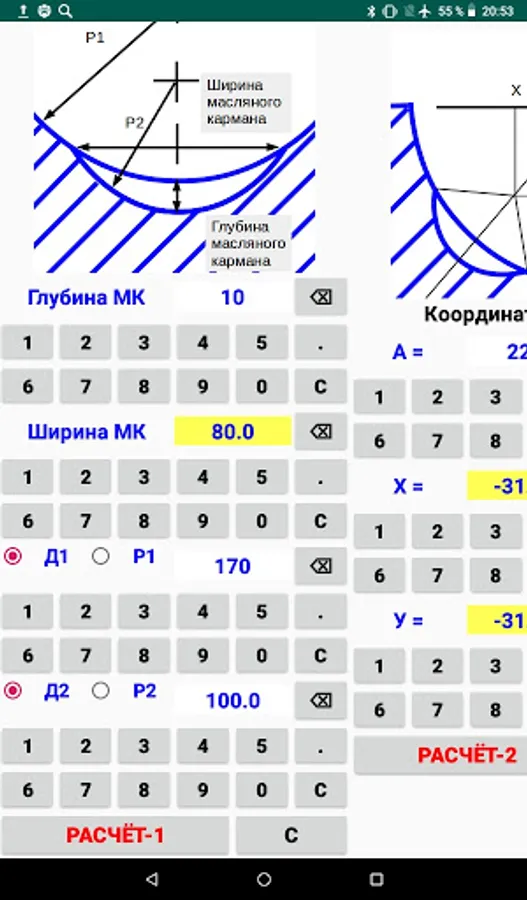

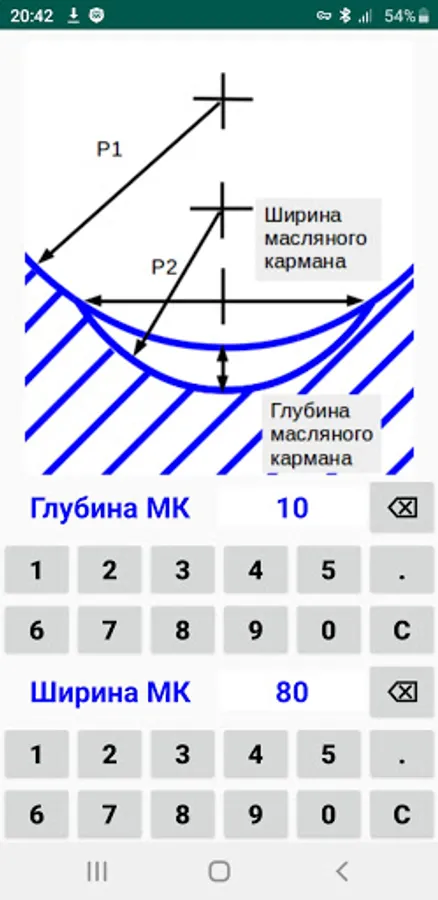

Calculation of the dimensions of the plain bearing oil pocket.
(For calculation, input into three input fields, the fourth field is empty, the calculation is displayed in it)

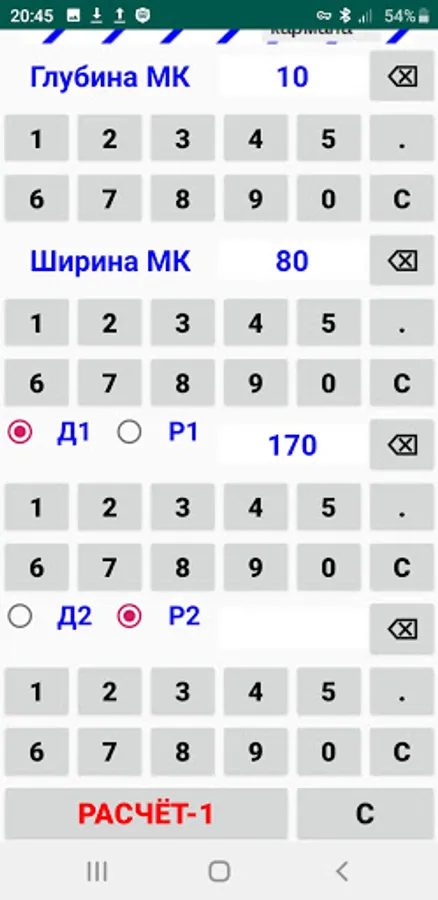

1) When entering:
Oil pocket depth
Oil pocket width
Liner diameter -D1 (liner radius - P1)
Size calculation:
Pocket diameter - D2 (pocket radius -P2)

2) When entering:
Oil pocket depth
Oil pocket width
Pocket diameter - D2 (pocket radius -P2)
Size calculation:
Liner diameter - D1 (liner radius - D2)

3) When entering:
Oil pocket depth
Liner diameter - D1 (liner radius - P1)
Pocket diameter - D2 (pocket radius - P2)
Size calculation:
Oil pocket width

4) When entering:
Oil pocket width
Liner diameter - D1 (liner radius - P1)
Pocket diameter - D2 (pocket radius - P2)
Size calculation:
Oil pocket depth


Calculation-2. (Screen 1. Column 2)

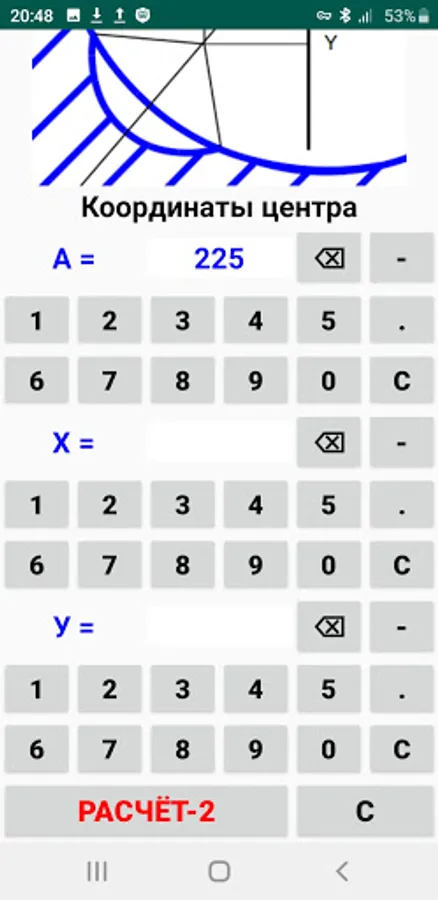

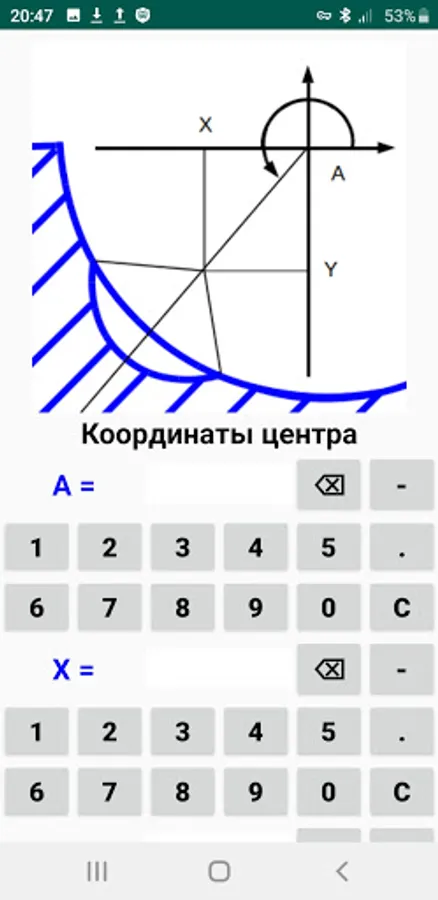

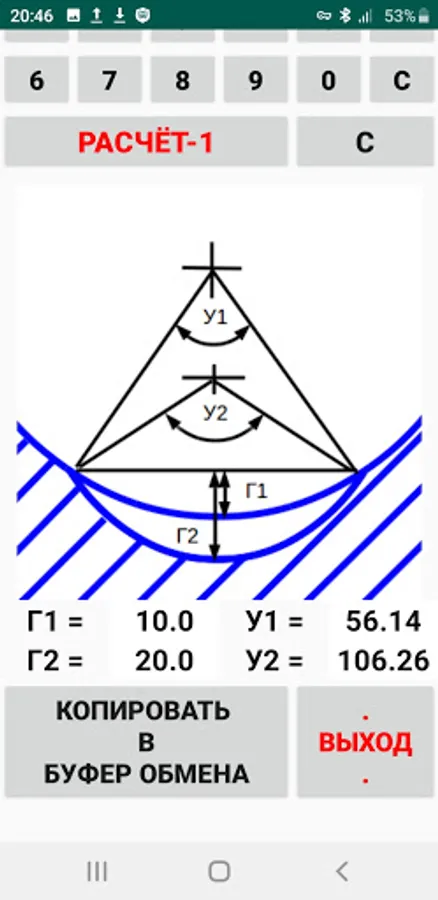

Calculation of the dimensions of the coordinates of the center of the radius of the oil pocket (with the performed Calculation-1).

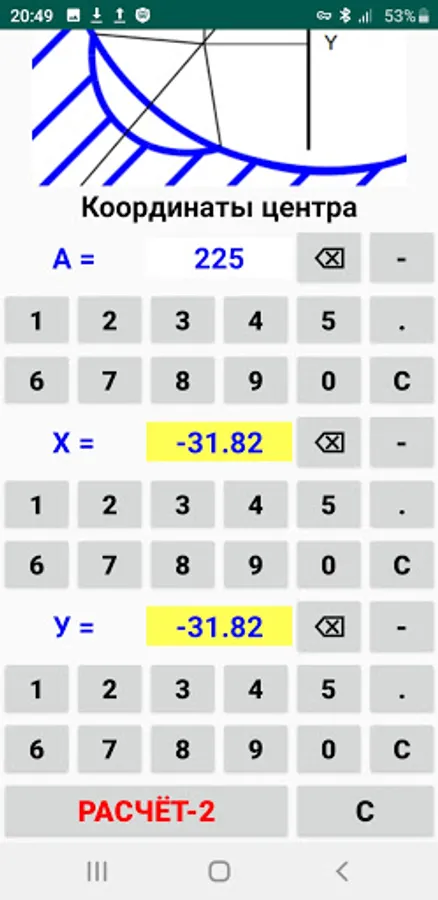

1) When entering an angle, the calculation of X and Y.
2) When you enter X, the calculation of the angle and Y.
3) When entering Y, calculates X and angle.

[Additional calculations] button. Transition by choice.
Calculation options:

Oil pocket.
Input:
Angle1 (Angle2), D1 (P1), D2 (P2).
Payment :
G1, G2, Width MK, Depth MK.

Segment of a circle.

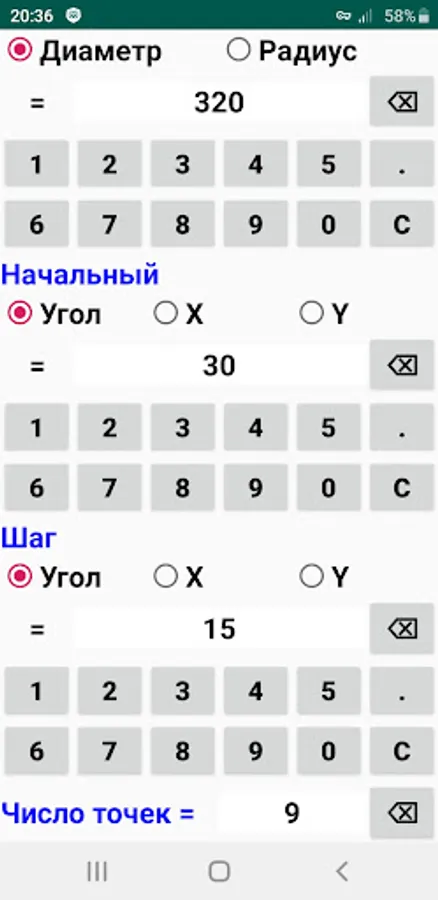

Circle coordinates.

Leg and Adjacent Angle.

Leg and Opposite Angle.

Cathetus and Hypotenuse.

Hypotenuse and Angle.

Cathetus and Cathetus.
