IOIO Camera Robot

Let's try to build your own android robot from IOIO or IOIO-Q board
This is ioio robot project that we need to use IOIO or IOIO-Q board applied to robot which camera (Use two android devices)

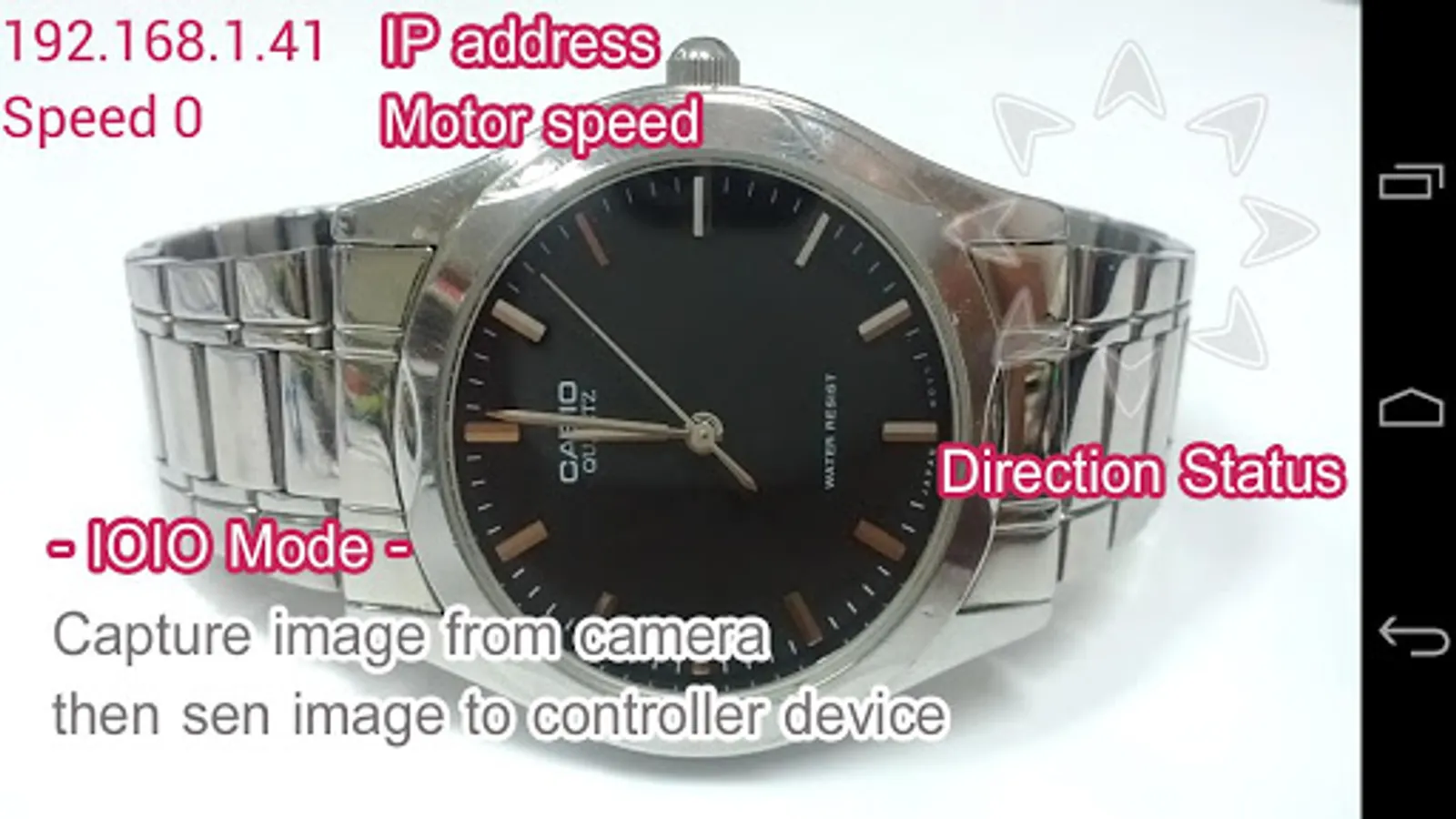

first device connected with IOIO board for control robot and use for camera

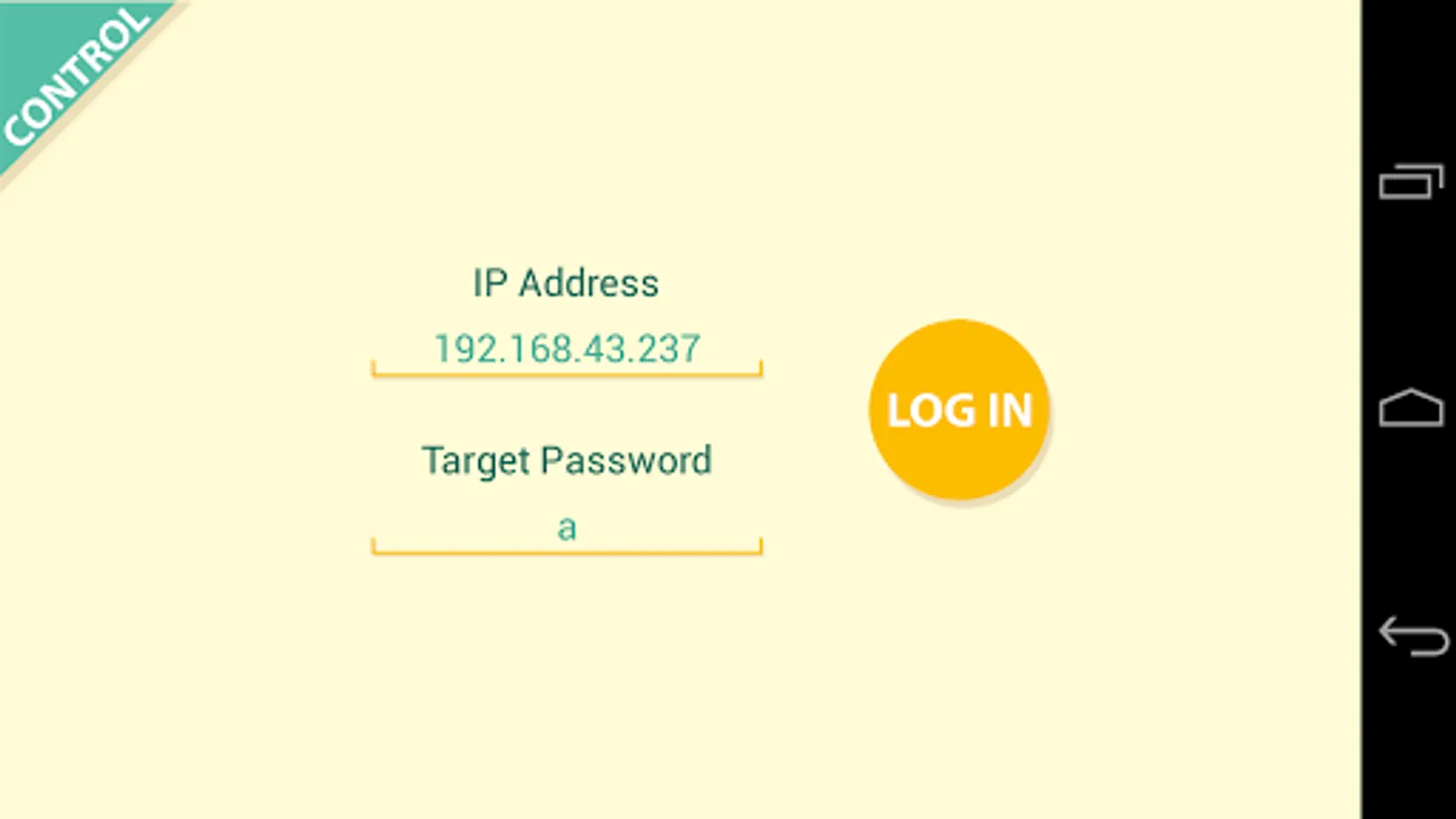

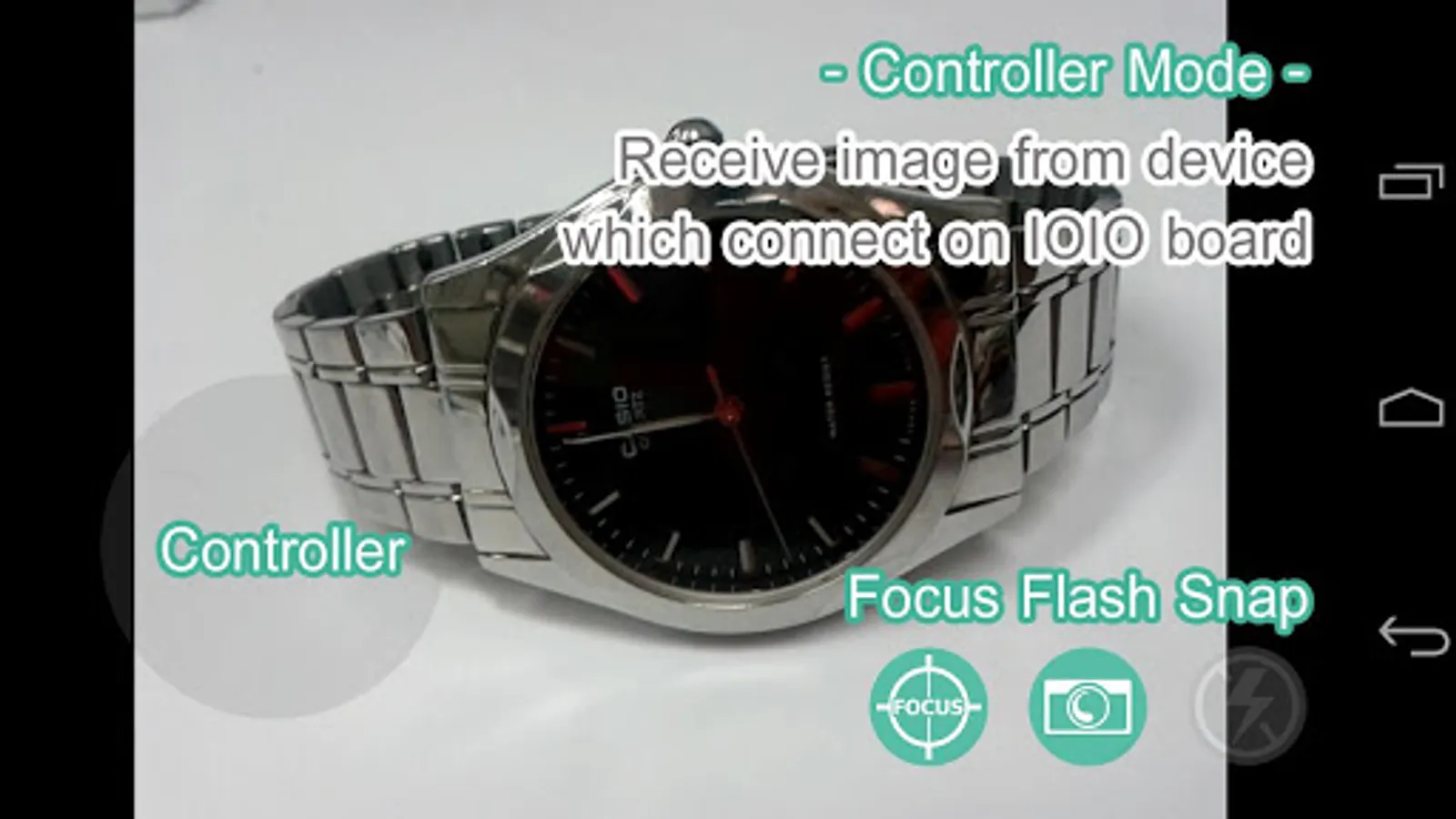

second device used for control robot motion , receiver image from camera of the first device and order to open flash or take a picture via WiFi

** Use WiFi hotspot from android device which connected with IOIO or IOIO-Q board for faster image transfer **

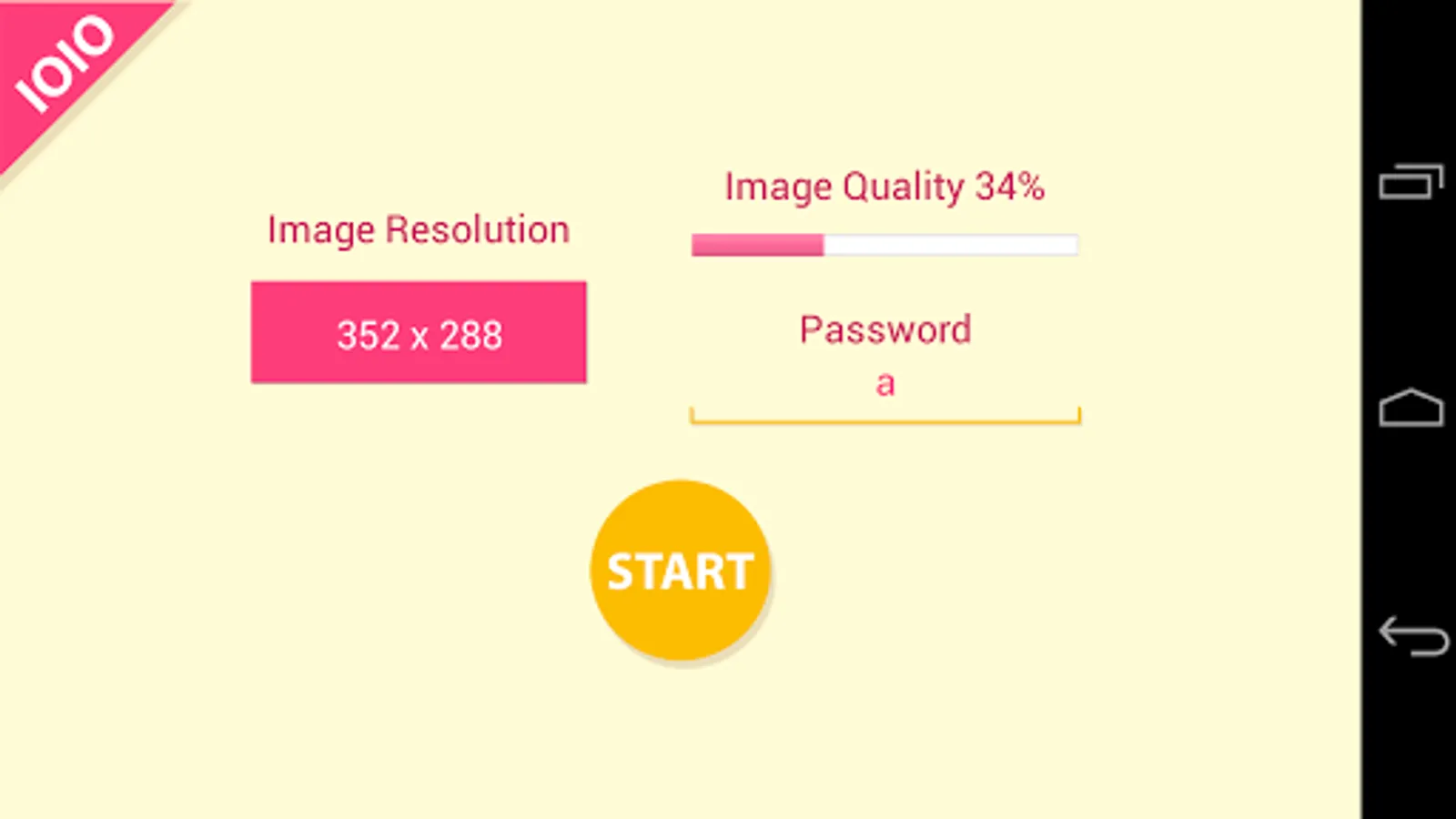

** Image resolution 320 x 240 px and 20% - 40% image quality, recommend for fast transfer image **

Recommended device spec
• 1 GHz Single Core or more
• 512 MB of RAM (1 GB or more for better)
• Camera support (If no back camera application will use front camera instead of back camera)

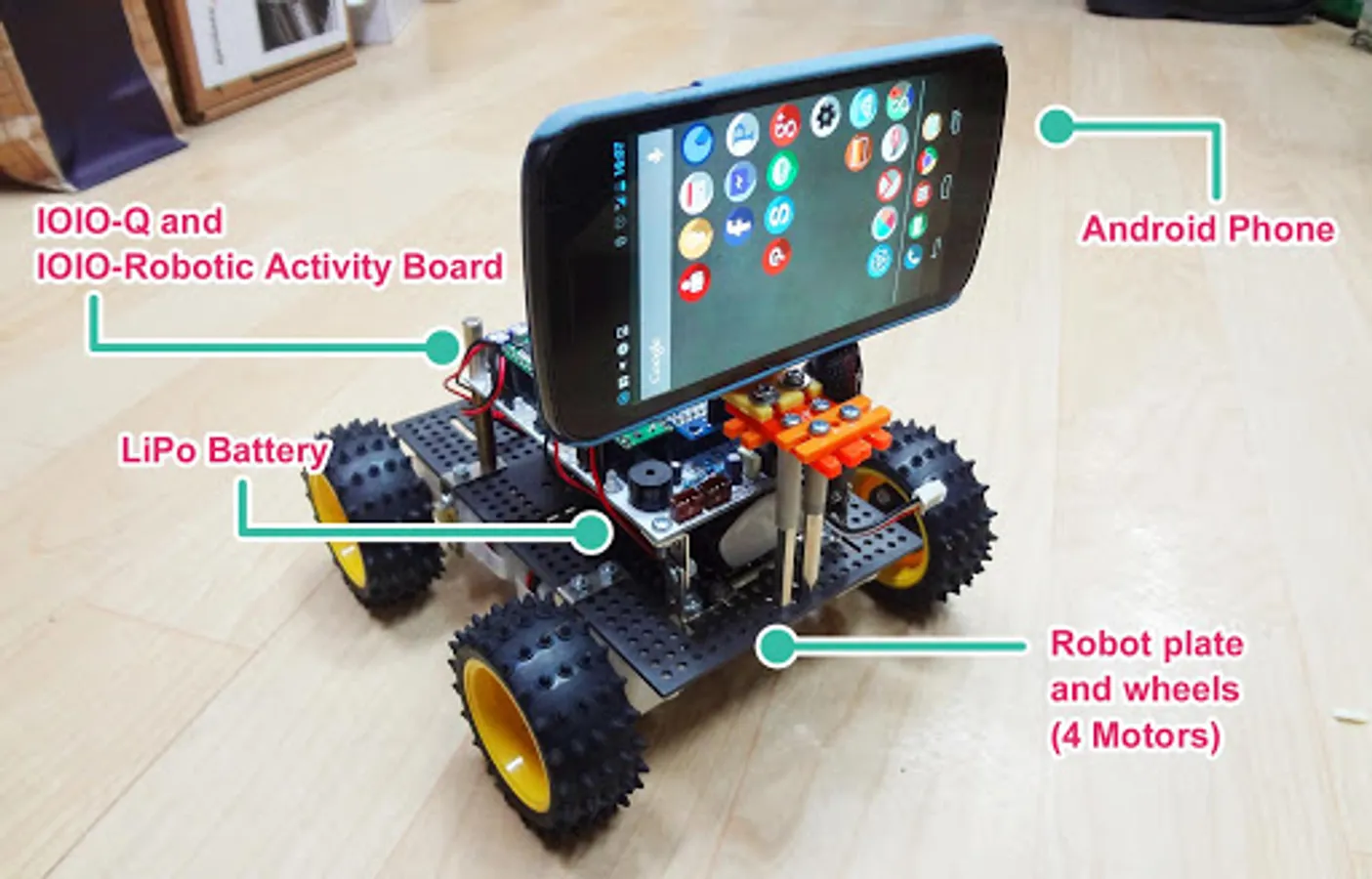

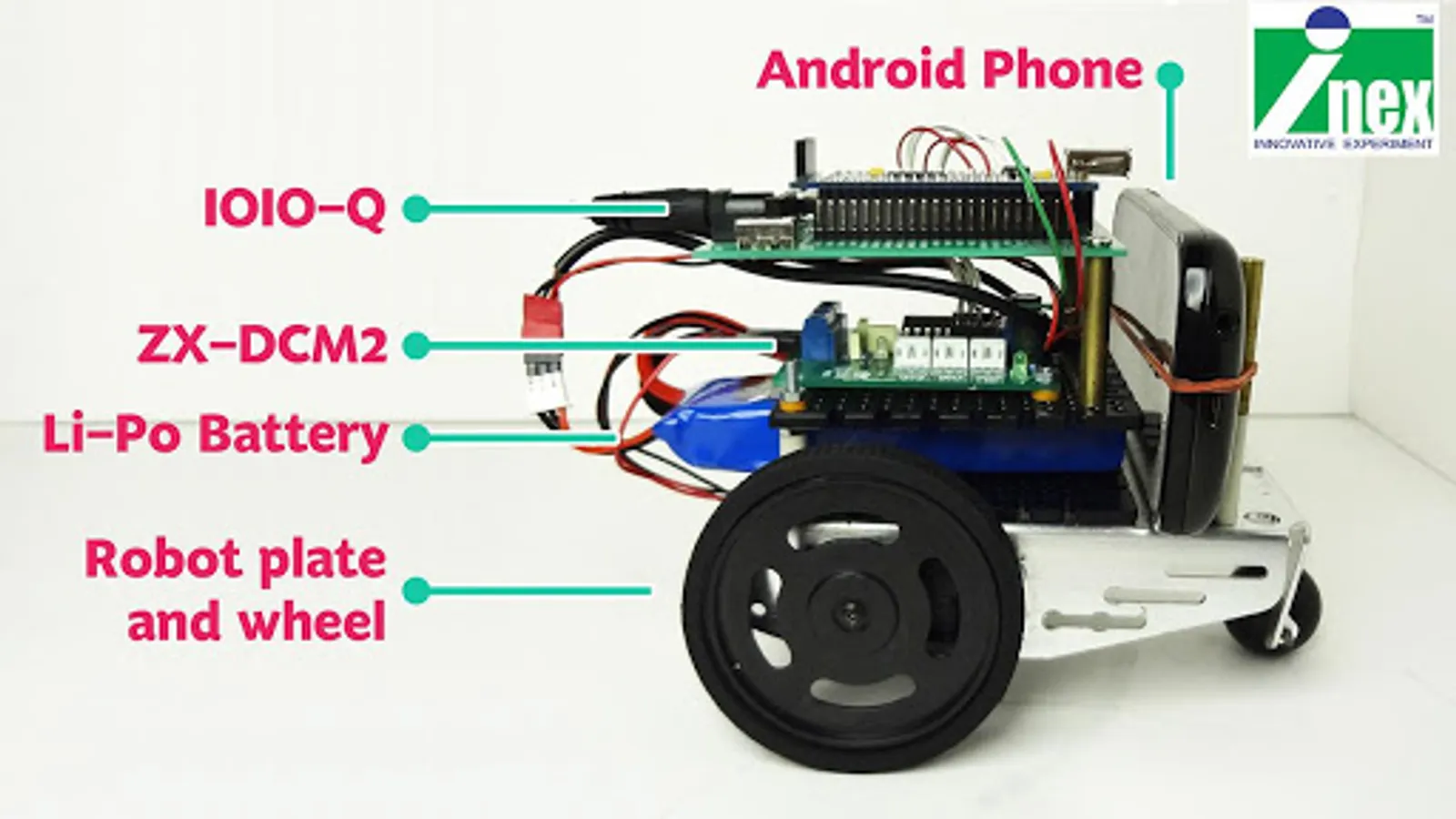

The IOIO Camera Robot consists of
• IOIO or IOIO-Q board ,

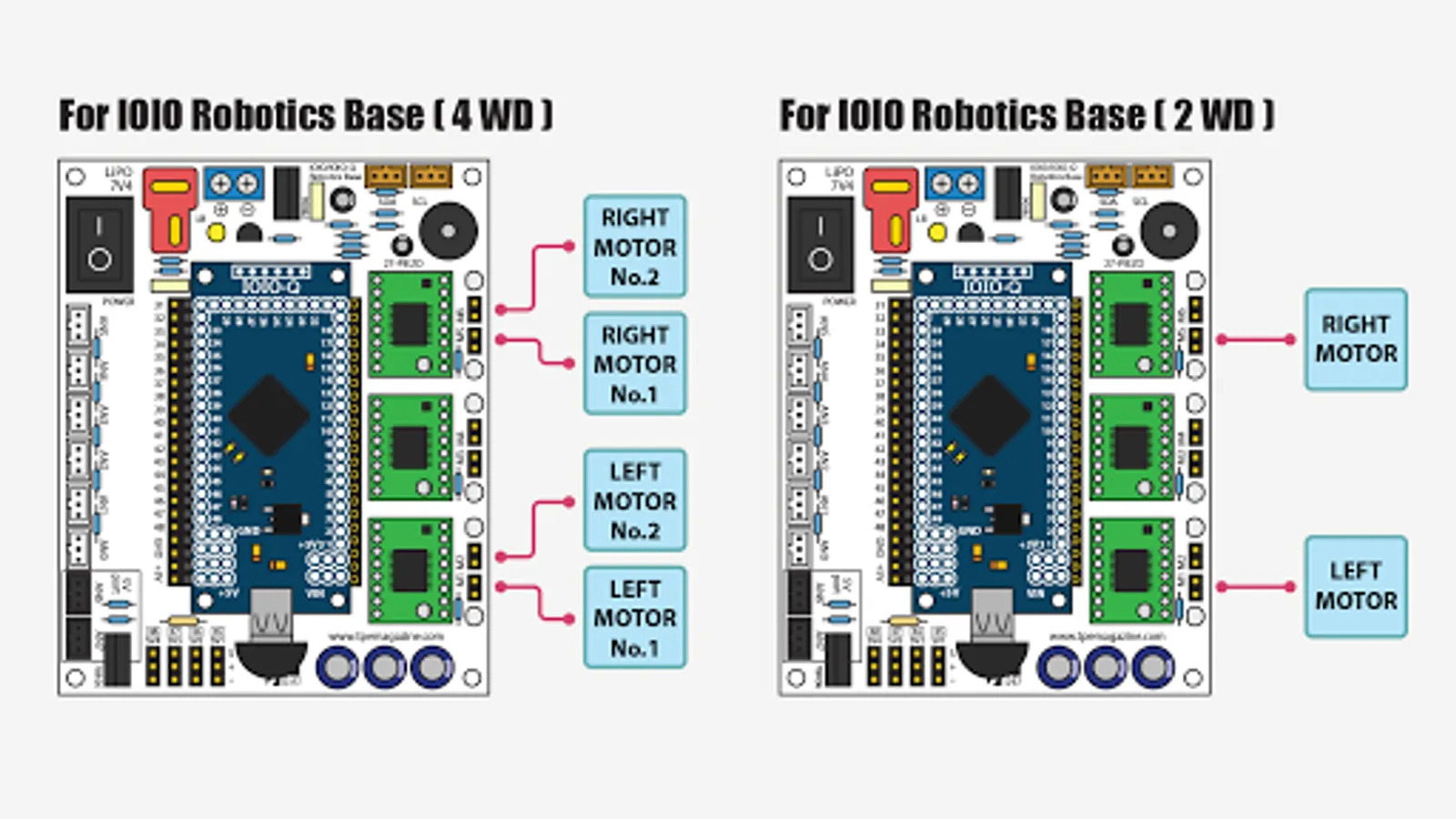

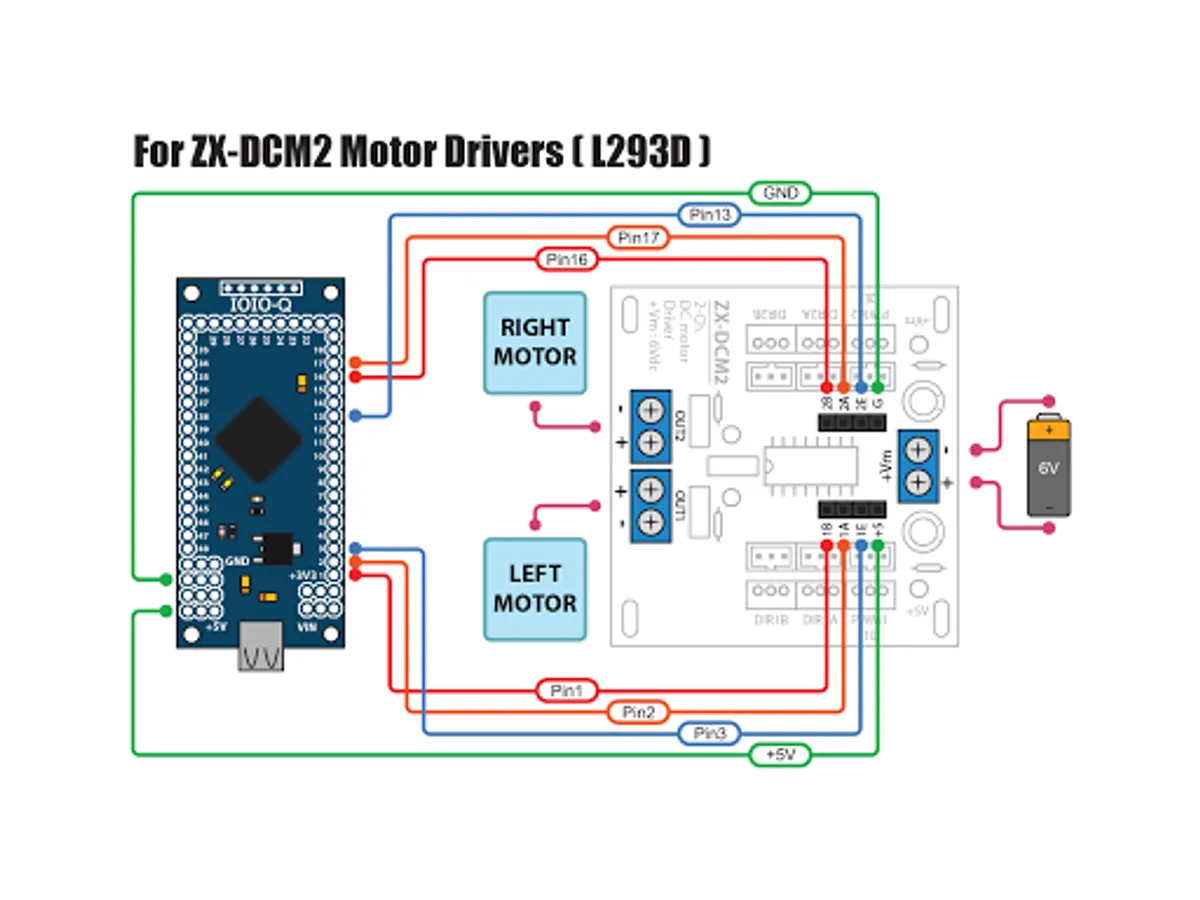

• ZX-DCM2 or IOIO-Robotic Activity Board
• Li-Po Battery
• Two DC Motor
• Robot plate and wheel
• Two android device (Camera supported)

For IOIO-Q board, you can buy at http://goo.gl/iSFHP
For ZX-DCM2, you can buy at http://goo.gl/0a868


See more detail and download from www.tpemagazine.com on issue 39 (Thai language)
http://www.tpemagazine.com/2009/2009-03-17-09-47-37/149-issue-39/785-ioio-camerabot-.html

Download source code from
https://github.com/akexorcist/IOIO-CameraRobot/
