DOL Starter

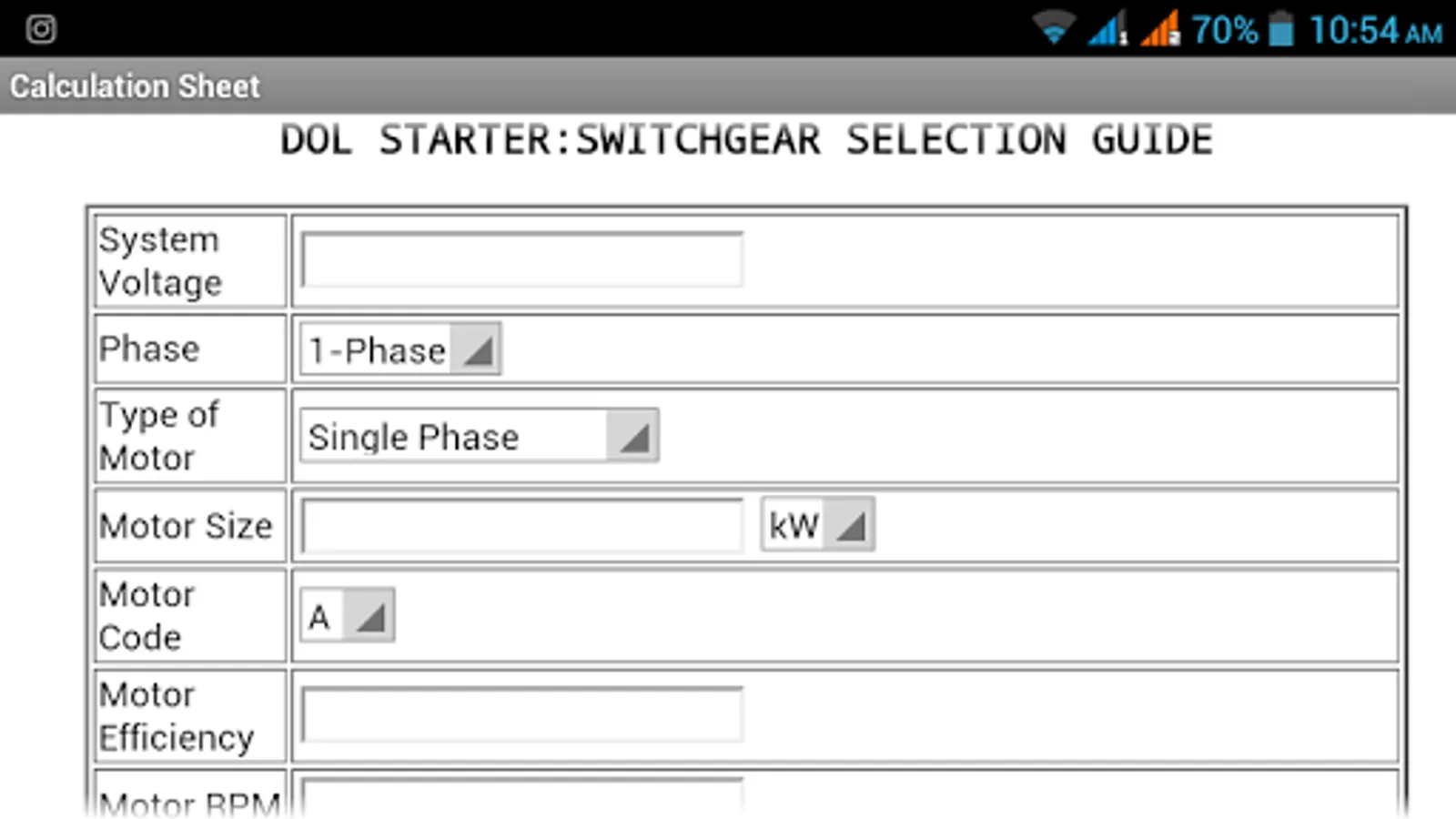

DOL Starter input fields are:

System Voltage (V)
Phase (1ph/3ph)
Type of Motor (single phase, 3-phase induction, synchronous, wound rotor etc.)
Motor Size (HP or kW)
Motor Code (A, B, C… -H)
Motor Efficiency (%)
Motor RPM
System P.F
Application of Motor (motor load in household application, hermetic refrigerant comperssor motor etc.)

According to above inputs, following starters components are calculated:

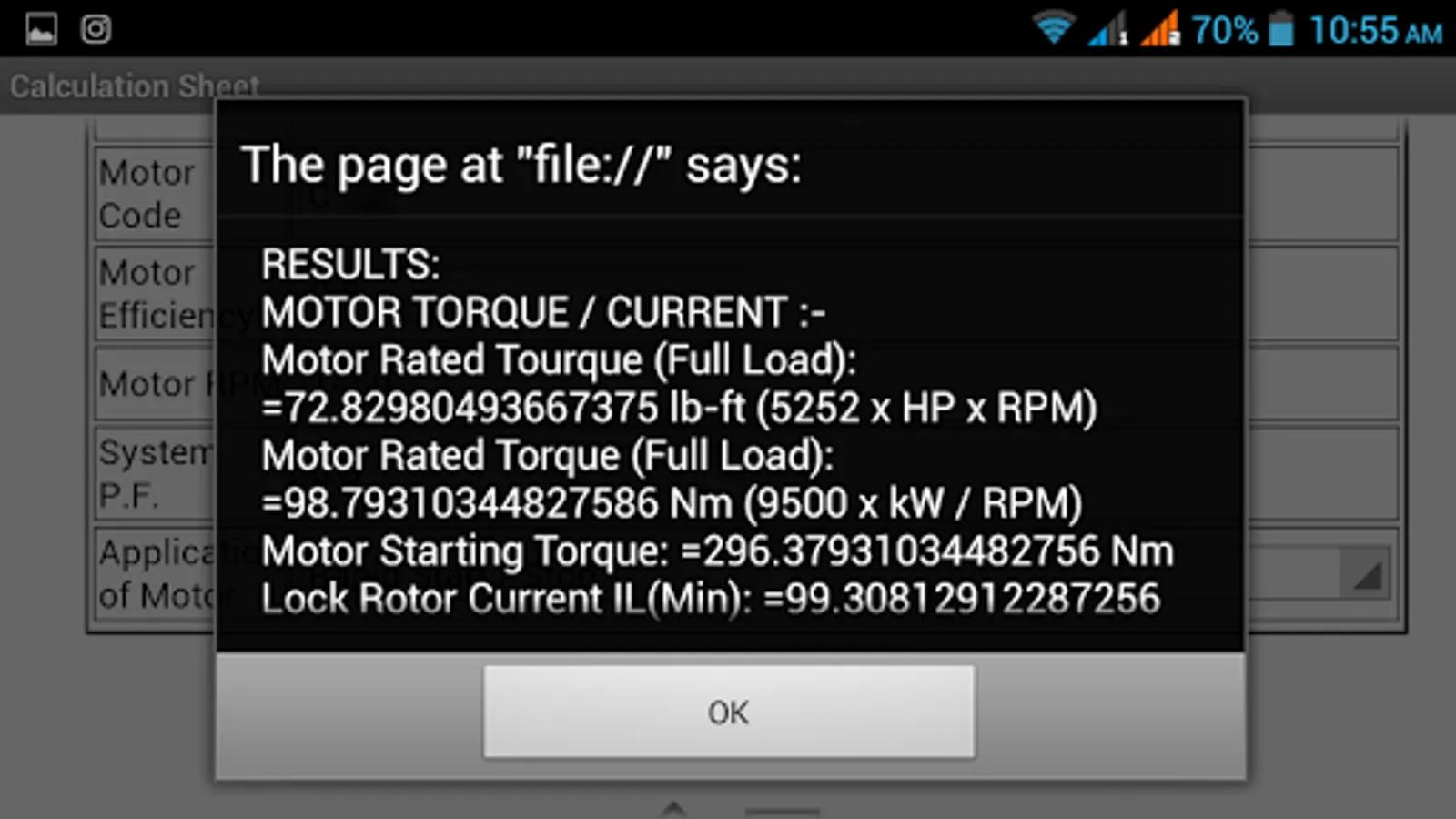

Motor Torque / Current

Fuse (As per NEC 430-52)

Circuit Breaker (As per NEC 430-52)

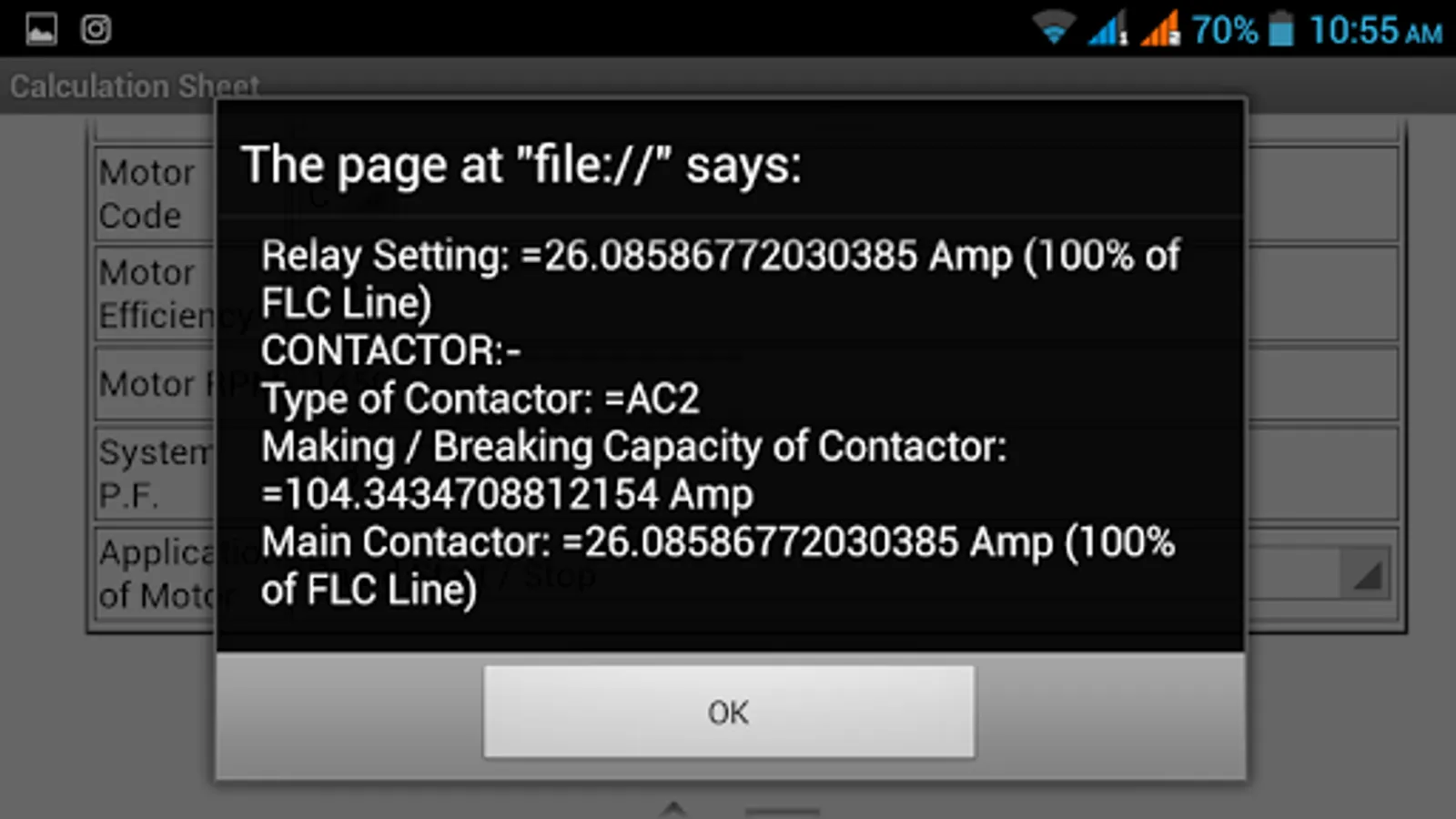

Over Load Relay Setting

Contactor (for DOL starter)
Type of Contactor
