Calibragem CNC

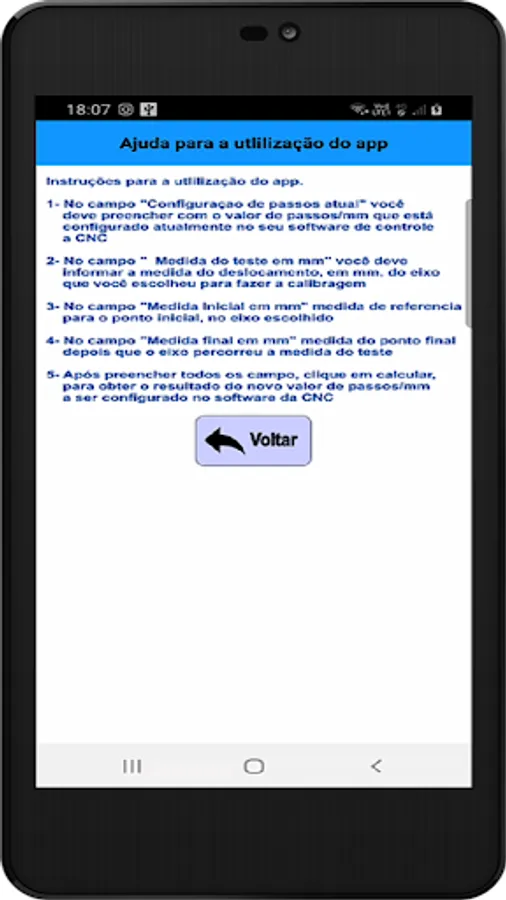

How to use

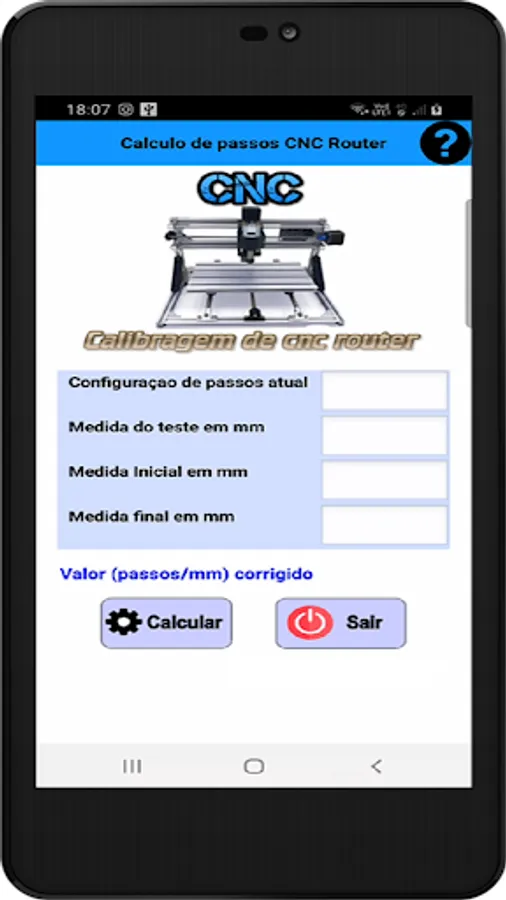

1- In the field "Current step configuration" you
must fill in the value of steps/mm that is
currently configured in your control software
the CNC

2- In the field "Test measurement in mm" you must
inform the displacement measure, in mm, of the axis
that you chose to calibrate

3- In the "Initial Measure in mm" field, reference measure
to the starting point, on the chosen axis

4- In the "Final measure in mm" field, measure the end point
after the axis has traversed the test measurement

5- After filling in all the fields, click on calculate,
to get the result of the new value of steps/mm
to be configured in the CNC software
