Flange & Pipe Dimensions
R Tech
4.0 ★
504 ratings
100,000+
downloads
Free
In this engineering toolkit, users can access detailed dimensions and standards for pipes, flanges, and fittings. Includes dimensions for various standards, material info, tolerances, and weight calculations.
AppRecs review analysis
AppRecs rating 4.0. Trustworthiness 0 out of 100. Review manipulation risk 0 out of 100. Based on a review sample analyzed.
★★★★☆
4.0
AppRecs Rating
Ratings breakdown
5 star
52%
4 star
24%
3 star
8%
2 star
8%
1 star
9%
What to know
✓
High user satisfaction
76% of sampled ratings are 4+ stars (4.0★ average)
✓
Authentic reviews
Natural distribution, no red flags
About Flange & Pipe Dimensions

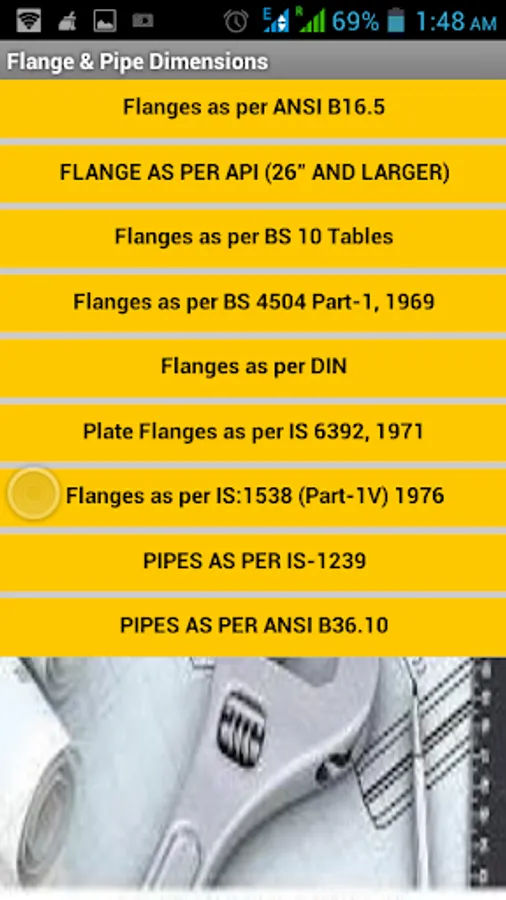

It is very useful tool for Engineers who deals with Pipes, Flanges and fittings dimensions in there day to day life. The app is having the dimensions of many different standard as shown below:

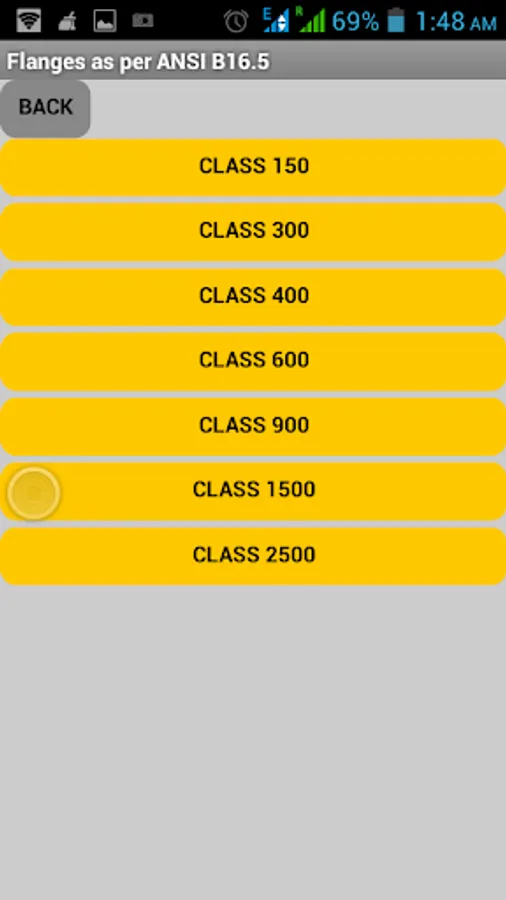

1) Flanges ANSI B16.5

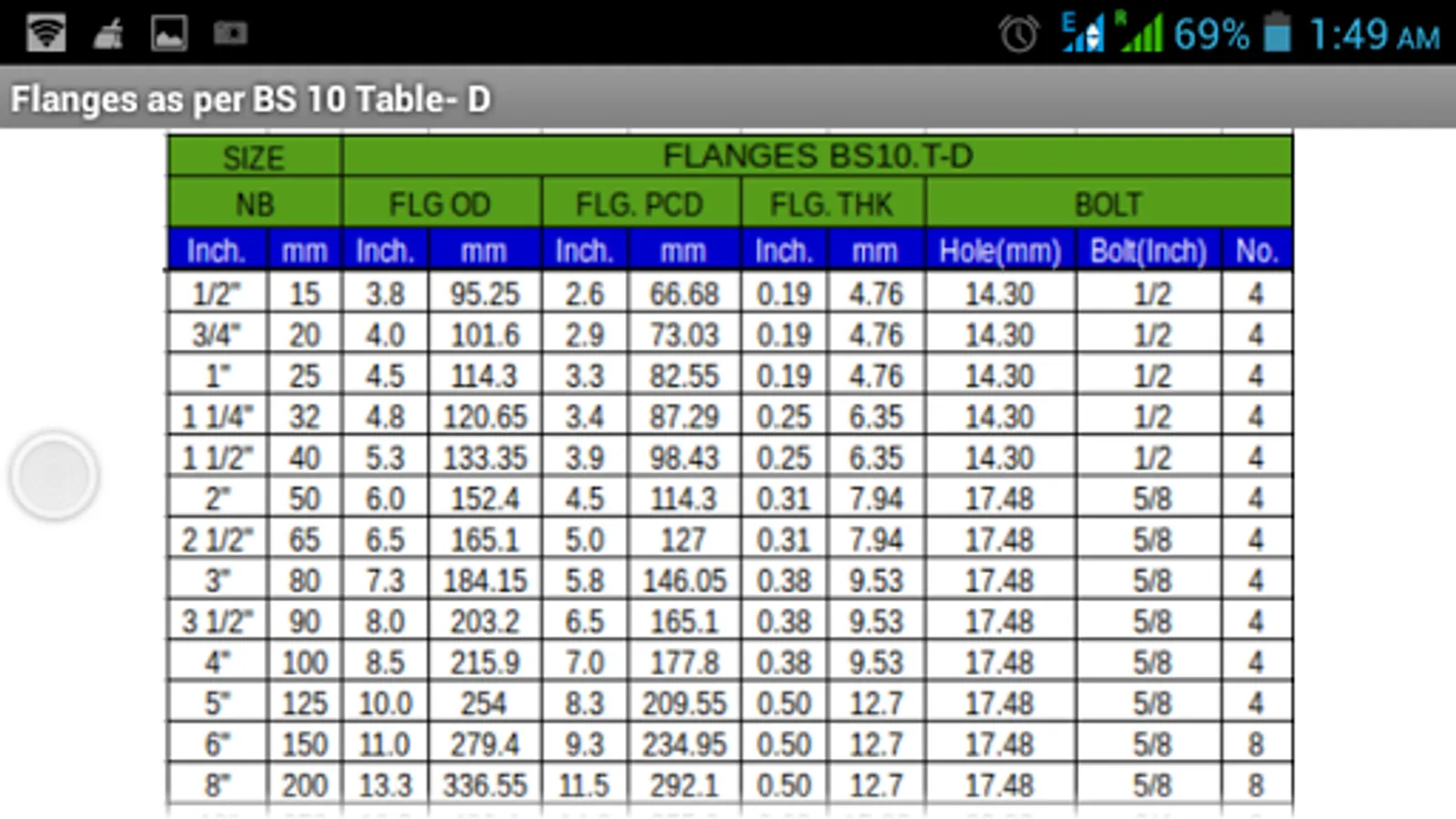

2) Flanges BS 10 Tables
3) Flanges for API (26" and larger size)
4) Flanges of BS4504
5) Flanges (or Blind Flanges) as per DIN
6) Flanges as per IS6329
7) Flanges as per IS1538
8) Pipes as per IS1239

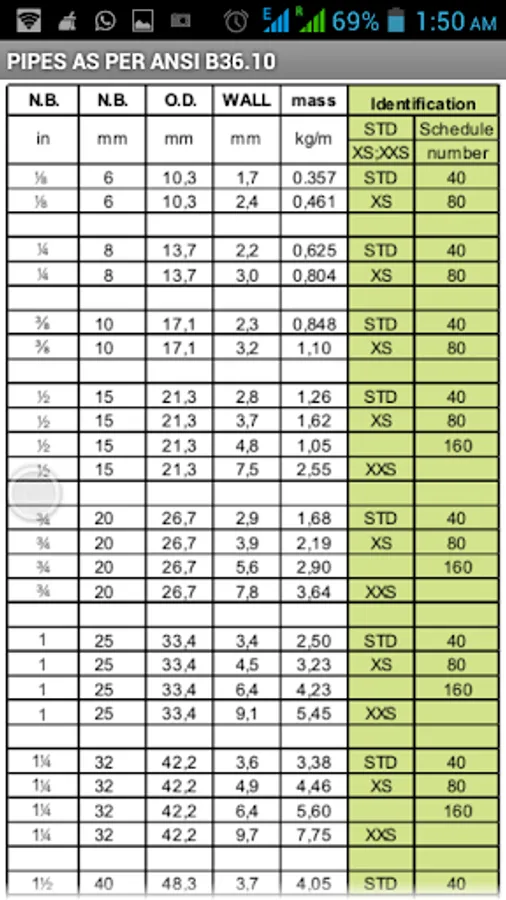

9) Pipes as per ANSI 36.10 dimensions and weight
10) Fitting Dimensions ( Butt weld reducer, tee, elbow, cap, stubs etc.) [Available in Pro Version]
11) Screw fitting of 3000# and 6000# [Available in Pro Version]
12) Socket weld Fitting [Available in Pro Version]
13) Material Composition (SS plates and commonly used material) [Available in Pro Version]
14) Equivalent material specification for different standards.[Available in Pro Version]
15) Allowable tolerances. [Available in Pro Version]
16) Weights and thickness for Plate, wire, rod and bars.[Available in Pro Version]
Disclaimer: this app is just for quick reference purpose only, for actual values please verify with std & code. Please notify me if you find and misprints. We invite your suggestion before rating this app.
