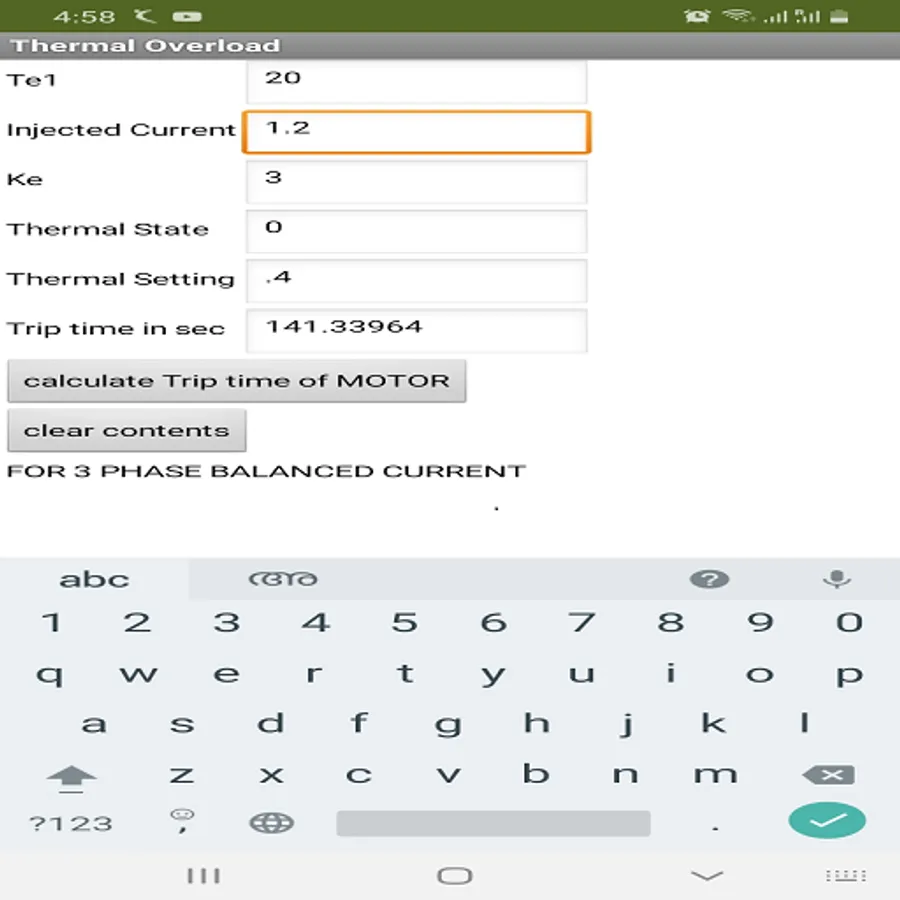

This app can be used to calculate the thermal overload function of a motor used in the modern digital type relays. Can be used to calculate and save the time for the calculation.
of motor thermal image. Input the motor theta setting and the injected current and the thermal state of the motor , can be found in the process menu (Incase of Micom relays)
