Beginn version programmator for K3N CPU (read, view ladder, found devices). Optimized 7" planshet.
Manual PLC Mitsubishi K3N CPU android app.
Feature.
App is simple replase programmator A6GPP mitsubishi for K3N CPU. App maybe via adapter read from PLC, save to sd-card and write programm to PLC.
View in ladder mode, this version show correct only X, Y, M and T device. Contact and coil (Out, SET, RST). Monitoring and TEST (force) M and Y. Show comment. Find contact or coil.
Screen and buttons.
Actionbar — show version, file prg is use. Statistic — total networks, step and found occurs. Link with CPU. Sent, recived bytes. Recieved errors.

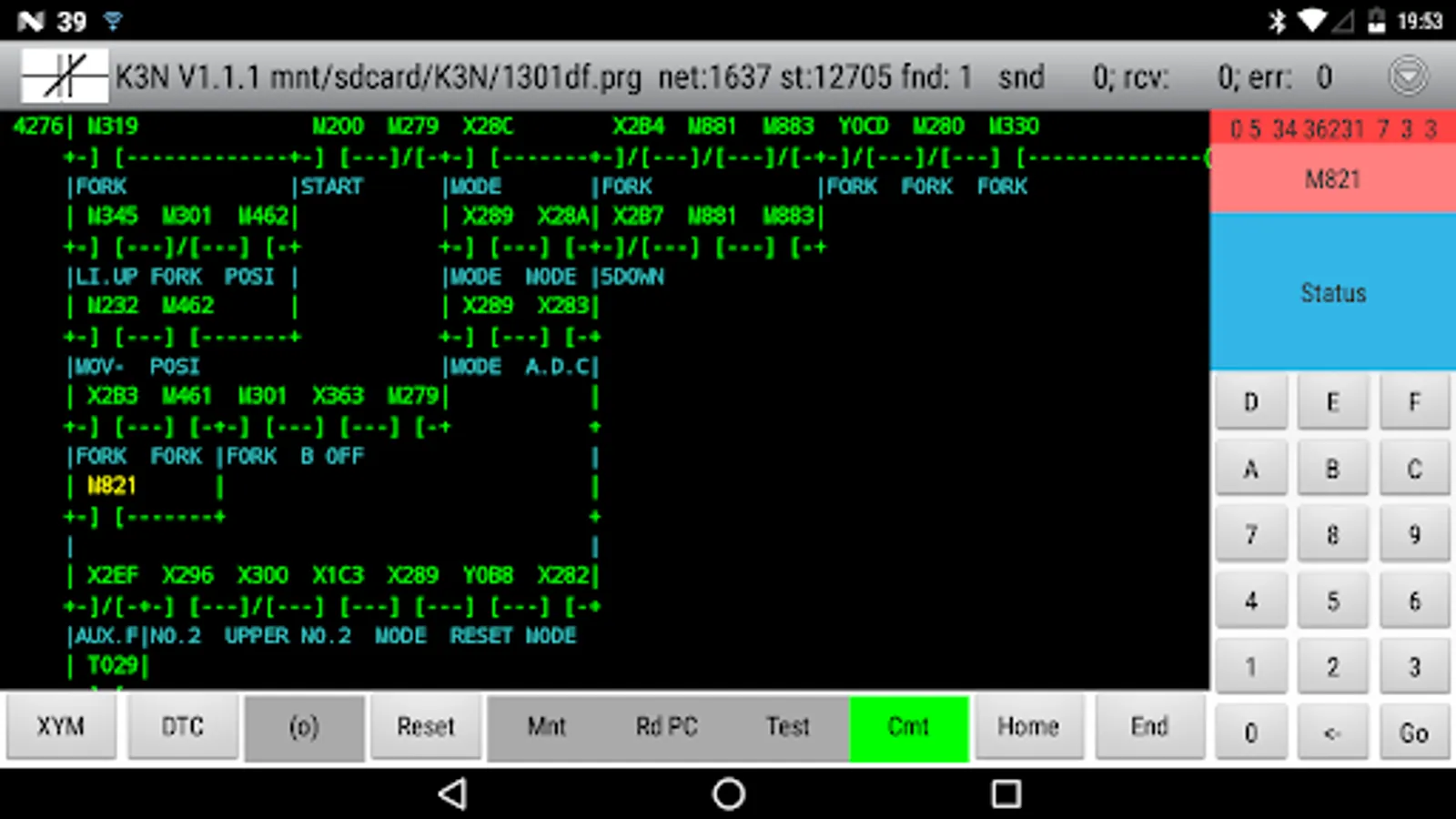

Main screen — show programm in ladder mode. Maybe scroll screen up, down, left or right.
Bottom functional buttons.
XYM or DTC — ciclic replase first symbol in device field.
(o) — set find only coil device.
Reset — redraw main view if bad.
Mnt — if connect via bluetooth start monitor mode. Monitoring all devices, showed on current screen.
RdPC/Write/Save — if connect — read or write programm to PLC. If reads done — save programm to flash.
Test — prepare test mode if monitoring works and in device fild place moitoring device. Send command after pressing «Go».
Cmt — show comment if exist. Comment file must name programm file (name_file.prg) and have extends c1 or/and c2 — name_file.c1 or/and name_file.c2. Place comments files in same dir (mnt/sdcard/K3N).
Home — go beginn programm.
End — go end programm.
Rigth fiels and buttons :
Always red field — debug statistic info.
Device field — contains name device for find (after «Go») or test.
Possible 2 way to insert. Tap on ladder or enter via soft keyboard.
Color field show bluetooh status: green — connected, yellow — connecting, red — pause (15s).
Status field — show data on monitoring (T etc).
0,1,2..D,E,F enter number.
← backspace
Go — start command.
Reset found — clear device field and Go.
Hex-file place in https://www.k3ncpu.net/
Attention – app not tested for % corrected read/write cicle. Later.
Manual PLC Mitsubishi K3N CPU android app.
Feature.
App is simple replase programmator A6GPP mitsubishi for K3N CPU. App maybe via adapter read from PLC, save to sd-card and write programm to PLC.
View in ladder mode, this version show correct only X, Y, M and T device. Contact and coil (Out, SET, RST). Monitoring and TEST (force) M and Y. Show comment. Find contact or coil.
Screen and buttons.
Actionbar — show version, file prg is use. Statistic — total networks, step and found occurs. Link with CPU. Sent, recived bytes. Recieved errors.
Main screen — show programm in ladder mode. Maybe scroll screen up, down, left or right.
Bottom functional buttons.
XYM or DTC — ciclic replase first symbol in device field.
(o) — set find only coil device.
Reset — redraw main view if bad.
Mnt — if connect via bluetooth start monitor mode. Monitoring all devices, showed on current screen.
RdPC/Write/Save — if connect — read or write programm to PLC. If reads done — save programm to flash.
Test — prepare test mode if monitoring works and in device fild place moitoring device. Send command after pressing «Go».
Cmt — show comment if exist. Comment file must name programm file (name_file.prg) and have extends c1 or/and c2 — name_file.c1 or/and name_file.c2. Place comments files in same dir (mnt/sdcard/K3N).
Home — go beginn programm.
End — go end programm.
Rigth fiels and buttons :
Always red field — debug statistic info.
Device field — contains name device for find (after «Go») or test.
Possible 2 way to insert. Tap on ladder or enter via soft keyboard.
Color field show bluetooh status: green — connected, yellow — connecting, red — pause (15s).
Status field — show data on monitoring (T etc).
0,1,2..D,E,F enter number.
← backspace
Go — start command.
Reset found — clear device field and Go.
Hex-file place in https://www.k3ncpu.net/
Attention – app not tested for % corrected read/write cicle. Later.
