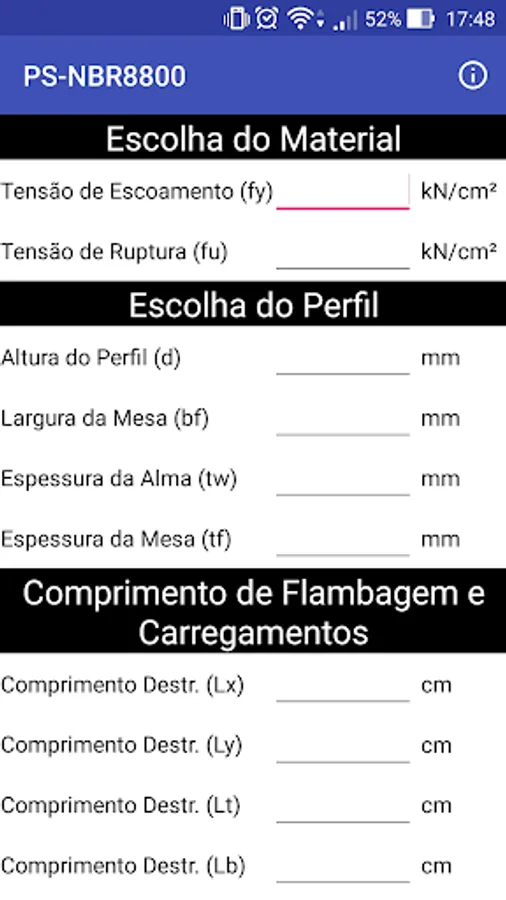

Providing the data of a welded profile:
Material Properties: E, fy and fu
Profile Dimensions: h, bf, tf and tw
The unlocked lengths: Lx, Ly and Lt

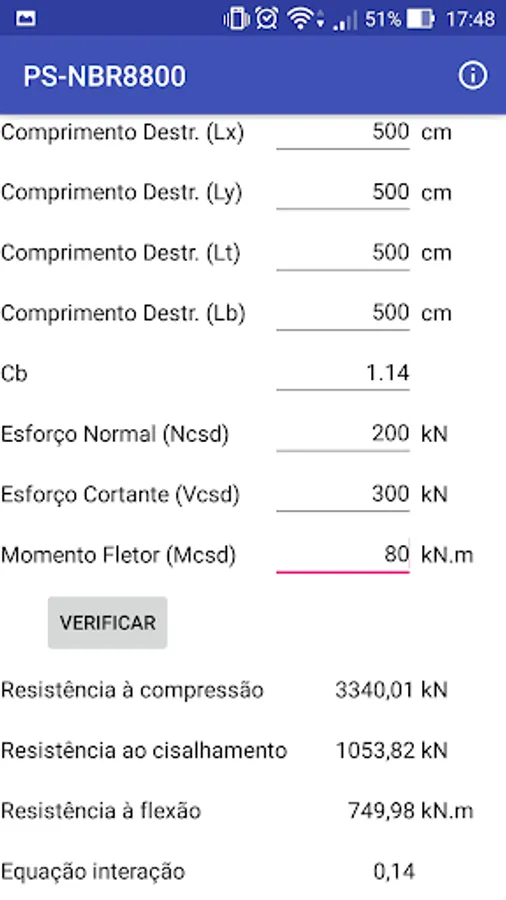

And the axial request Nc, Sd, the shear Vsd, the flexure MSd.
(Nd), shear (Vrd) and Moment with respect to the axis of greatest inertia (MRd), as well as the validation of the interaction equation of the axial and bending stresses.
Material Properties: E, fy and fu
Profile Dimensions: h, bf, tf and tw
The unlocked lengths: Lx, Ly and Lt
And the axial request Nc, Sd, the shear Vsd, the flexure MSd.
(Nd), shear (Vrd) and Moment with respect to the axis of greatest inertia (MRd), as well as the validation of the interaction equation of the axial and bending stresses.
