Software for calculating the observer's target area in the context of Field Artillery and the Mortar observer

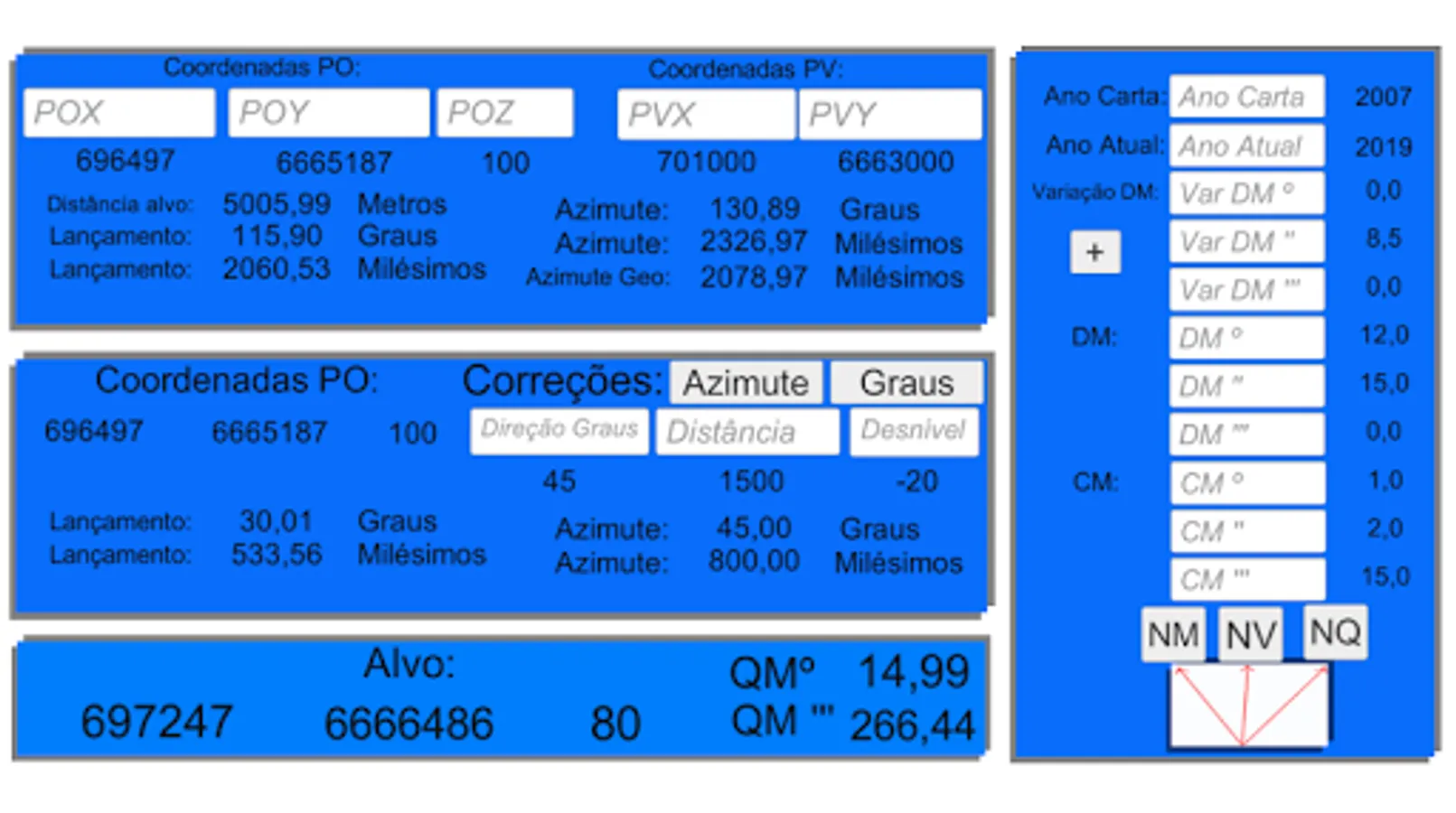

Inside the upper box, a Topo III PO card is created for the PV, providing initial elements that the observer must send to CTir.
In the box immediately below, a Topo III PO token for the Target is performed, requiring the observer's direction, distance and unevenness to the intended target. The user, through two selector buttons, has the option of informing the direction as azimuth or launch, as well as, in degrees or thousandths.
In the right corner, the Guidance Diagram is calculated, by which it is calculated: Magnetic Declination, CM and QM.
In the lower portion, the X, Y and Z coordinates of the target intended by the observer are informed.
Inside the upper box, a Topo III PO card is created for the PV, providing initial elements that the observer must send to CTir.
In the box immediately below, a Topo III PO token for the Target is performed, requiring the observer's direction, distance and unevenness to the intended target. The user, through two selector buttons, has the option of informing the direction as azimuth or launch, as well as, in degrees or thousandths.
In the right corner, the Guidance Diagram is calculated, by which it is calculated: Magnetic Declination, CM and QM.
In the lower portion, the X, Y and Z coordinates of the target intended by the observer are informed.
