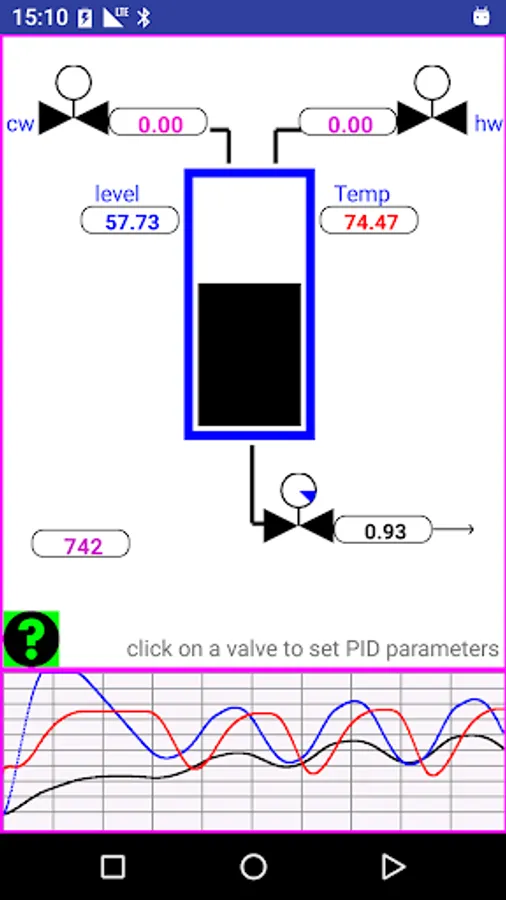

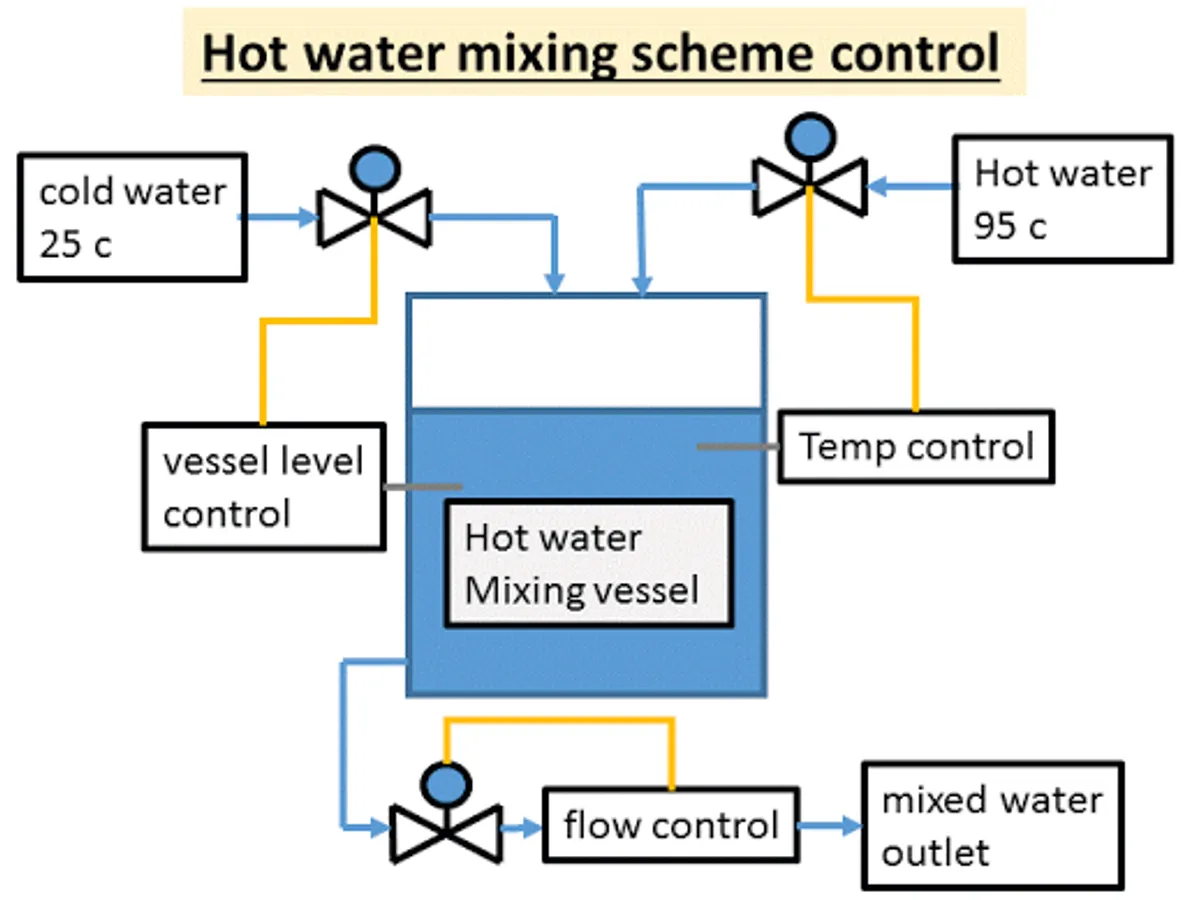

Simulation of hot and cold water vessel mixer, it contains 3 P.I.D control valves which controls :
1. Vessel water temperature
2. Vessel level
3. Vessel outlet flow of the mixed water.

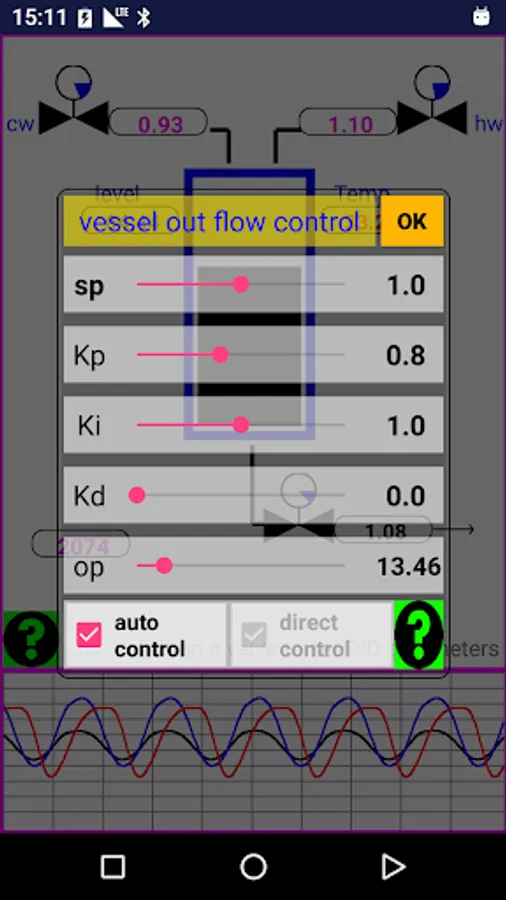

The simulation solve the mass and heat balance , and the user can change the set-point for the parameters ,
And the P.I.D parameters.
1. Vessel water temperature
2. Vessel level
3. Vessel outlet flow of the mixed water.
The simulation solve the mass and heat balance , and the user can change the set-point for the parameters ,
And the P.I.D parameters.
