* When you execute the app for the first time after downloading and installing, the screen will appear white and pause for about 30 seconds to configure the memory space, please wait patiently. You will also be asked to open the wifi (GPS) permission, or go to the permission administrator yourself Turn on the wifi permission of this app, because you want to scan which wifi signals are nearby
* After testing different high and low-end Android (Android) mobile phones, there will be some abnormal pictures or jumping out, or the speed of reading the controller data is too slow and an error occurs, these mobile phones are not applicable
* The main function:
1. Double water tower design, you can choose any water tower or double water tower to use by parameter setting
2. The "water pump switch" can directly control the start or stop of the water pump
3. "Forced replenishment switch" can force replenishment or stop replenishment at any time
4. Display the current height (cm) and capacity (liters) of the water in the water tower
5. According to the actual water replenishment situation, set the upper and lower float positions of the water tower liquid level switch as the basis for the water volume to be too high or too low
6. Set the calibration factor of the flowmeter, and the accuracy of the water replenishment can be controlled within ±5%
7. In the water replenishment state, you can instantly view the current flow rate/average flow rate/duration of the water flow below the set value/AC current value/how long the motor has been started/how much water has been replenished
8. Provide (alarm) real-time notification and record of alarm, which is convenient to check whether there is any abnormal information before, as the basis for maintenance
9. Provide a current display diagram to instantly watch the current status of the pumping motor
10. "Update Alert" and "Update Current" to read the data of the last few days in the controller and update the record
11. The accuracy of the clock IC is ±0.432 seconds/day. When the time error is large, it can be reset with one key and synchronized with the mobile phone time.
12. Each replenishment will be recorded in detail, which can be queried in sequence (start time/date/month)
13. Interchange between SQL and text files. After converting the motor startup records into text files, you can use a text editor or Excel to process them again.
* Through parameter setting, the following functions can be achieved, so that we don't have to worry about abnormal situations when we sleep or go out:
1. If the motor current is abnormal or the water flow is too small for a long time, the pumping motor can be automatically turned off
2. If the water replenishment time of automatic replenishment or forced replenishment is too long, the pumping motor can be automatically turned off
3. The pumping motor switch trips abnormally. After checking and processing to confirm that it is correct, remember to manually press the "water pumping motor switch" to return to the power-on state, otherwise the power line is in an open-circuit state, and there will be no automatic water replenishment action afterward.
* Precautions for operation of mobile phone and controller:

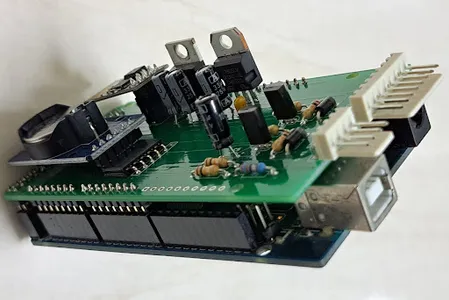

1. To assemble this circuit, it is necessary to modify the power line of the pumping motor (or drill a wall washing hole to pull the line from the outdoors to the room) and the water inlet pipeline next to the water tower to install and fix the flowmeter. Other objects; while in the design of circuits and pipelines, it is mainly modular, standardized and easy to maintain.
2. At present, the mobile phone can only use Android (Android system) wifi (can only be used in the 2.4GHz working frequency band, 5GHz is not applicable), and cannot use Apple (iOS system) and 5G mobile data connection control, because the remote or cloud is not used. Technology. Therefore, all data can only be stored in the limited memory space in the MEGA 2560 microprocessor; if the mobile phone is not connected for a period of time, it will not be able to obtain information from the controller, and the data during this period may be lost. ; So at least every few days when you have time, update the alarm/current/water replenishment records, so that all data will not be interrupted, so as to avoid the data in the controller being reset to blank when the power is cut off
3. When the ESP8266 name (such as WATER_PUMP_1) in the controller is paired for the first time and the password is correct, select "Connect without Internet", and in case of power failure, you must re-wifi pairing
4. All wireless sharers under the same network domain ip at home (4 groups in total, the first 3 groups have the same numbers) can be connected to use the app. For example, the name of the home wireless sharer you selected before is TP-Link_062D_CN, its ip = 192.168.2.1, there is another wireless sharer named DIR-820L-CN at home, its ip = 192.168.2.3, because they are all under the same network domain <192.168.2>, so you connect Can also be used to DIR-820L-CN
5. Only one person is allowed to operate the app at a time. When the next person logs in, the previous user will be kicked out and cannot operate
6. Sometimes the app will not respond to the command to the controller, because the wifi signal is not good or the data is lost during data processing, please repeat the command again
7. When the Wifi signal is interrupted and cannot continue to use the app, just close and restart the app.
8. When the App is not in operation, please keep the screen on the water tower motor screen, so as to collect water tower and motor information at any time
9. When you press "Update Alert" or "Update Current" to read the data in the controller in the last few days, please wait patiently due to the large number of transactions and the long communication time.
10. You will not see the new alert information immediately after updating the alert information. Please jump to another page first, and then jump back to the original page to see the updated new alert information.
11. The latest data pen count can be stored in the controller
30 alarms
Motor current 300 pens
100 water replenishment records
12. The number of recent data can be stored in the mobile phone
200 alarms
Motor current 3600 pens
Water replenishment record No limit
* When any situation occurs between the water tower and the pumping motor, the controller needs to notify us through the mobile phone to deal with it immediately. The list of all alarm alerts is as follows:
0: normal, no record, no notification
1: Press the switch button of the pumping motor to turn off the power of the pumping motor
2: Press the switch button of the pumping motor to power on the pumping motor
3: Press the forced water replenishment button to start the pumping motor
4: Forced water replenishment, the motor continues to run, no record, no notification
5: Press the stop water replenishment button to stop the pumping motor
6: The forced water supply has reached the full water level, and the solid state relay switch of the water tower is tripped to stop the motor
7: The forced water supply has continued to reach the set time? minutes, the water tower solid state relay switch trips, and the motor stops
8: Automatic water replenishment starts, the motor starts to run, no record
9: Automatic water replenishment, the motor continues to run, no record, no notification
10: After water replenishment, the motor stops running, no record
11: The automatic water replenishment has reached the set time? minutes, the motor solid state relay switch trips, and the motor stops
12: The water flow is too small for the set time? seconds, the motor solid state relay switch trips, and the motor stops
13: The abnormal current of the motor has continued for the set time? seconds, the motor solid state relay switch trips, and the motor stops
14: Abnormal, the motor solid state relay switch fails to change from power on to power off, this action is invalid; if the motor continues to run non-stop, please go to the control box to switch the motor circuit switch from power on to power off, so that the motor stops, ask a professional to check the motor Solid State Relay Circuit
15: Abnormal, the motor solid state relay switch fails from power-off to power-on, this action is invalid; to make the motor work, please go to the control box to switch the three-way switch of the wifi controller from use to not use, the motor will not be controlled by the controller , ask a professional to check the motor solid state relay circuit
16: Abnormal, the water tower solid state relay switch fails to change from power off to power on, this action is invalid; it is impossible to force water replenishment, please professional check the water tower solid state relay circuit
17: Abnormal, the water tower solid state relay switch fails to change from power on to power off, this action is invalid; the water can no longer be forced to cut off, please go to the control box to switch the motor circuit switch from power on to power off, so that the motor stops, ask a professional to check the solid state of the water tower relay circuit
18: The water level height of water tower 1 has reached the top of the water tower? cm
19: The failure position of the float switch of water tower 1 is higher than the top-up water level? cm
20: The failure position of the liquid level switch of the water tower 1 is lower than the make-up water level? cm
21: The water level height of water tower 1 has reached 0cm at the bottom of the water tower
22: The water level of water tower 2 has reached the top of the water tower? cm
23: The failure position of the float switch of water tower 2 is higher than the top-up water level? cm
24: The failure position of the liquid level switch of the water tower 2 is lower than the make-up water level? cm
25: The water level height of water tower 2 has reached 0cm at the bottom of the water tower
26: The water flow rate is less than ?L/min
27: Note that the motor solid state relay has tripped, please make sure that the inspection is normal, remember to press the "water pumping motor switch" to switch the motor solid state relay switch from power off to power on, otherwise it will not be able to pump water normally, no record, and notification every minute.
