マグネチック・ループ・アンテナ 計算機

(1) Overview
From the antenna dimensions of MLA (magnetic loop antenna), we calculate the radiation efficiency and the voltage applied to the capacitor.
(2) Input parameter
-Frequency used

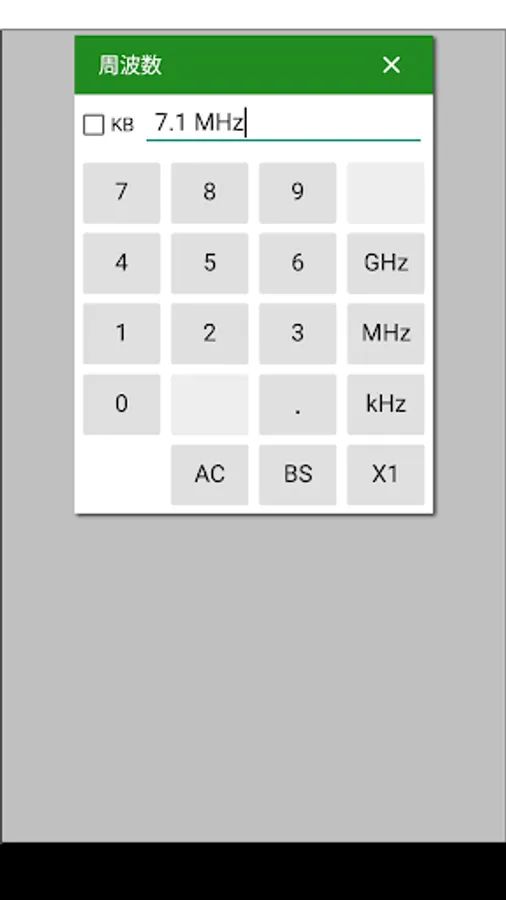

-Main loop diameter
-Main loop pipe diameter
-Main loop loss resistance
-Transmission power

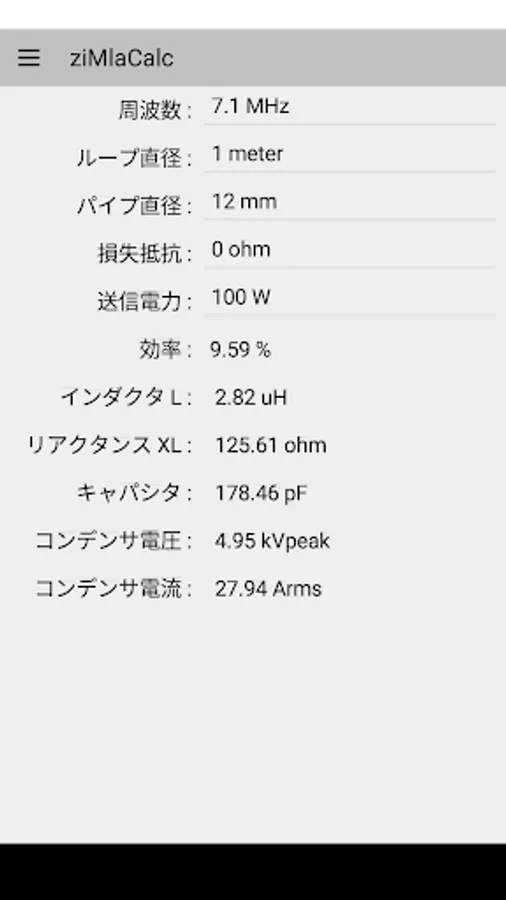

(3) Calculation result
-Radiation efficiency [%]
-Main loop inductance [uH]
-Capacitor capacity required for resonance [pF]
-Voltage across the capacitor [Vpeak]
-Current through the capacitor [Arms]
