2WAY Heating Pad (ESS2WAYBT1.1) User Manual
- Smartphone application temperature control method
The 2WAY heating pad is a hardware developed for the purpose of providing temperature.
Compatible with all models of auxiliary battery for charging smartphones,
You can control the temperature using its own button without a smartphone.
1. How to install the application on your smartphone
Search “solarQ” in Google Play Store, Search “solarQ” in Apple Store
2. Power connection
After application installation is complete,
USB connection of heating pad to portable auxiliary battery,
Check that the battery power LED lights up.
If the light is not on,
Please use it after turning on the battery power button.
3. Power on the switch
After turning on the battery power, press the switch button for about 3 seconds
The LED of the switch lights up.
After lighting, press the button to restore the front and back
Please select a temperature.

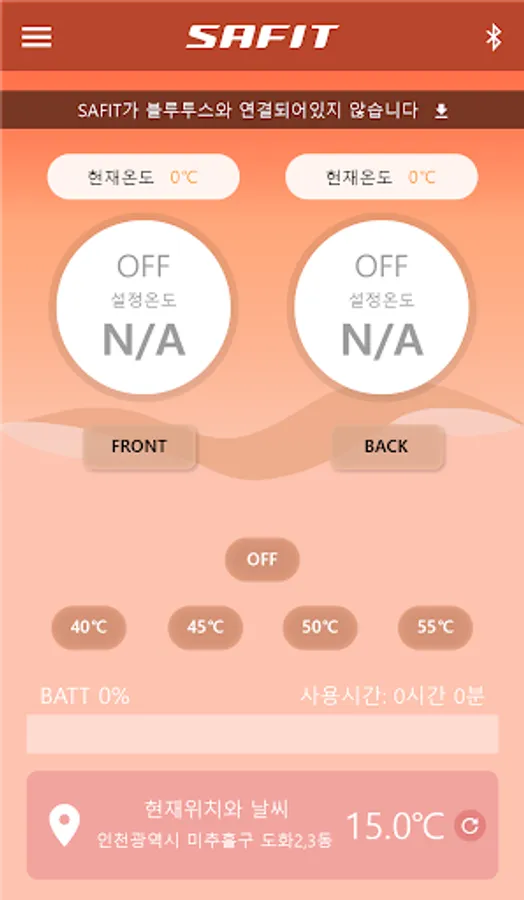

4. Bluetooth (Bluetooth) connection ①
When the switch LED lights up, turn on the Bluetooth function in the smartphone settings and run the installed application.
When the app is first launched, a connection button with a Bluetooth symbol in the center is displayed,
When you press the connect button, a list of nearby devices appears.
Keep the distance from the connected heating pad module within 2M.
(After that, the second connection will connect quickly within about 2-3 seconds.)
※ If connection is not possible, after running the application, touch the connection icon in the middle to connect again.
5. Bluetooth connection ②
After discovering the Bluetooth device,
Select “ESS2WAYBT1.1” in the Bluetooth setting window to complete the connection.
(If “ESS2WAYBT1.1” is not found in the searched device list, search again or
Please start over from step 3.)

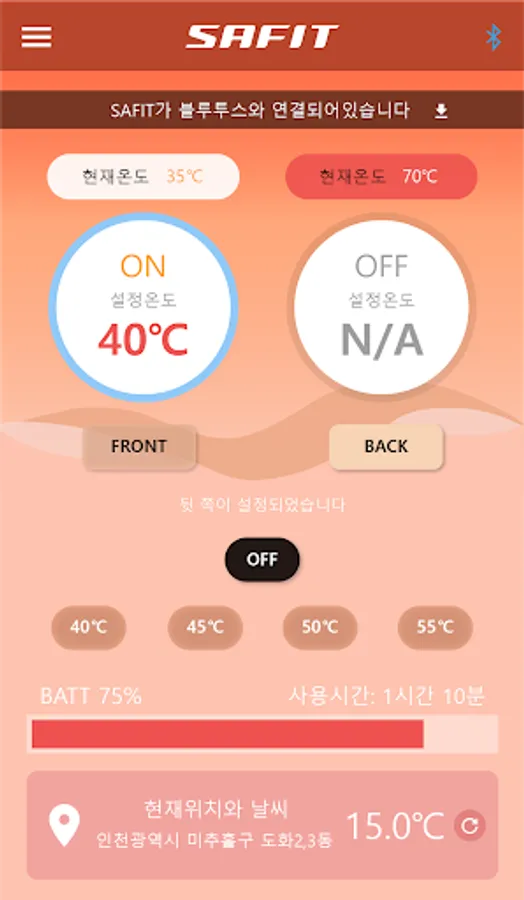

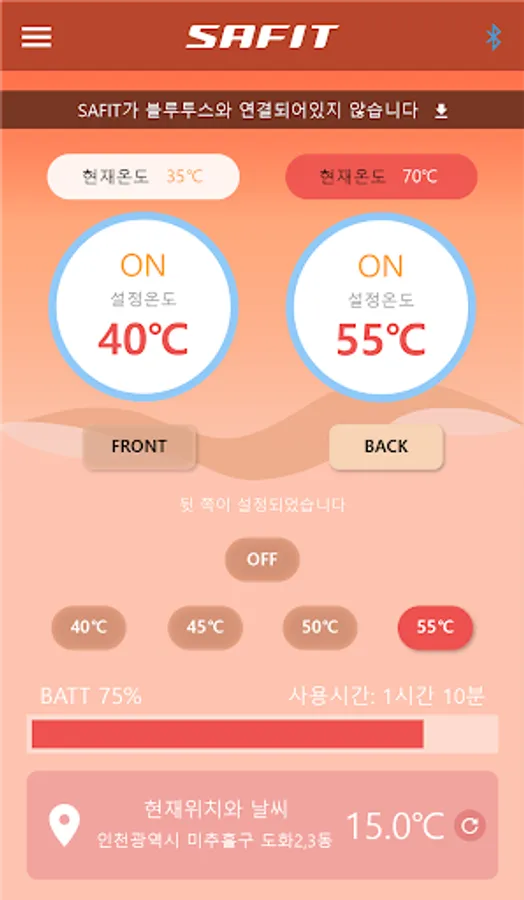

6. Complete Bluetooth setting
Bluetooth setup is complete.
From now on, by touching the icon of the application
40°C, 45°C, 50°C, 55°C Set temperature (40°C to 55°C)
If you touch the power icon, it changes to OFF mode and switches to the pause function,
In this case, the heating function is temporarily stopped.
To restart, touch the desired temperature or touch the OFF icon.
The power icon is activated and the heating function starts.
※ When reusing, if you run the application with the Bluetooth function turned on, it will be automatically connected.
7. Quit the application
Touch the power icon to switch to OFF mode.
Android: When the back key is pressed on the main screen of the app, the exit window appears, click “Yes” to exit
iPhone: Press the home button twice and then slide the application screen up to exit
※ Exit via switch: Press the button on the switch for about 3 seconds to exit.
* How to unpair (initialization)
: If the button is pressed 5 times or more in quick succession after the switch is turned on, all LEDs will blink and the existing connection will be disconnected.
※ Heating vest switch does not allow connection from other mobile devices when the mobile app is connected.
※ To connect from another mobile device, you must unpair the existing connection on the switch to connect.
- Precautions for use
- When storing without using for a long time, use a heating pad and
Remove the battery and store it.
- When washing, remove the heating pad, module, and battery.
- To prevent low-temperature burns, wear them to bed and
Do not use together, and never use it in direct contact with the skin.
- It is recommended to use the original battery supplied with the product.
- We recommend that you use an officially approved charger.

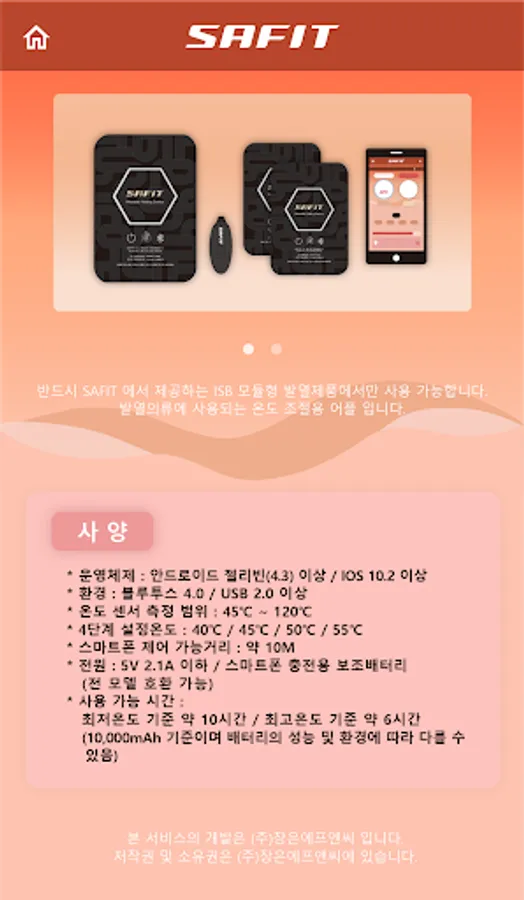

- 2WAY Heating Pad (ESS2WAYBT1.1) Specifications
* APP name: solarQ
* Operating system: Android Jelly Bean (4.3) or higher / iOS 10.2
* Environment: Bluetooth 4.0 / USB 2.0 ~ USB 3.0
* Temperature sensor measuring range: -45°C to 120°C
* 4-step set temperature: 40°C / 45°C / 50°C / 55°C
* Bluetooth connection confirmation display function
* Smartphone controllable distance: Approx. 10M
- Smartphone application temperature control method
The 2WAY heating pad is a hardware developed for the purpose of providing temperature.
Compatible with all models of auxiliary battery for charging smartphones,
You can control the temperature using its own button without a smartphone.
1. How to install the application on your smartphone
Search “solarQ” in Google Play Store, Search “solarQ” in Apple Store
2. Power connection
After application installation is complete,
USB connection of heating pad to portable auxiliary battery,
Check that the battery power LED lights up.
If the light is not on,
Please use it after turning on the battery power button.
3. Power on the switch
After turning on the battery power, press the switch button for about 3 seconds
The LED of the switch lights up.
After lighting, press the button to restore the front and back
Please select a temperature.
4. Bluetooth (Bluetooth) connection ①
When the switch LED lights up, turn on the Bluetooth function in the smartphone settings and run the installed application.
When the app is first launched, a connection button with a Bluetooth symbol in the center is displayed,
When you press the connect button, a list of nearby devices appears.
Keep the distance from the connected heating pad module within 2M.
(After that, the second connection will connect quickly within about 2-3 seconds.)
※ If connection is not possible, after running the application, touch the connection icon in the middle to connect again.
5. Bluetooth connection ②
After discovering the Bluetooth device,
Select “ESS2WAYBT1.1” in the Bluetooth setting window to complete the connection.
(If “ESS2WAYBT1.1” is not found in the searched device list, search again or
Please start over from step 3.)
6. Complete Bluetooth setting
Bluetooth setup is complete.
From now on, by touching the icon of the application
40°C, 45°C, 50°C, 55°C Set temperature (40°C to 55°C)
If you touch the power icon, it changes to OFF mode and switches to the pause function,
In this case, the heating function is temporarily stopped.
To restart, touch the desired temperature or touch the OFF icon.
The power icon is activated and the heating function starts.
※ When reusing, if you run the application with the Bluetooth function turned on, it will be automatically connected.
7. Quit the application
Touch the power icon to switch to OFF mode.
Android: When the back key is pressed on the main screen of the app, the exit window appears, click “Yes” to exit
iPhone: Press the home button twice and then slide the application screen up to exit
※ Exit via switch: Press the button on the switch for about 3 seconds to exit.
* How to unpair (initialization)
: If the button is pressed 5 times or more in quick succession after the switch is turned on, all LEDs will blink and the existing connection will be disconnected.
※ Heating vest switch does not allow connection from other mobile devices when the mobile app is connected.
※ To connect from another mobile device, you must unpair the existing connection on the switch to connect.
- Precautions for use
- When storing without using for a long time, use a heating pad and
Remove the battery and store it.
- When washing, remove the heating pad, module, and battery.
- To prevent low-temperature burns, wear them to bed and
Do not use together, and never use it in direct contact with the skin.
- It is recommended to use the original battery supplied with the product.
- We recommend that you use an officially approved charger.
- 2WAY Heating Pad (ESS2WAYBT1.1) Specifications
* APP name: solarQ
* Operating system: Android Jelly Bean (4.3) or higher / iOS 10.2
* Environment: Bluetooth 4.0 / USB 2.0 ~ USB 3.0
* Temperature sensor measuring range: -45°C to 120°C
* 4-step set temperature: 40°C / 45°C / 50°C / 55°C
* Bluetooth connection confirmation display function
* Smartphone controllable distance: Approx. 10M
