MIT EXACT NFC
This APP is designed to facilitate programming of the new ATT1 family signal transmitters, even in the field.
Thanks to this APP and NFC technology, it is possible to read the configuration of a transmitter, save, modify and send it to one or more transmitters without using plugs, connectors, cables or other things.

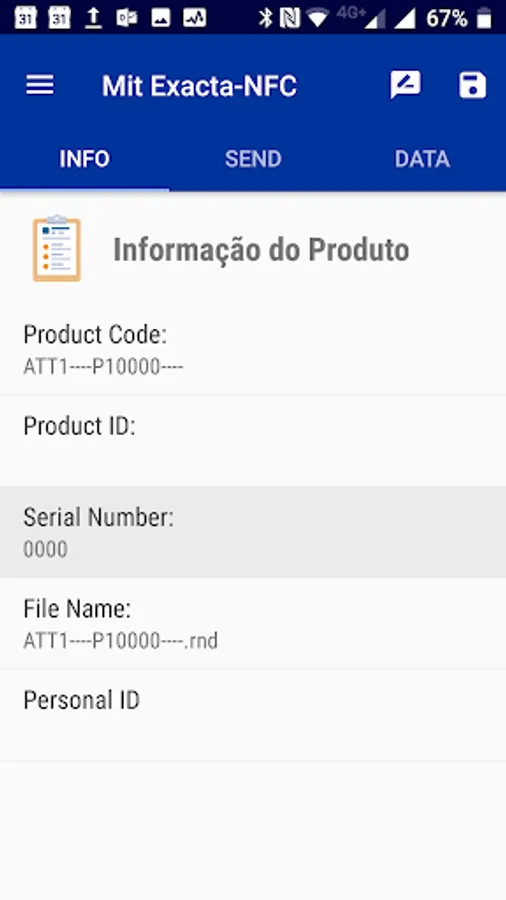

The APP automatically recognizes the device and reads the setting in a few seconds.

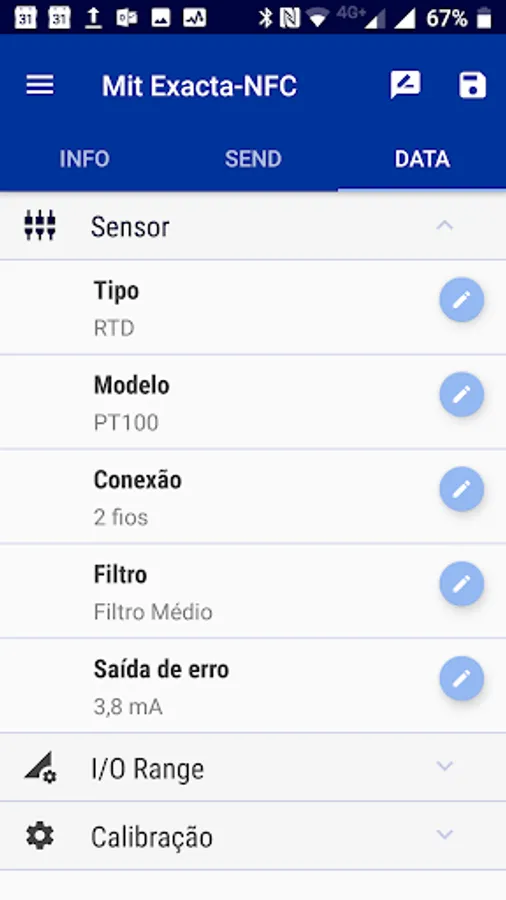

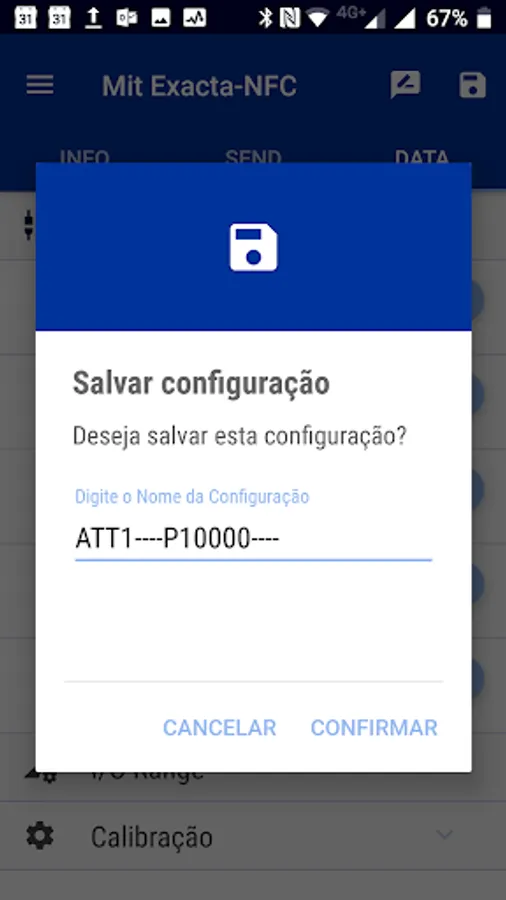

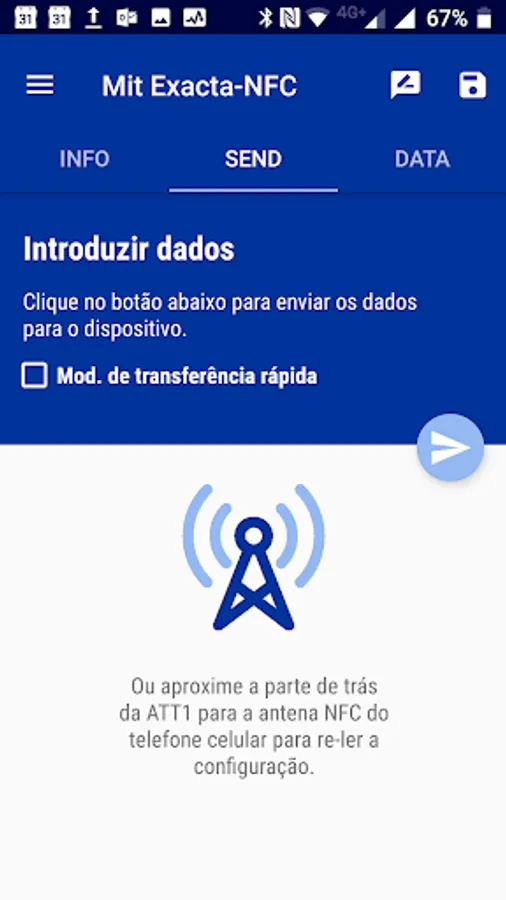

At this point, you can edit, save to your phone, email or copy to another ATT1 the currently stored configuration.
Among the special features is the ability to give the ATT1 device a name (TAG NAME) to identify it within the facility, set the output value that indicates the state of exhaustion, set whether the information will be given in ° C or ° F , set the retransmitted interval and compensate for errors due to the position of the probe by a user calibration procedure or by offset and gain.
The complete application manual can be downloaded from www.ascontecnologic.com / ............................
The ATT1 family of transmitters is capable of converting the signal from:
Thermocouples: B, E, J, K, N, R, S, T.
RTD: Pt100, Pt 1000, Ni 100.
Potentiometers: 0 - 400 Ohm or 0 - 4k Ohm.
Milivolts: -10 to +70 mV
Uncommon among others is the possibility, provided as standard for all users, of creating and storing custom linearization for non-standard (or factory supplied) sensors, whether thermocouples, potentiometers or mV.
MINIMUM SYSTEM REQUIREMENTS
Smartphone equipped with NFC
Operating system: Android 4.4 KitKat or higher.
This APP is designed to facilitate programming of the new ATT1 family signal transmitters, even in the field.
Thanks to this APP and NFC technology, it is possible to read the configuration of a transmitter, save, modify and send it to one or more transmitters without using plugs, connectors, cables or other things.
The APP automatically recognizes the device and reads the setting in a few seconds.
At this point, you can edit, save to your phone, email or copy to another ATT1 the currently stored configuration.
Among the special features is the ability to give the ATT1 device a name (TAG NAME) to identify it within the facility, set the output value that indicates the state of exhaustion, set whether the information will be given in ° C or ° F , set the retransmitted interval and compensate for errors due to the position of the probe by a user calibration procedure or by offset and gain.
The complete application manual can be downloaded from www.ascontecnologic.com / ............................
The ATT1 family of transmitters is capable of converting the signal from:
Thermocouples: B, E, J, K, N, R, S, T.
RTD: Pt100, Pt 1000, Ni 100.
Potentiometers: 0 - 400 Ohm or 0 - 4k Ohm.
Milivolts: -10 to +70 mV
Uncommon among others is the possibility, provided as standard for all users, of creating and storing custom linearization for non-standard (or factory supplied) sensors, whether thermocouples, potentiometers or mV.
MINIMUM SYSTEM REQUIREMENTS
Smartphone equipped with NFC
Operating system: Android 4.4 KitKat or higher.
