With this engineering calculator, you can determine the true position of holes based on dimensions and tolerances. Includes calculations for Radial and Diameter True Position, Basic dimensions, and Maximum Material Condition.
AppRecs review analysis
AppRecs rating 2.9. Trustworthiness 65 out of 100. Review manipulation risk 29 out of 100. Based on a review sample analyzed.
★★☆☆☆
2.9
AppRecs Rating
Ratings breakdown
5 star
30%
4 star
21%
3 star
25%
2 star
3%
1 star
21%
What to know
✓
Low review manipulation risk
29% review manipulation risk
✓
Authentic reviews
Natural distribution, no red flags
About True Position

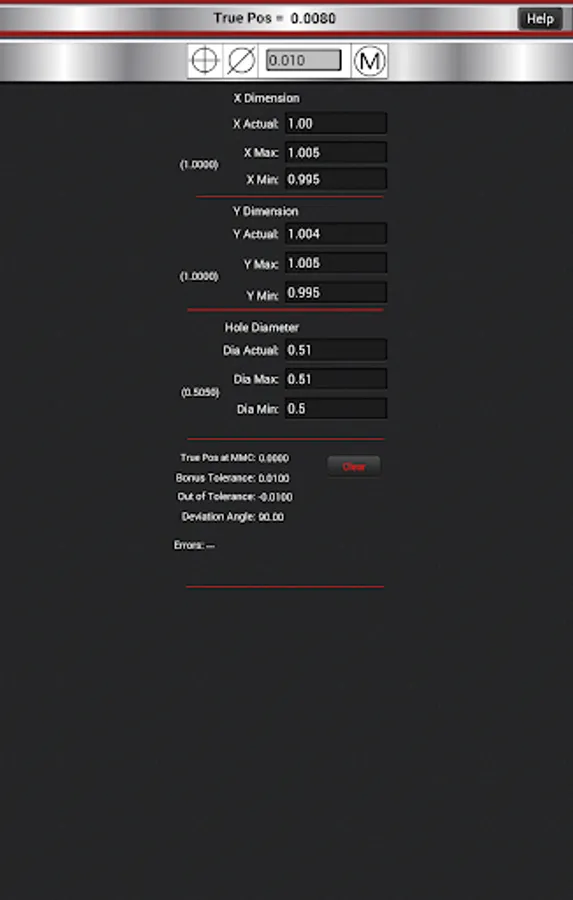

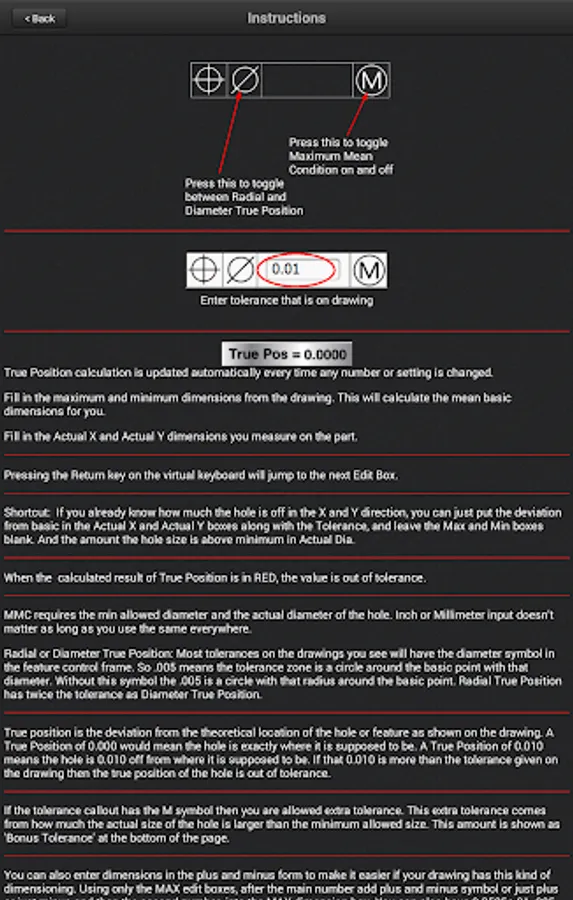

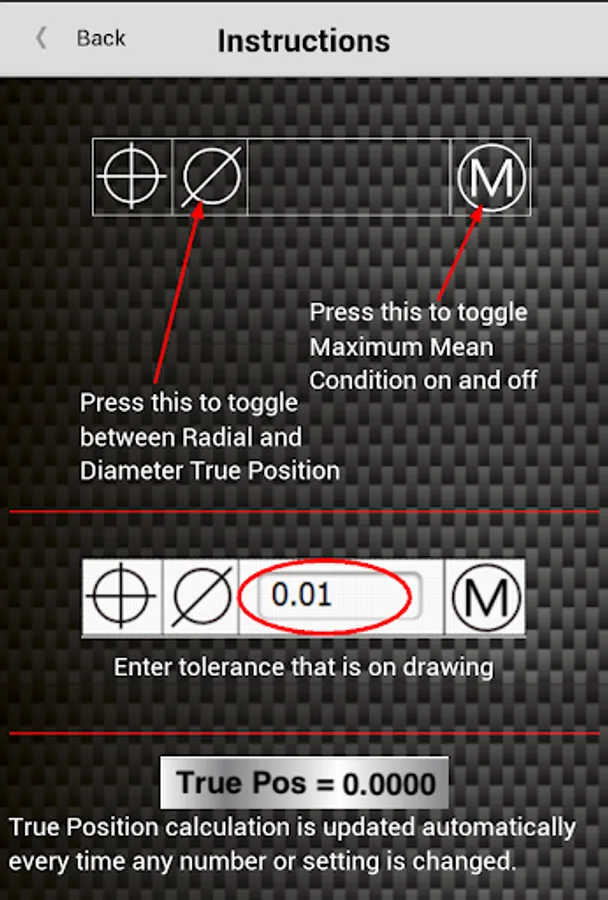

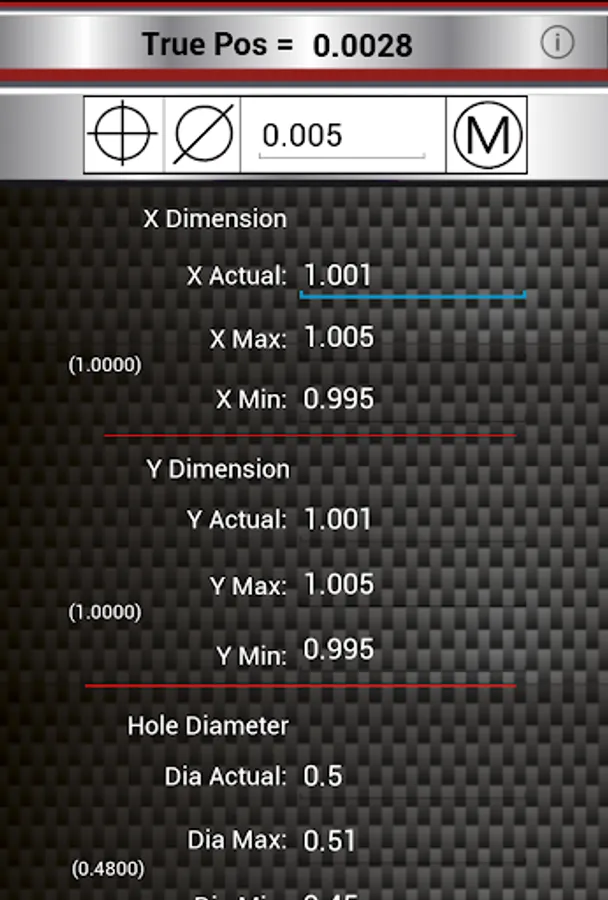

A calculator for finding the true position of holes. Enter the dimensions and tolerances from the engineering drawing.
In manufacturing, this will help you to calculate whether the position of holes meet the required tolerance. Calculates results both with and without Maximum Material Condition.
True position is the deviation from the theoretical location of the hole or feature as shown on the drawing. A True Position of 0.000 would mean the hole is exactly where it is supposed to be. A True Position of 0.010 means the hole is 0.010 off from where it is supposed to be. If that 0.010 is more than the tolerance given on the drawing then the true position of the hole is out of tolerance.
• Calculates Radial and Diameter True Position
• Calculates Basic dimensions
• Calculates Maximum Material Condition

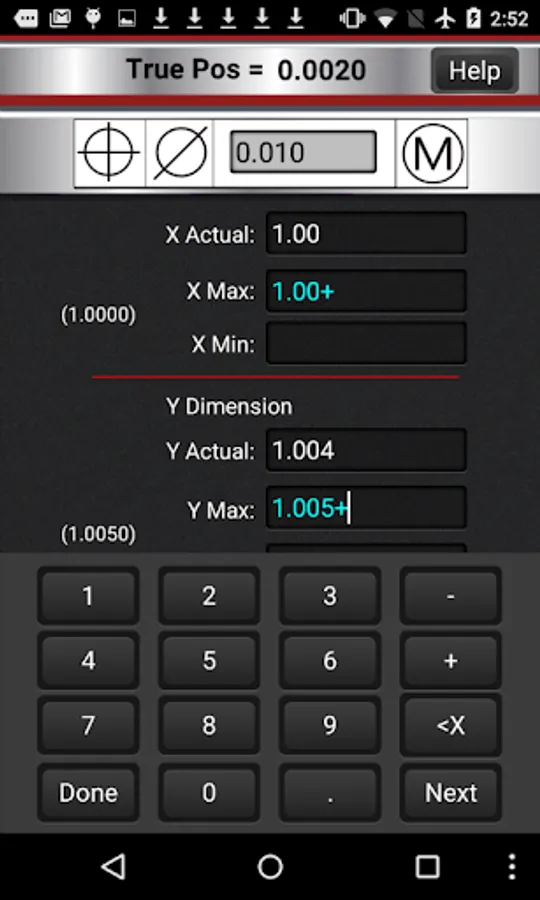

• Includes optional custom keyboard for devices without proper keyboards
Note: Requires ARMv7 and NEON CPU Feature:
You can check your device with the SysCheck app.
See trial version at www.i-logic.com/TruePos/trueposios.htm
In manufacturing, this will help you to calculate whether the position of holes meet the required tolerance. Calculates results both with and without Maximum Material Condition.
True position is the deviation from the theoretical location of the hole or feature as shown on the drawing. A True Position of 0.000 would mean the hole is exactly where it is supposed to be. A True Position of 0.010 means the hole is 0.010 off from where it is supposed to be. If that 0.010 is more than the tolerance given on the drawing then the true position of the hole is out of tolerance.
• Calculates Radial and Diameter True Position
• Calculates Basic dimensions
• Calculates Maximum Material Condition
• Includes optional custom keyboard for devices without proper keyboards
Note: Requires ARMv7 and NEON CPU Feature:
You can check your device with the SysCheck app.
See trial version at www.i-logic.com/TruePos/trueposios.htm
