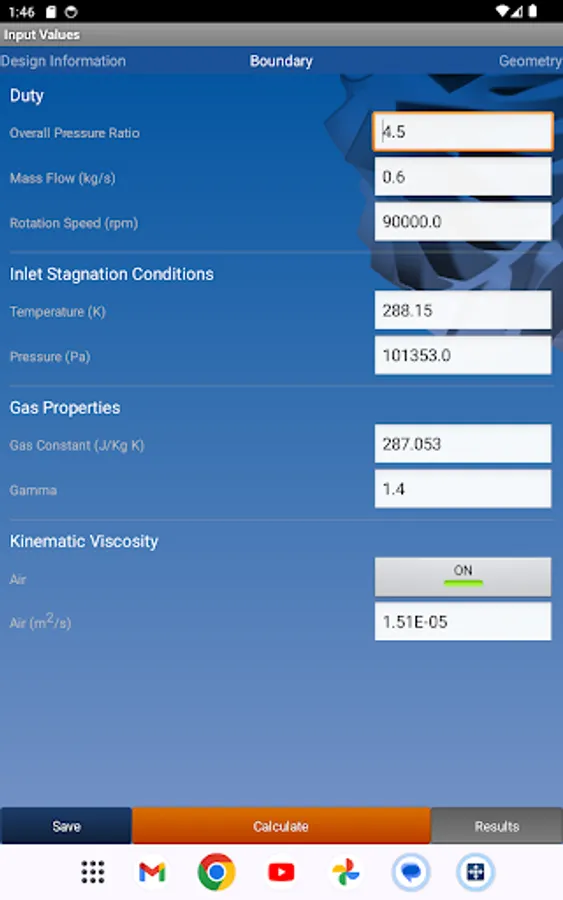

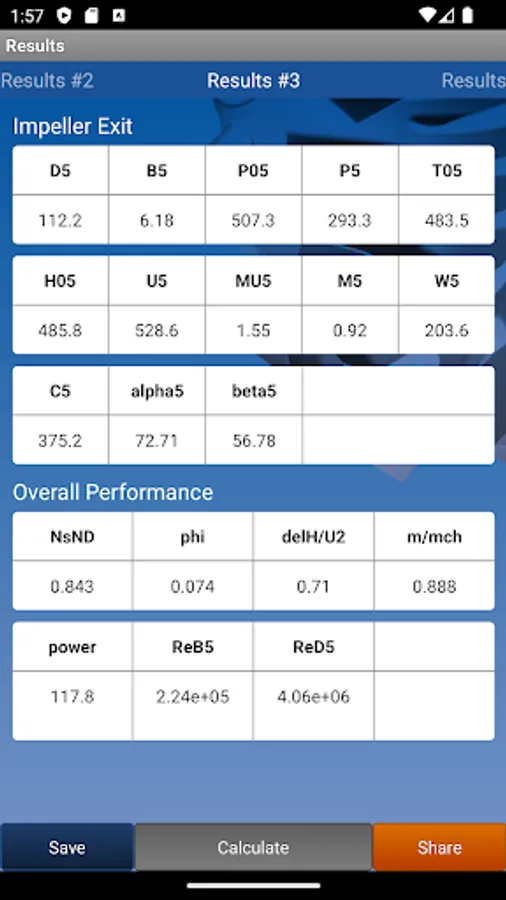

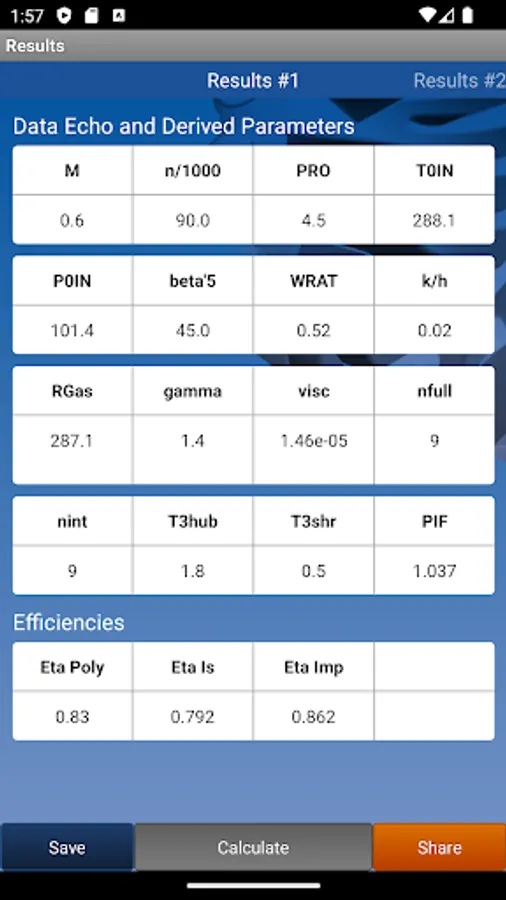

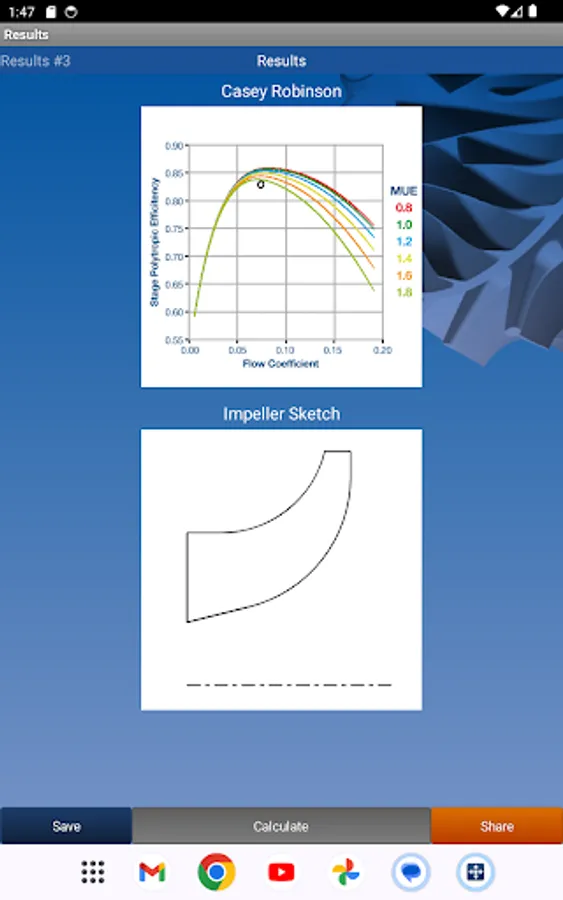

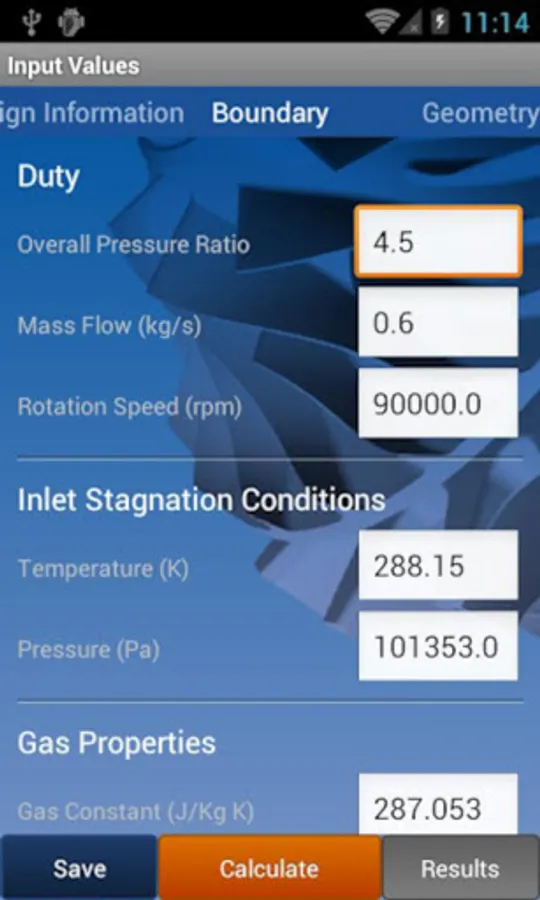

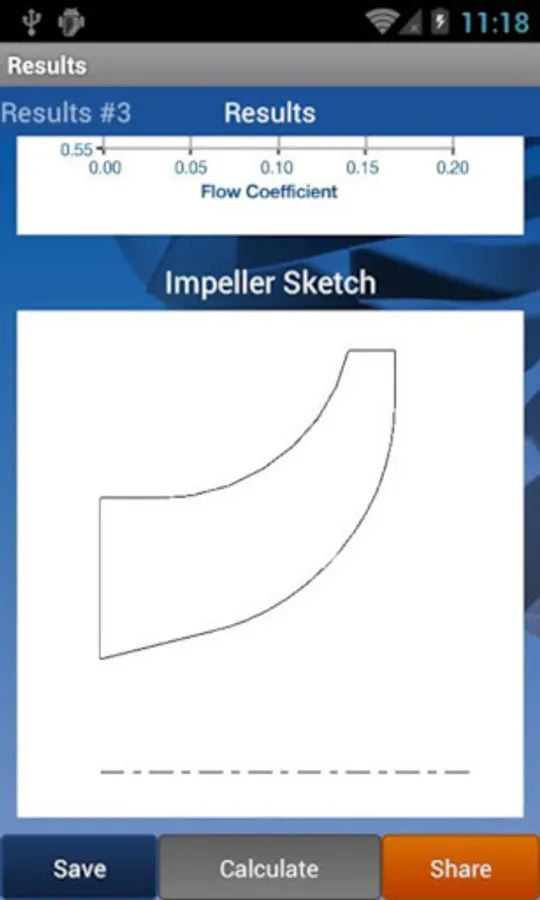

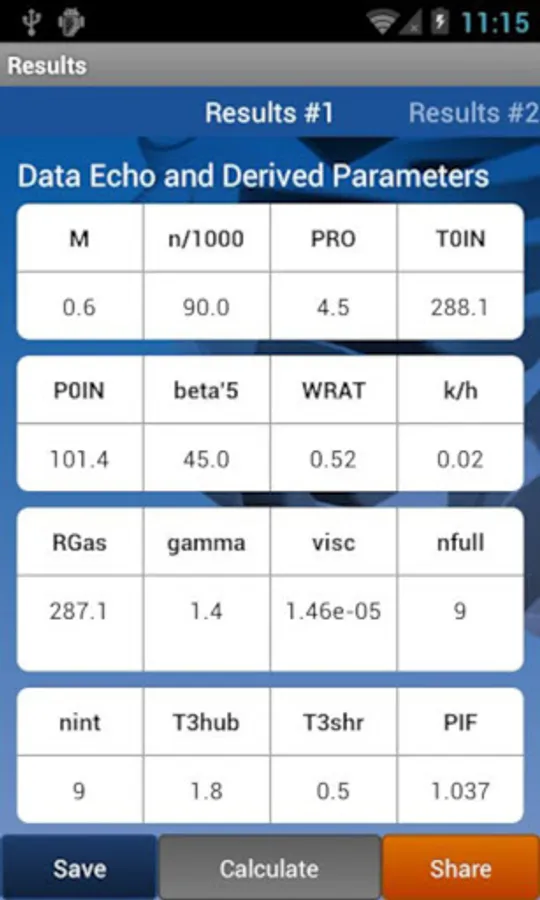

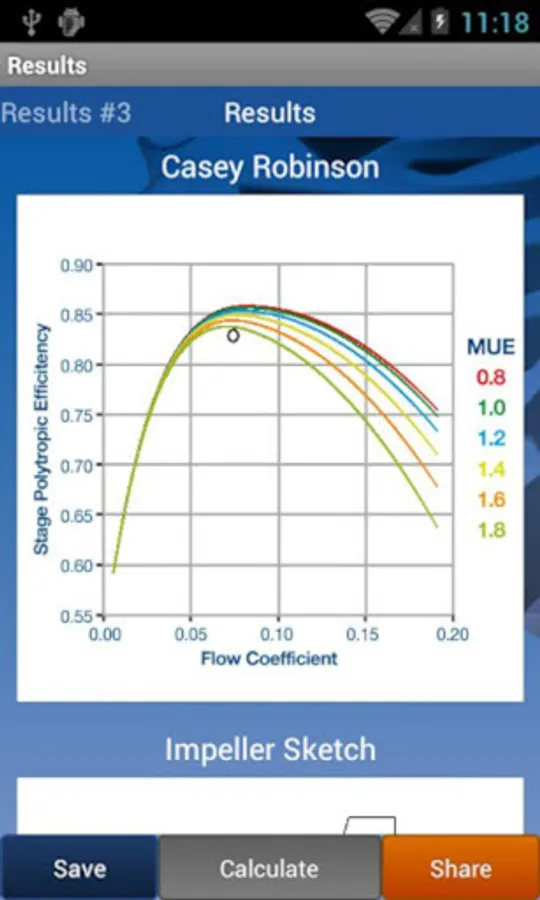

VistaCCD gives users the key dimensions and achievable efficiency for any turbo compressor stage operating with perfect gas. Taking as constraints the target design point performance and gas inlet conditions, VistaCCD performs a meanline design calculation using well-validated empirical relationships for work factor and achievable efficiency, corrected for Reynolds number and tip clearance effects. The user can vary input parameters to optimise performance within specific dimensional constraints, guided by the visual
