Electrotech is a simple and powerful collection of electronics tools and references. This is the free version, which contains ads
The app includes:

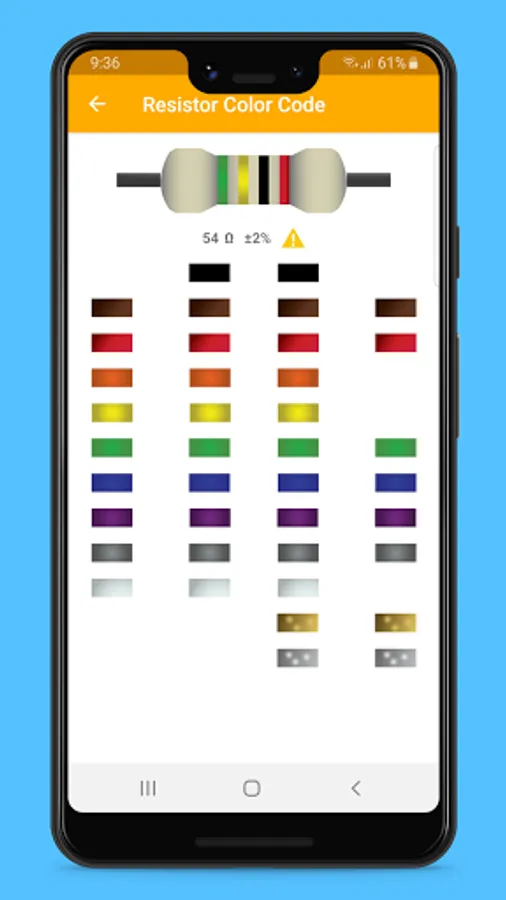

• Resistor Color Code;
• SMD Resistor Code;
• Inductor Color Code;
• Ohm's Law;
• Reactance/Resonance;
• Filters;
• Voltage divider;
• Resistor Ratio;
• Resistor series/parallel;
• Capacitor series/parallel;
• Capacitor charge;
• Operational Amplifier;
• LED Resistor Calculator;
• Adjustable voltage regulator;
• NE555 Calculator;
• Power dissipation;
• Battery Life calculator;
• Inductor Design Tool;
• Voltage Drop Calculator;
• PCB Trace Width Calculator;
• Power Calculator;
• Frequency Converter;
• Analog-Digital Converter;

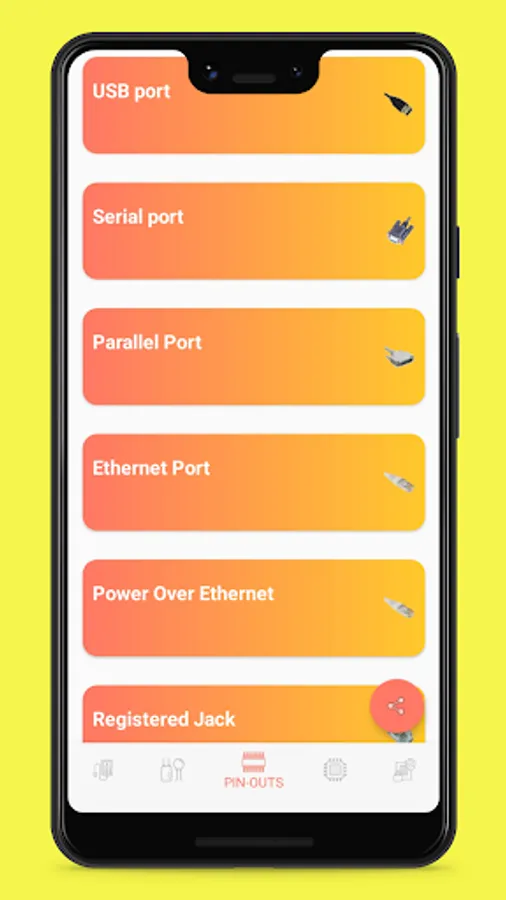

• Port pin-out (USB port, Serial port, Parallel port, Ethernet port, Registered Jack, SCART connector, DVI connector, HDMI connector, Display Port, VGA connector, S-Video connector, Jack connector, FireWire connector, RCA connector, Audio DIN connector, XLR and DMX, ATX Power connectors, EIDE/ATA - SATA, PS/2-AT connectors, 25-pair cable color code, Fiber Optic cable color, MIDI connector, Apple Lightning connector, OBD-II Car connector, Car audio ISO connector, Arduino boards);
• Resources (PIC ICSP / AVR ISP, ChipDB (IC pinouts), USB specifications, Resistivity Table, AWG-SWG Wire Size, Ampacity Table, Standard Resistors, Standard Capacitors, Capacitor marking codes, Circuit Schematic symbols, Symbols and Acronyms, SI Units prefixes, ASCII Table, Boolean Logic gates, Switch Information, 78xx IC, Batteries, Coin Batteries, Decibel Table, Radio frequencies);
• Full support for EIA resistor series for all calculators;
...and more to come!
These are the extra calculators and pinouts available Lookup Resistor color by value, Zener Diode Calculator, Y-Δ Transformation, Decibel Converter, RMS Converter, Range Converter, Power Over Ethernet, VESA Connector, PC peripheral connectors, MIDI/Game port, Apple 30-pin connector, PDMI, Trailer connectors, SD card pin-out, SIM/Smart card, Raspberry Pi pin-out, LCD pin-out, GPIB/IEEE-488 pin-out, Thermocouples colors, Arduino boards, JTAG pinouts, BeagleBone boards, SMD Package Sizes, 7400 series IC, PT100 Conversion Table, Fuses color code, Automotive Fuses colors, DIN 47100 color coding, IP marking, World Plugs & Sockets, IEC Connectors, NEMA connectors.
