All Charts (Beta)

This App is designed for electrical engineers & electricians who are in the construction industry.

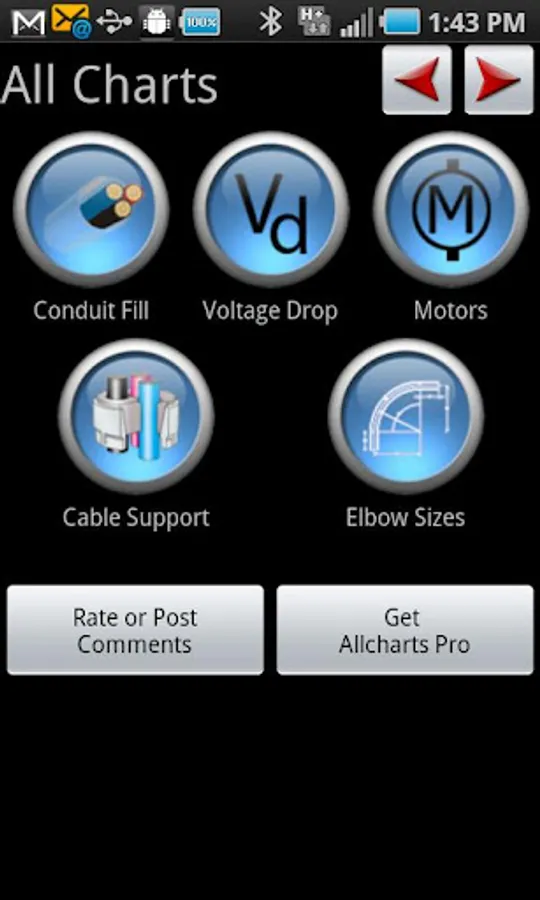

This App has 5 sections

Conduit Fill:
Calculates the percentage fill for mixed THHN insulated copper conductors in various types of conduits.

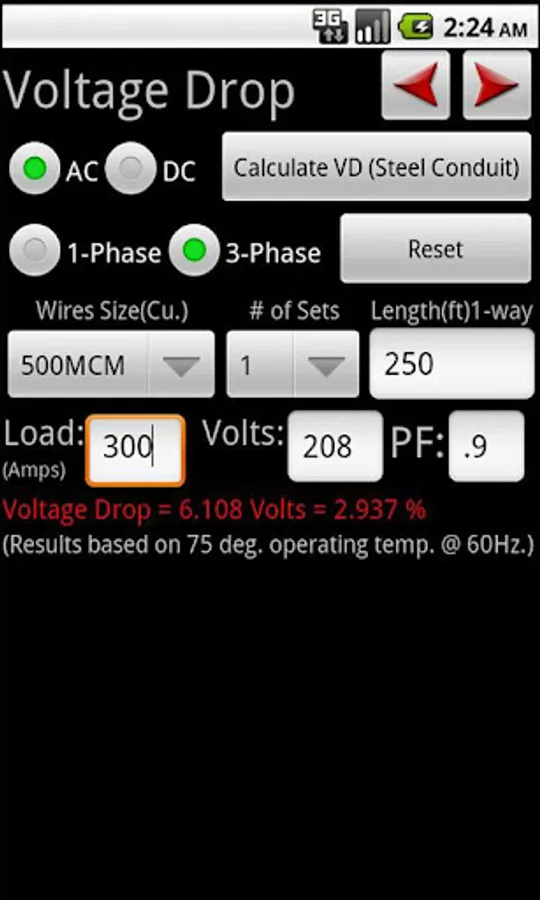

Voltage Drop:
Calculates the voltage drop for single & three phase systems with power factor (Unity & Lagging)

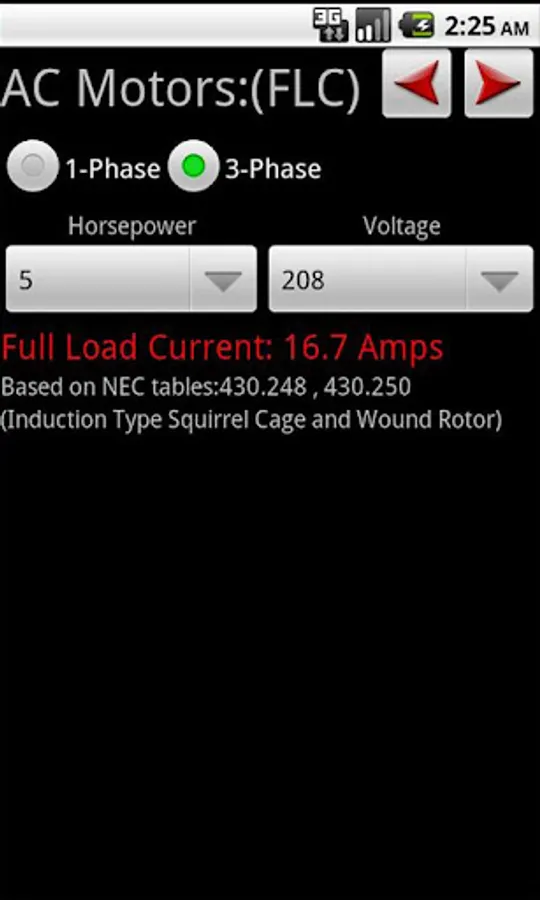

AC Motor full load current finder:
Helps you quickly find AC motor full load currents from NEC tables:430.248, 430.250

Cable support table

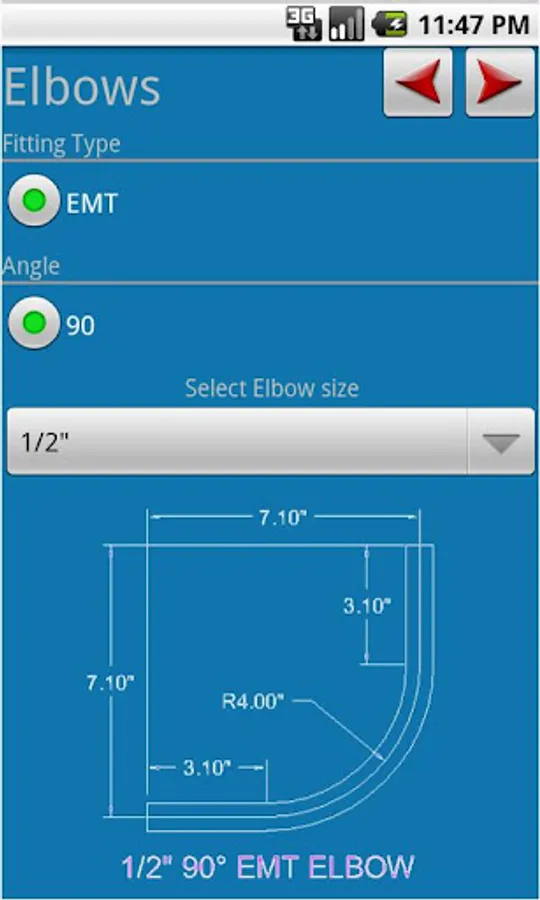

Elbow dimensions
