About MESUREFC by 4NRJ

Measuring unit by laser profilometry for catenary contact wire

Application domain :

Measure the thickness of the catenary contact wire, simply and quickly from the ground with the MESUREFC tool and save your data on your application.

Benefits :

• Fast and efficient catenary contact wire installation system.
• Lightweight device allows measurement in inaccessible areas (stations and marshalling areas).
• Data recovery and recording on smartphones via the MESUREFC mobile application.
• Mobile system on the contact wire.
• Quick assembly with a SNCF standardized catenary pole.
• Wire spreader provided for the 1500V network.
• Telephone support positioned on the pole at breast height.

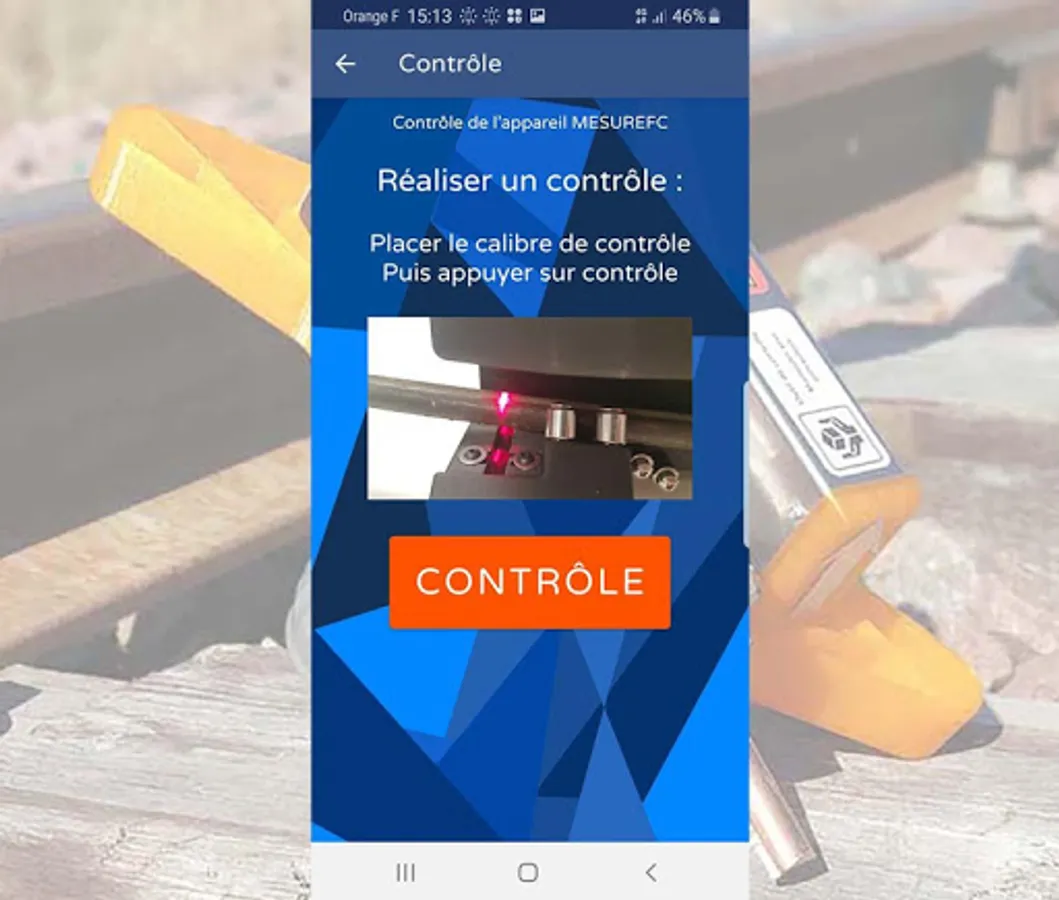

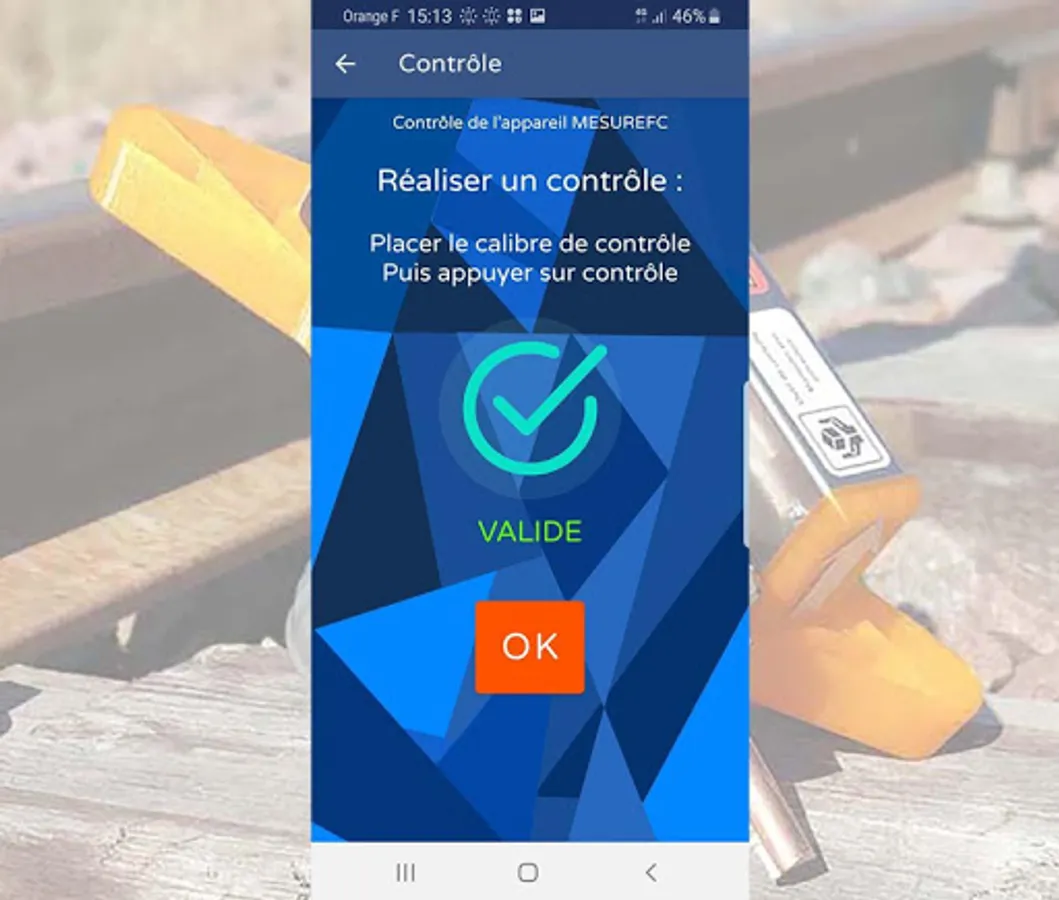

• Control gauge for periodic verification.

Characteristics :

>>> Measuring tool >>>
• Dimensions: 245 x 167 x 180 mm
• Weight: 1.5 Kg
• Measuring range: 2 mm to 20 mm
• Measuring accuracy: ± 0.05 mm Ø wire <12 mm & ± 0.08 mm Ø wire> 12 mm

>>> Phone support >>>
• Weight: 165 g
• Clips on pole Ø 45
• For smartphones: 55 mm to 100 mm (width)

>>> Composition of the kit >>>
• Measuring tool: MESUREFC
• Handling poles: PI56 x 2
• Thread spreader tool: ECARTFIL
• Telephone support: SUPTEL
• Pole transport bag: SPI
• Suitcase for protection and transport of equipment: VALMESUREFC

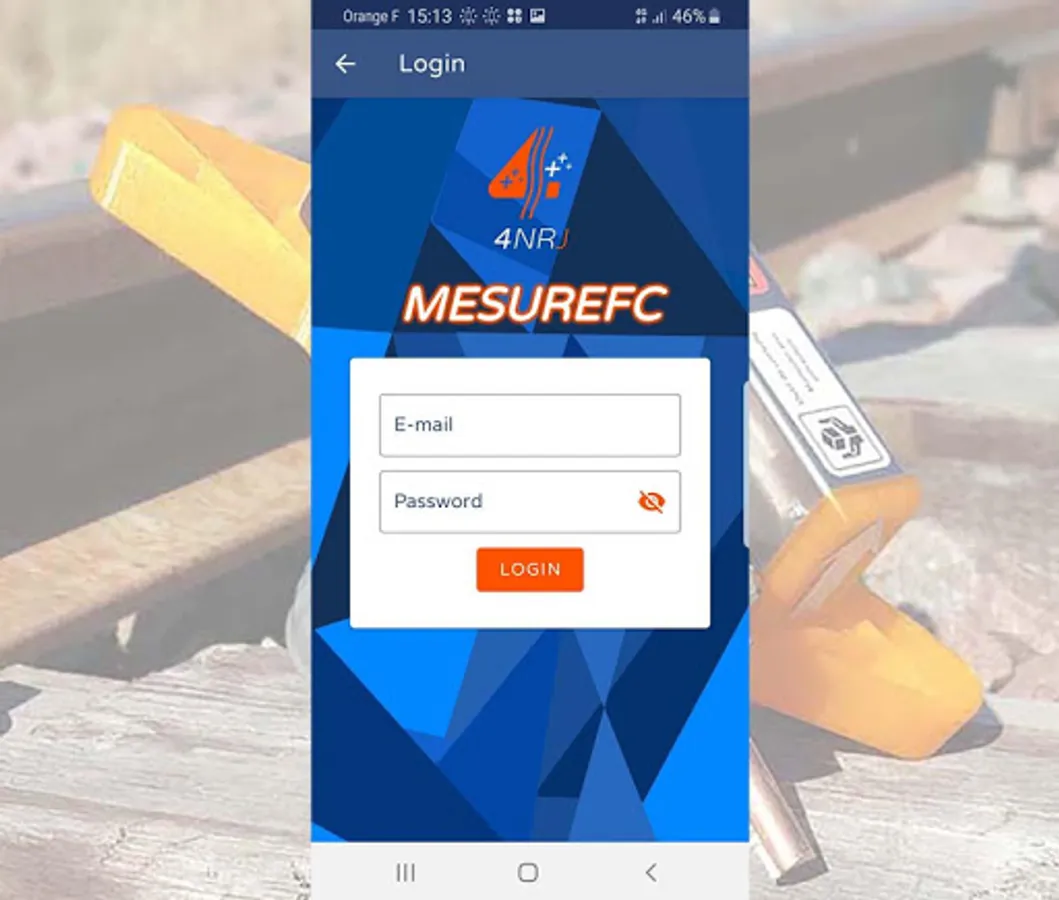

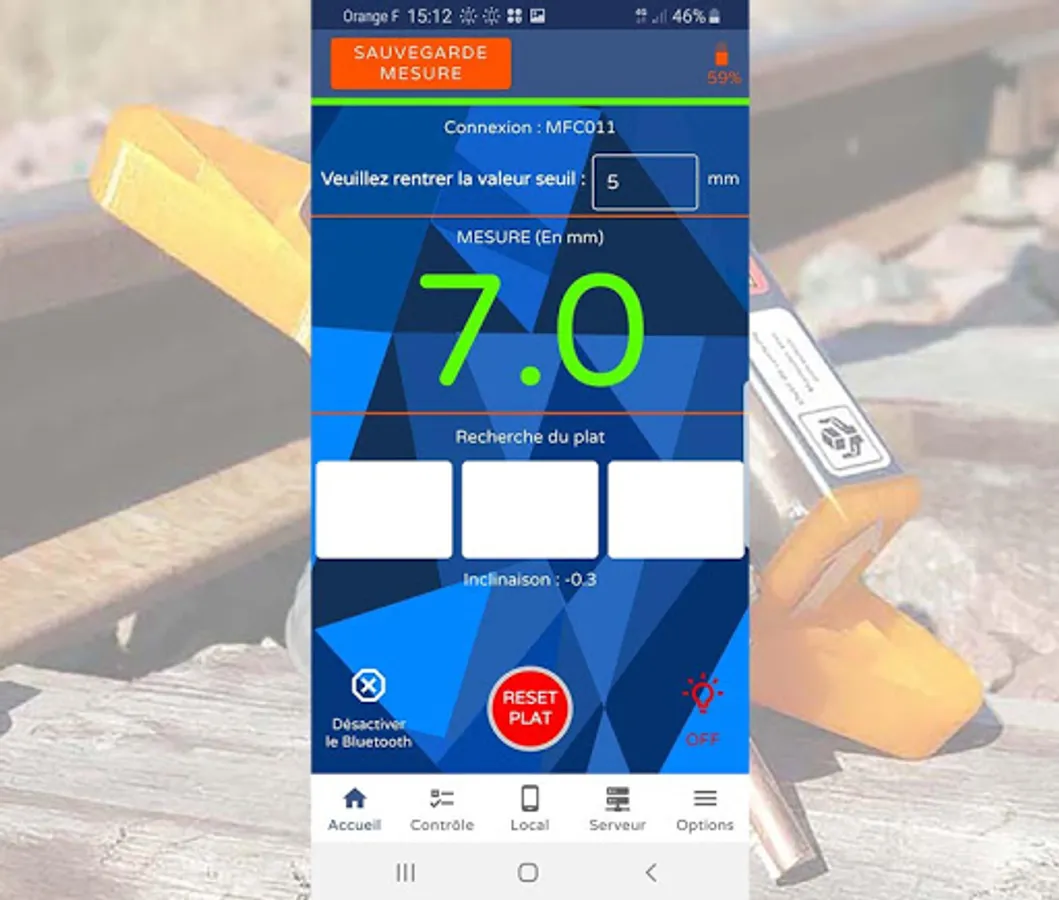

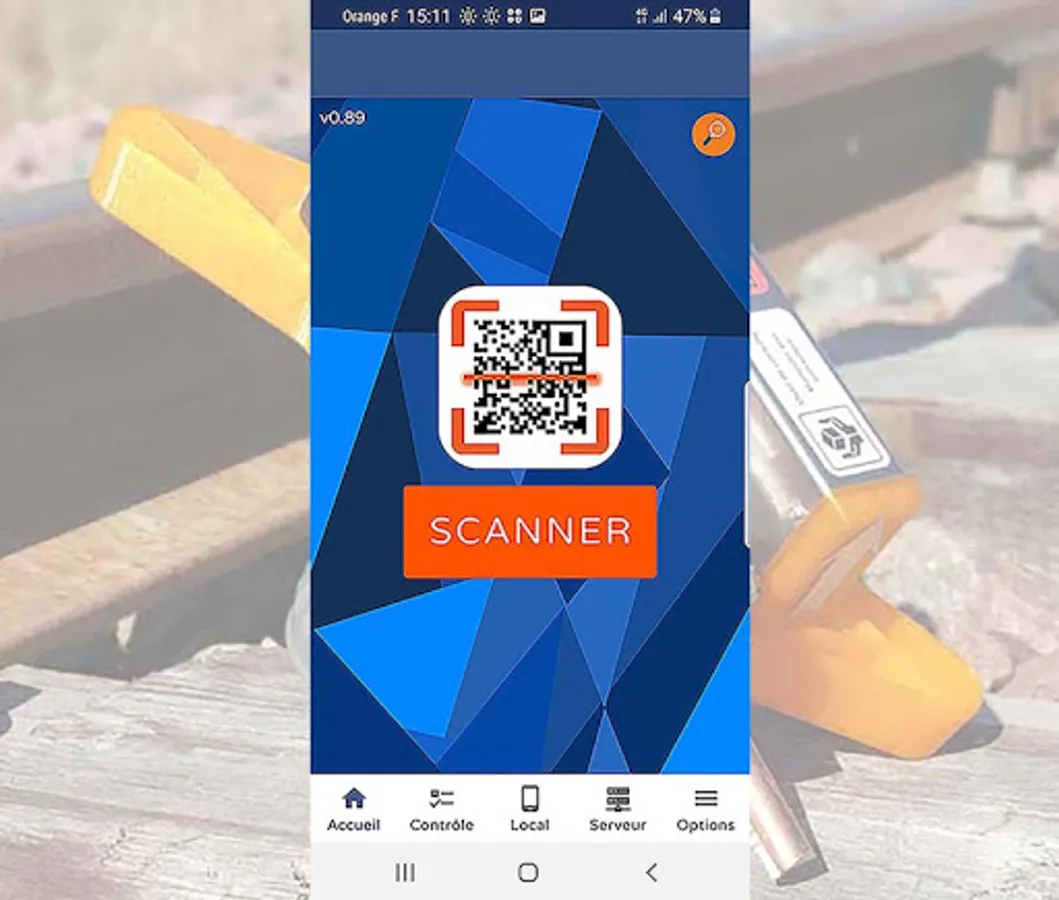

MESUREFC by 4NRJ Screenshots
