Calculadora Nodo Electrónico

This application will serve as a tool for the analysis of electronic circuits, including circuits with Operational Amplifiers, Transistors, Dividers and more.

Important: Access to all circuits of this application is a benefit of the Electronic Node subscription.

For more information:
https://plataforma.nodoelectronico.com/suscripcion

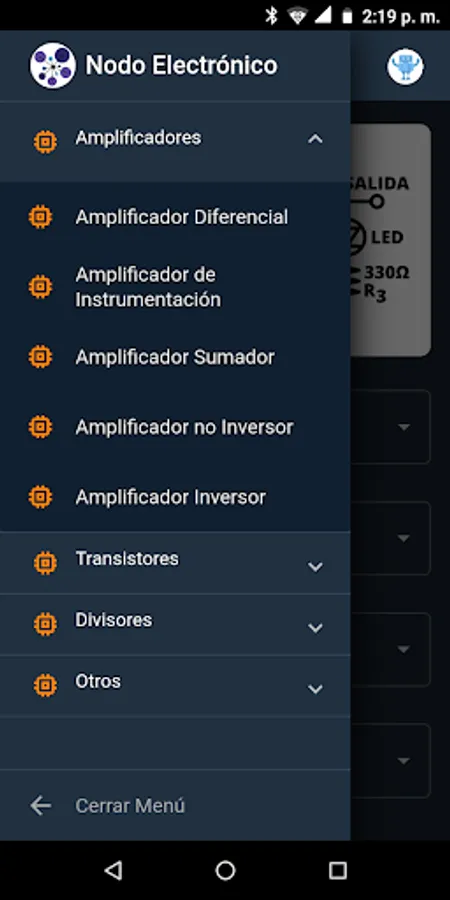

Available circuits:

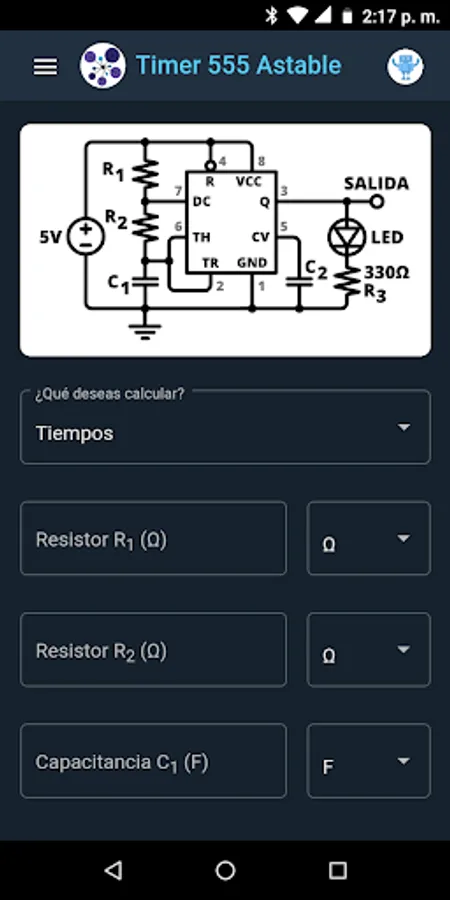

- Timer 555 Stable
- Capacitance
- Ohm's law
- Parallel resistors
- Resistivity

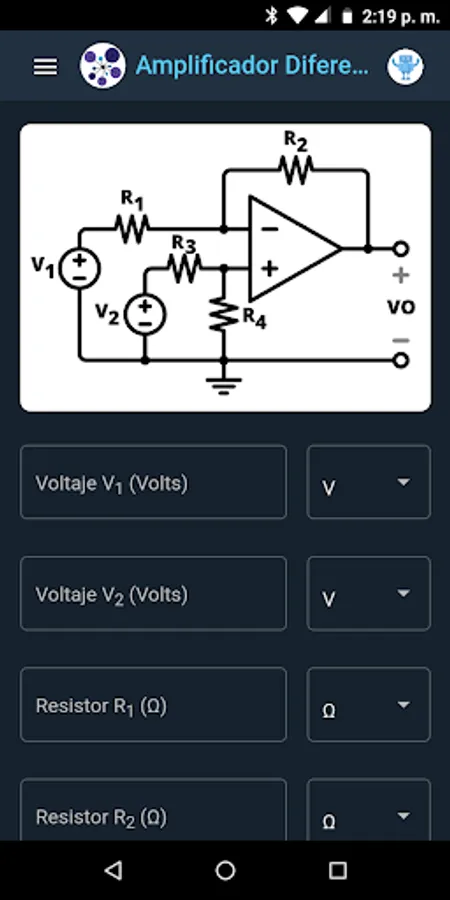

- Differential Amplifier
- Instrumentation Amplifier
- Adding Amplifier
- Non-inverting amplifier
- Inverter amplifier
- Common Base Transistor
- Transistor Emitter Follower
- Voltage Divider Polarization Transistor
- Transmitter Polarization Emitter
- Fixed Polarization Transistor
- Collector Feedback Transistor
- Voltage Divider
- Current Divider
