The application is designed to update the software of the interface board of the TYUNAVTO virtual instrument cluster.
To update:
1. Turn on the car ignition
2. Provide internet connection
3. Connect an external keyboard
4. Install the application on the motherboard of the instrument cluster.
5. Press and hold for 35 seconds two buttons on the steering column switch of the car until the instrument cluster is reset and release the buttons (after turning off the display, keep the buttons pressed for another 5 seconds).
6. Wait for the instrument cluster to load and exit the Vision application ("Esc" button).
The lack of reaction of the steering column keys confirms that the panel has entered the download mode.

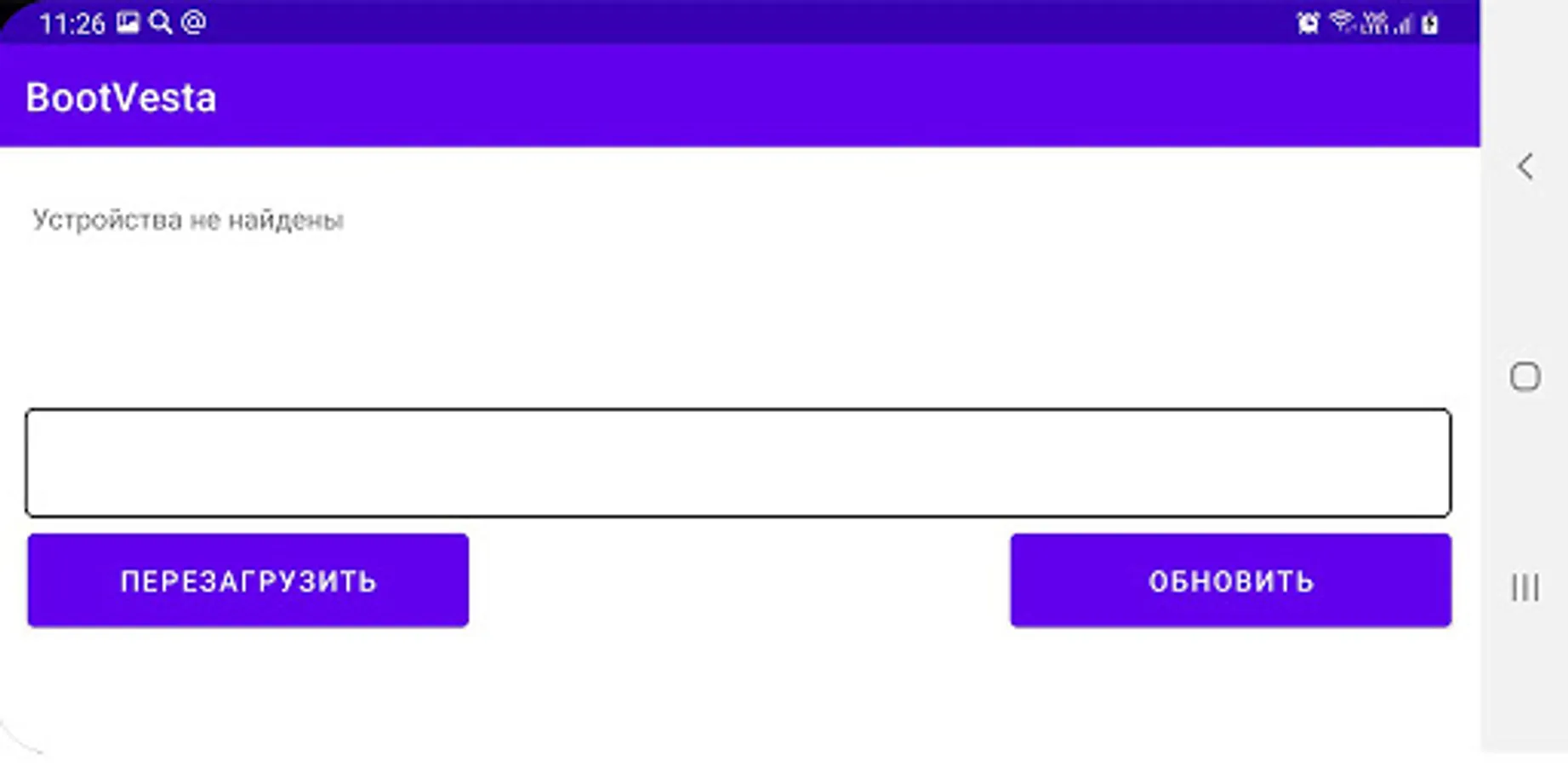

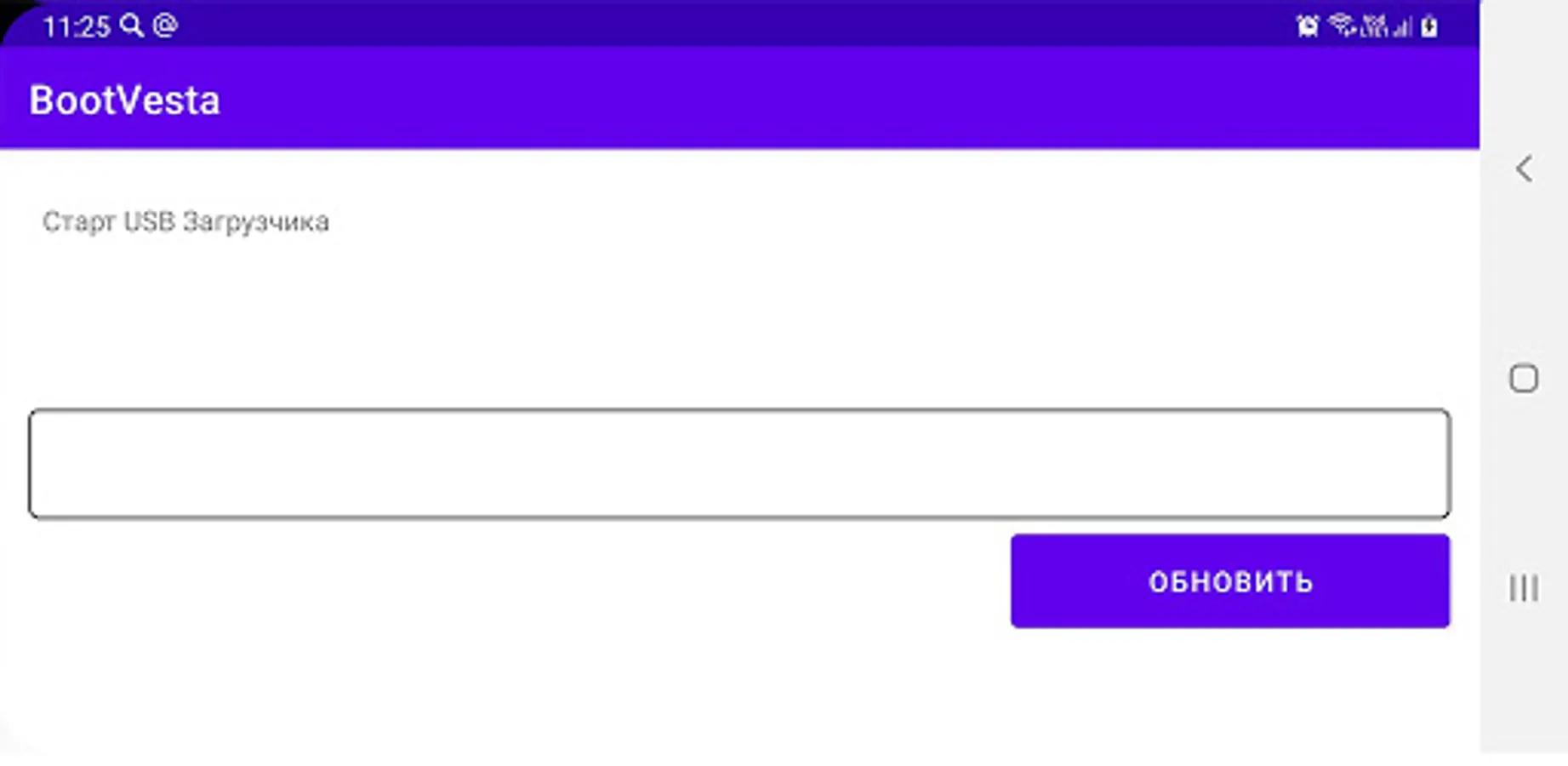

7. Run the boot_1_XX application
8. Press the REFRESH button
9. Wait for the installation progress indicator to complete (it will pass twice with a green indicator).
10. The message "DOWNLOAD COMPLETED" will appear.
11.Press the "RELOAD" button. Android will restart and launch
In BootVesta 1.24:
* Fixed a bug with switching to sleep mode after waking up from full shutdown mode.
******
In BootVesta version 1.22:
* Removed display power management. (White screen issue)
******
In BootVesta 1.21:
* Changed sending from hours to minutes for correct operation of Vision 1.7.
******
In BootVesta version 1.20:
* Fixed update file bug.
******
In BootVesta version 1.19:
* Changing the moment of turning on the Android board.
******
In BootVesta 1.18:
* Changed the algorithm for rebooting the system from the buttons on the steering column switch.
******
In BootVesta 1.17:
* Minor fixes
******
In BootVesta version 1.16:
* Version for all types of gearboxes, including CVT
******
In BootVesta 1.15:
* Turn off the display when starting the engine.
******
In BootVesta version 1.14:
* Reduced standby power consumption with active bus.
* Save mileage, consumption and travel time.
******
In BootVesta version 1.13:
* Disabled flat tire function
******
In BootVesta 1.12:
* Adaptation of the oil pressure indicator for vesta with a variator
* Reduced power consumption
******
In BootVesta 1.11:
* Correction of messages on the CAN bus
******
In BootVesta 1.10:
* Optimized CAN bus exchange
******
In BootVesta 1.9:
* Improved message block on the bus from the instrument cluster
******
In BootVesta 1.8:
* Improved fuel level measurement
******
In BootVesta 1.7:
* Optimized CAN bus exchange
******
In BootVesta 1.6:
* Changed algorithm for measuring fuel level
******
In BootVesta 1.5:
* Optimized fuel level measurement
* Adjusted calculation of fuel consumption
******
In BootVesta 1.4:
* Added indication of an unfastened front passenger seat belt.
* Fixed the problem of the lack of backlight in the climate control unit
******
To update:
1. Turn on the car ignition
2. Provide internet connection
3. Connect an external keyboard
4. Install the application on the motherboard of the instrument cluster.
5. Press and hold for 35 seconds two buttons on the steering column switch of the car until the instrument cluster is reset and release the buttons (after turning off the display, keep the buttons pressed for another 5 seconds).
6. Wait for the instrument cluster to load and exit the Vision application ("Esc" button).
The lack of reaction of the steering column keys confirms that the panel has entered the download mode.
7. Run the boot_1_XX application
8. Press the REFRESH button
9. Wait for the installation progress indicator to complete (it will pass twice with a green indicator).
10. The message "DOWNLOAD COMPLETED" will appear.
11.Press the "RELOAD" button. Android will restart and launch
In BootVesta 1.24:
* Fixed a bug with switching to sleep mode after waking up from full shutdown mode.
******
In BootVesta version 1.22:
* Removed display power management. (White screen issue)
******
In BootVesta 1.21:
* Changed sending from hours to minutes for correct operation of Vision 1.7.
******
In BootVesta version 1.20:
* Fixed update file bug.
******
In BootVesta version 1.19:
* Changing the moment of turning on the Android board.
******
In BootVesta 1.18:
* Changed the algorithm for rebooting the system from the buttons on the steering column switch.
******
In BootVesta 1.17:
* Minor fixes
******
In BootVesta version 1.16:
* Version for all types of gearboxes, including CVT
******
In BootVesta 1.15:
* Turn off the display when starting the engine.
******
In BootVesta version 1.14:
* Reduced standby power consumption with active bus.
* Save mileage, consumption and travel time.
******
In BootVesta version 1.13:
* Disabled flat tire function
******
In BootVesta 1.12:
* Adaptation of the oil pressure indicator for vesta with a variator
* Reduced power consumption
******
In BootVesta 1.11:
* Correction of messages on the CAN bus
******
In BootVesta 1.10:
* Optimized CAN bus exchange
******
In BootVesta 1.9:
* Improved message block on the bus from the instrument cluster
******
In BootVesta 1.8:
* Improved fuel level measurement
******
In BootVesta 1.7:
* Optimized CAN bus exchange
******
In BootVesta 1.6:
* Changed algorithm for measuring fuel level
******
In BootVesta 1.5:
* Optimized fuel level measurement
* Adjusted calculation of fuel consumption
******
In BootVesta 1.4:
* Added indication of an unfastened front passenger seat belt.
* Fixed the problem of the lack of backlight in the climate control unit
******
