SimTunnel is designed to perform a quick tunnel analysis on your phone device. SimTunnel is very simple and easy to use. SimTunnel uses "rock-support interaction" or "convergence-confinement" method to estimate the deformation of circular tunnels in weak rock, and visualizing the tunnel interaction with various support systems.
SimTunnel has the following features:
- SimTunnel determines Factor of Safety (FOS) as the ratio of maximum support pressure to the support pressure required for equilibrium.

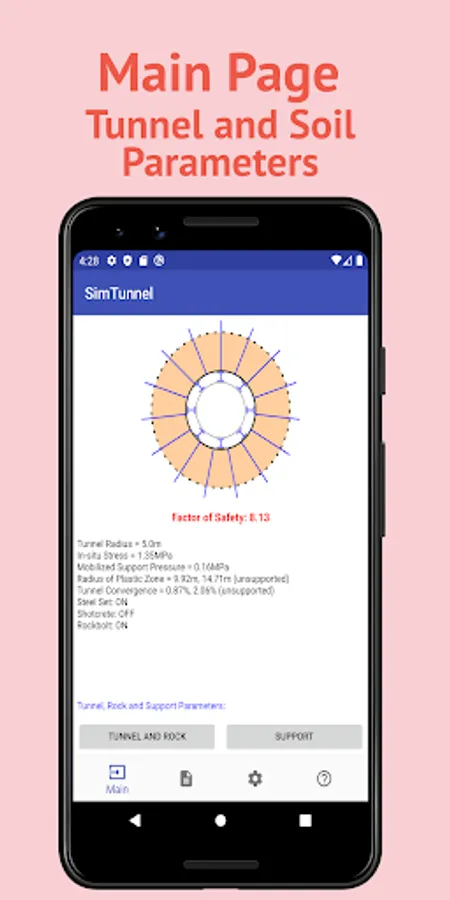

- The Tunnel and Rock Parameters dialog allows you to define the tunnel and rock properties for model.

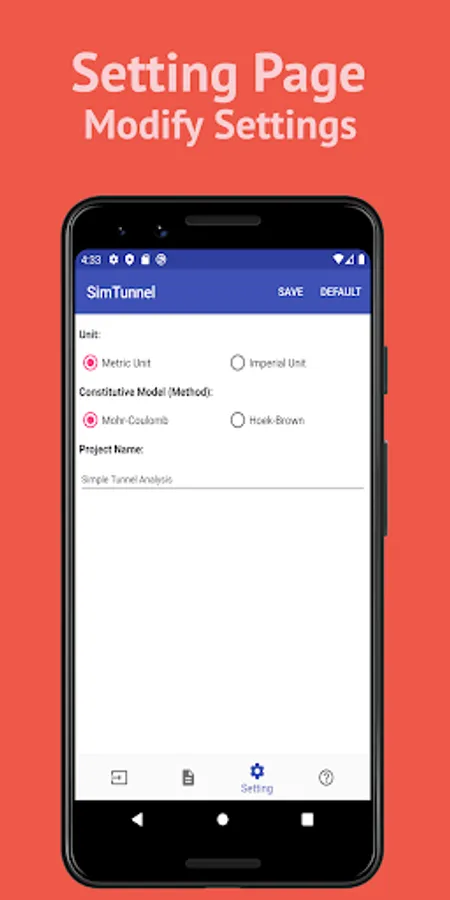

- The Strength Properties which are required will depend on the strength criteria you have selected in Setting Page.

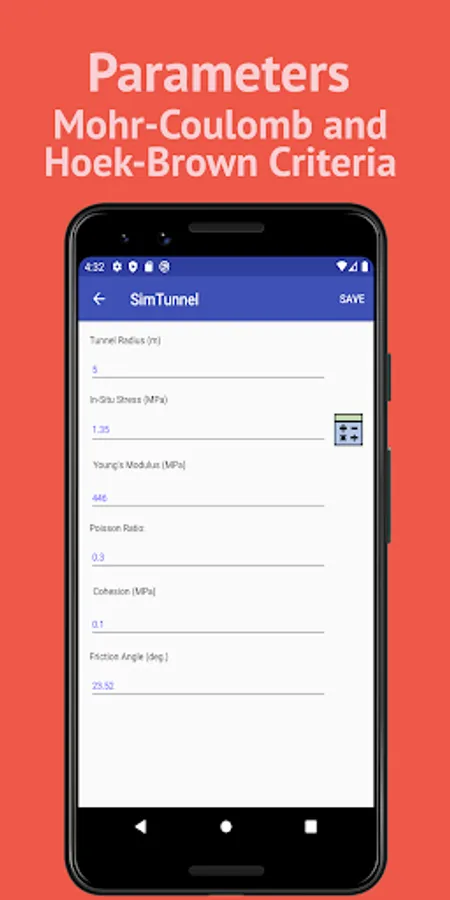

- Both Mohr-Coulomb and Hoek-Brown strength criteria are available.
- The parameter calculator dialogs are available to help you to calculate some of the parameters (i.e. GSI, mi, D, UCS, insitu stress and etc).

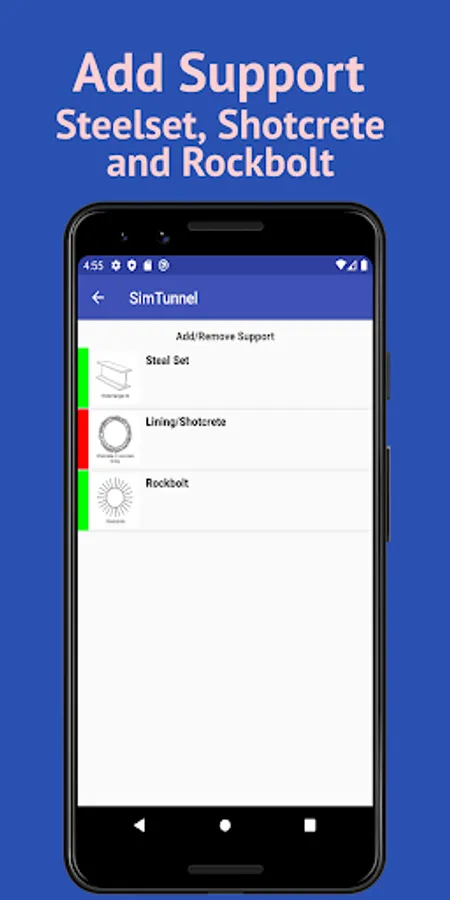

- The support parameters dialog allows you to easily add support and define the support properties for the model.

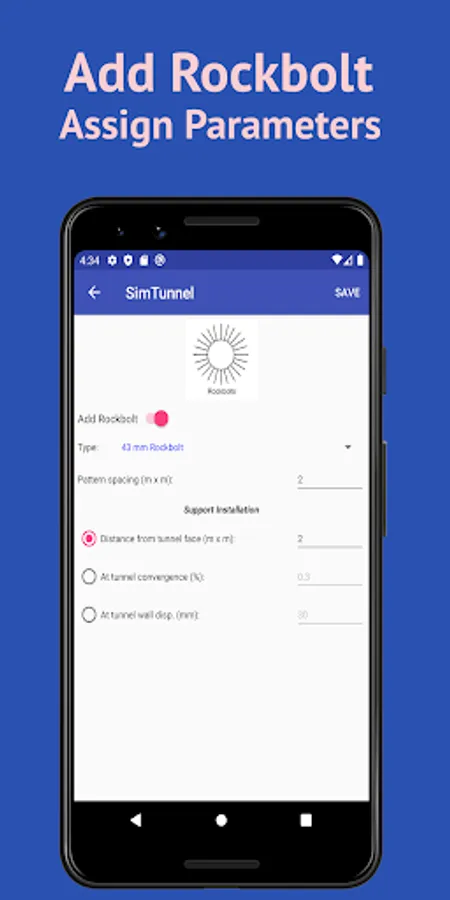

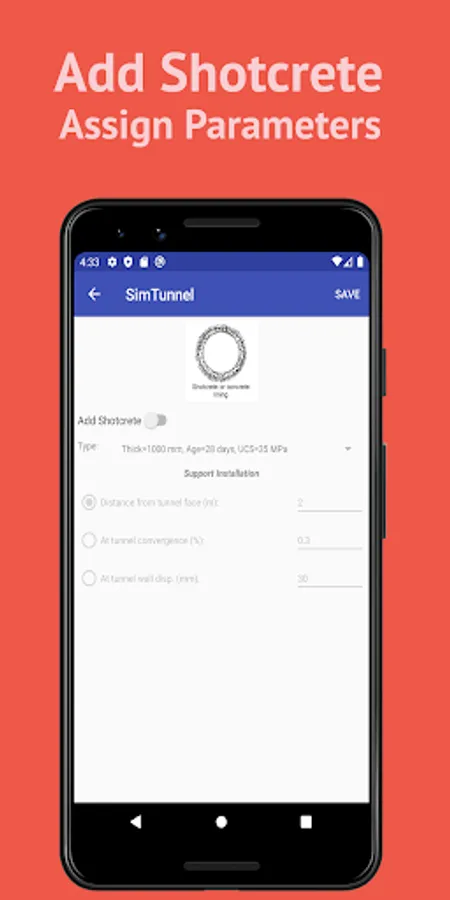

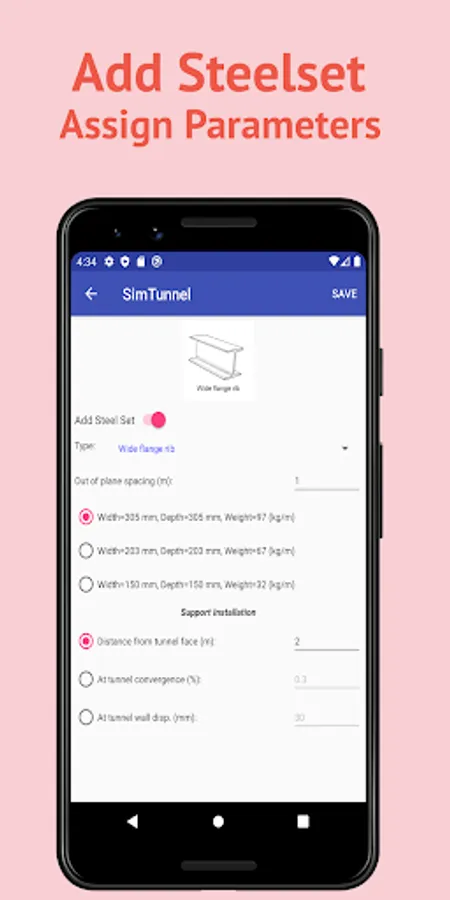

- Three different support types can be added to the model: Rockbolts, Steelsets and Shotcrete

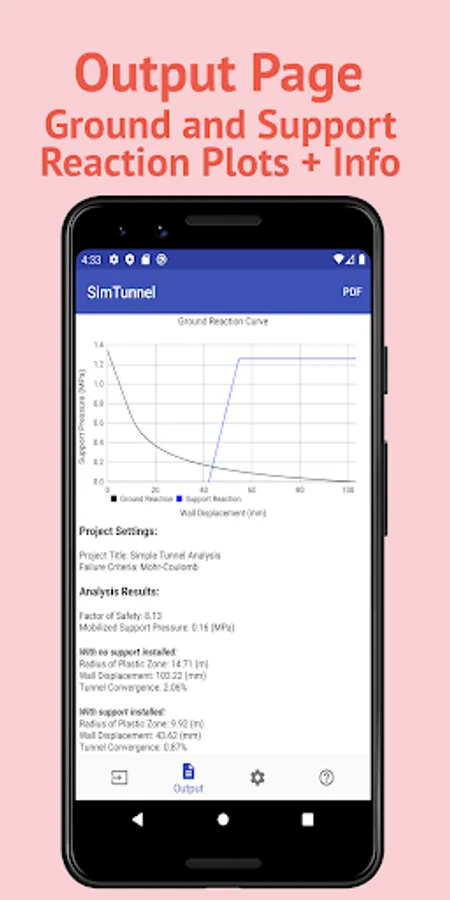

- The ground reaction curve (GRC) is always displayed in the output page.
- The brief summary of analysis results and input data will be displayed in the Output Page.
- The report button, allows you to save the current model’s input and output information into PDF file. The generated report file can be sent out via email.
SimTunnel has the following features:
- SimTunnel determines Factor of Safety (FOS) as the ratio of maximum support pressure to the support pressure required for equilibrium.
- The Tunnel and Rock Parameters dialog allows you to define the tunnel and rock properties for model.
- The Strength Properties which are required will depend on the strength criteria you have selected in Setting Page.
- Both Mohr-Coulomb and Hoek-Brown strength criteria are available.
- The parameter calculator dialogs are available to help you to calculate some of the parameters (i.e. GSI, mi, D, UCS, insitu stress and etc).
- The support parameters dialog allows you to easily add support and define the support properties for the model.
- Three different support types can be added to the model: Rockbolts, Steelsets and Shotcrete
- The ground reaction curve (GRC) is always displayed in the output page.
- The brief summary of analysis results and input data will be displayed in the Output Page.
- The report button, allows you to save the current model’s input and output information into PDF file. The generated report file can be sent out via email.
