Compression coil springs Free
* This app allows you to calculate the compression coil springs.
* The calculation method used is based on the equations and procedures used by Faires in the book "Design of machine elements".
* Use 2 calculation modes:
- Testing mode of existing springs.
-Design mode to define necessary spring size.
* It has a database of materials most used for springs, with the admissible and closing resistances for each diameter and type of service for a maximum diameter of 12.7mm.

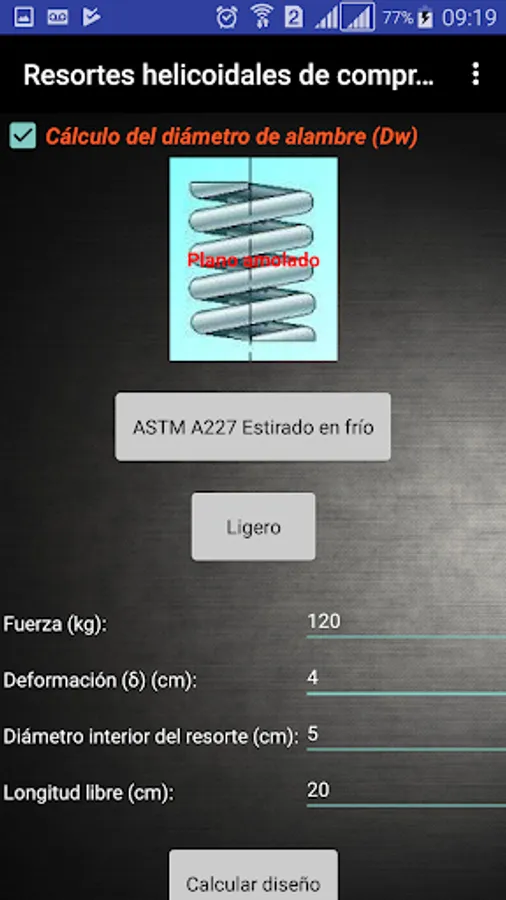

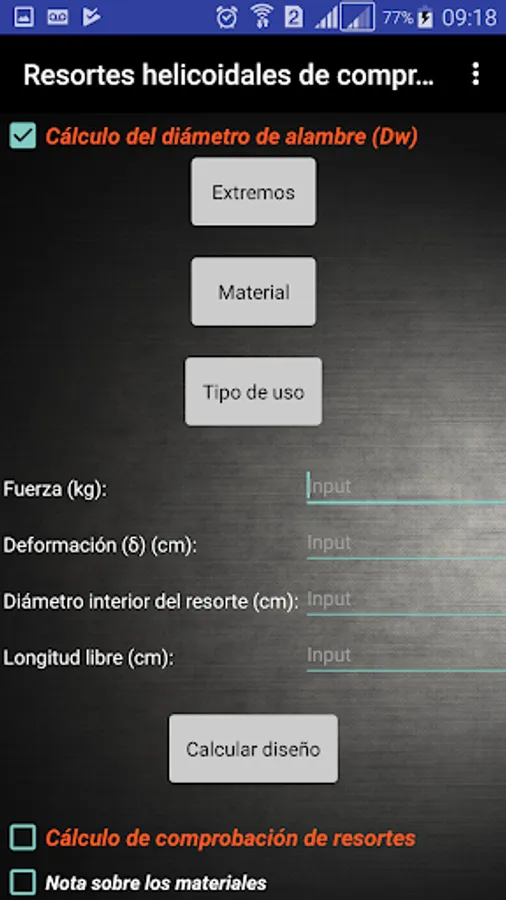

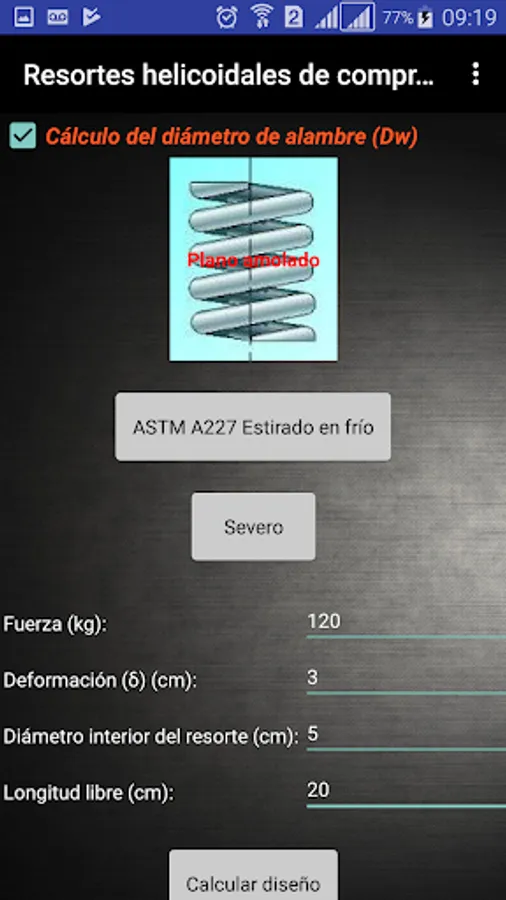

* In entering design mode, enter:
-Type of extremes
-Material
-Type of service
-Force
-Deformation
-Internal required diameter of the spring
-Longitude free

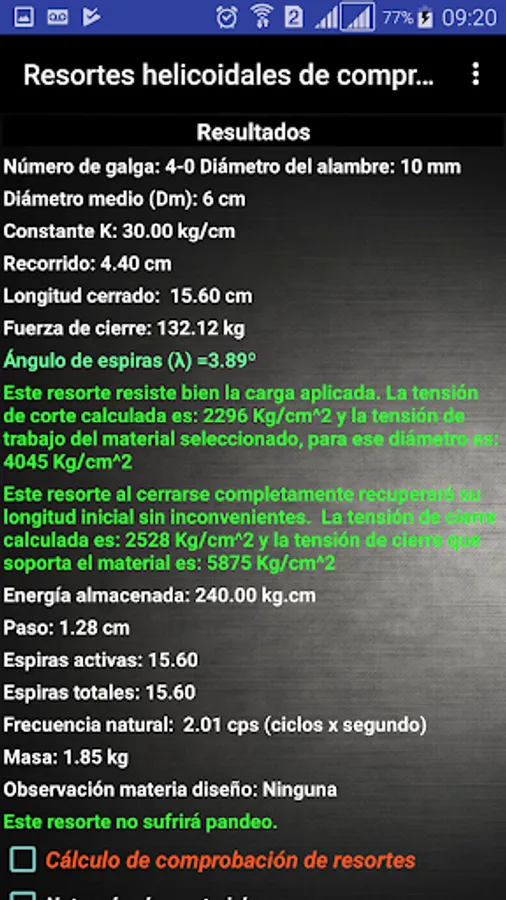

* The results in this mode are the following:
-Numero of gauge and diameter of wire
- Average diameter between turns
-Constant spring (K)
-Travel
-Closed length
-Angle of the turns
- Tension under the load and admissible tension of the material for that diameter of wire
- Tension when closing it completely and closing tension that supports the material for that wire diameter
-Stored energy
Closing force
-Step of the turns
-Number of active turns
-Number of total turns
-Natural frequency
-Dough
-Overall observations (possibility of buckling, care in bending of turns, tension of material)

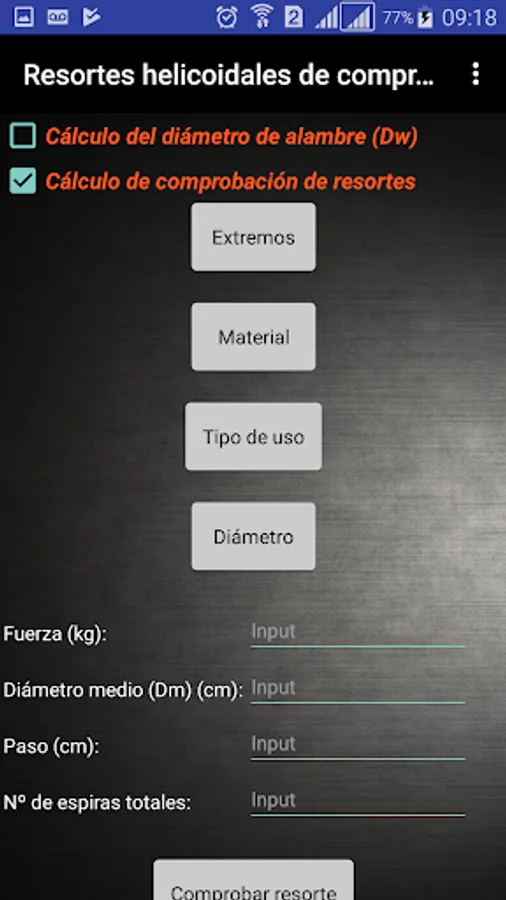

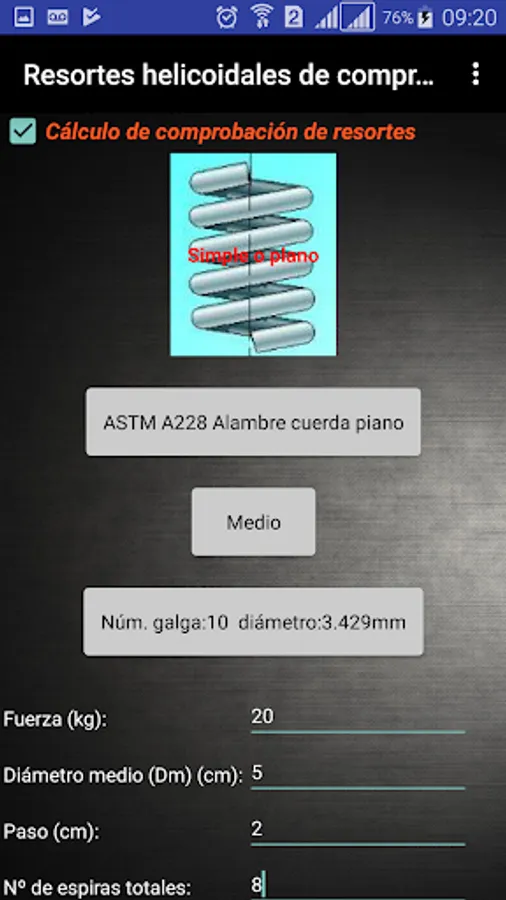

* In the verification mode, enter:
-Type of extremes
-Material
Type of use
-Wire diameter
-Force
-Diameter average
-He passed
-Number of total turns

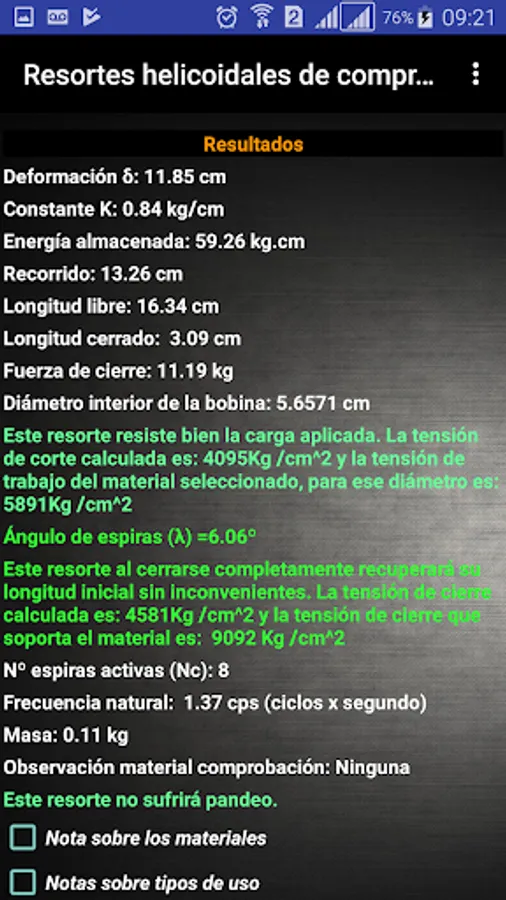

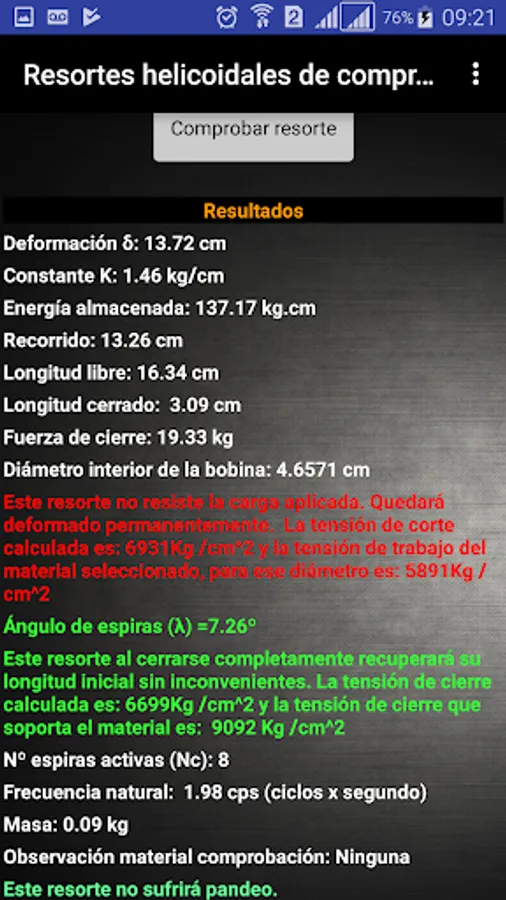

* The results obtained in the verification mode are the following:
-Deformation of the spring
-Constant spring K
-Stored energy
-Travel
-Longitude free
-Closed length
-Close force
-Inner diameter of the coil
- Tension under the load and admissible tension of the material for that diameter of wire
- Tension when closing it completely and closing tension that supports the material for that wire diameter
-Angle of the turns
-Number of total active turns
-Natural frequency
-Dough
-Overall observations (possibility of buckling, care in bending of turns, tension of material)
* Contains advertising
