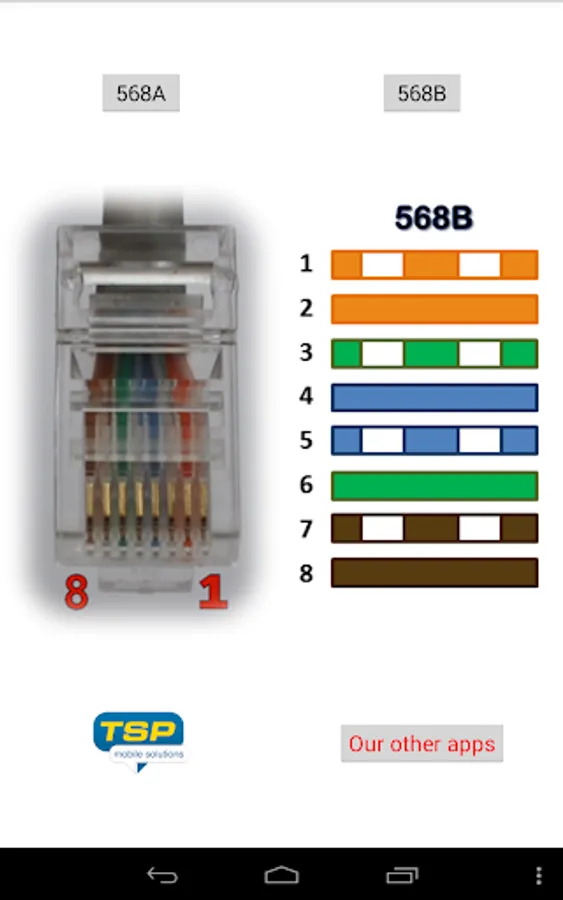

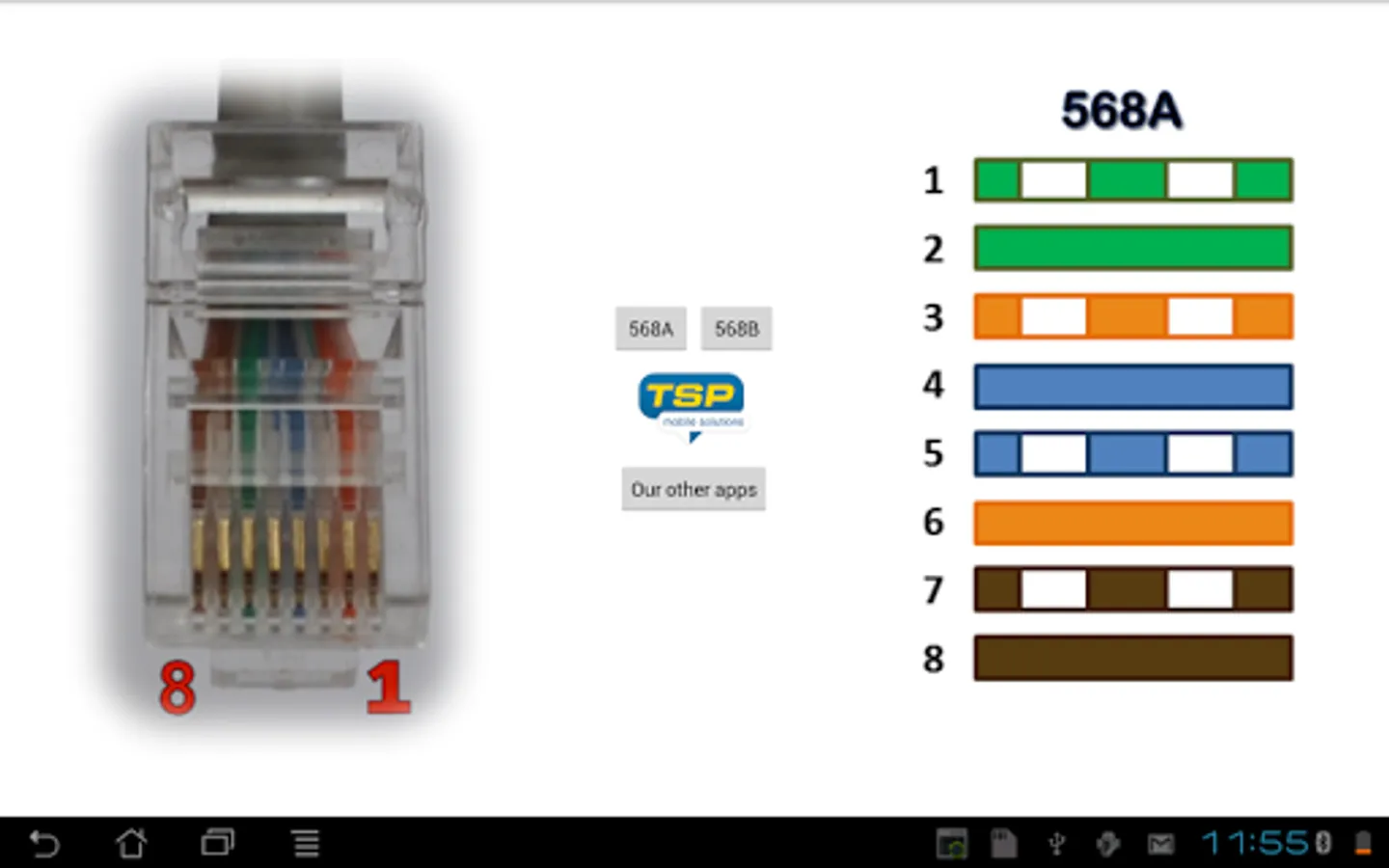

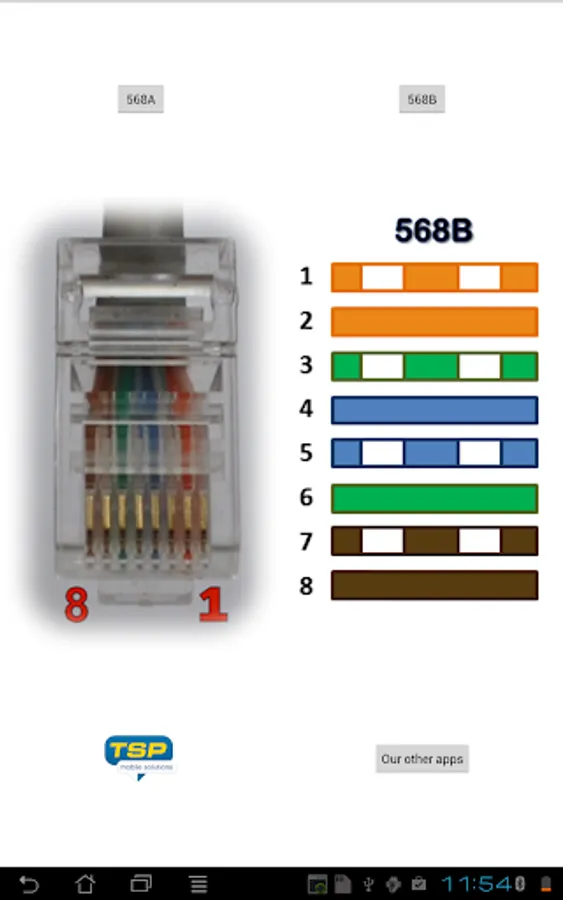

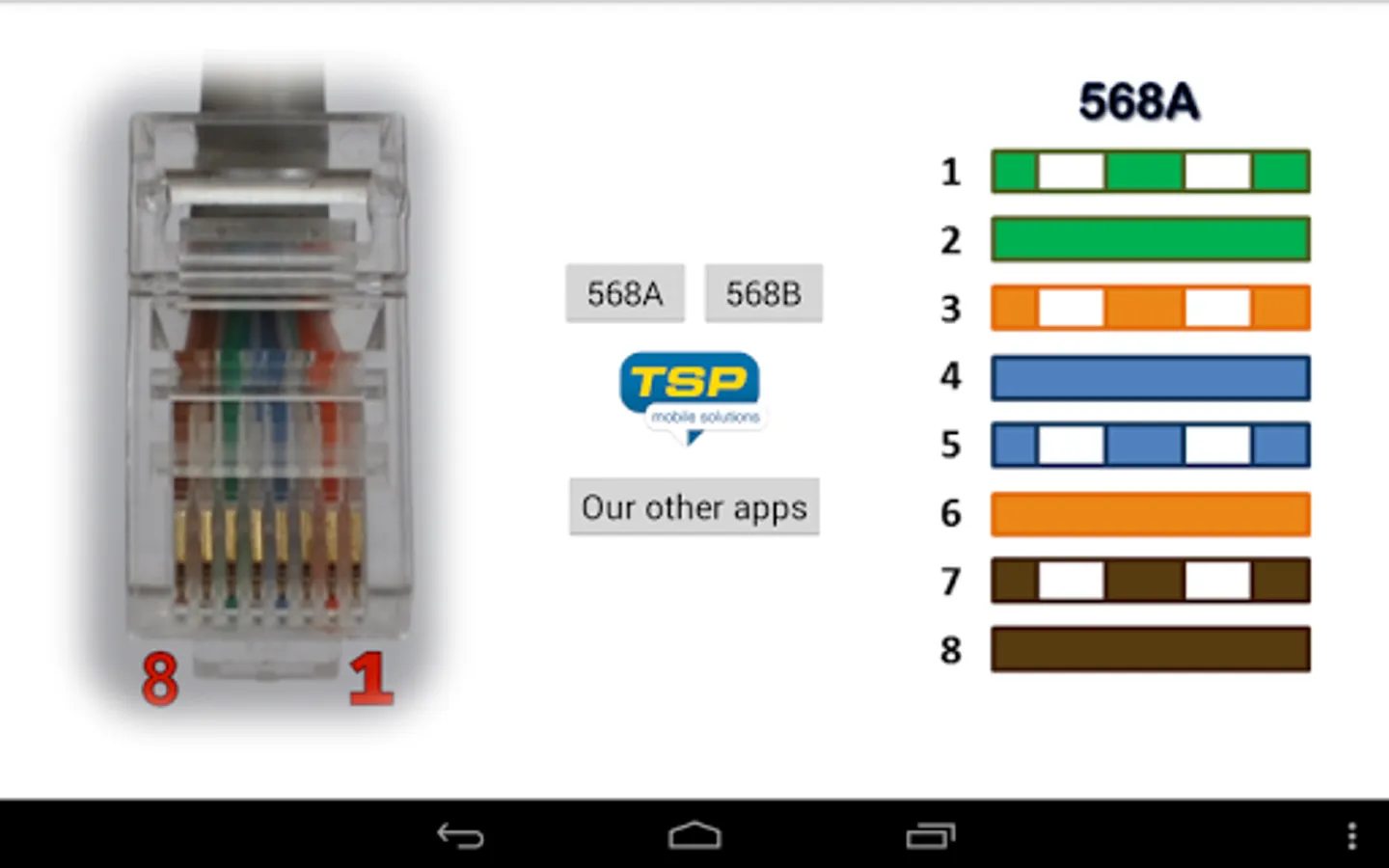

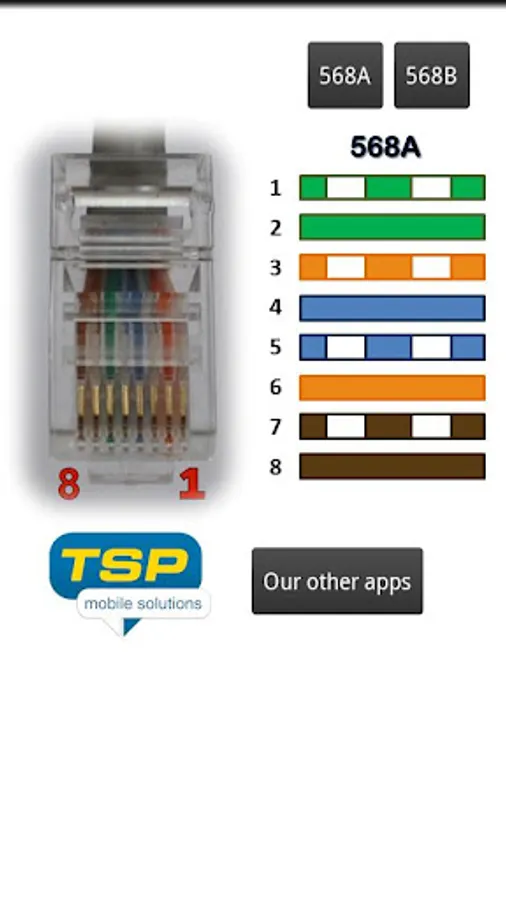

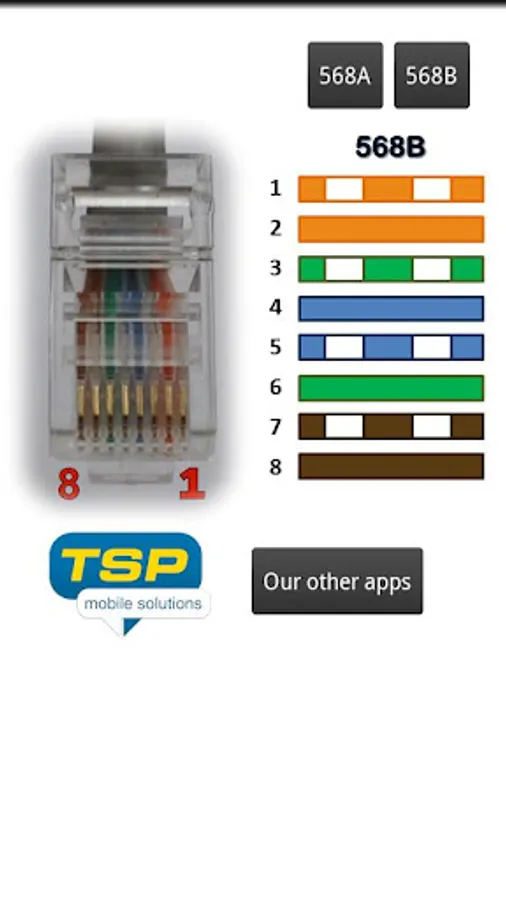

This application shows RJ-45 (Registered Jack type 45) color coding diagram and wiring pinout. Electrical cable connections are show both in 568A and 568B standard.
It can be useful for everyone, who prepares Ethernet network cables. Just put your phone on the table, take crimper and pay attention to the order of the cat5e wires (cables) in twisted pair cable connector.
For your convenience the screensaver in your phone is disabled.
It can be useful for everyone, who prepares Ethernet network cables. Just put your phone on the table, take crimper and pay attention to the order of the cat5e wires (cables) in twisted pair cable connector.
For your convenience the screensaver in your phone is disabled.
