Aerospace Groove Selector

Trelleborg Sealing Solutions
Free
1,000+ downloads

About Aerospace Groove Selector

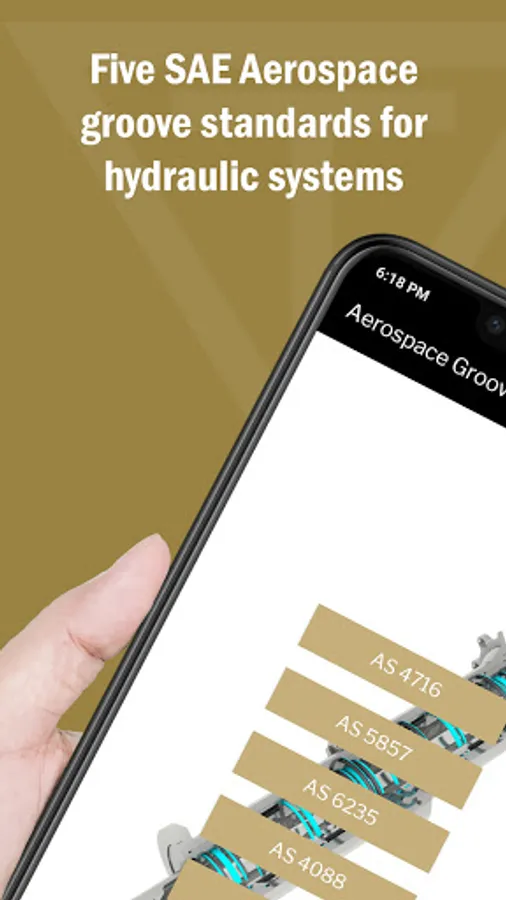

This app covers five of the most important SAE Aerospace groove standards for hydraulic systems, AS4716 Rev B, AS5857 Rev A, AS6235 Rev A, AS4088 Rev E and AS4832 Rev A. You can easily find groove sizes and determine if grooves are suitable for a dynamic and/or static seal. Available in Metric and Inch, based on standard Dash numbers.

Features:
- Gland design for Bore, Rod & Face seals

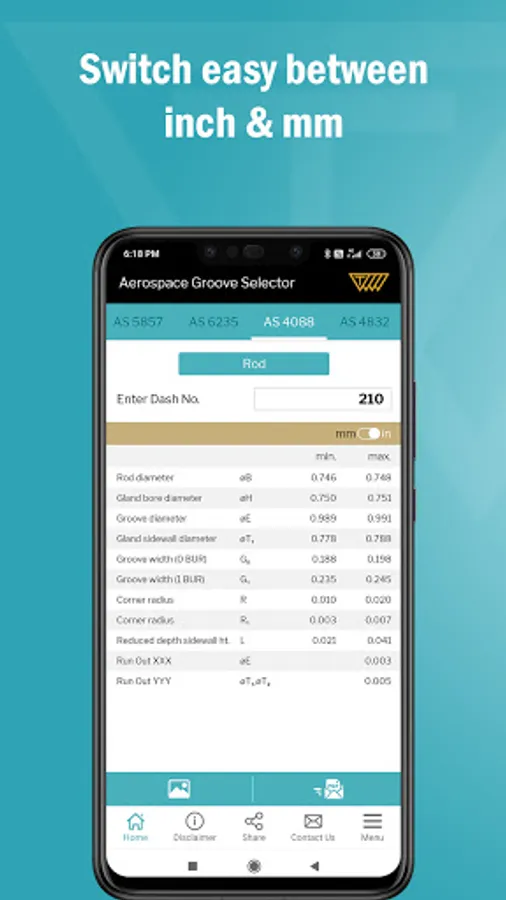

- Easy inch/mm conversion
- Indication of dynamic/static usage

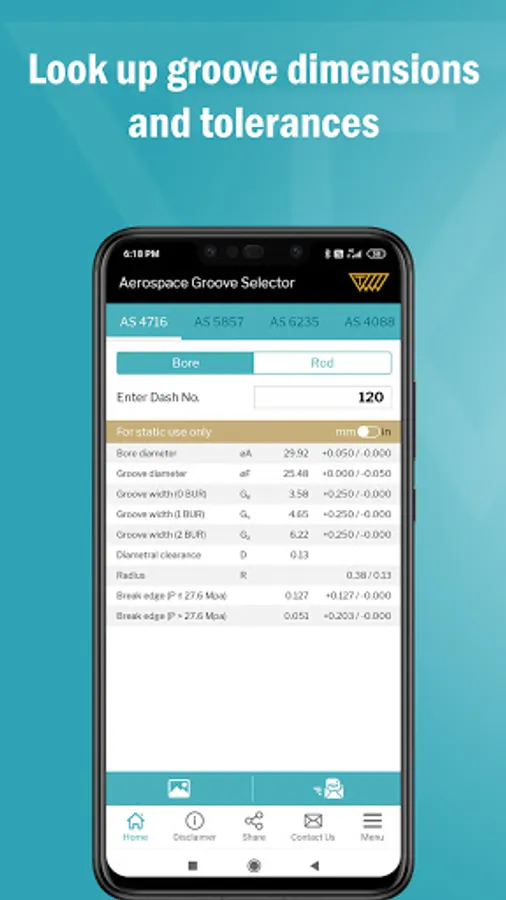

- Main groove dimensions and tolerances displayed instantly

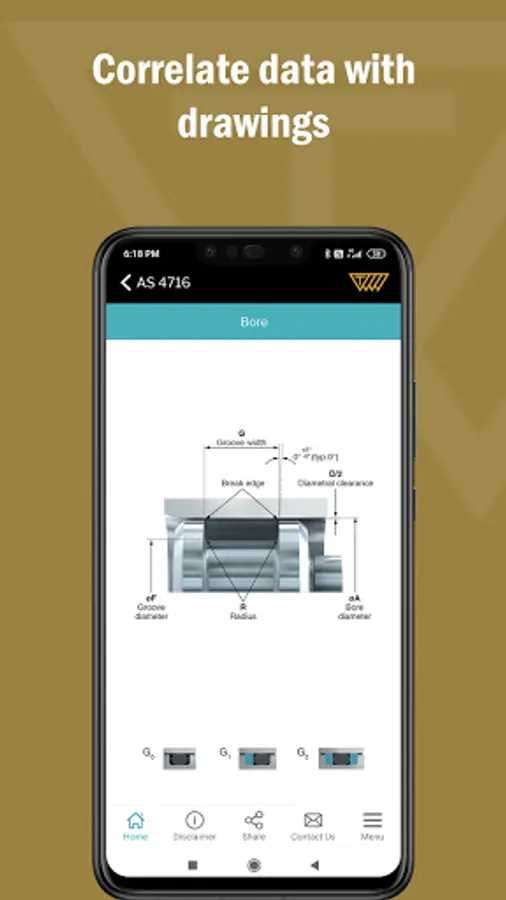

- Drawings for easy correlation of data

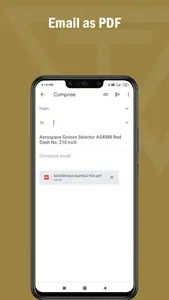

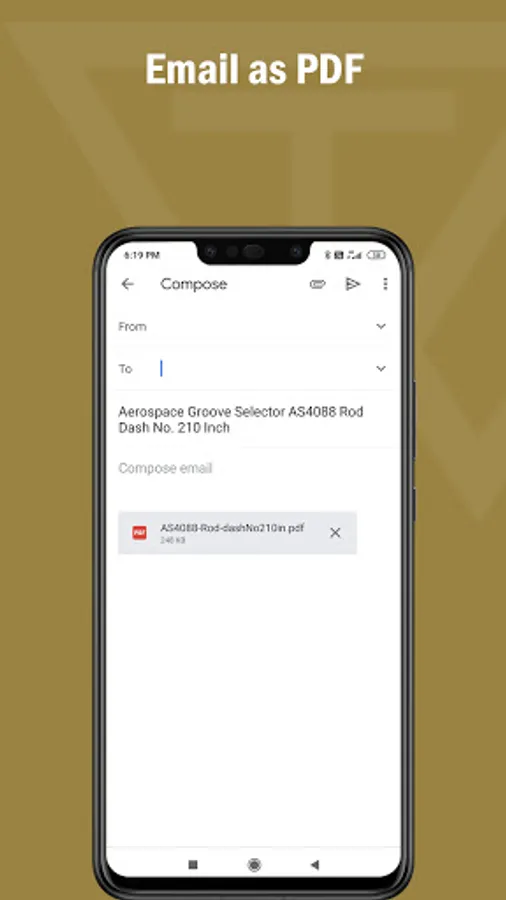

- Email data as PDF

Aerospace Groove Selector Screenshots
