Filter Designer

"Filter Designer" calculates multistage analog active filters.
Convenience, visibility and ability to find an optimal solution in minimum time.
*** No ads, No Internet required. ***

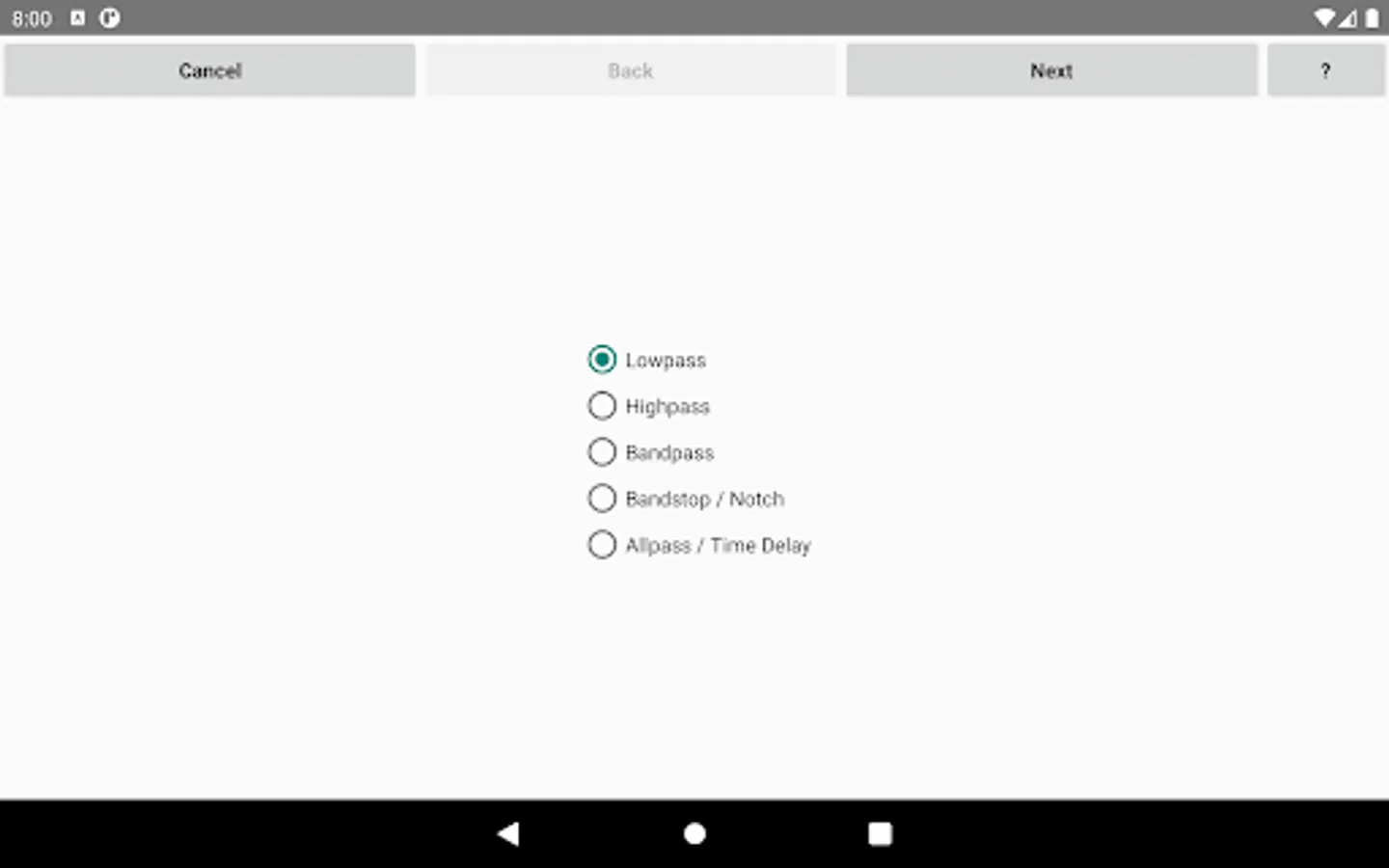

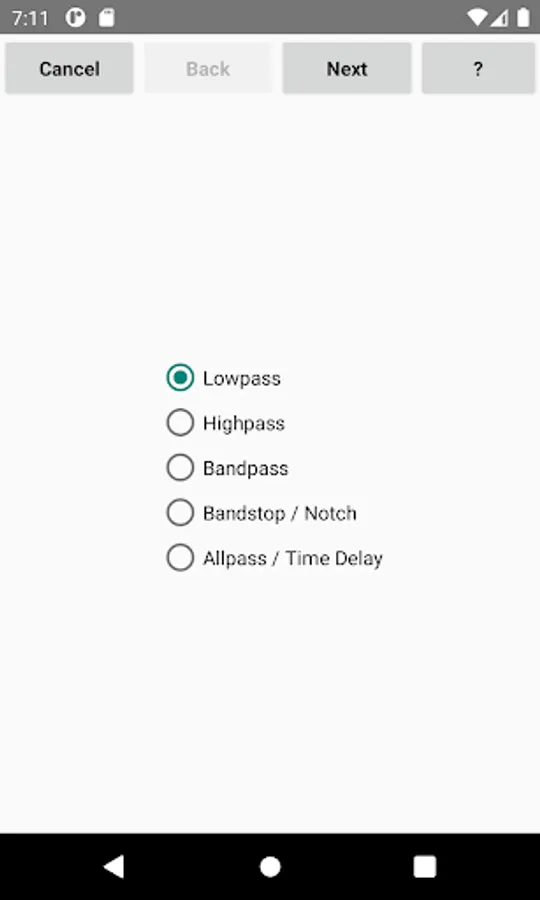

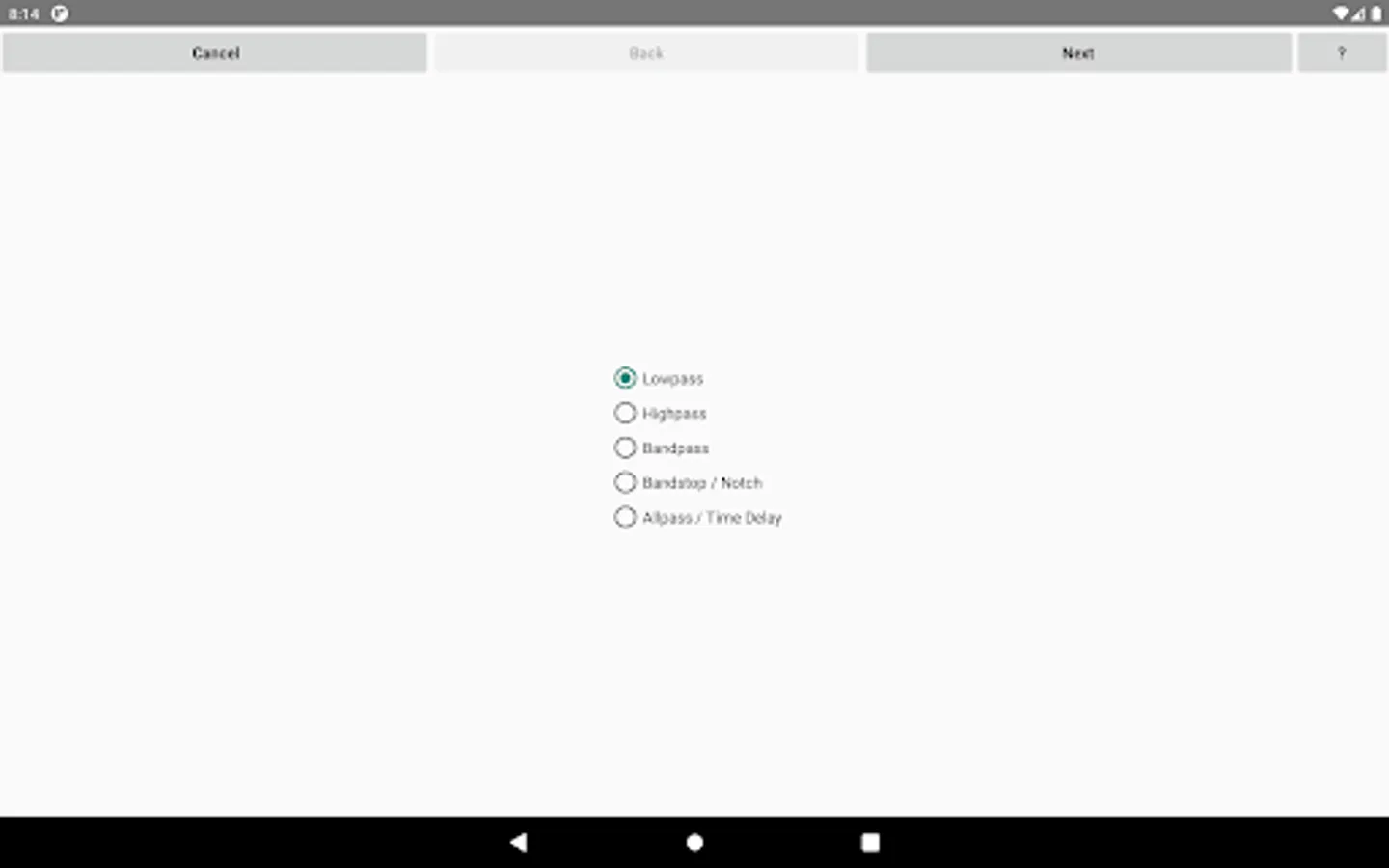

* Low-pass filters
* High-pass filters
* Band-pass filters
* Band-stop filters
* All-pass filters

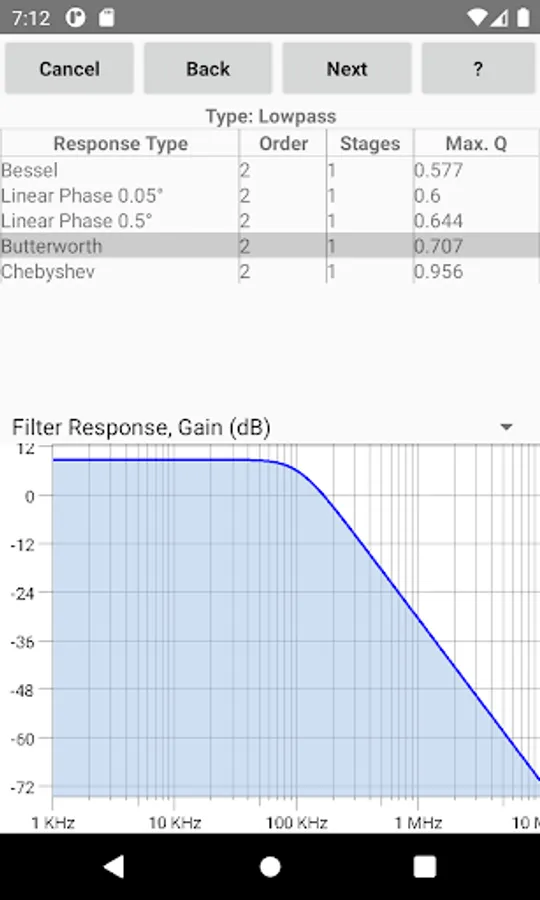

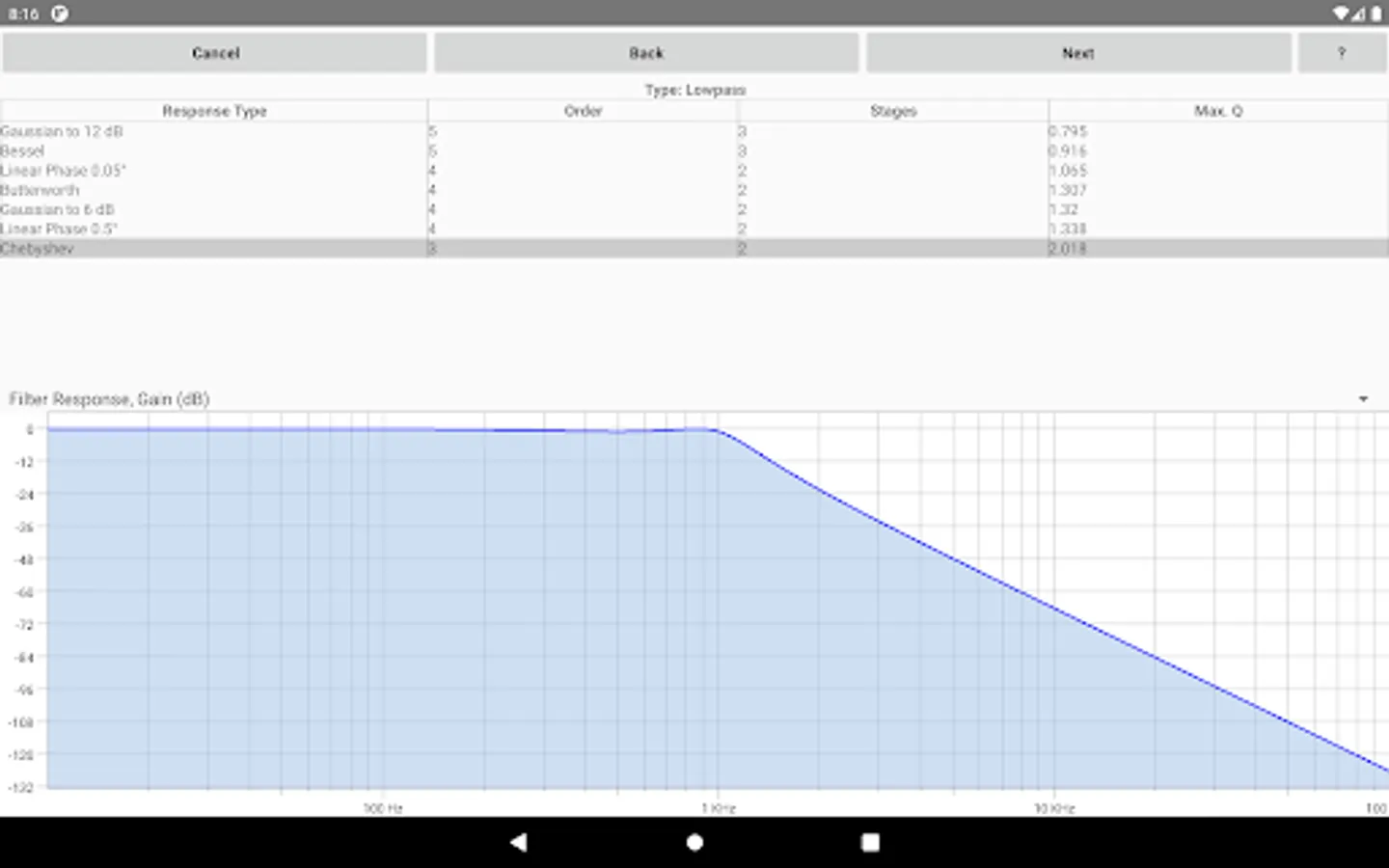

Responses:
* Bessel
* Butterworth
* Chebyshev
* Linear Phase 0.05 degrees
* Linear Phase 0.5 degrees
* Gaussian to 6dB
* Gaussian to 12dB

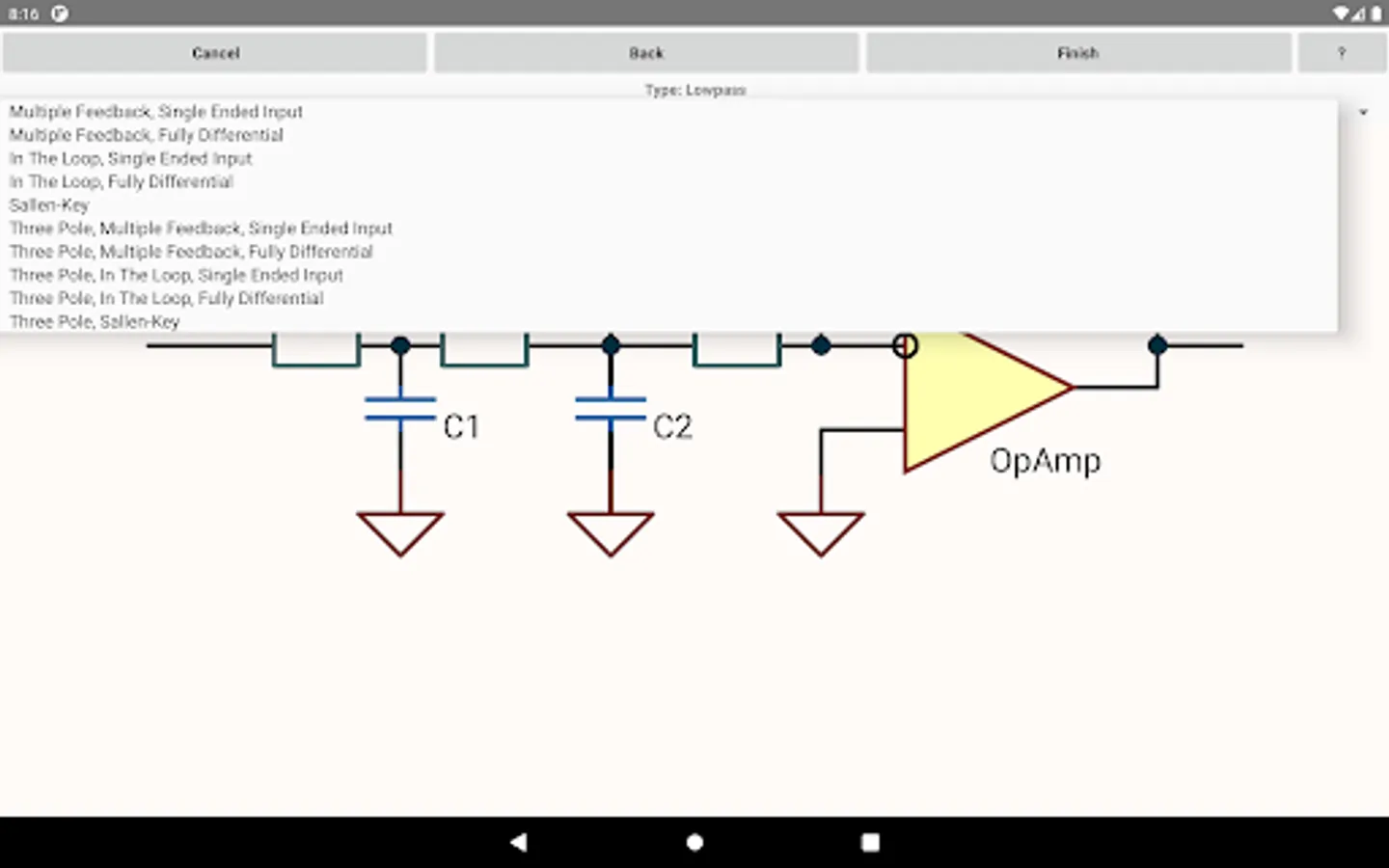

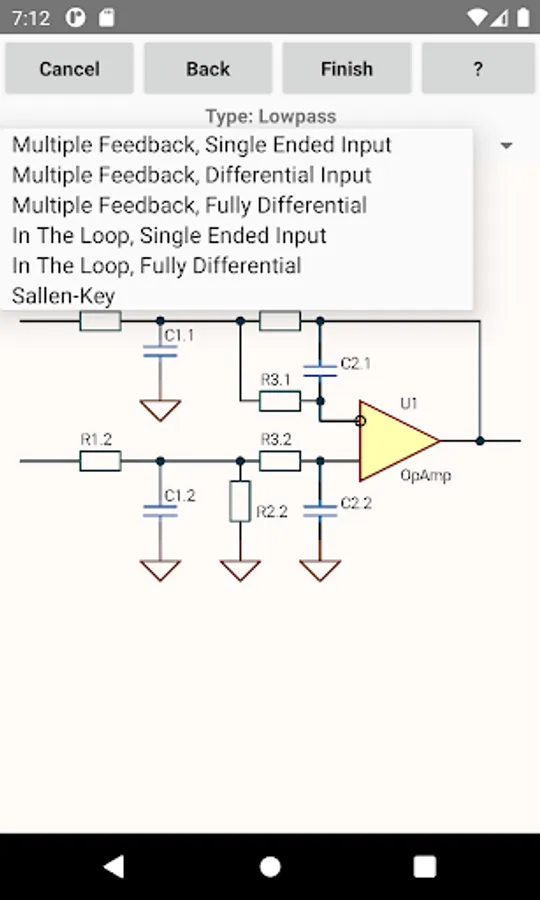

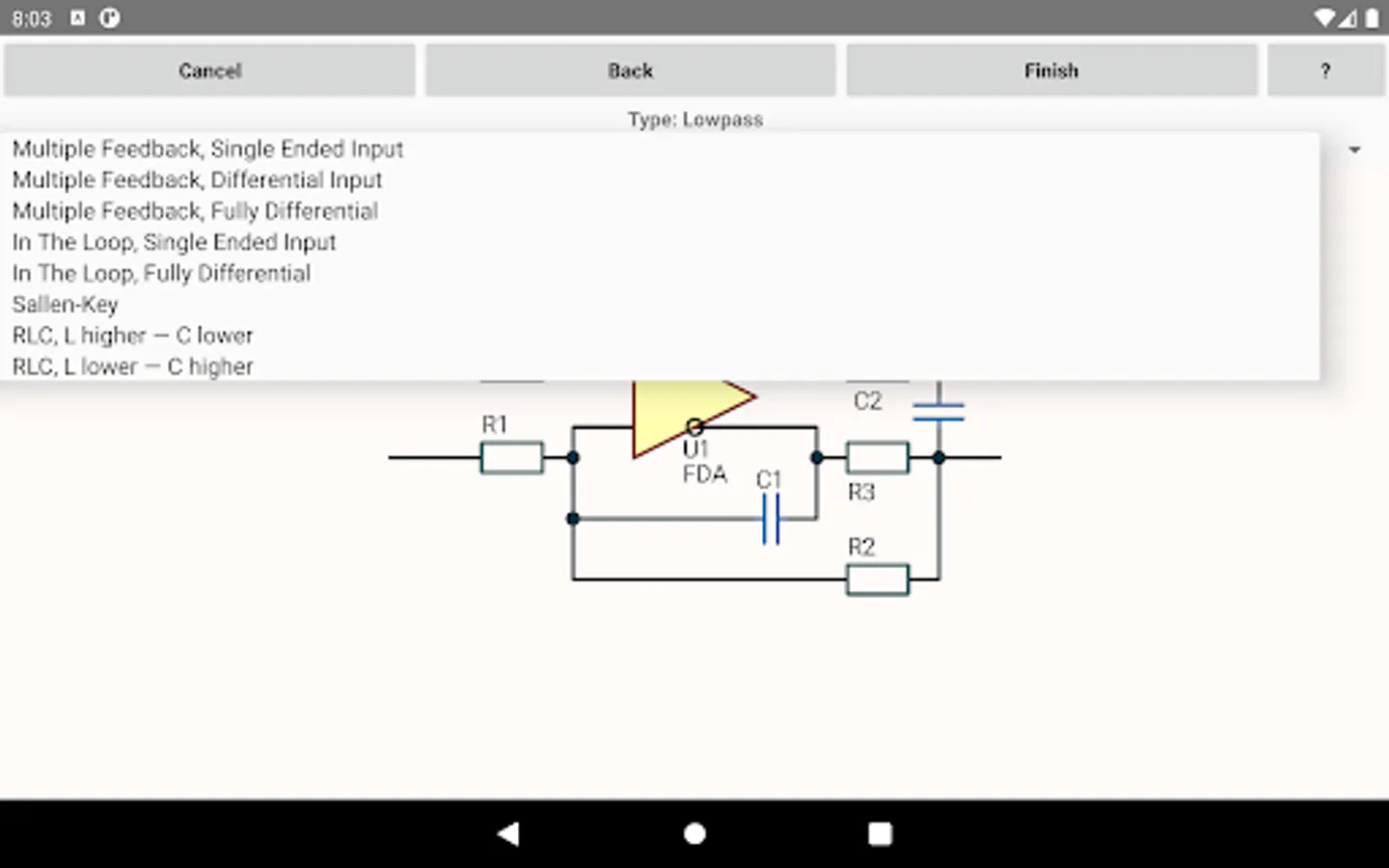

Topologies:
* Real Pole Non-Inverting
* Real Pole Inverting
* Real Pole Fully Differential
* Multiple-Feedback, Single-Ended Input

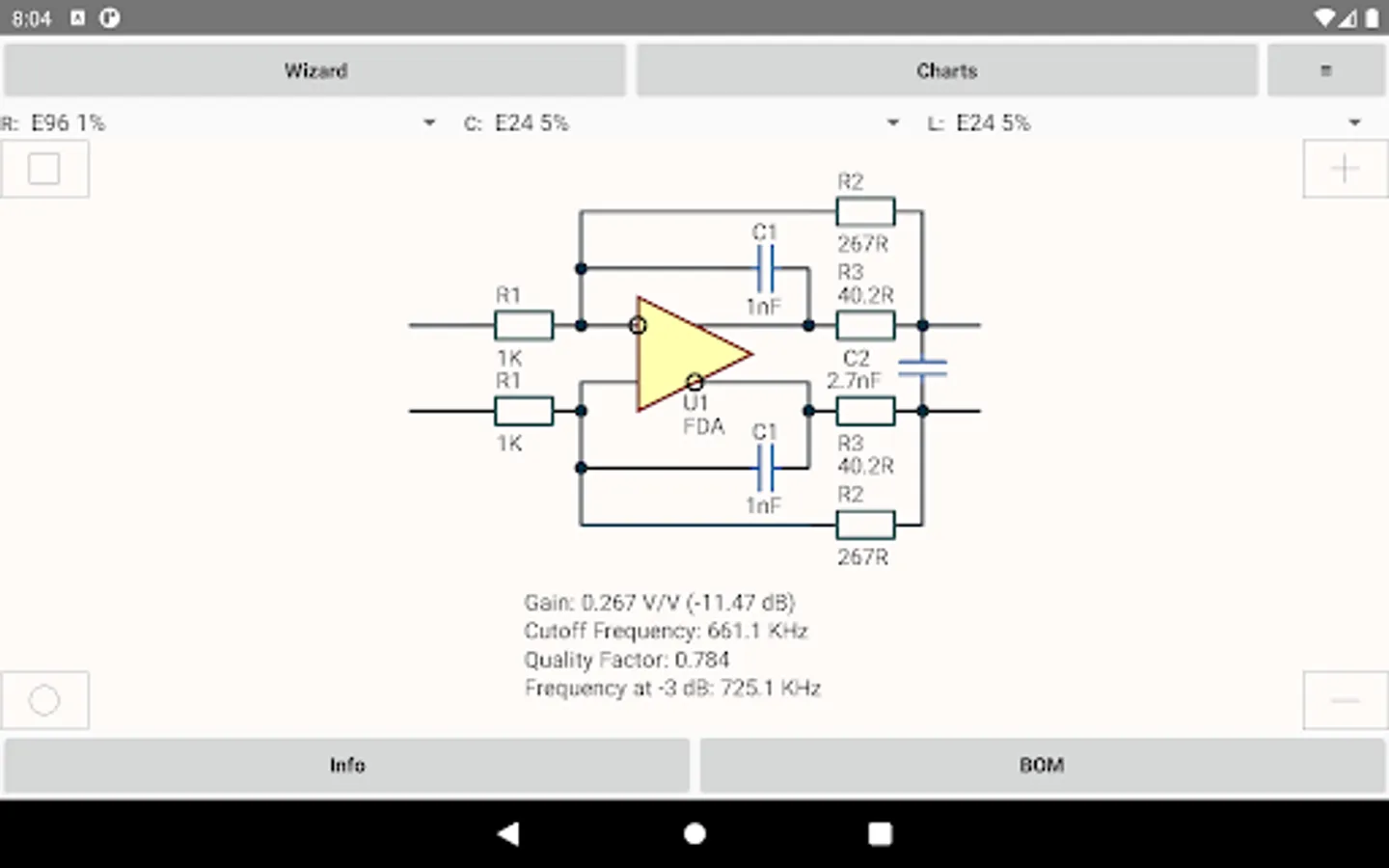

* Multiple-Feedback, Fully Differential

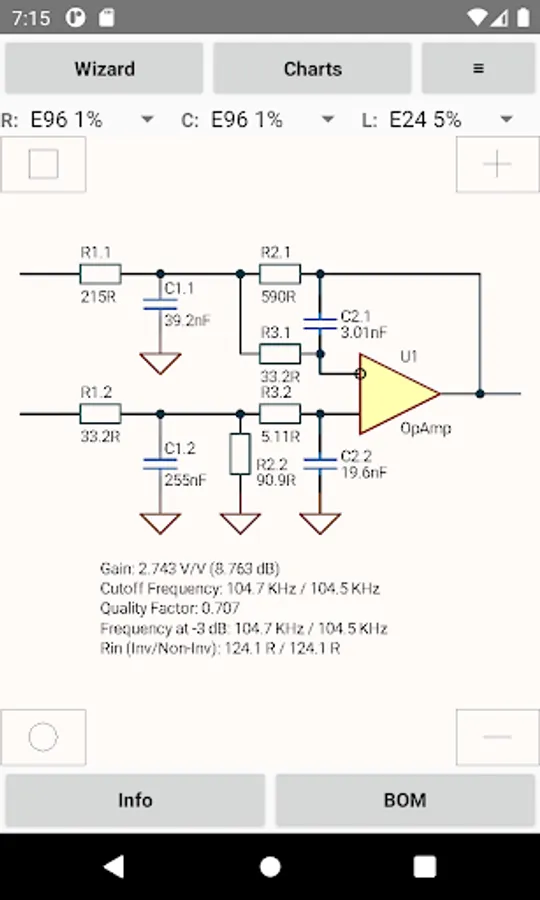

* Multiple-Feedback, Differential Input for 2-nd order LP
* In-The-Loop, Single-Ended Input
* In-The-Loop, Fully Differential

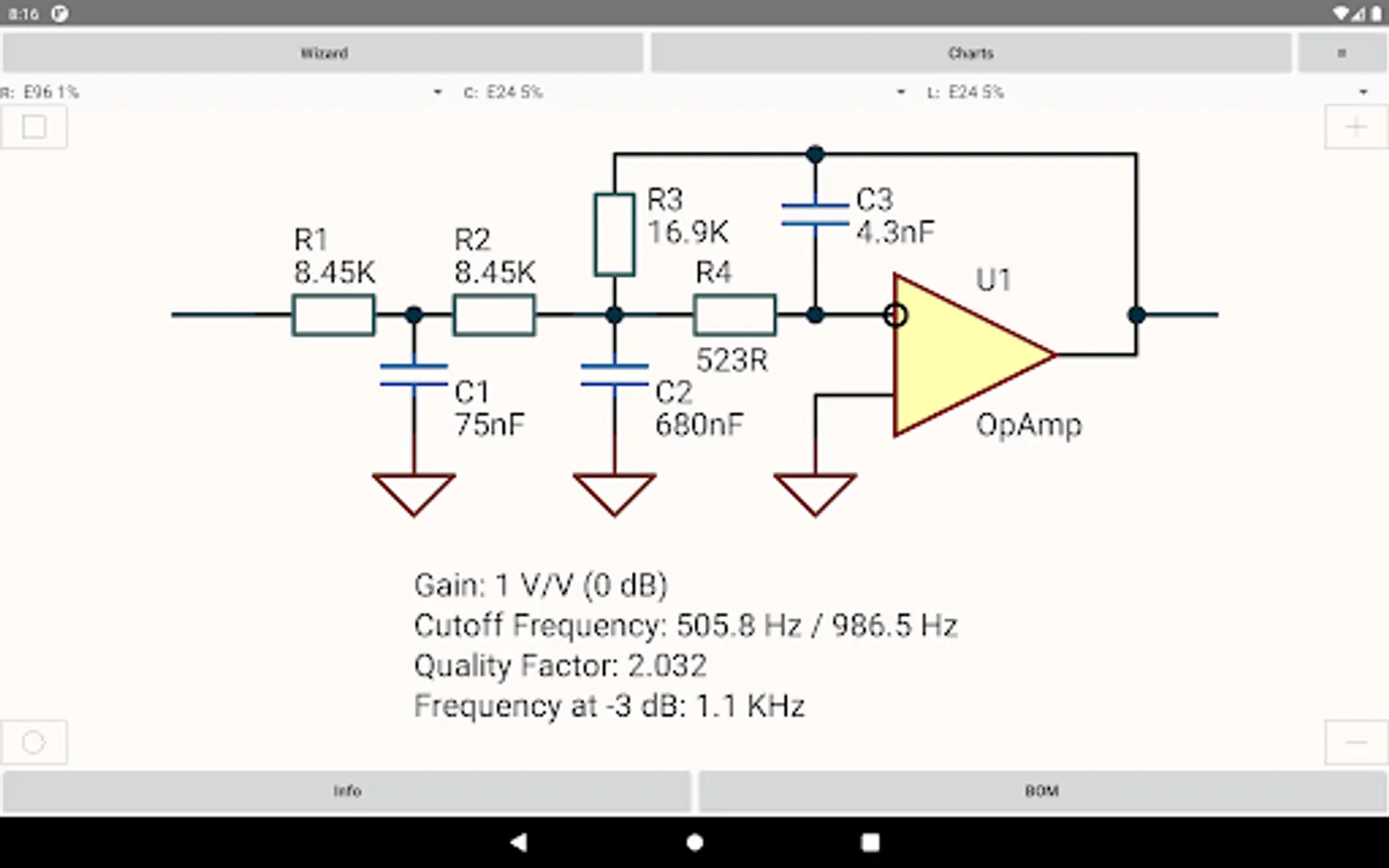

* Sallen-Key
* RLC for 2-nd order LPF
* 3d and 4th order low-pass filter with one Op Amp
* 3d order high-pass filter with one Op Amp

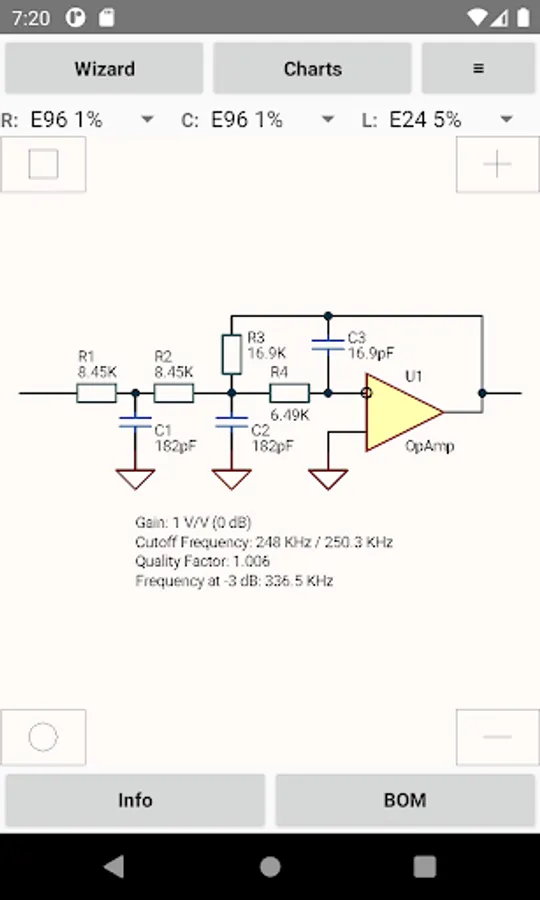

Tuning of the values of all circuit components.

Monte-Carlo worst-case analysis

Reverse: calculation of filter parameters at known values of its components.

Auxiliary tools.
