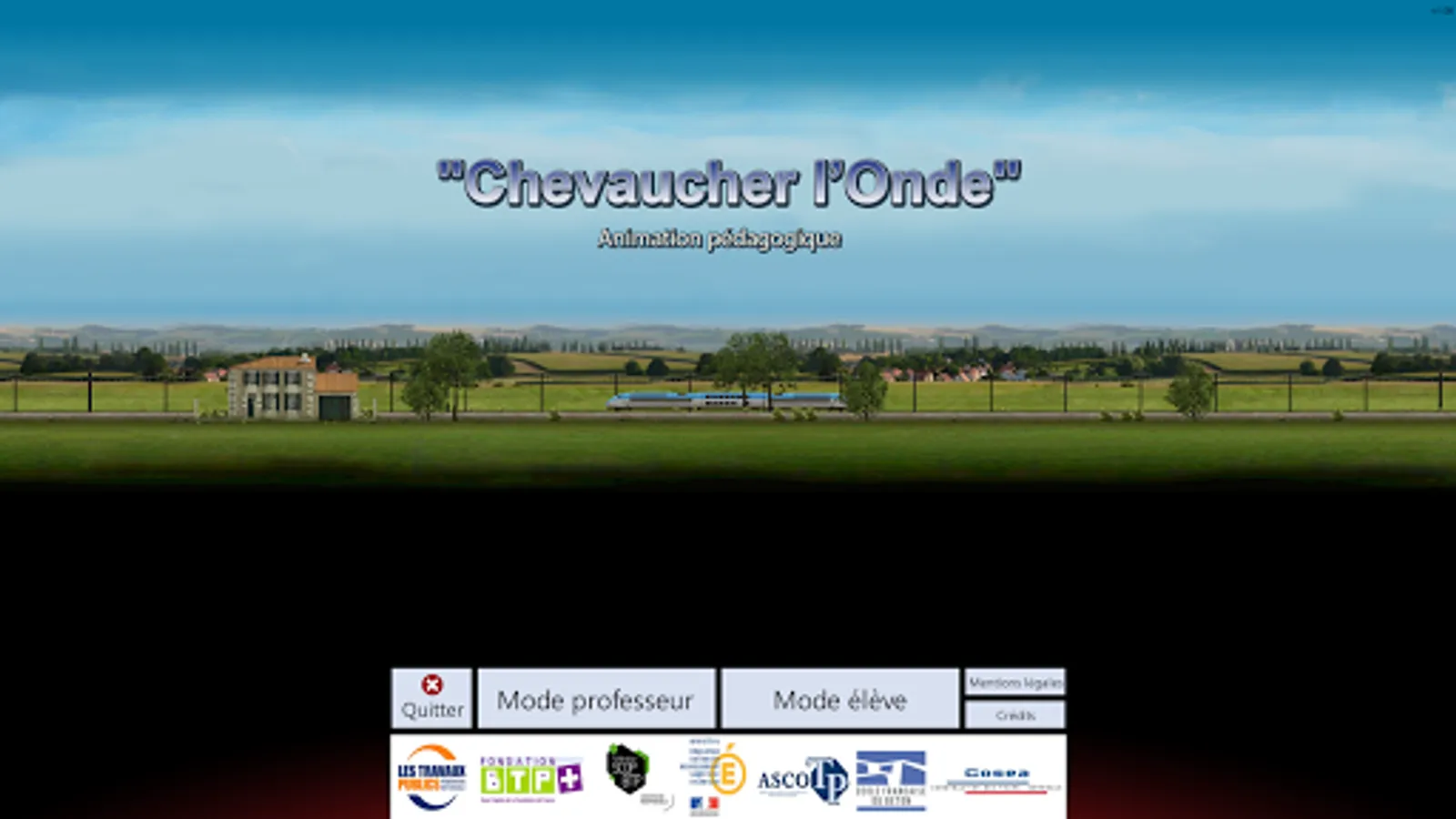

Onde LGV

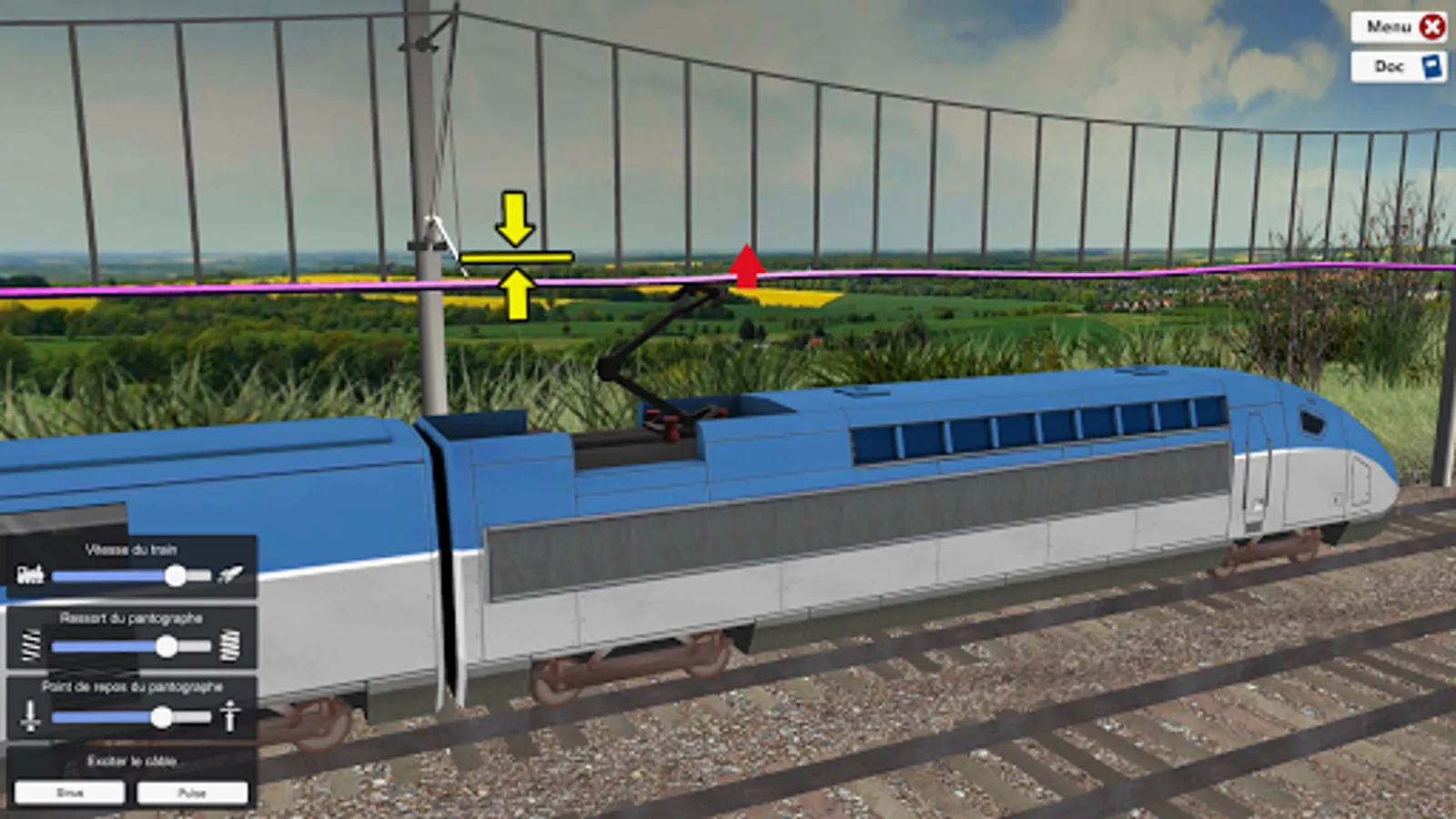

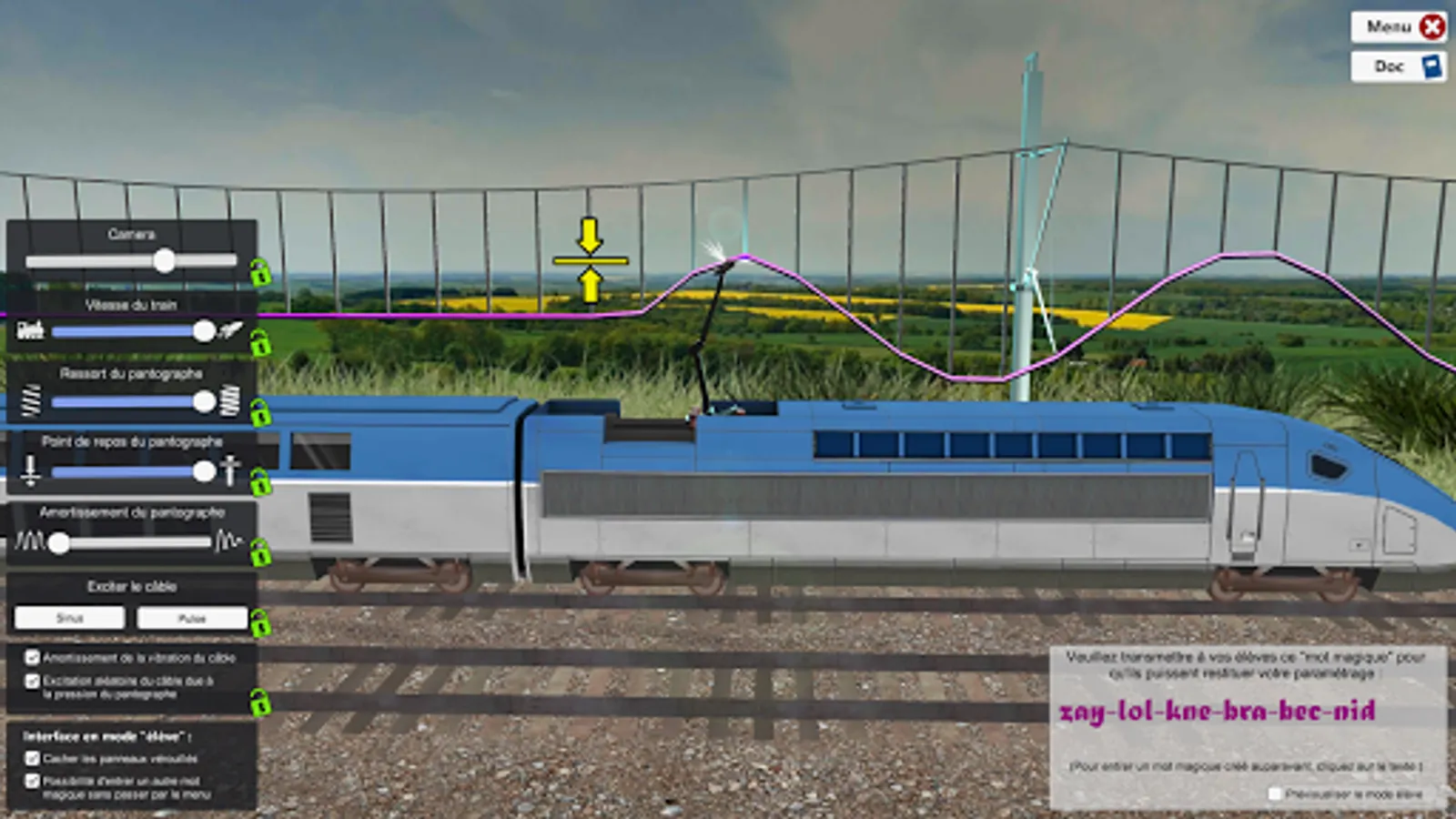

This educational animated character aims to observe the dynamic effect produced by the contact of a TGV pantograph with the catenary. It highlights the effect of several parameters on the mechanical wave that propagates through the catenary and contact any defects that may result.

This animation is intended to be used in college or high school class under the guidance of a teacher.
The documentation for the animation is available at the following address: http://lgv.asco-tp.fr

The same site provides a version of the animation usable desktop.
