Let's move Swing-U! What is
========================

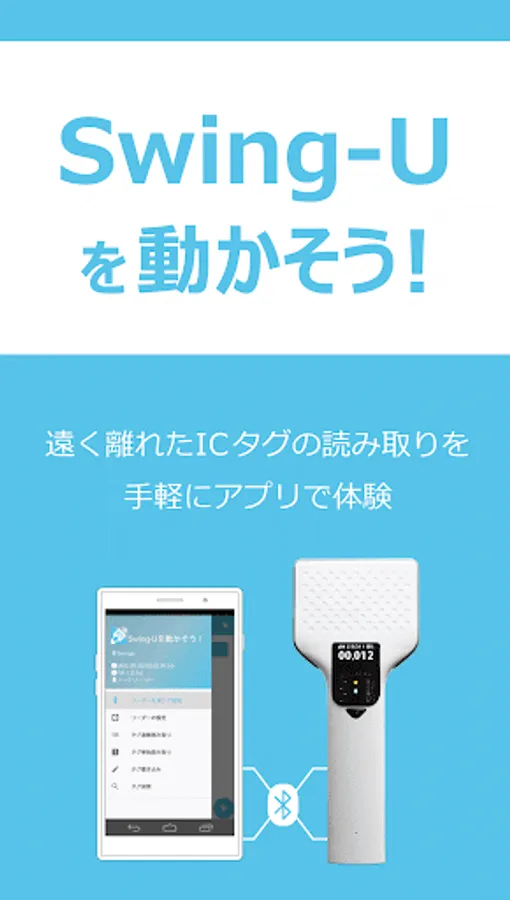

This is a dedicated application for the separate UHF band RFID reader / writer "Swing-U", which specializes in long-distance reading of 20 m or more and high-speed reading of 200 sheets or more per second.
You can perform basic settings such as the signal strength and beep volume of Swing-U, and read IC tags.
Let's move Swing-U! How to use
========================
Introducing the basic usage of this application.
◎ First thing to do-Connect the reader and smartphone
----------------------------------------
1) Turn on the reader and launch the app.
2) Search for a reader from the Bluetooth logo and tap the reader name you want to connect to.
3) The connection is complete when the reader beeps or the message "Connected reader" appears on the app screen.
● Read IC tags-There are two ways
----------------------------------------

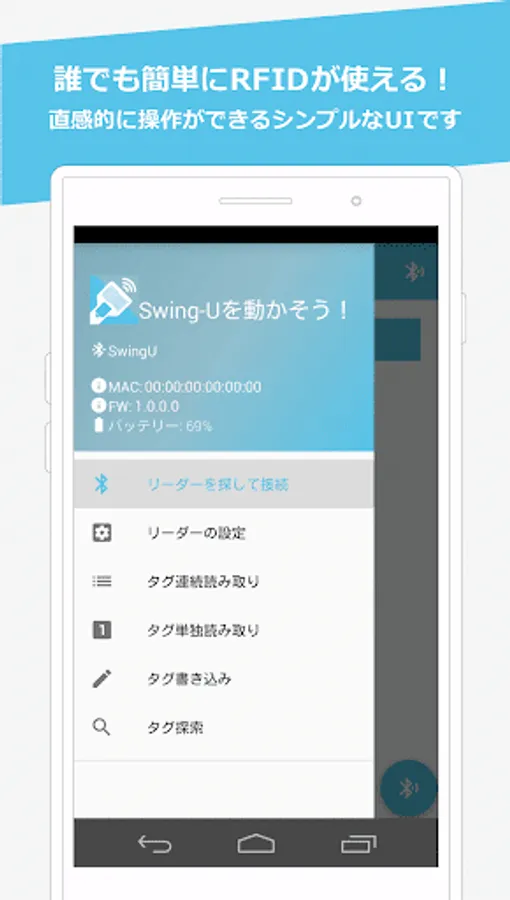

1) Open the menu from the upper left of the app and select [Continuous reading of tags].
2) Press the triangle icon or the RFID button on the reader to start reading.

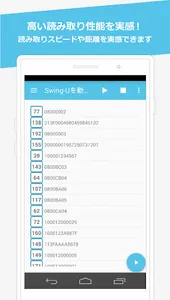

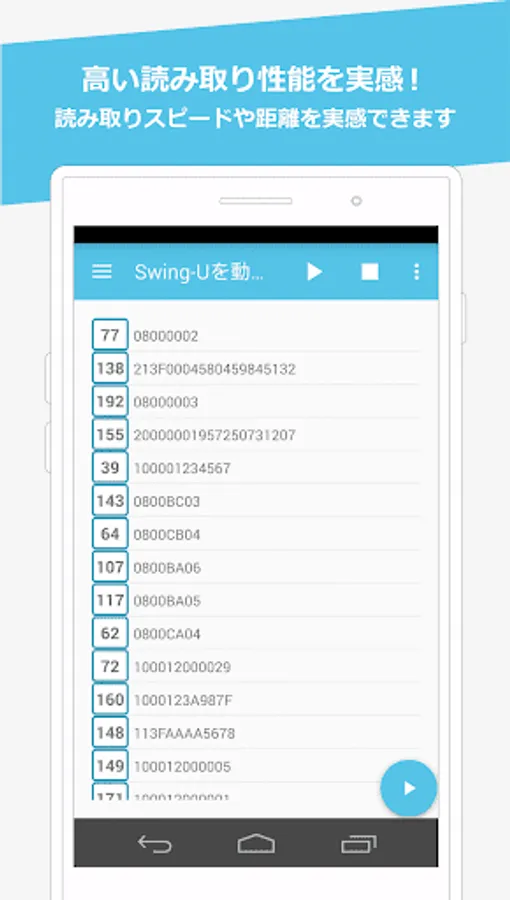

3) The information of the read IC tag is displayed.
4) Press the square icon or the RFID button on the reader again to stop reading.
* If "Continuous reading" is turned off on the reader setting screen, continuous reading will not be possible because reading will stop each time the IC tag is read. By turning on the setting, continuous reading becomes possible.
1) Open the menu from the upper left of the app and select [Read tag alone].

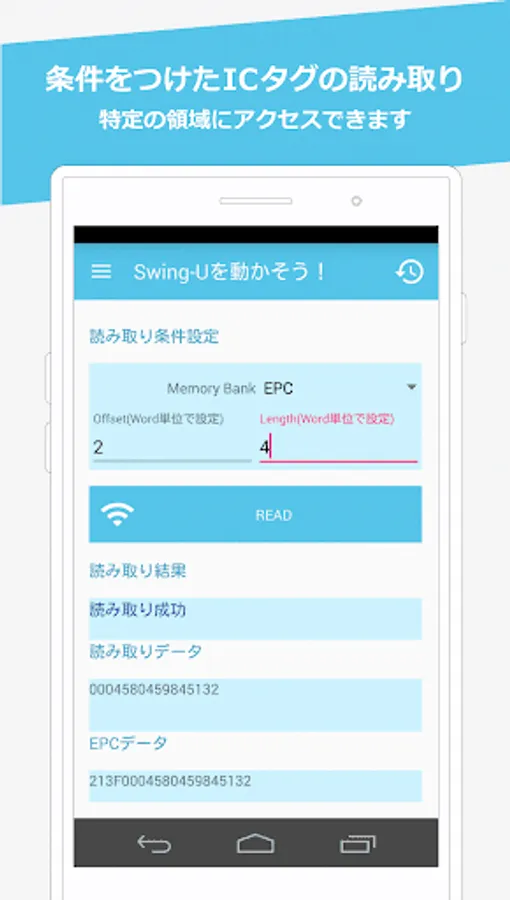

2) Set the "reading conditions (Memory Bank, Offset, Length)" of the IC tag.
3) Press the [READ] button or the RFID button on the reader to read the IC tag.
4) The IC tag information is displayed in "Reading result".
* "Word unit" treats a 4-digit hexadecimal number as 1 Word.
* Caution *
=================
-Even if the reader beep is muted, a sound will be output when the power is turned on / off or when searching for an IC tag.
・ If your smartphone / tablet freezes when reading IC tags, set "Continuous reading" in the reader settings to OFF.
When using
=================
"Let's move Swing-U!" Is an application dedicated to Swing-U (https://rfid.tss21.co.jp/product/swing-u/).
Even if you do not have a reader at hand, you can check the settings of the reader, but if you want to try all the functions, please apply for or purchase a demo machine.
Applications are accepted from the dedicated inquiry form (https://rfid.tss21.co.jp/contact/contact_whole.html).
Developer / Provider
=================
Tohoku Systems Support Co., Ltd. Strategic Business Division
========================
