Qt Brynhildr

Qt Brynhildr is a remote desktop client app for operating your Windows PC from your Android device.

[Operating environment]

Brynhildr (Windows version) must be running on the operating Windows PC.
Brynhildr can be downloaded from IchiGeki's official website (http://blog.x-row.net/).
Qt Brynhildr requires a WiFi environment for communication.

The password length is limited to 16 bytes because it connects using the public mode published by Brynhildr.

[Method of operation]

================================================== ======================

-------------------------------------------------- -------
[Displaying connection dialog to server]
-------------------------------------------------- -------

[1 point double tap] Call the IP / host name of the server host that succeeded in connecting

-------------------------------------------------- -------
[Normal screen]
-------------------------------------------------- -------
=====================================
[When using KeroRemote compatible operation type]
=====================================

[1 point tap (at full screen)] Move mouse cursor + left mouse button / click

[1 point tap (when enlarged: within 0.5s)] Move mouse cursor + left mouse button / click

[Pinch in] Desktop screen reduction

[Pinch out] Enlarge desktop screen

[Drag 1 point (at full screen)] Move mouse cursor + Left mouse button + Drag

[Drag 1 point (when enlarged)] Scroll display area

[3-point tap] Send Windows key

=====================================
[For Qt Brynhildr operation type]
=====================================

[1 point tap] Move mouse cursor + left mouse button / click

[Pinch in] Desktop screen reduction

[Pinch out] Enlarge desktop screen

[Drag 1 point (at full screen)] Move mouse cursor

[Drag 1 point (when enlarged)] Scroll display area

[Tap 2 points] Right mouse button / click

[3-point tap] Send Windows key

-------------------------------------------------- -------
[Software keyboard / button display]
-------------------------------------------------- -------

(1) When the touch panel interface is left / right type (initial value)

[Drag from the outside of the left side of the screen toward the center (longer)] Software button display

[Drag from the outside of the right side of the screen toward the center (longer)] Software keyboard display

(2) When the touch panel interface is up / down type

[Drag from the outside of the top edge of the screen toward the center (longer)] Software button display

[Drag from outside the bottom of the screen toward the center (longer)] Software keyboard display

-------------------------------------------------- -------

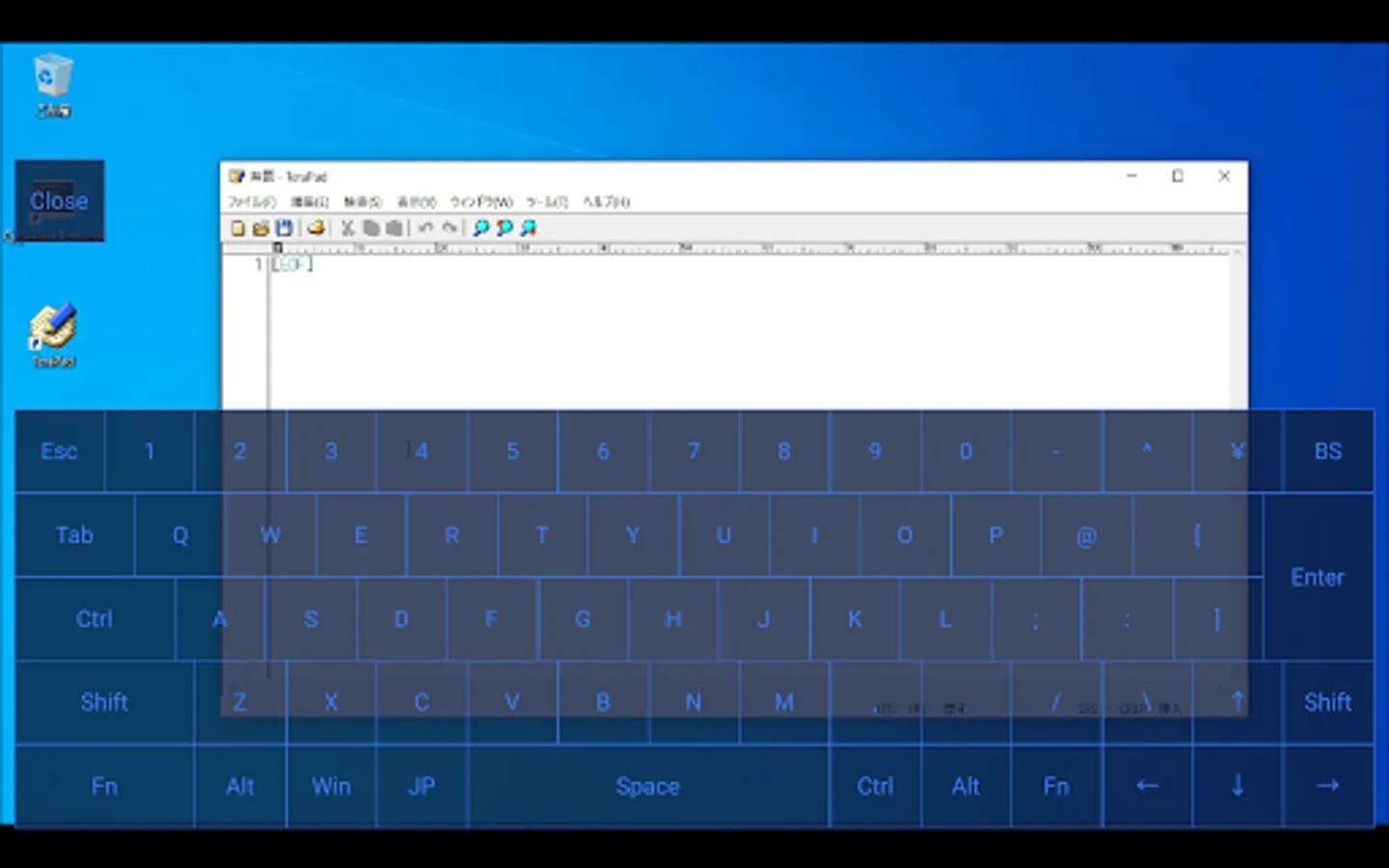

[Displaying software / keyboard]
-------------------------------------------------- -------

[Close] Hide software keyboard

[Shift / Ctrl / Alt / Fn] Tap to toggle between enable / disable

[1 point tap (other than keyboard area)] Move mouse cursor

-------------------------------------------------- -------

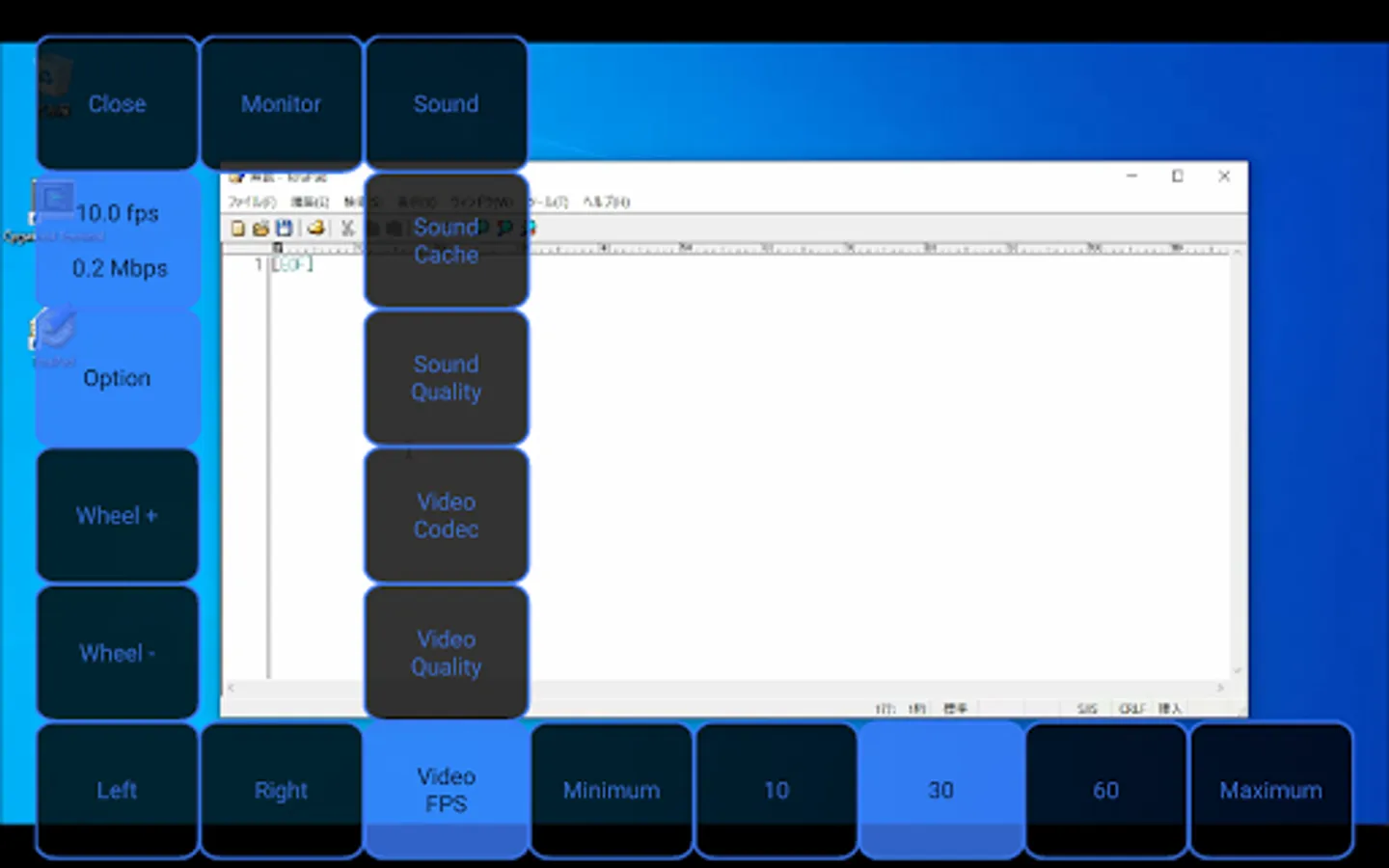

[Software button is displayed]
-------------------------------------------------- -------

[Close] Hide software button

[FPS / Data transfer amount] Information display only

[Left] Left mouse button

[Right] Right mouse button

[Wheel +] Rotate the wheel up

[Wheel-] Rotate the wheel down

[Drag one point (area other than the button)] Relative movement of the mouse cursor

[Option] Show / hide option buttons

[Monitor] Select monitor

[Sound] Sound ON / OFF

[Sound Cache] Select cache level

[Sound Quality] Sound quality selection

[Video Codec] Video codec selection

[Video Quality] Video quality selection

[Video FPS] Select Video FPS

================================================== ======================


[Terms of service]
・ We are not aware of any damage or damage caused during use.
・ All rights, etc. belong to the developer "Fun".
・ This agreement is subject to change without notice.
