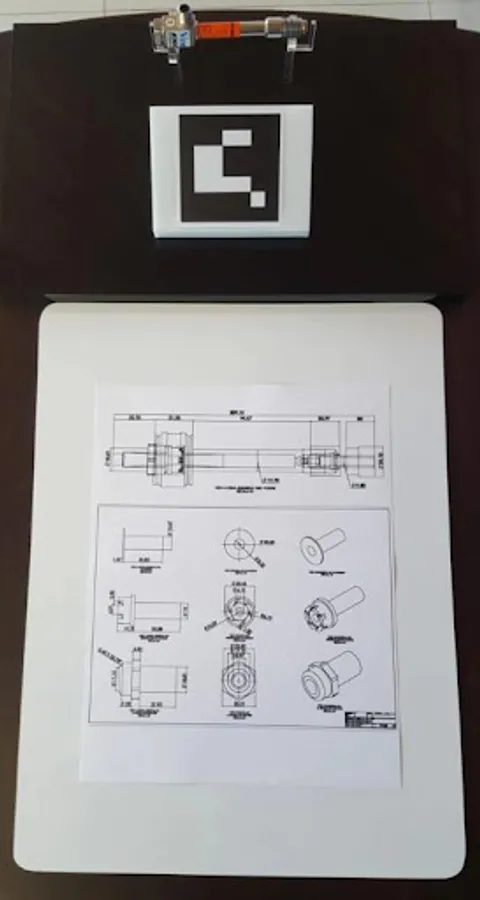

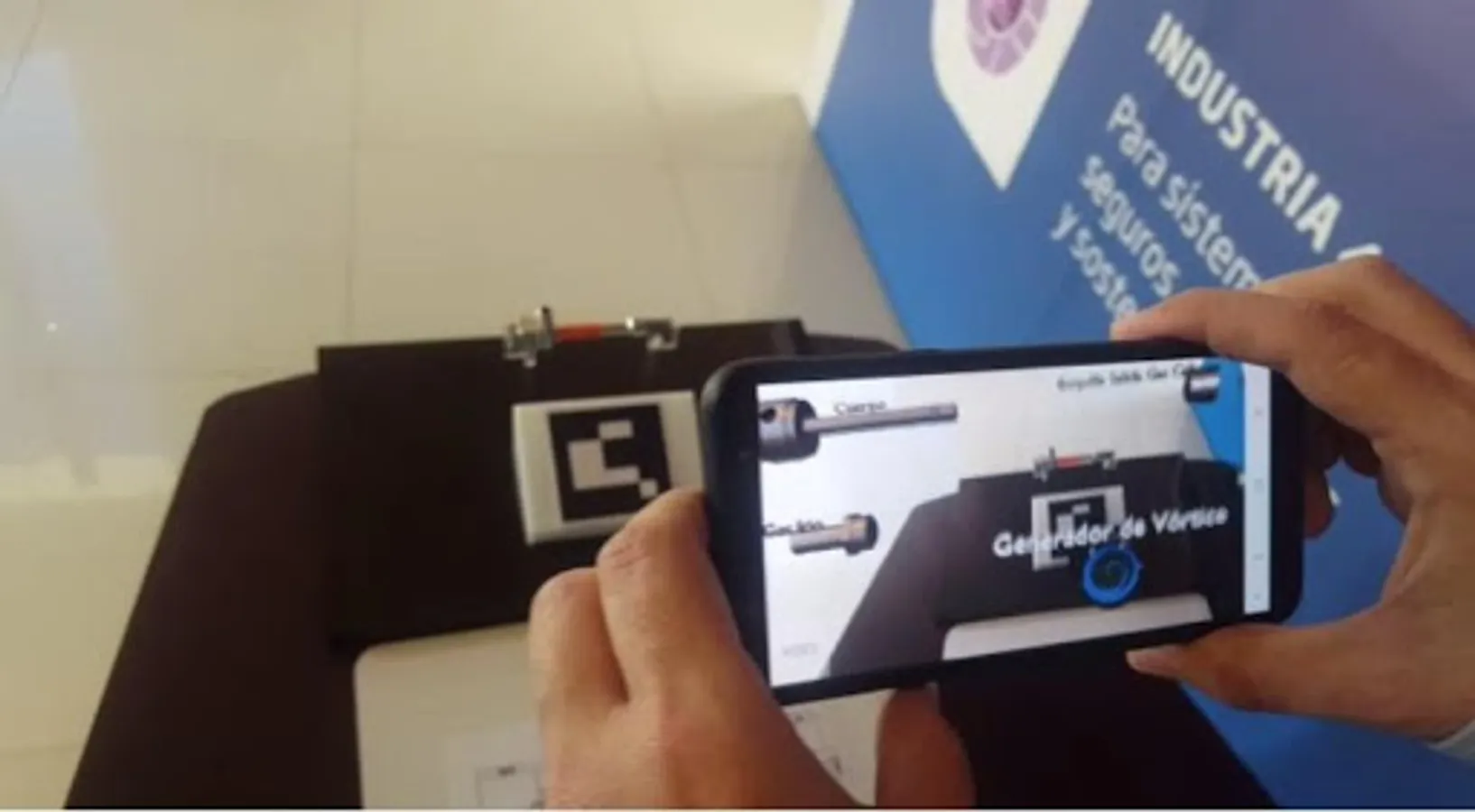

A Vortex tube is a thermal machine that has no moving parts inside, in which pressurized gas is injected into a compartment specially designed to allow the injected fluid to present a high-speed rotational movement, close to 1 million revolutions per minute. The Vortex tube has a conical valve at one end that allows the gas to be divided into two gas streams, one hot and one cold. Which exit at opposite ends of the Vortex tube, the hot one being the one that comes out from the side of the conical valve. This behavior allows us to think about using the pressure energy transported by pressurized gases. This augmented reality application allows the detection of markers for the deployment of 3D models of a conventional vortex tube, also indicating its operation and cutting of its main components.

Download of the plan:
https://frudastechnology.com/wp-content/uploads/2019/03/Plano-tubo-vortex.jpg
QR code download:
https://frudastechnology.com/wp-content/uploads/2019/03/QR.png
