In this lighting handbook, you can browse detailed specifications for over 1000 lighting fixtures and dimmers. Includes manufacturer information, pinout diagrams, and lamp details for various equipment types.
AppRecs review analysis
AppRecs rating 4.1. Trustworthiness 0 out of 100. Review manipulation risk 0 out of 100. Based on a review sample analyzed.
★★★★☆
4.1
AppRecs Rating
Ratings breakdown
5 star
62%
4 star
10%
3 star
16%
2 star
10%
1 star
3%
What to know
✓
High user satisfaction
71% of sampled ratings are 4+ stars (4.1★ average)
✓
Authentic reviews
Natural distribution, no red flags
About Lighting Handbook
Lighting Handbook is a tool for all theatre, corporate and event technicians.

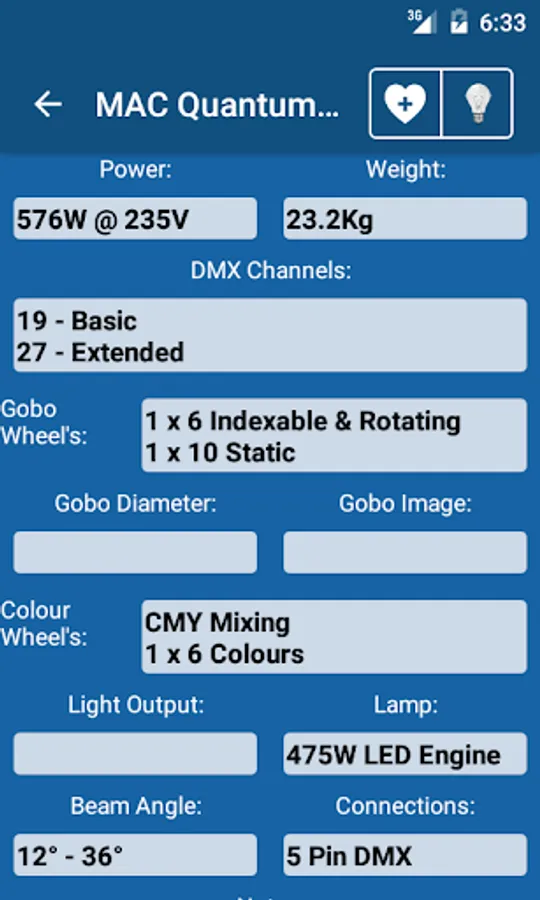

It displays information on over 1000 moving lights, Dimmers, Conventional fixtures & effects:
• Weight
• Power Consumption
• Data Connection types
• Light Output (According to manufactures manual)
• Colour wheels/Mixing
• Gobo Wheels
• How many DMX Channels and in what mode
• Beam Size
• Lamp type
Dimmer Info:
• Mains connectors
• Mains out?
• Data Connectors
• Dimmer connections
• Max Channel count
• Max Channel current
• Max current per phase
• Weight
• Dimensions
• Channel to phase info
• Any additional feature

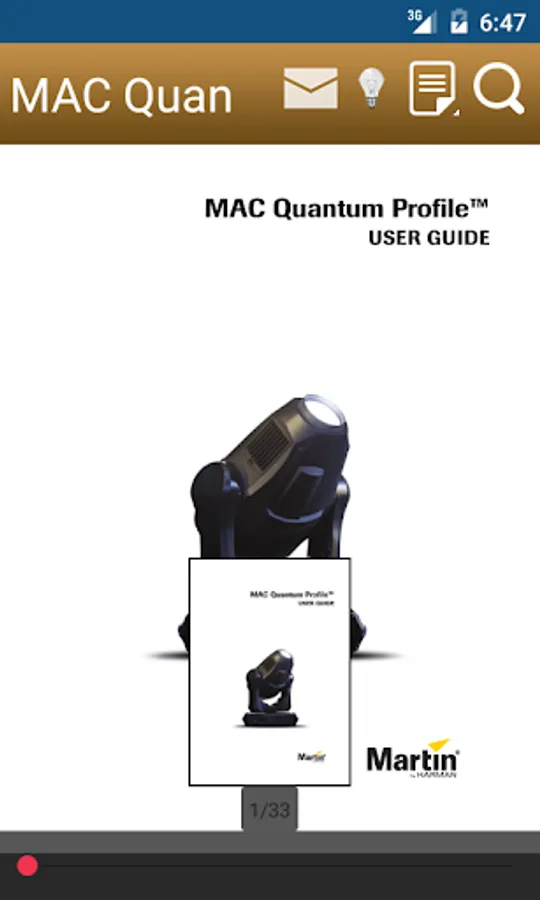

If your device is connected to the internet, the manual is then available for viewing right within the app. You can also store manuals for offline viewing either within Lighting Handbook or in your favourite PDF viewing app.

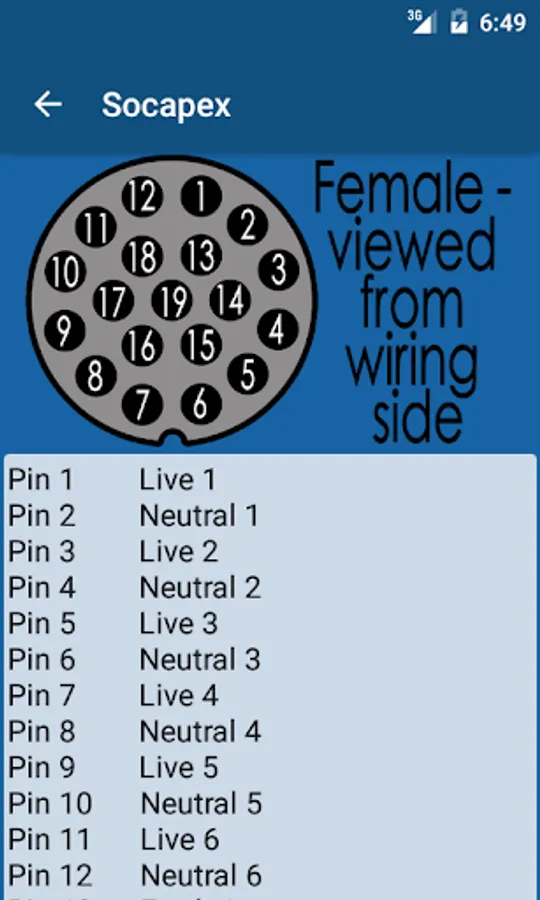

One other feature is the Pinout diagrams for the most popular data and power connections:
• Socapex
• Lectriflex
• DMX (3 & 5 Pin)
• 4 Pin - Scroller cable
• RJ-45 (Ethernet)
• DMX Terminators
• Avolites Download cable
• Martin DMX - RJ-45
Another feature is the Lamp Guide, Giving detailed information on individual lamps like Par 64, T class lamps, HPL's and more!
Information given is:
• Wattage
• Voltage
• Cap/Base
• Colour temperature °K
• Average Life Hours
• Beam/Lamp Length
• Any alternative lamp

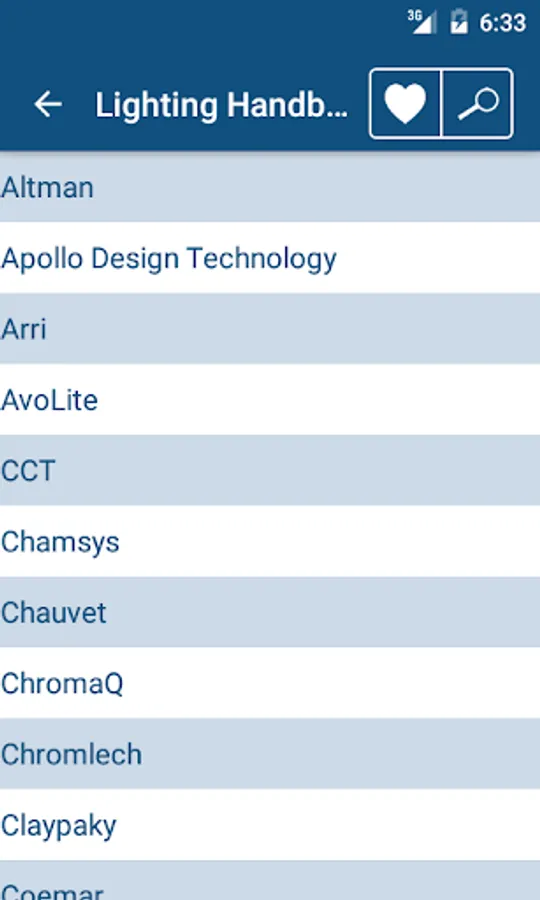

Current manufacturers are:
• Altman
• Apollo Design Technology
• Arri
• Avolite
• CCT
• Chamsys
• Chauvet (Pro only currently)
• ChromaQ
• Chromlech
• Claypaky
• Coemar
• Color Kinetics
• Compulite
• Elation
• ETC
• GLP
• GrandMa
• High End
• i-Pix
• James Thomas Engineering
• Jands
• JB Lighting
• Jem
• LSC
• Light Processor
• Look Solutions
• Martin
• Novalight
• PRG
• Pulsar
• Rainbow
• Robe
• Robert Juliat
• Selecon
• SGM
• Showtec
• Strand
• Studio Due
• Thomas
• Vari Lite
• Wybron
• Zero 88

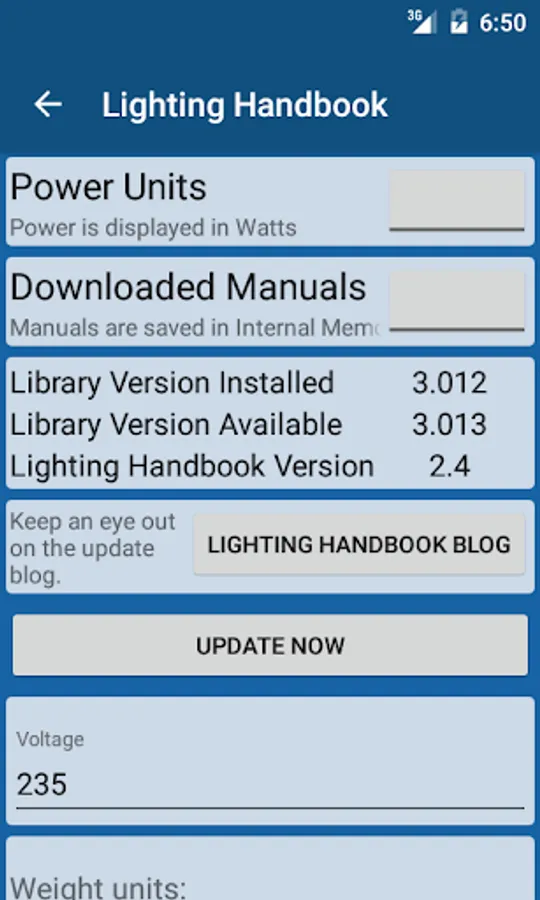

The library of manufacturers can be updated from within the app - Go to the settings menu, from there you'll be able to see what version of the library is currently installed and if connected to the internet, what version is now available for download. Click the "Update Library" Button and it will download the latest library and install into Lighting Handbook.
If you have a specific manufacturer or light you'd like including, please e-mail me and I'll try and include it in the next update.
