Количество материалов на армоп

When building your house from brick / block materials, you often come across such a concept as an armored belt. Armopoyas serves to "connect" your walls, to absorb the spacer forces from the roof, as well as to distribute the loads transmitted from the ceiling to the walls.

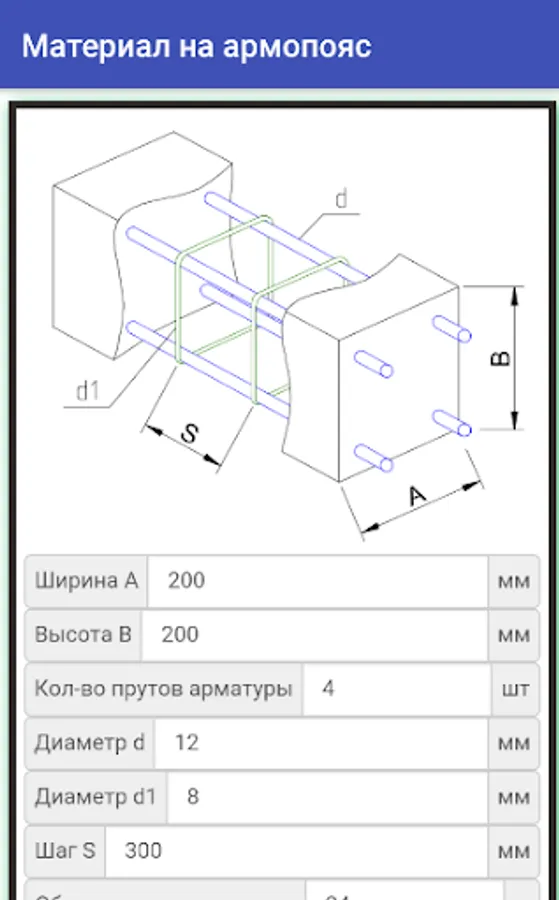

This calculator is used to determine the amount, volume and mass of the material that is used for the armopoyas. Here you can find the volume of concrete, the weight and length of the working reinforcement, the number and weight of the clamps used.
Operating procedure:
1. Enter the width of the armored belt A
2. Enter the height of the armopoyas B
3. Set the number of rods of the working armature of the arpomoyas (standard 4pcs)
4. Set the diameter of the working reinforcement d (for standard cottage construction, 12mm is enough)
5. Set the diameter of the clamps d1 (for standard cottage construction, 8mm is enough)
6. Set the pitch of the clamps S (for standard cottage construction, 300mm is enough)
7. Set the total length of the armopoyas
8. Click the "Calculation" button

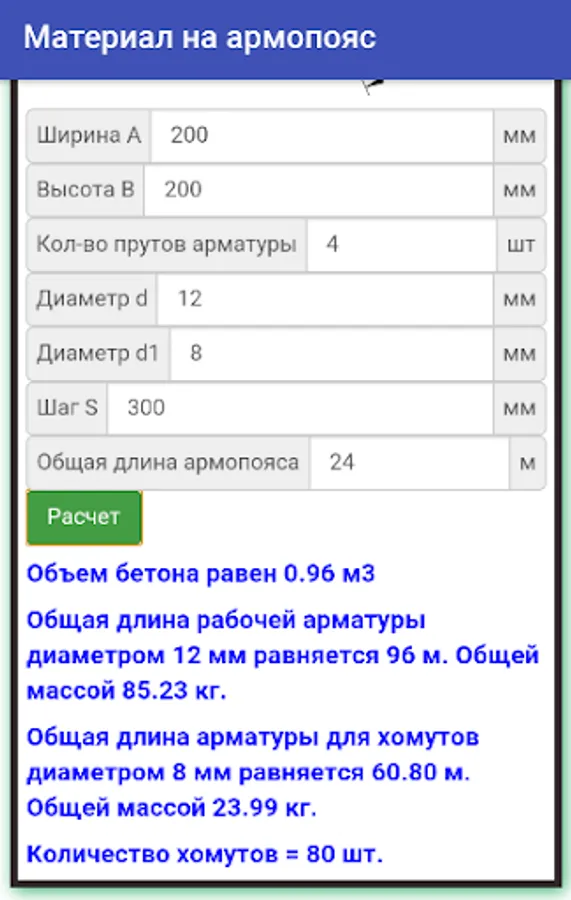

The result will be displayed under the "Calculation" button.
For reference:
- steel density - 7850 kg / m3
- the thickness of the concrete cover is taken as 10-15 mm
