QuickBLE

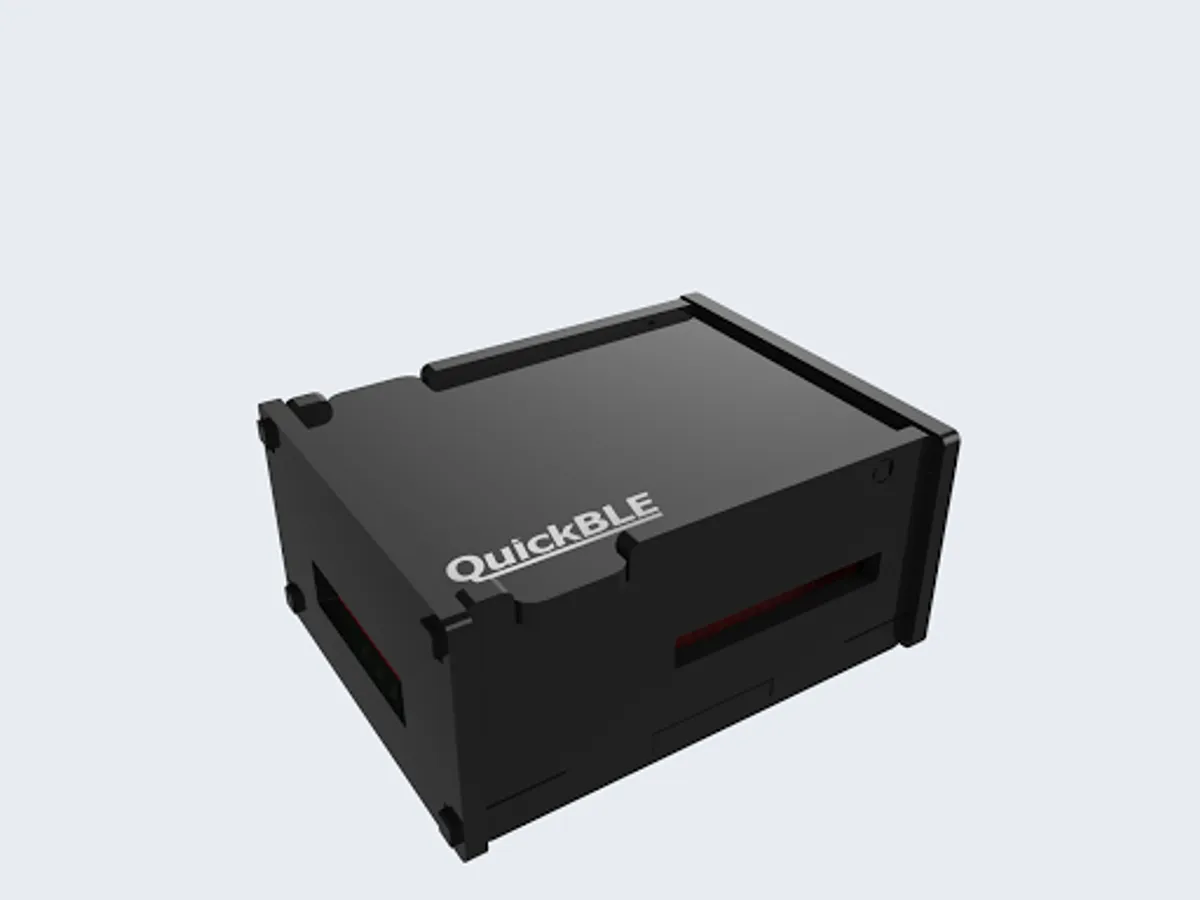

QuickBLE is a development board for DIY interactive device. A personal interative device can be built up instantly through easy connection and App configuration!

***Support various common sensor modules
***Plug and Run
***Multiple output connectors

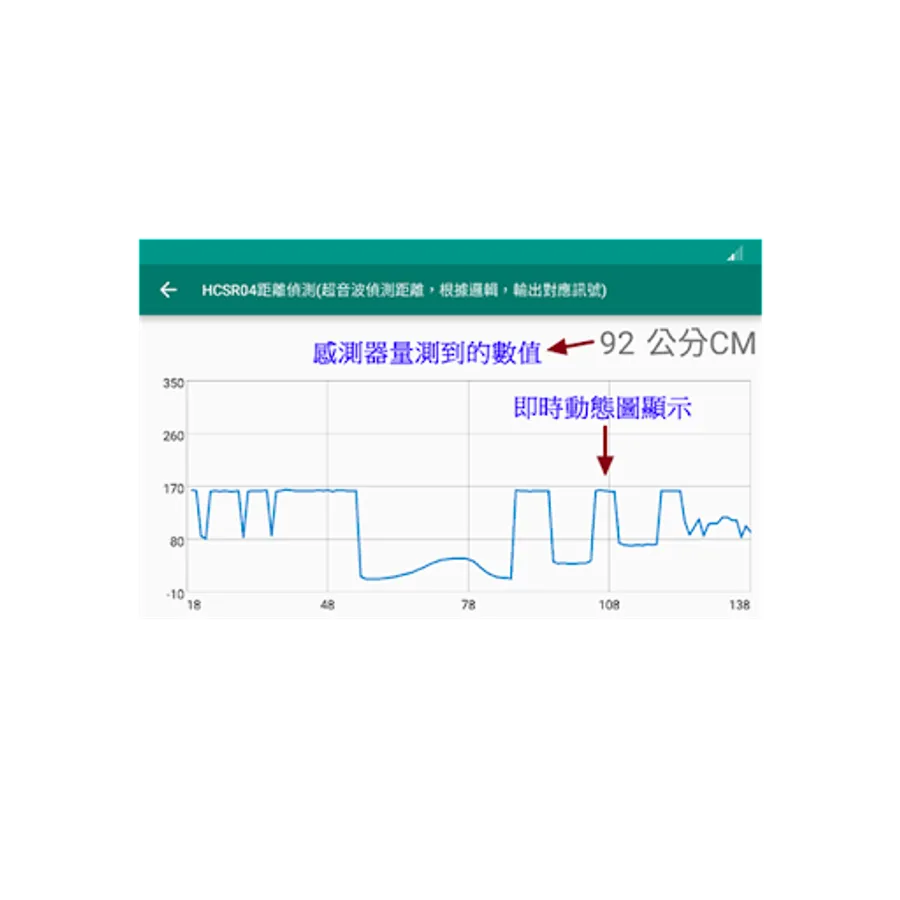

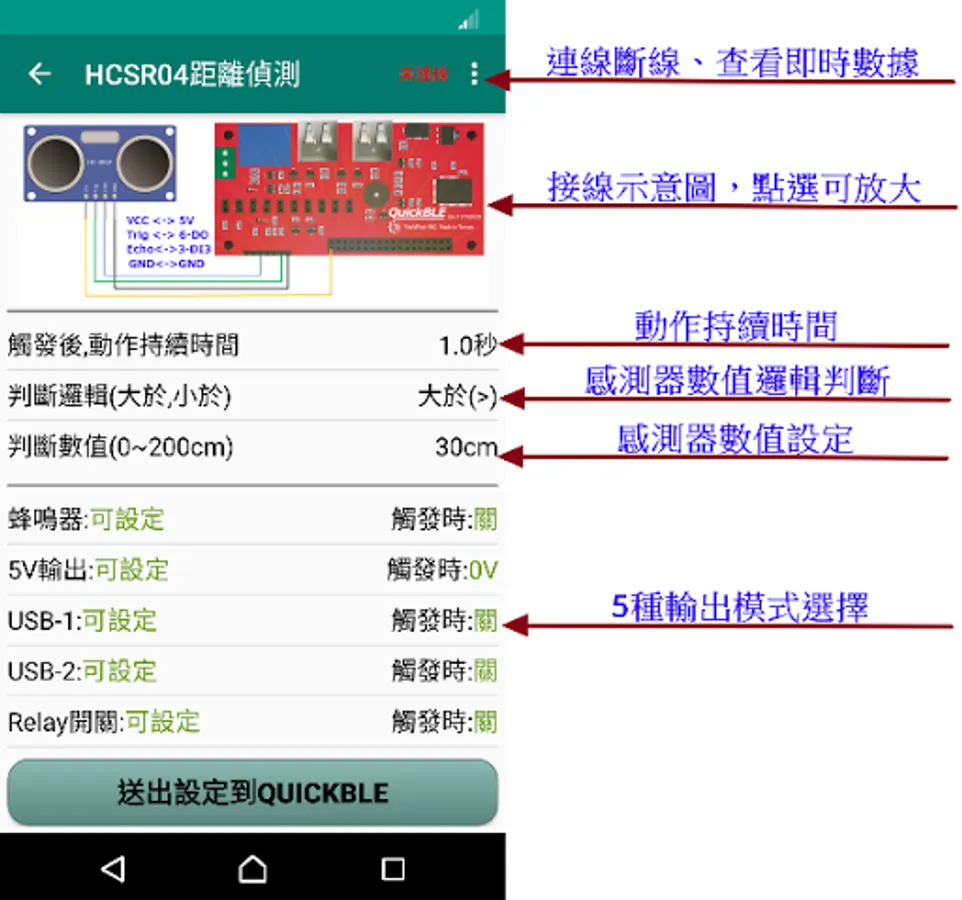

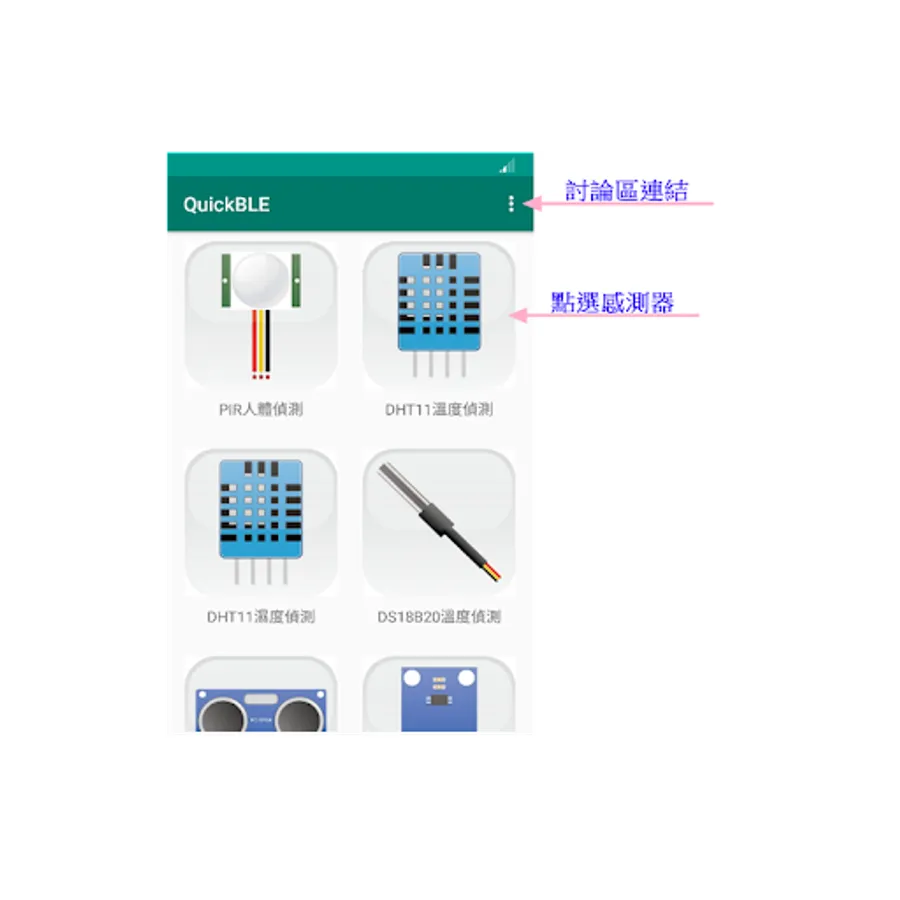

***Monitoring sensor status via mobile apps in real time
***More sensors will be supported in the future through firmware upgrade

****Output****
A) Buzzer x1: Buzzer sounds are configurable
B) USB2.0 Port x2：You may connect LED lamps, electric fans, or even a series of QuickBLE!
C) Relays x2: You may connect motors, electric fans (cables are optional)
D) 5V Port x1: You may connect it to external power circuit
Be sure to pay attention to electrical safety!

****Input****
1) Temperature/Humidty sensor
2) Temperature sensor
3) Supersonic sensor
4) illuminometer
5) Human infrared sensing module
6) Reflactive infrared randing module
7) Soil moisture sensor
8) Sound sensor
9) PM2.5 sensor

****Power****
MicroUSB Port, 5V

More information.
