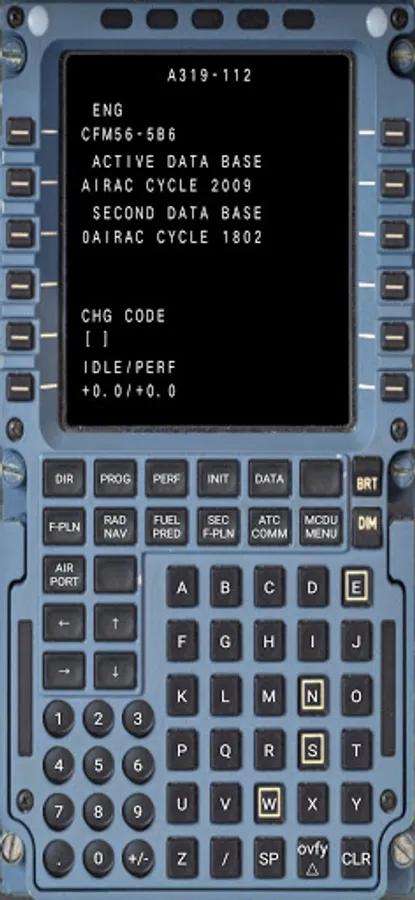

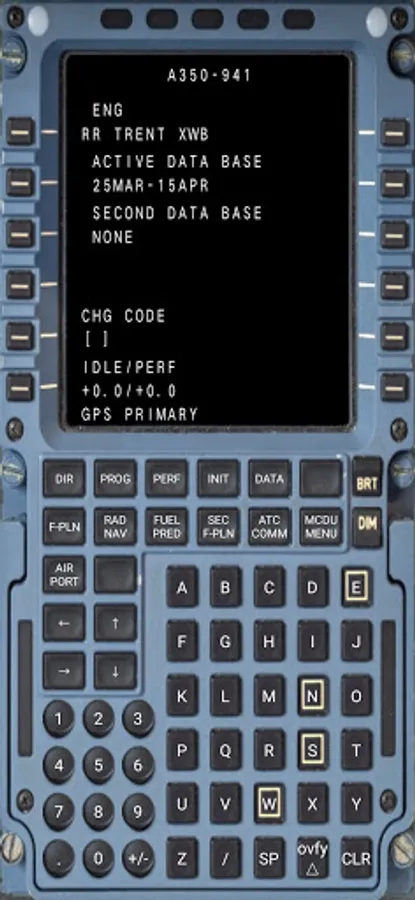

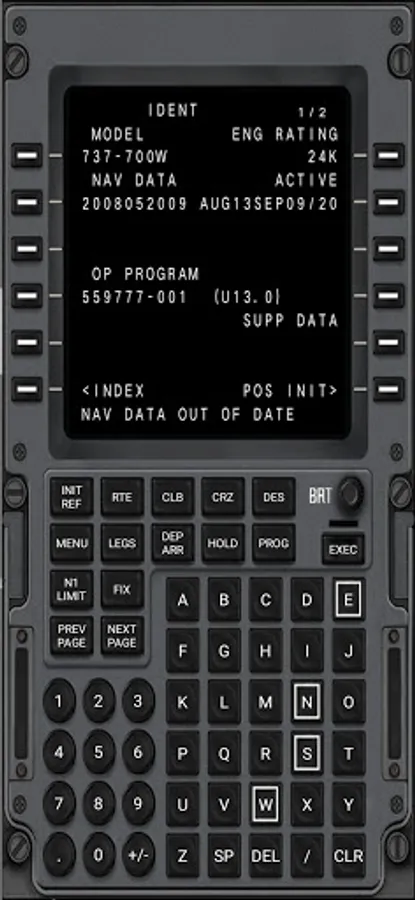

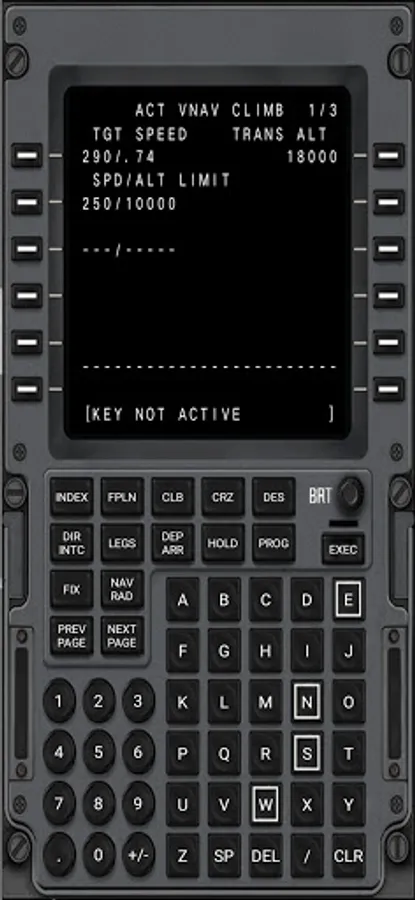

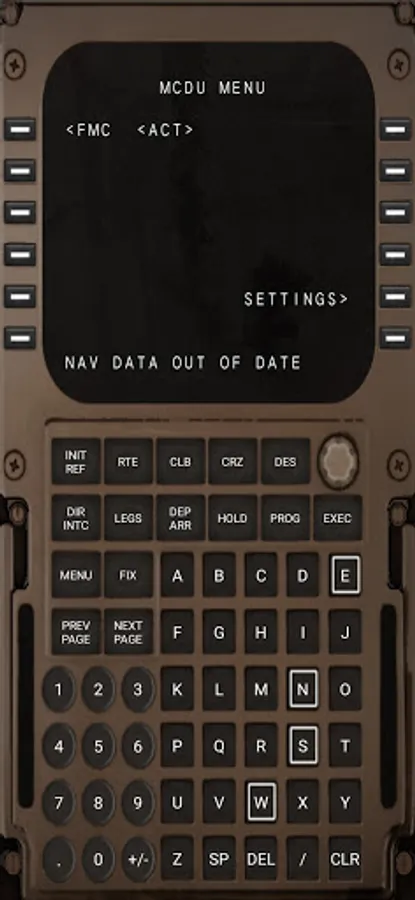

X-CDU is a remote control interface for the Control Display Unit (CDU) present in X-Plane 11. This app does not provide an FMS, but simply a way to control the existing CDU from an Android tablet or phone.
Aircraft support
-Default X-Plane CDU
-ToLiss A319
-ToLiss A321
-ToLiss A340
-FlightFactor 757
-FlightFactor 767
-FlightFactor 777
-FlightFactor A320
-FlightFactor A350
-VMAX 787
-Rotate MD-80
-SSG 747-8 Series
-Zibo Mod 737-800
-737-900 Ultimate
-737-700 Ultimate
-LevelUp 737NG
-IXEG 737-300
-JARDesign A320
-JARDesign A330
-JARDesign A340-500
-Peters Aircraft A320
The support may cause abnormal connection due to different versions
SSG Embraer 195 is for trial use only
-Default X-Plane CDU includes
atr72
mk787
EADT 737
MD82
xhangar G650
X-Rotors AW139.
Wilson's aircraf 707
Carenado - 390 PREMIER IA
Carenado - Falon 50EX
Carenado - SAAB 340
DMO S92
And other models I don’t know
supports growing number of aircraft
Requirements:
- X-Plane 11

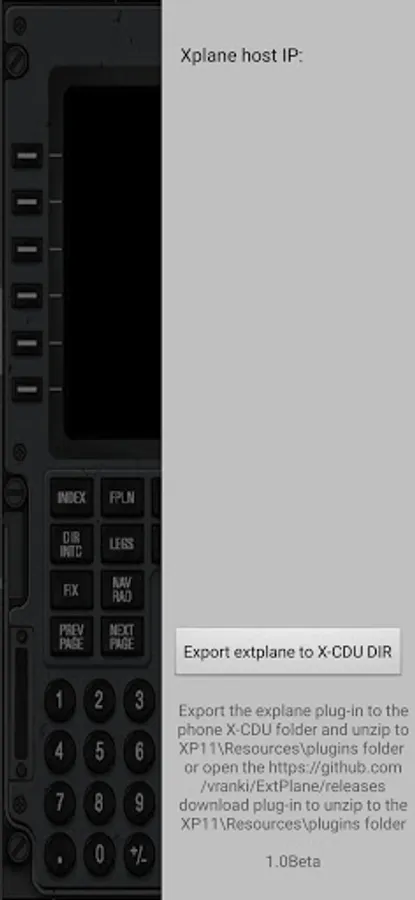

- Export explane plugin from App to Android device X-CDU directory
or Download the ExtPlane plugin from https://github.com/vranki/ExtPlane/releases and unzip it, copy the extracted directory into the Resources/Plugins directory
- Make sure the plug-in contains the XPL file of the corresponding platform
- Open TCP port 51000 in Windows firewall for ExtPlane
- Multicast support on your Android device for auto-detection

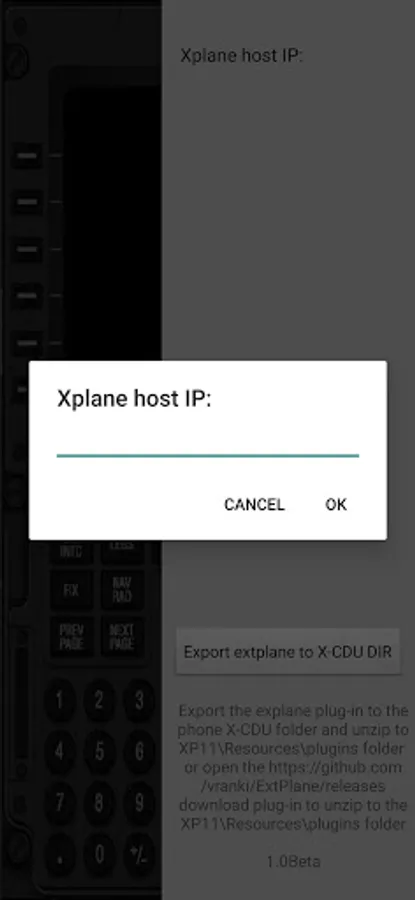

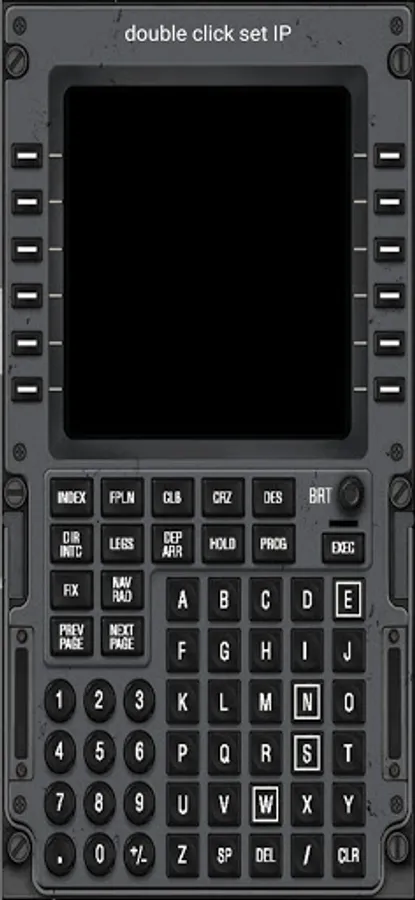

X-CDU will auto-detect your X-Plane instance assuming that multicast is working. Many routers or Android device do not support multicast properly, and so you can tap on the CDU screen top to configure a manual X-Plane IP address.
You must have the ExtPlane plugin installed in your X-Plane 11 Resources/plugins directory. This plugin uses port 51000 to provide external control capabilities, so you must make sure that Windows firewall is not blocking it .
Remember: extract the plugin into your Resources/plugins directory, and make sure port 51000 is not blocked by the Windows firewall.
-FlightFactor 777 need open 18387 port and Related CDU plug-ins
-FlightFactor A320: need to set a user/pass in the EFB on tablet
Aircraft support
-Default X-Plane CDU
-ToLiss A319
-ToLiss A321
-ToLiss A340
-FlightFactor 757
-FlightFactor 767
-FlightFactor 777
-FlightFactor A320
-FlightFactor A350
-VMAX 787
-Rotate MD-80
-SSG 747-8 Series
-Zibo Mod 737-800
-737-900 Ultimate
-737-700 Ultimate
-LevelUp 737NG
-IXEG 737-300
-JARDesign A320
-JARDesign A330
-JARDesign A340-500
-Peters Aircraft A320
The support may cause abnormal connection due to different versions
SSG Embraer 195 is for trial use only
-Default X-Plane CDU includes
atr72
mk787
EADT 737
MD82
xhangar G650
X-Rotors AW139.
Wilson's aircraf 707
Carenado - 390 PREMIER IA
Carenado - Falon 50EX
Carenado - SAAB 340
DMO S92
And other models I don’t know
supports growing number of aircraft
Requirements:
- X-Plane 11
- Export explane plugin from App to Android device X-CDU directory
or Download the ExtPlane plugin from https://github.com/vranki/ExtPlane/releases and unzip it, copy the extracted directory into the Resources/Plugins directory
- Make sure the plug-in contains the XPL file of the corresponding platform
- Open TCP port 51000 in Windows firewall for ExtPlane
- Multicast support on your Android device for auto-detection
X-CDU will auto-detect your X-Plane instance assuming that multicast is working. Many routers or Android device do not support multicast properly, and so you can tap on the CDU screen top to configure a manual X-Plane IP address.
You must have the ExtPlane plugin installed in your X-Plane 11 Resources/plugins directory. This plugin uses port 51000 to provide external control capabilities, so you must make sure that Windows firewall is not blocking it .
Remember: extract the plugin into your Resources/plugins directory, and make sure port 51000 is not blocked by the Windows firewall.
-FlightFactor 777 need open 18387 port and Related CDU plug-ins
-FlightFactor A320: need to set a user/pass in the EFB on tablet
