Updraw - create 2D CAD drawings with dimensions
Ben Blevins
3.7 ★
392 ratings
Free
With this 2D CAD app, you can create geometric shapes and apply constraints to solve for unknowns. Includes drawing tools, constraint options, and export features.
AppRecs review analysis
AppRecs rating 3.5. Trustworthiness 79 out of 100. Review manipulation risk 25 out of 100. Based on a review sample analyzed.
★★★☆☆
3.5
AppRecs Rating
Ratings breakdown
5 star
50%
4 star
14%
3 star
9%
2 star
6%
1 star
21%
What to know
✓
Low review manipulation risk
25% review manipulation risk
✓
Credible reviews
79% trustworthiness score from analyzed reviews
✓
Good user ratings
64% positive sampled reviews
About Updraw - create 2D CAD drawings with dimensions
Features:
• Intuitive interface designed specifically for touch screens
• Familiar 2D geometry: points, lines, circles, arcs, and cubic splines
• Global constraint solver calculations: distance, diameter, radius, coincident, parallel, perpendicular, angle, congruence, intersection, midpoint, symmetric, and tangent (line to arc, line to spline, circles and arcs)
• Interactive and manual solver modes help to resolve constraint ambiguities
• PDF and PNG image export

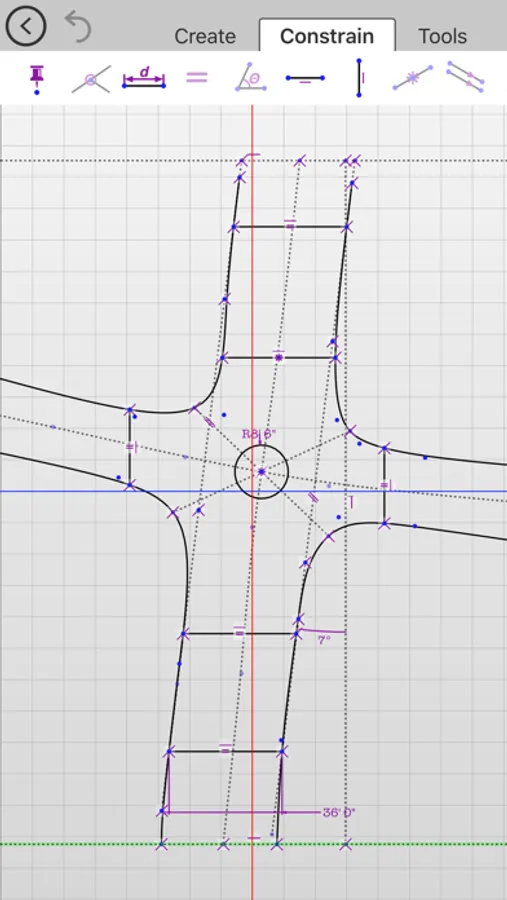

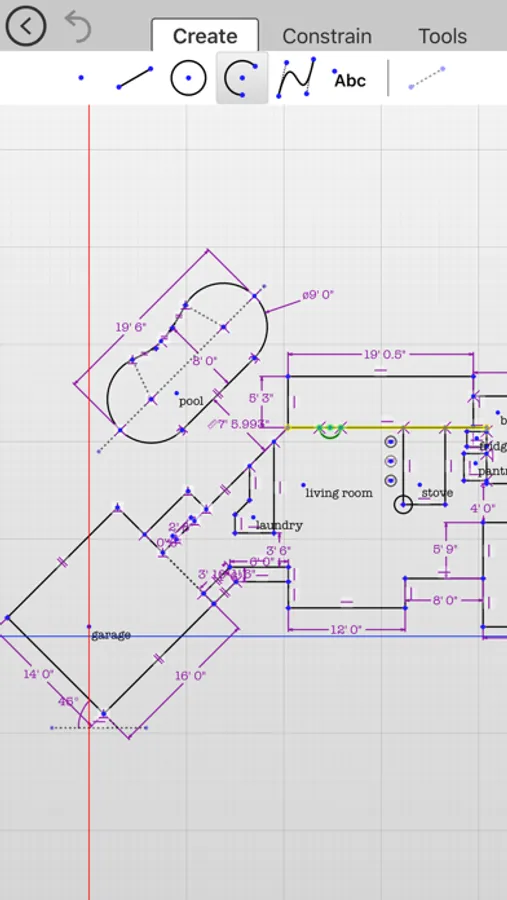

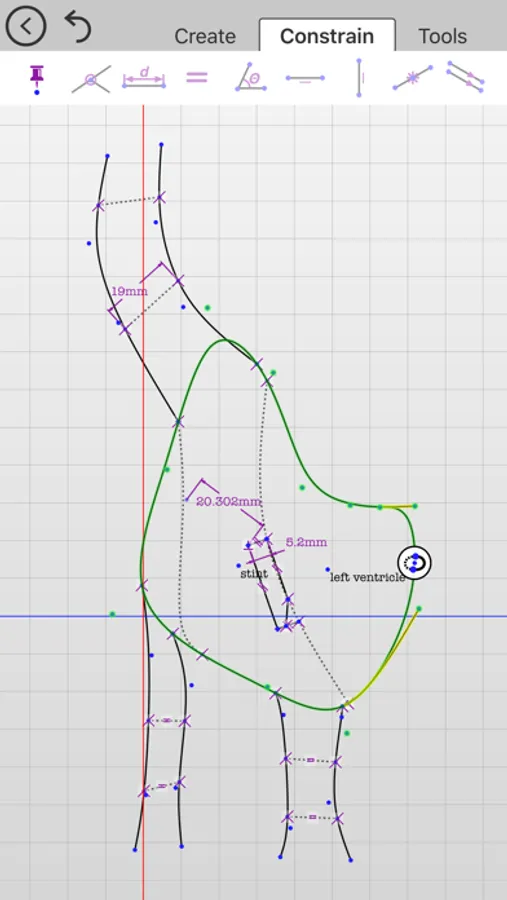

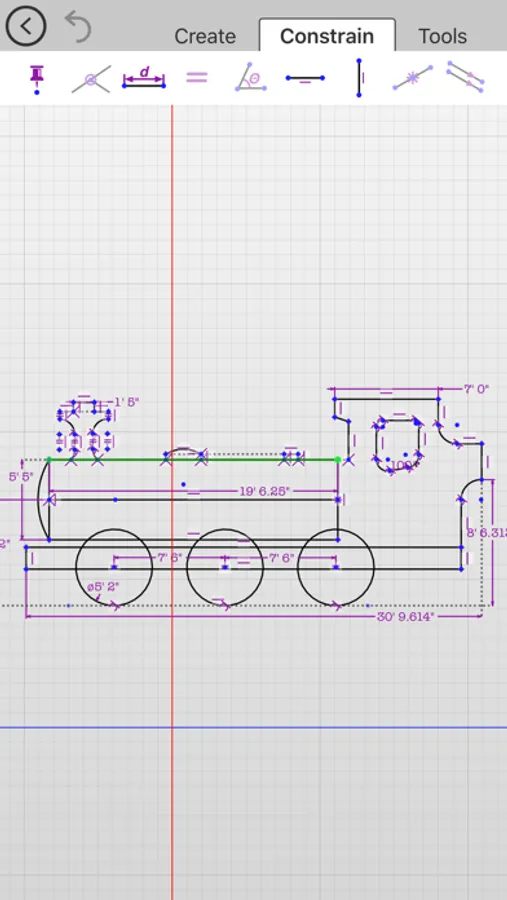

Updraw - create 2D CAD drawings with dimensions Screenshots
Tap to Rate:
Reviews for Updraw - create 2D CAD drawings with dimensions
GYRO_AV8R
Little control
It is beyond basic. No contol over what your drawing, also no scale
Run every way
Perfect parametric CAD on the go
Many of the previous reviews dinged this app for being difficult to use, but once I figured it out it was so intuitive and easy. There are basically two tabs, draw and measure. The first step is to draw the rough shape. Then move over to the measure/constrain tab. The key here is to have selected what points or lines you want to measure/constrain and then press the appropriate button. Then make sure to deselect!
