With this voltage drop calculator app, you can enter system parameters and analyze voltage drop or conductor sizing. Includes wire size suggestions, calculation results, and conversion tools.
AppRecs review analysis
AppRecs rating 4.6. Trustworthiness 66 out of 100. Review manipulation risk 24 out of 100. Based on a review sample analyzed.
★★★★☆
4.6
AppRecs Rating
Ratings breakdown
5 star
81%
4 star
9%
3 star
4%
2 star
1%
1 star
4%
What to know
✓
Low review manipulation risk
24% review manipulation risk
✓
High user satisfaction
81% of sampled ratings are 5 stars
✓
Authentic reviews
No red flags detected
About Voltage Drop Calculator.
Perform accurate Voltage Drop and Wire Sizing calculations for both NEC® (National Electrical Code) and IEC standards. Built for electricians, engineers, and contractors who need reliable results on the go.
Voltage Drop Calculator
• Dual standards: Switch between NEC (AWG/Imperial) and IEC (mm²/Metric)
• Enter voltage, current, run length, and power factor
• Supports continuous load (125%), grouping, and ambient temperature corrections
• Copper or Aluminum conductors for single-phase and three-phase systems
• Detailed results including ampacity, derating, voltage drop, and load voltage
• Automatic compliance checks (e.g., ≤ 3% for branch circuits)
Wire Size Calculator (Reverse)
• Calculates required wire size for a target voltage drop %
• Suggests optimal AWG, kcmil, or mm²
• Uses NEC Chapter 9, Table 9 (AC impedance) with DC fallback
Professional Tools
• Wire converter (AWG/kcmil ↔ mm²)
• Generate and share PDF reports
• Handy electrical formula cards
• Localized in English, Spanish, French, German, Italian, Dutch, Portuguese, and Chinese
Voltage Drop Calculator
• Dual standards: Switch between NEC (AWG/Imperial) and IEC (mm²/Metric)
• Enter voltage, current, run length, and power factor
• Supports continuous load (125%), grouping, and ambient temperature corrections
• Copper or Aluminum conductors for single-phase and three-phase systems
• Detailed results including ampacity, derating, voltage drop, and load voltage
• Automatic compliance checks (e.g., ≤ 3% for branch circuits)
Wire Size Calculator (Reverse)
• Calculates required wire size for a target voltage drop %
• Suggests optimal AWG, kcmil, or mm²
• Uses NEC Chapter 9, Table 9 (AC impedance) with DC fallback
Professional Tools
• Wire converter (AWG/kcmil ↔ mm²)
• Generate and share PDF reports
• Handy electrical formula cards
• Localized in English, Spanish, French, German, Italian, Dutch, Portuguese, and Chinese

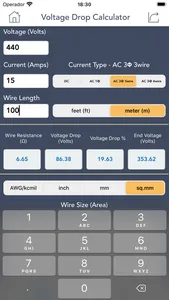

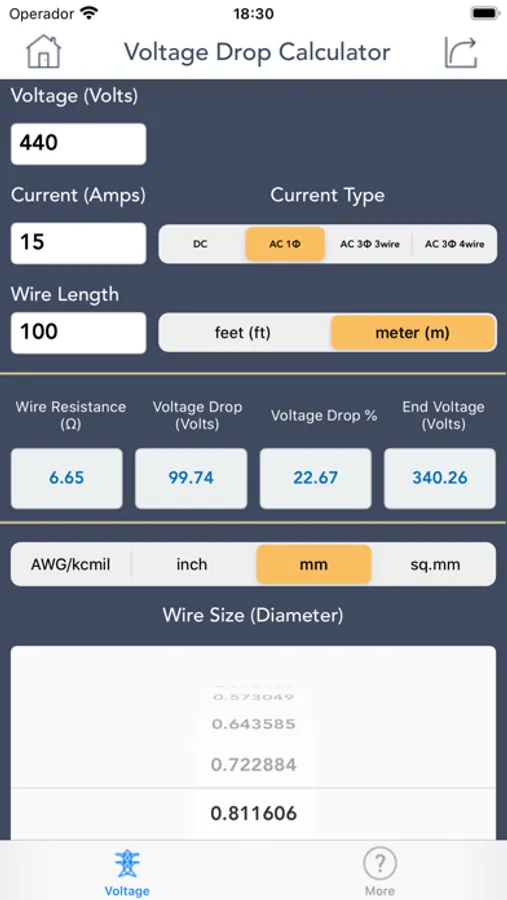

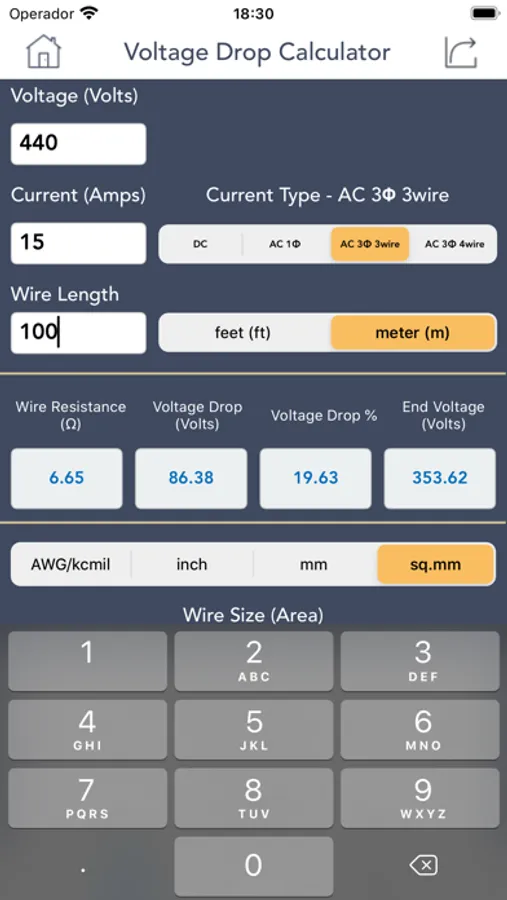

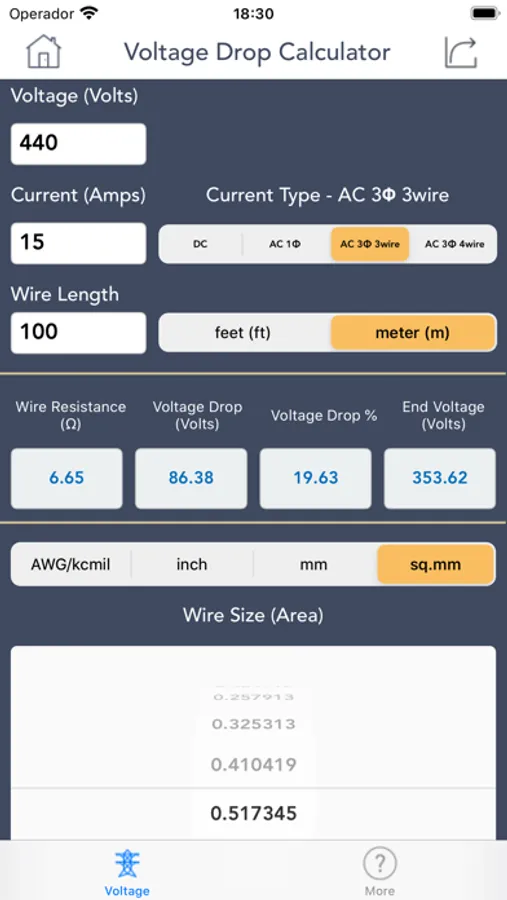

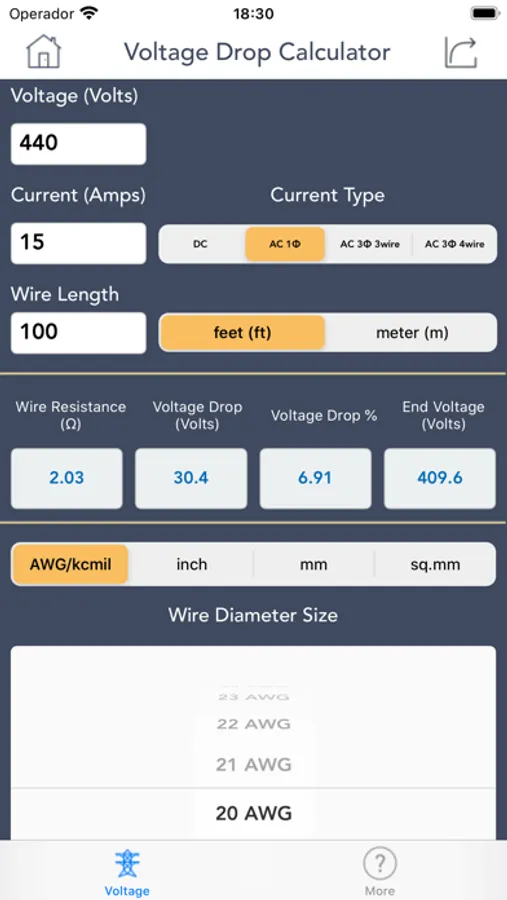

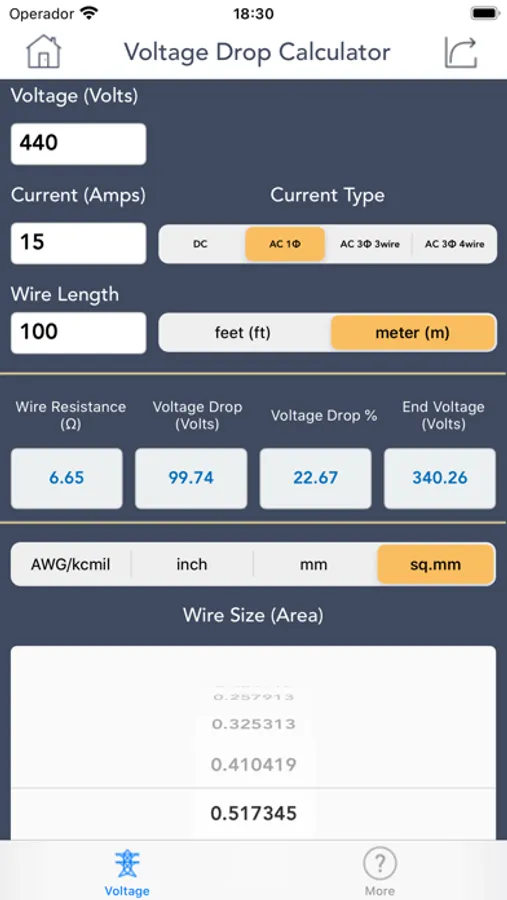

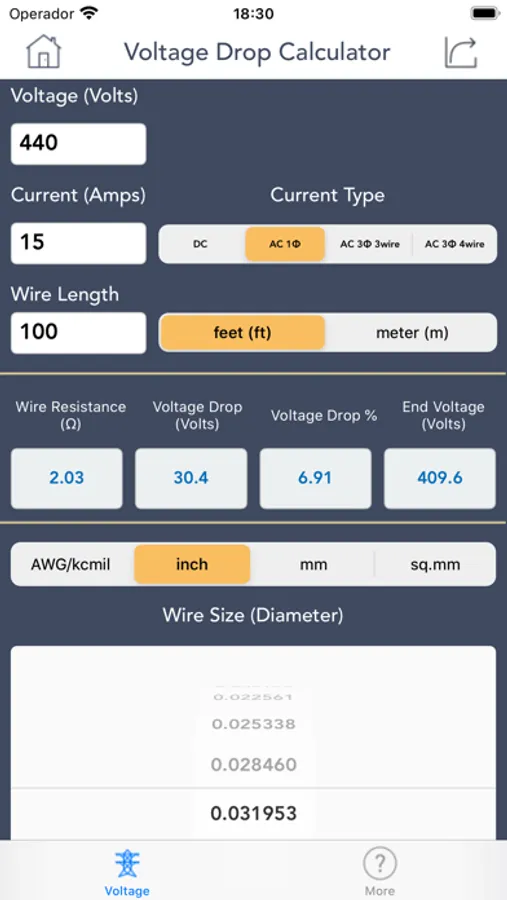

Voltage Drop Calculator. Screenshots
Tap to Rate:
Reviews for Voltage Drop Calculator.
kyle william loshure
Perfect for Solar wire sizing
Was blind but now I see long ago mistakes thanks author of Solar independent utility systems manual
Toothengr
Voltage Drop Calculator
Quick and easy, with plenty of variables.
