MyVoltControl is designed specifically for the Chevrolet Volt (and related models), and the Chevrolet Bolt. ("Related models" include the Cadillac ELR, Opel Ampera, Holden Volt, Opel Ampera-e.)
MyVoltControl requires either:
- an OBDLink MX+ OBD adapter (preferred)
- an OBDLink MX-WiFi OBD adapter
- a Bluetooth-Low-Energy (aka Bluetooth 4) OBD adapter will work in most cases. (Classic bluetooth adapters are not supported by iOS.)
- a generic WiFi OBD adapter will work in most cases.
(If you need to buy an adapter, refer to the information in our FAQ page at http://www.CraftinDeApps.com/FAQ#MVC
These adapters plug into the OBD-II port under the left side of your dash.
The App itself is free. Use of the functions described below requires an in-app purchase to enable each one that you want to use.

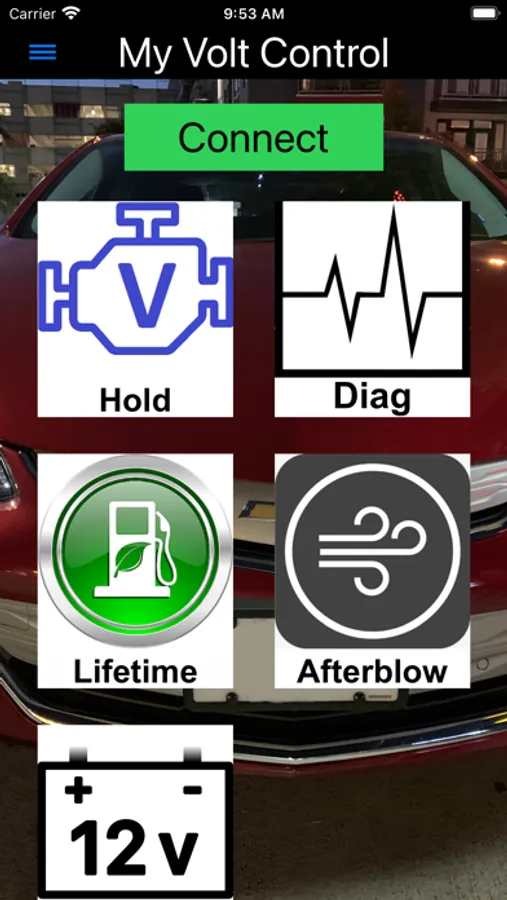

MyVoltControl consolidates four functions, long available for other phones, and makes them available for the iPhone and iPad. In addition, the last one is unique to this app. These are known as:
→> MyVoltHold
→> MyVoltLifetime
→> MyVoltDiag
→> MyVoltAfterblow
→> MyVolt12v
→> The Volt Hold function does four things.

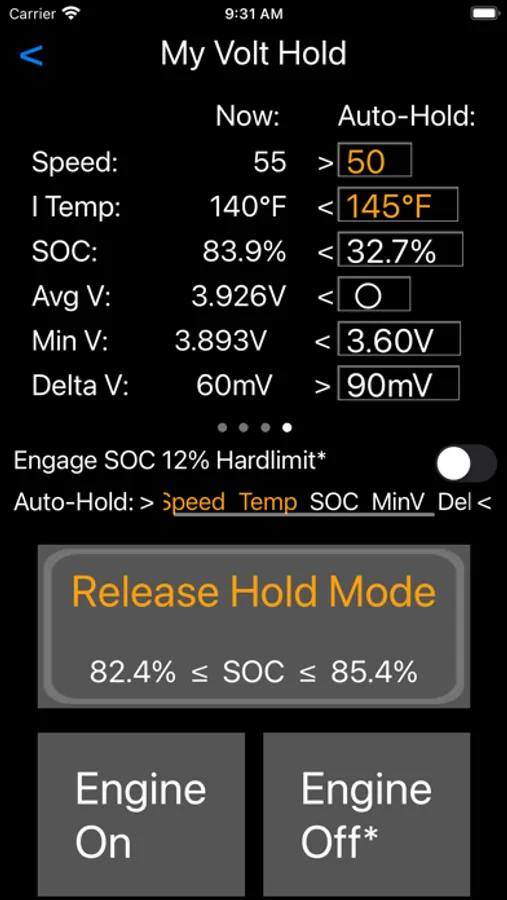

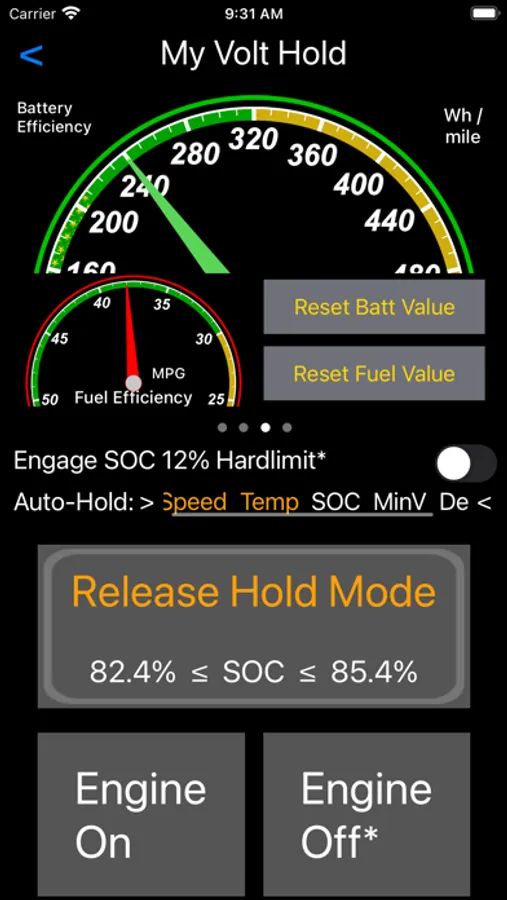

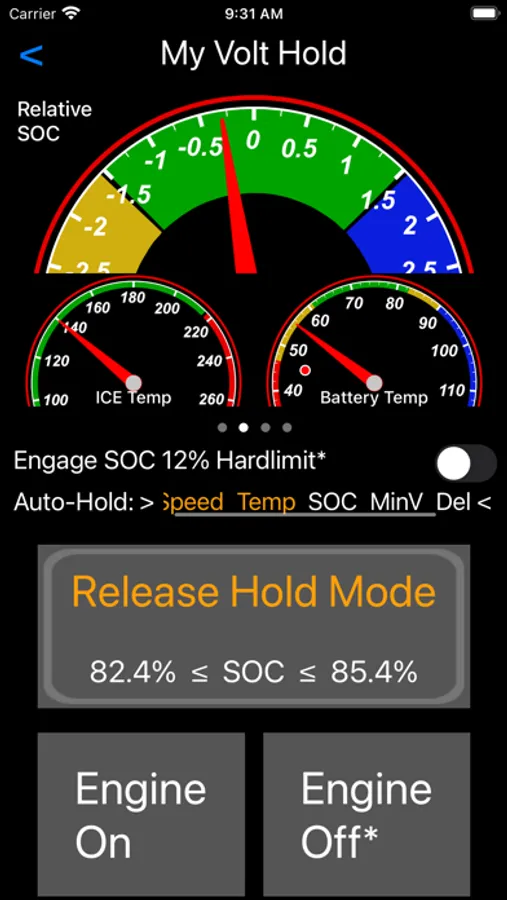

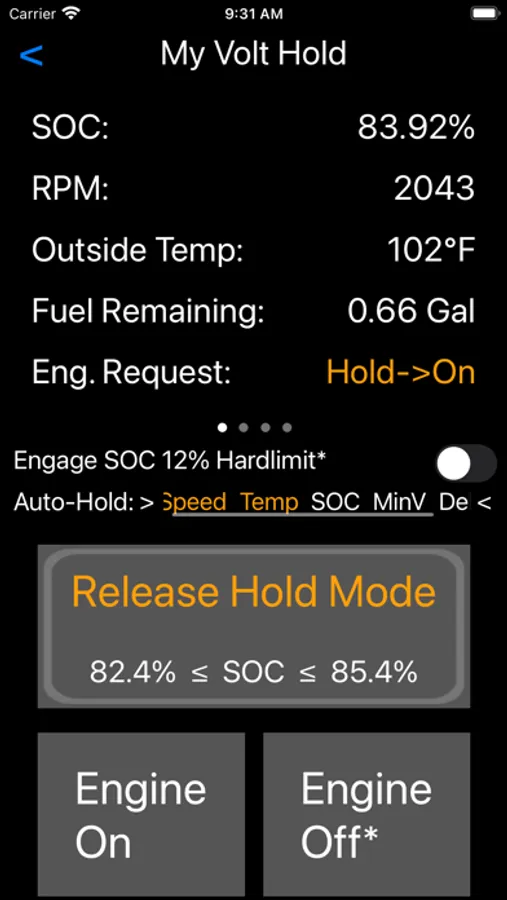

- First, at the top, it has several "information pages" that you can switch between to see information about your car. These are shown in the photos above. One of the information pages shows you the electric efficiency and the fuel efficiency of your car, calculated in a more useful way.
- Second, it allows you to turn on a "Hold" mode which approximates the Hold mode built into the car beginning with the 2013 model. This Hold mode turns on the internal combustion engine (ICE) as needed to try to maintain a State of Charge value that is close to the charge that was present when you turned the mode on. So why, you may ask, would I want that function on a newer car. Very simple really. Since Sport mode and Hold mode are mutually exclusive, this function allows you to use the car Mode button to engage Sport mode, while using the Hold function in this App to achieve Hold mode at the same time! Hold mode can also be automatically engaged based on State-of-Charge or vehicle speed.
- Next, it allows you to ask the car to run the internal combustion engine. You can use this to get heat from the engine on a cold morning, or to manually simulate your own Hold mode if you prefer.
- Finally, you can also use this function to force the ICE off, which you might want to do if the ICE is running due to low temperature (done for driver comfort).

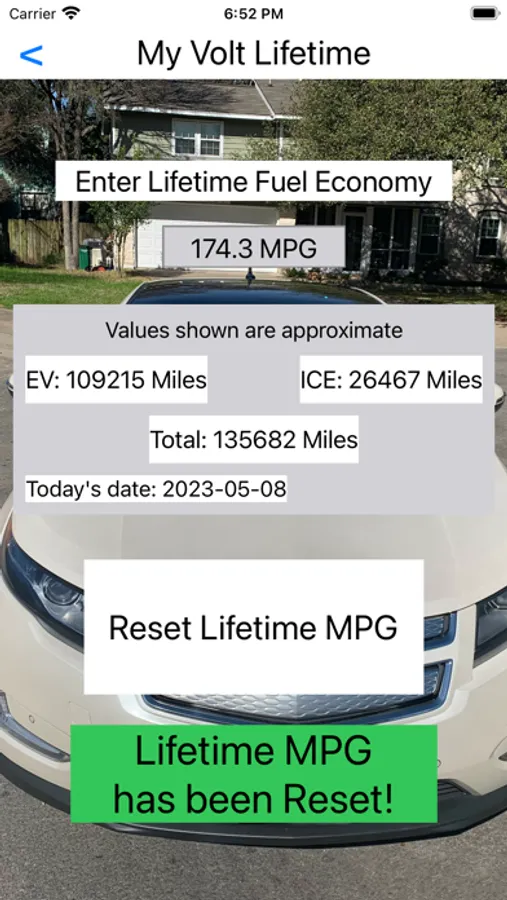

→> The Volt Lifetime function allows you to reset the lifetime fuel economy value ("Lifetime MPG" or "Lifetime L/100km") value for your car. You will find this useful if you've purchased a car which has recorded the previous owner's fuel economy results. You can also use this to calculate the distance travelled in both EV mode and on the ICE by entering the Lifetime Economy number shown on your dash.

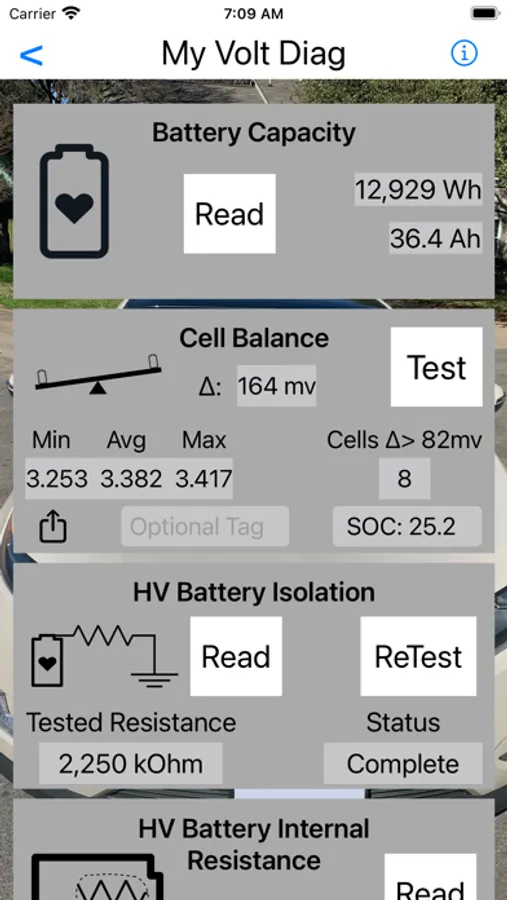

→> The Volt Diag function allows you to run some tests on your high-voltage (traction) battery. This is one of the three functions which apply to the Chevrolet Bolt.

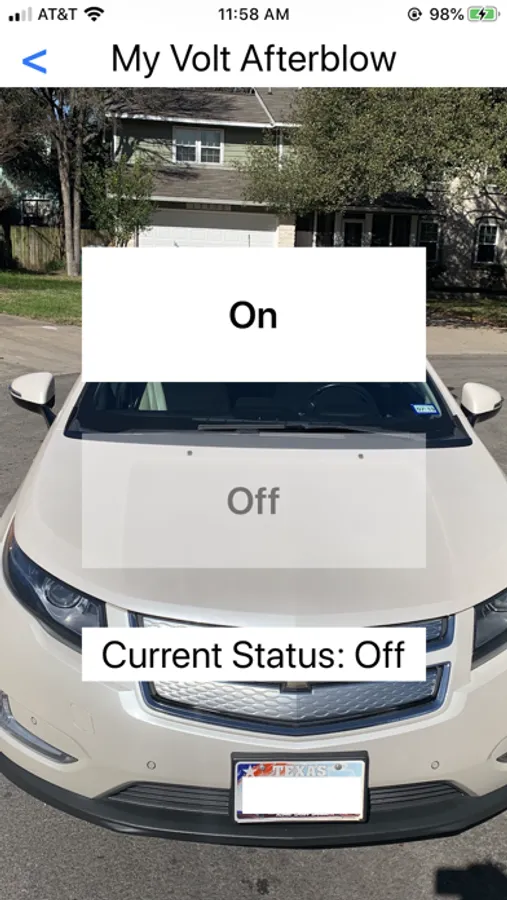

→> The Volt Afterblow function allows you to control a system that GM added to your car to dry out the A/C vents. This system is OFF by default and the Volt Afterblow function allows you to turn it on (or back off).
This app function is not available for 2013 model year cars.
This is one of the three functions which apply to the Chevrolet Bolt.
- You can use the My Volt Afterblow feature ONLY if you are using an OBD adapter which supports the SWCAN (aka GMLAN) bus. It must also support the "ST" command set (in addition to the common "AT" command set). Very few adapters offer this support. The known to be good and recommended adapters for this are the OBDLink MX+ or the OBDLink MX-Wifi adapters.

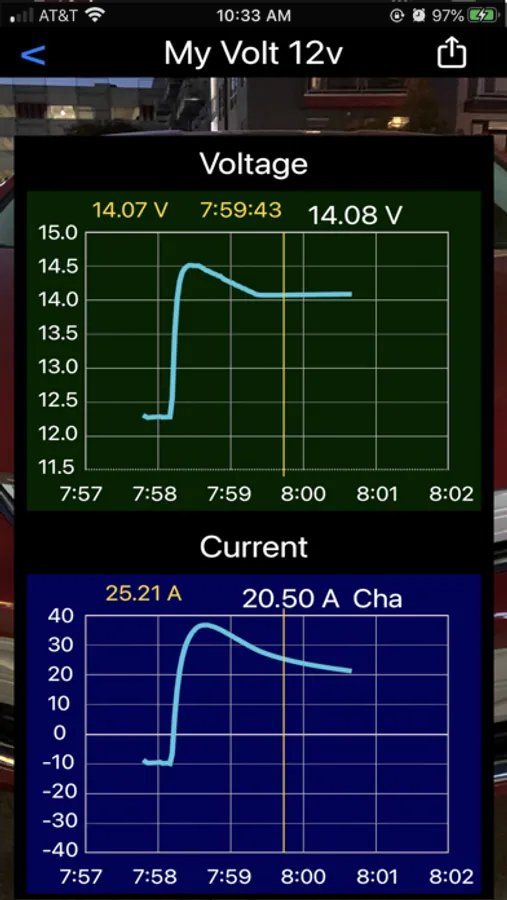

→> The Volt 12v function displays graphs showing the values of voltage and current on your 12 volt battery. This is one of the three functions which apply to the Chevrolet Bolt.
MyVoltControl requires either:
- an OBDLink MX+ OBD adapter (preferred)
- an OBDLink MX-WiFi OBD adapter
- a Bluetooth-Low-Energy (aka Bluetooth 4) OBD adapter will work in most cases. (Classic bluetooth adapters are not supported by iOS.)
- a generic WiFi OBD adapter will work in most cases.
(If you need to buy an adapter, refer to the information in our FAQ page at http://www.CraftinDeApps.com/FAQ#MVC
These adapters plug into the OBD-II port under the left side of your dash.
The App itself is free. Use of the functions described below requires an in-app purchase to enable each one that you want to use.
MyVoltControl consolidates four functions, long available for other phones, and makes them available for the iPhone and iPad. In addition, the last one is unique to this app. These are known as:
→> MyVoltHold
→> MyVoltLifetime
→> MyVoltDiag
→> MyVoltAfterblow
→> MyVolt12v
→> The Volt Hold function does four things.
- First, at the top, it has several "information pages" that you can switch between to see information about your car. These are shown in the photos above. One of the information pages shows you the electric efficiency and the fuel efficiency of your car, calculated in a more useful way.
- Second, it allows you to turn on a "Hold" mode which approximates the Hold mode built into the car beginning with the 2013 model. This Hold mode turns on the internal combustion engine (ICE) as needed to try to maintain a State of Charge value that is close to the charge that was present when you turned the mode on. So why, you may ask, would I want that function on a newer car. Very simple really. Since Sport mode and Hold mode are mutually exclusive, this function allows you to use the car Mode button to engage Sport mode, while using the Hold function in this App to achieve Hold mode at the same time! Hold mode can also be automatically engaged based on State-of-Charge or vehicle speed.
- Next, it allows you to ask the car to run the internal combustion engine. You can use this to get heat from the engine on a cold morning, or to manually simulate your own Hold mode if you prefer.
- Finally, you can also use this function to force the ICE off, which you might want to do if the ICE is running due to low temperature (done for driver comfort).
→> The Volt Lifetime function allows you to reset the lifetime fuel economy value ("Lifetime MPG" or "Lifetime L/100km") value for your car. You will find this useful if you've purchased a car which has recorded the previous owner's fuel economy results. You can also use this to calculate the distance travelled in both EV mode and on the ICE by entering the Lifetime Economy number shown on your dash.
→> The Volt Diag function allows you to run some tests on your high-voltage (traction) battery. This is one of the three functions which apply to the Chevrolet Bolt.
→> The Volt Afterblow function allows you to control a system that GM added to your car to dry out the A/C vents. This system is OFF by default and the Volt Afterblow function allows you to turn it on (or back off).
This app function is not available for 2013 model year cars.
This is one of the three functions which apply to the Chevrolet Bolt.
- You can use the My Volt Afterblow feature ONLY if you are using an OBD adapter which supports the SWCAN (aka GMLAN) bus. It must also support the "ST" command set (in addition to the common "AT" command set). Very few adapters offer this support. The known to be good and recommended adapters for this are the OBDLink MX+ or the OBDLink MX-Wifi adapters.
→> The Volt 12v function displays graphs showing the values of voltage and current on your 12 volt battery. This is one of the three functions which apply to the Chevrolet Bolt.
