Design and estimating tool for reinforced concrete section of cast-in-situ bored or CFA piles.
Featuring:

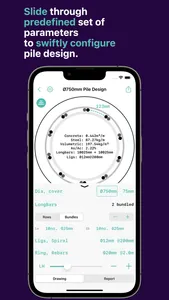

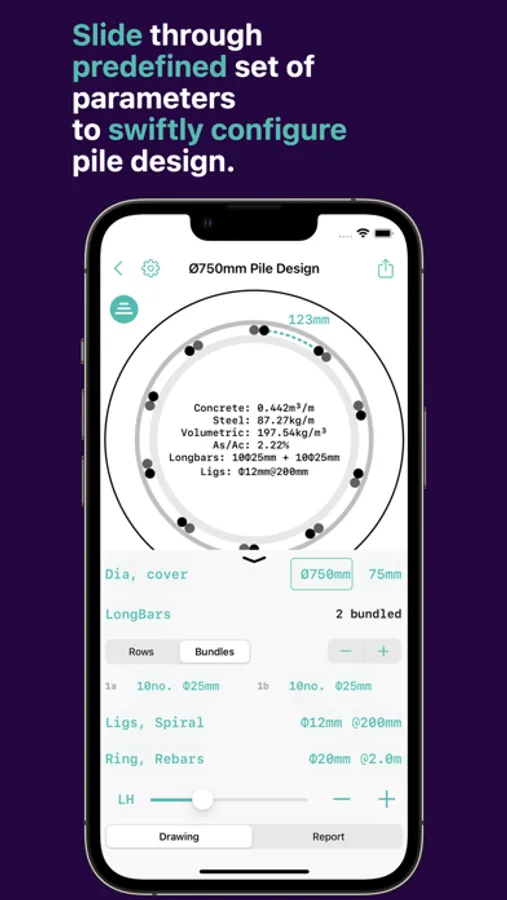

* Slide through predefined set of parameters to swiftly configure pile section.

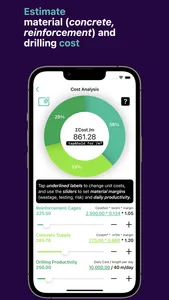

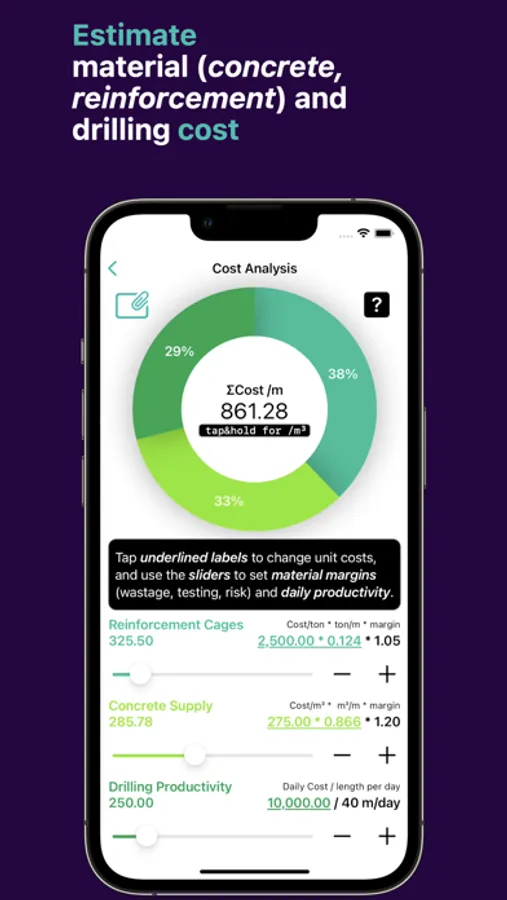

* Estimate material (concrete, reinforcement) and drilling cost.

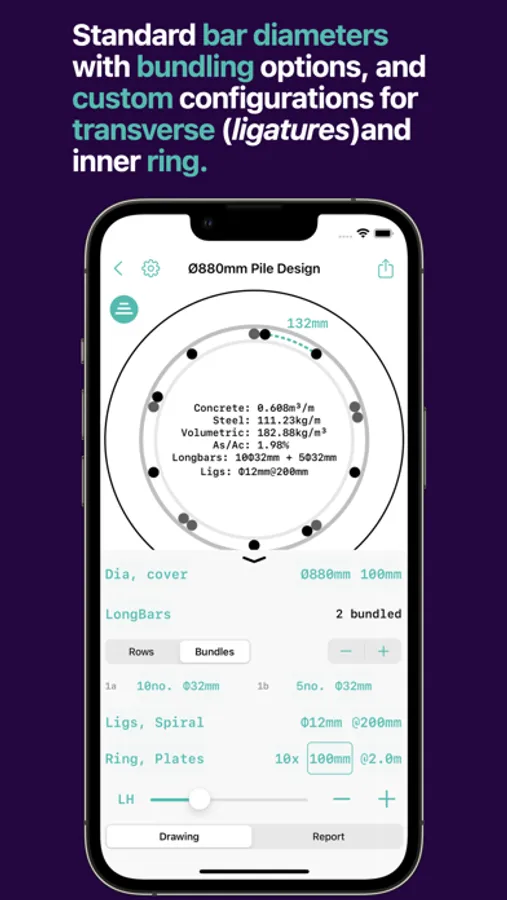

* Standard bar diameters with bundling options, and custom configurations for transverse (ligatures)and inner ring.

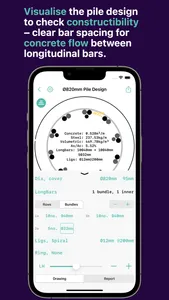

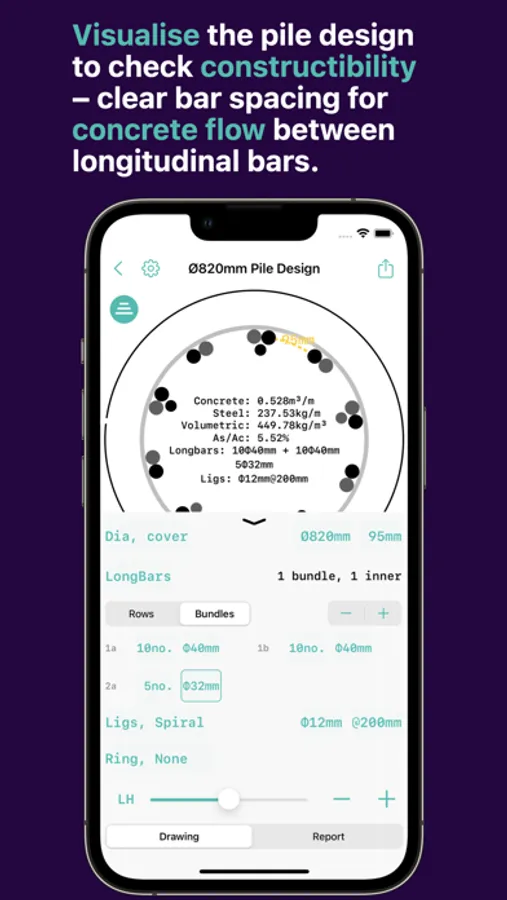

* Visualise the design to check constructibility – clear bar spacing for concrete flow between longitudinal bars.

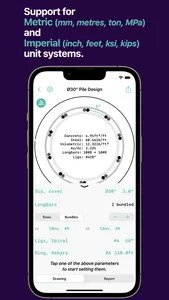

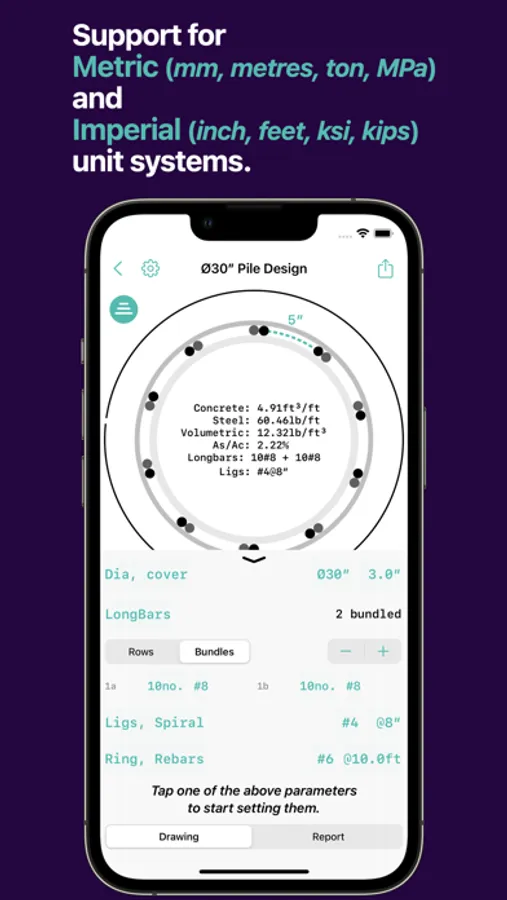

* Support for both Metric (mm, metres, ton, MPa) and Imperial (inch, feet, ksi, kips) unit systems.

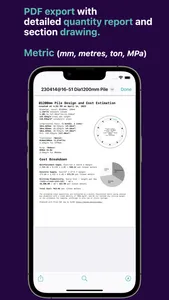

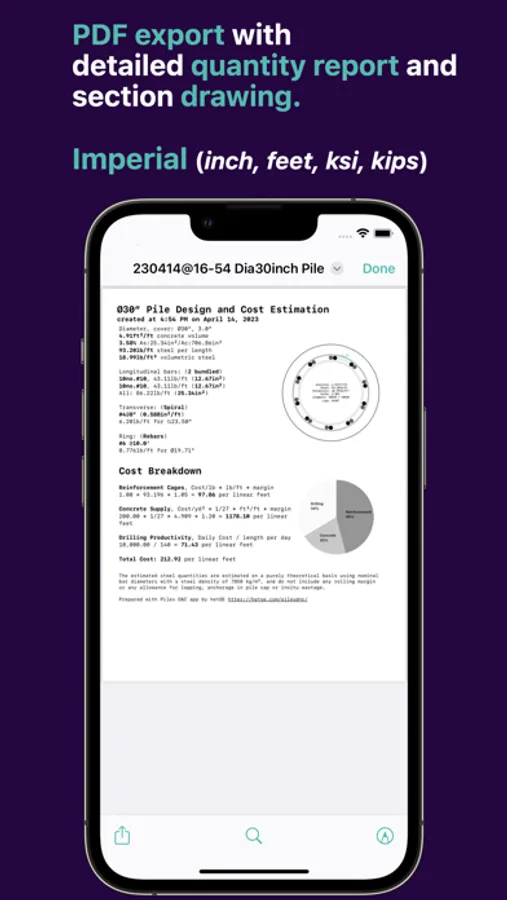

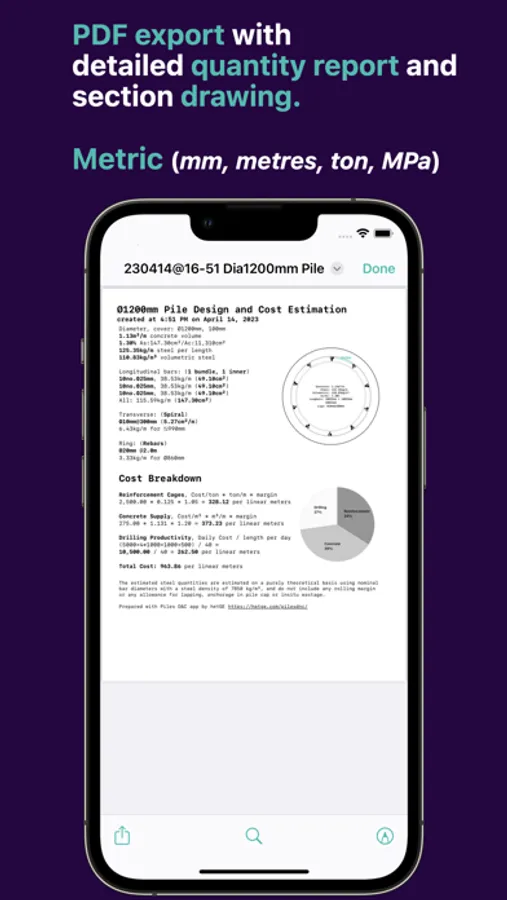

* PDF report with detailed quantity and section drawing.

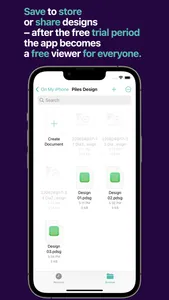

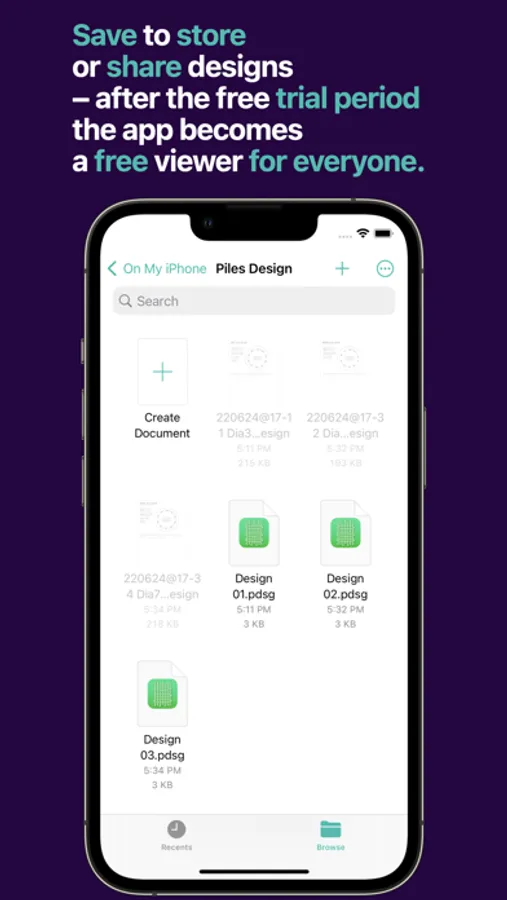

* Save to store or share pile designs – after the free trial period the app becomes a free viewer for everyone.
* Full iPad multitasking support; open two designs side by side and even a third one on a floating view.
Rebuilt from ground-up as the next generation take on hetGE’s first mobile app*, Piles Design is our new piling tool for the next decade and will gain new functionality and features with your support and patronage.
*After 10 years of service with continuous development and updates, Piles Section is now discontinued. If you had purchased Piles Section before, it is still available to download under App Store → Profile → Purchased. If you have bought it after 1st of June 2021, please reach us out (info@hetge.com) with your proof of purchase (AppStore generated email invoice), and we will be happy to provide you with one year promo license for Piles Design.
Terms of Use (Apple’s standard EULA) applies: https://www.apple.com/legal/internet-services/itunes/dev/stdeula/
hetGE’s Privacy Policy: https://hetge.com/privacy-policy.html
Featuring:
* Slide through predefined set of parameters to swiftly configure pile section.
* Estimate material (concrete, reinforcement) and drilling cost.
* Standard bar diameters with bundling options, and custom configurations for transverse (ligatures)and inner ring.
* Visualise the design to check constructibility – clear bar spacing for concrete flow between longitudinal bars.
* Support for both Metric (mm, metres, ton, MPa) and Imperial (inch, feet, ksi, kips) unit systems.
* PDF report with detailed quantity and section drawing.
* Save to store or share pile designs – after the free trial period the app becomes a free viewer for everyone.
* Full iPad multitasking support; open two designs side by side and even a third one on a floating view.
Rebuilt from ground-up as the next generation take on hetGE’s first mobile app*, Piles Design is our new piling tool for the next decade and will gain new functionality and features with your support and patronage.
*After 10 years of service with continuous development and updates, Piles Section is now discontinued. If you had purchased Piles Section before, it is still available to download under App Store → Profile → Purchased. If you have bought it after 1st of June 2021, please reach us out (info@hetge.com) with your proof of purchase (AppStore generated email invoice), and we will be happy to provide you with one year promo license for Piles Design.
