Display0183M

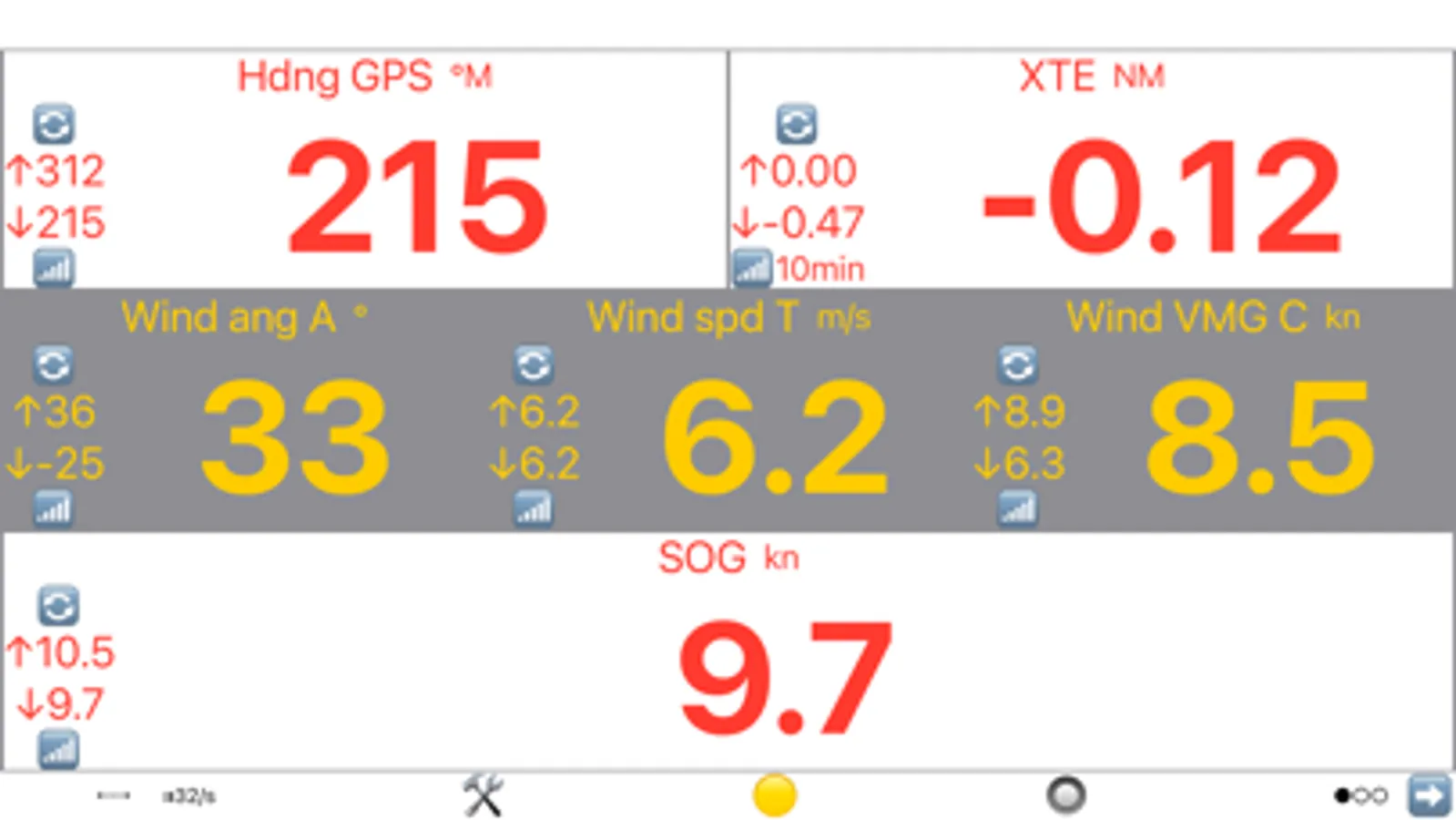

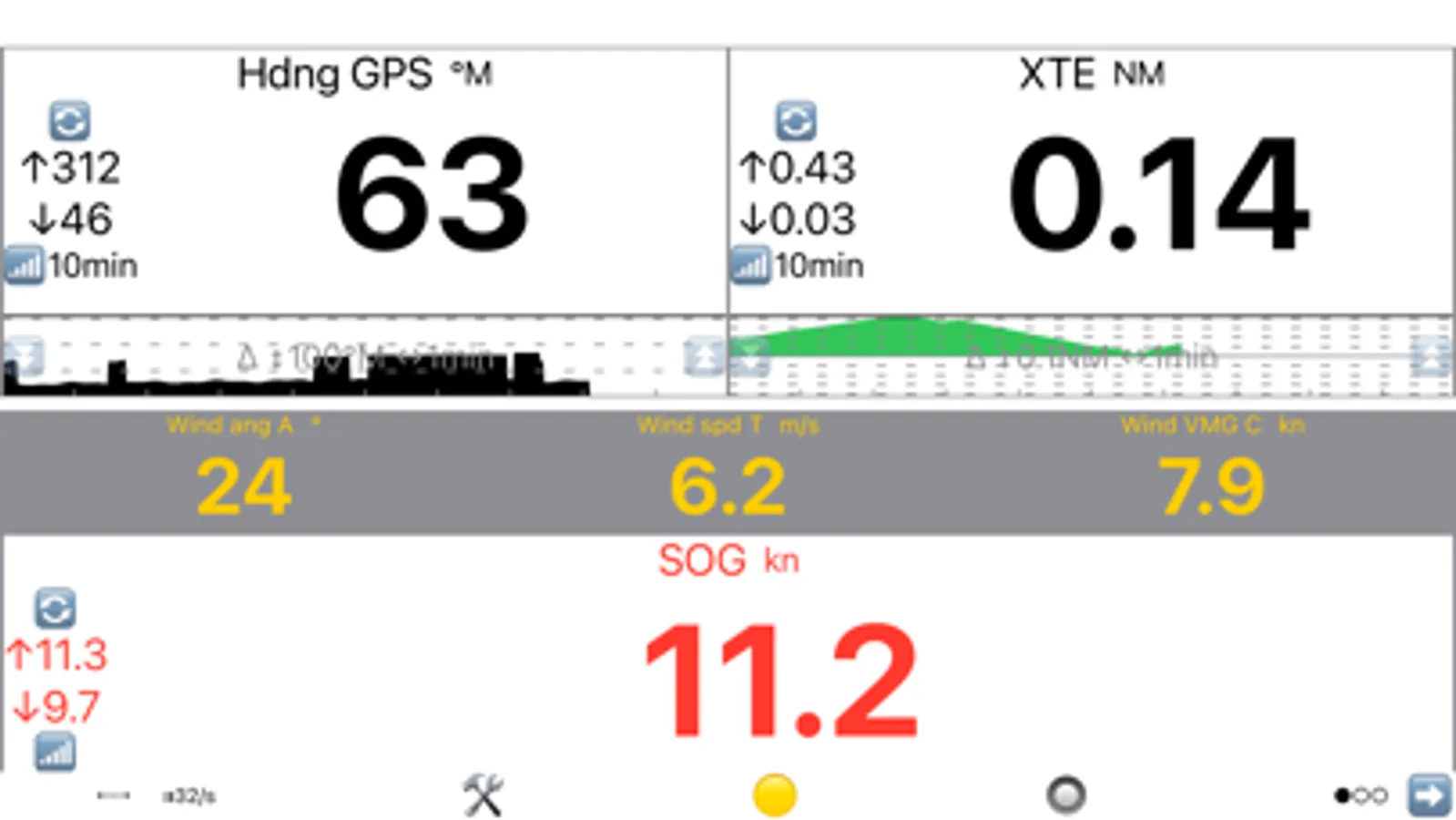

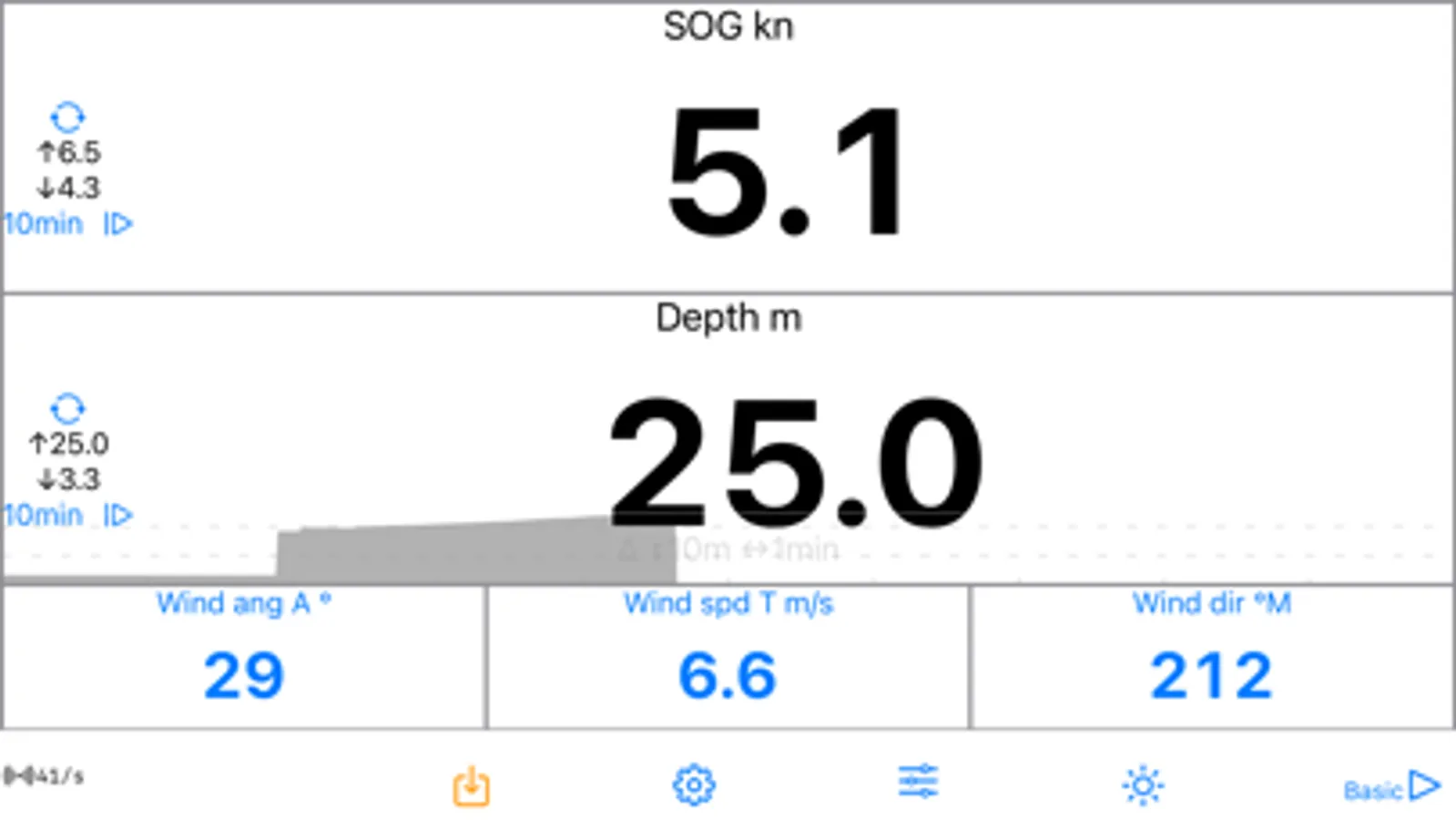

Display0813M is a customisable app for sailors for NMEA information on iWatches, iPhones, iPads and Macs and smart glasses. It provides up to 27 configurable displays with a selection of over 30 sailing measurements from the boat’s NMEA network and polar tables.

For each measurement the minimum and maximum values and a time series graph are available. The polars data is interpolated: instead of just the tabulated data points also intermediate wind and boat speed data is available based on (bi)linear interpolation.

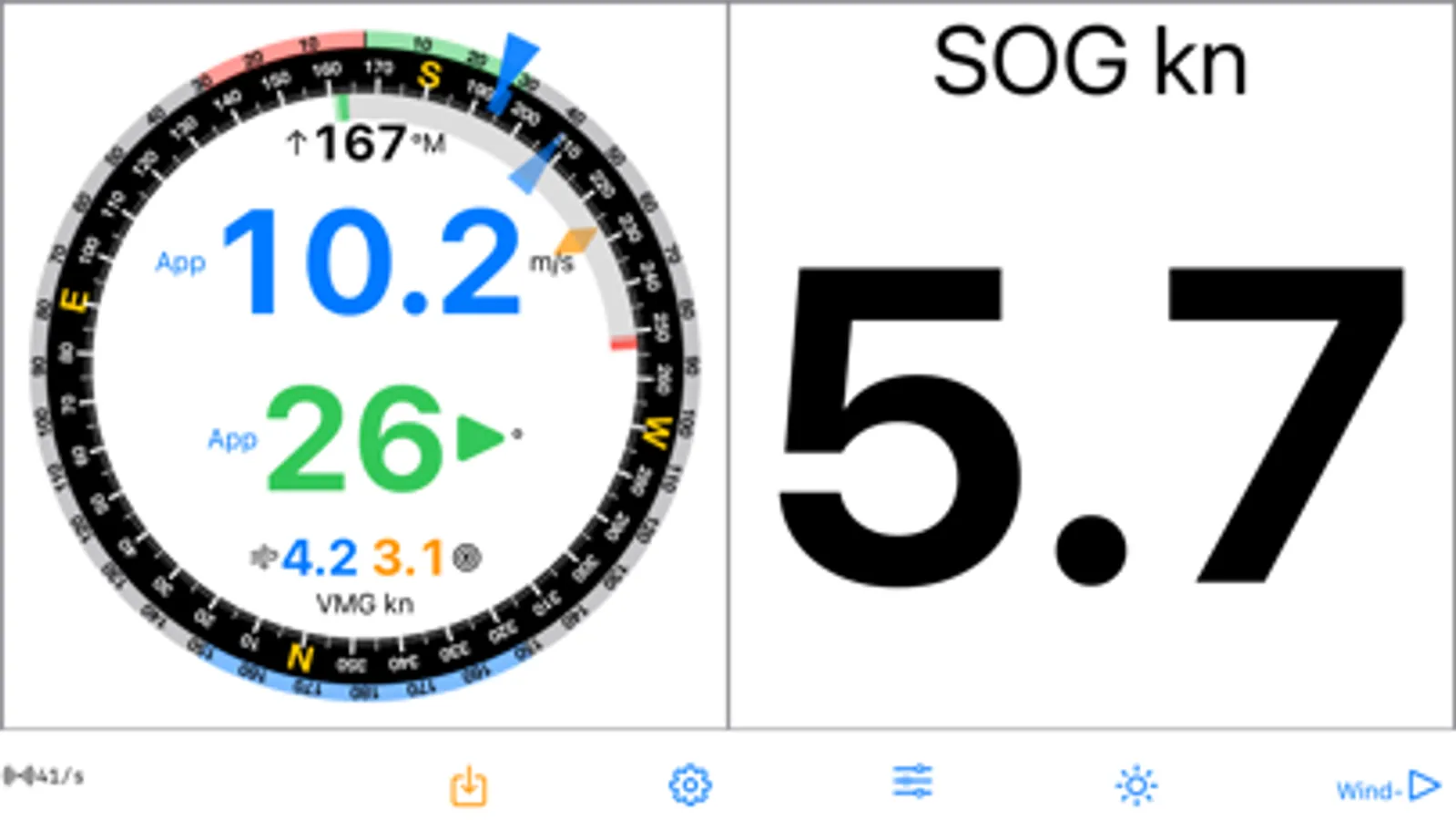

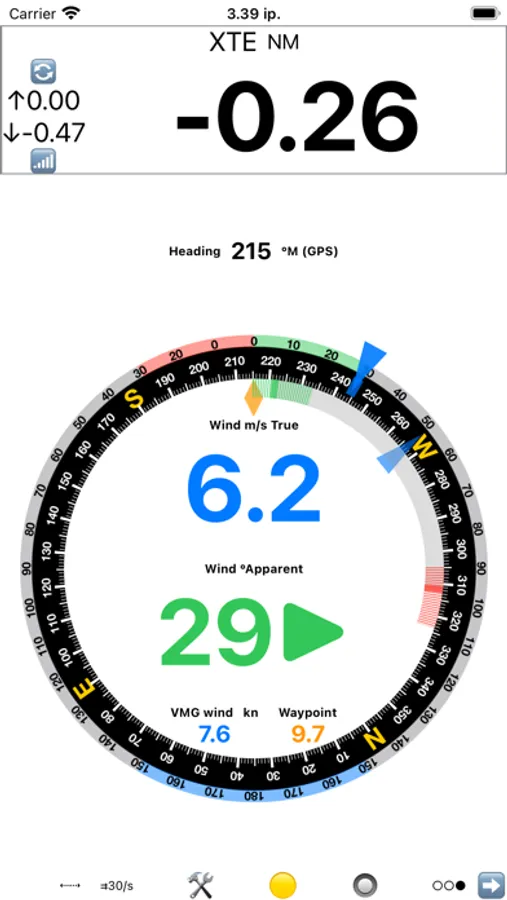

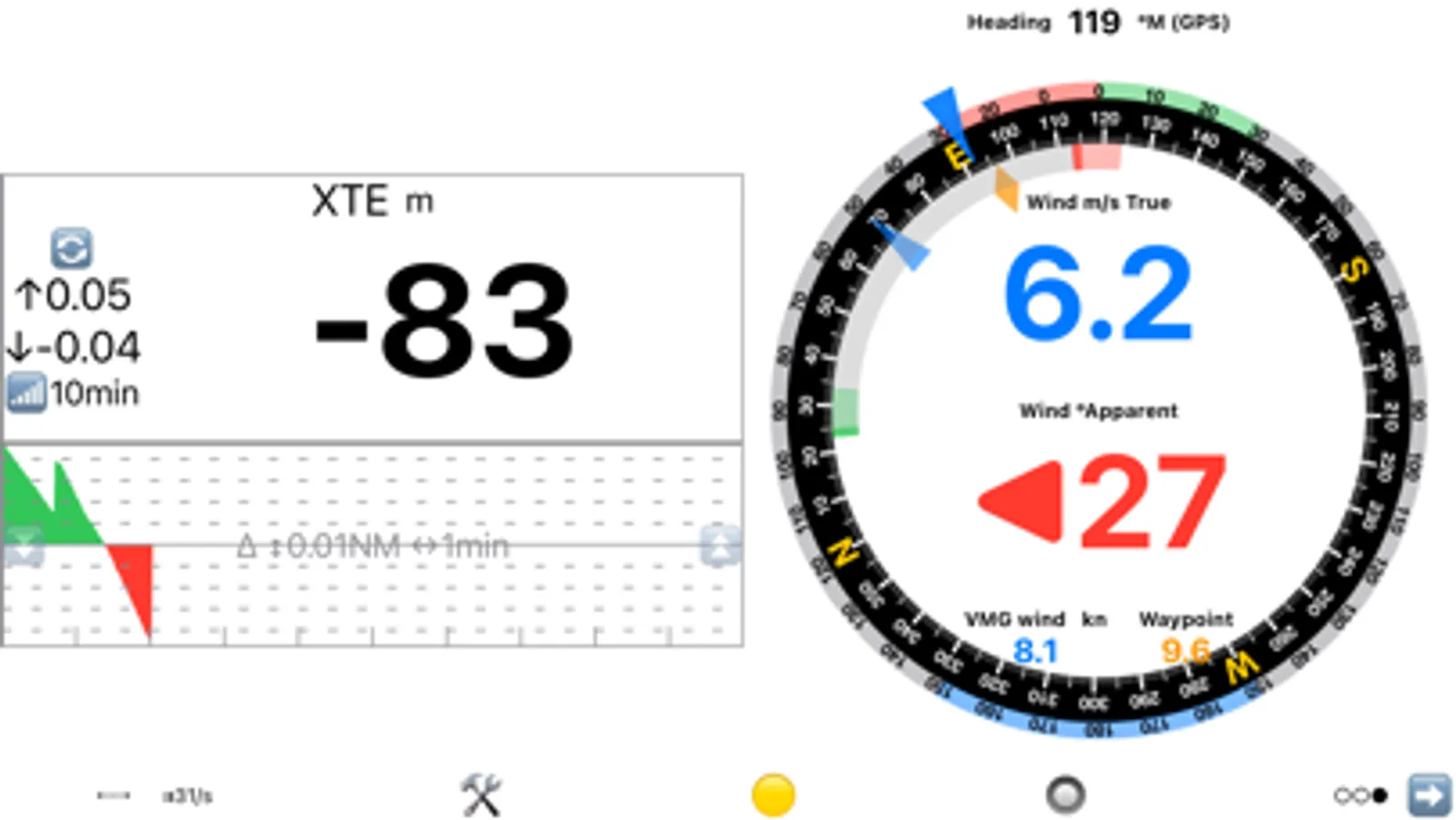

The Wind Display has all key sailing information in context aware analog format. It provides comprehensive wind and heading information in both analog and digital format. It is based on the sailing context: going upwind, downwind or towards a waypoint and enhanced by the polars data.

Display 0813 connects to a NMEA 0813 Wi-Fi gateway such as B&G Vulcan, Zeus, GoFree or Yacht Devices NMEA 2000 Wi-Fi Gateway.

The supported NMEA 0183 sentences are:
- BWR: Bearing and distance to waypoint
- DBS: Depth below surface
- DBT: Depth below transducer.
- DPT: depth of water. Note: the Settings/Install sensor offset is added to the value given unless it is received in the NMEA0183 sentence.
- CGA: Global Positioning System Fix data
- GLL: Geographic position - Latitude / Longitude
- HDG: Heading magnetic
- HDM: Heading magnetic
- HDT: Heading true
- MWD: undocumented, based on Vulcan 7FS data, wind direction, wind speed (both magnetic and true)
- MTW: water temperature (Note: value is red as it is, the Unit is always displayed °C)
- MWV: Wind speed and angle (both relative and apparent)
- RMB: XTE, range to destination, bearing to destination, destination closing velocity .
- RMC: Speed over ground
- RSA: Rudder sensor angle
- VHW: Water speed and heading
- VLW: Distance travelled through water
- VPW: Speed - measured parallel to wind
- VTG: Course over ground (T or M), speed over ground
- VWR: Wind direction (A), wind speed (A)
- WCV: Waypoint closure velocity
- XDR: air temperature (°C), water temperature (°C) and barometric pressure (mbar).
- XTE: Cross track error


The following data items ("measurements") are read from the NMEA data stream or derived from these and the boat's polar data..
- Waypoint direction (WP dir, °M)
- Waypoint distance (WP dst, distance unit)
- VMG waypoint (WP VMG, boat speed unit)
- Cross track error (XTE, distance unit )
- Depth (Depth, depth unit)
- Heading (Heading, °M)
- Heading (Heading, °T)
- Course (Course, °M)
- Course (Course, °T)
- Water speed (Speed, boat speed unit)
- Speed over ground (SOG, boat speed unit)
- Water temperature1 (Water tmp, °C)
- Air temperature1 (Air tmp, °C)
- Air pressure1 (Air pre, hPa)
- Wind speed apparent (Wind Spd A, wind speed unit)
- Wind angle apparent (Wind ang A, °)
- Wind speed true (Wind Spd T, °)
- Wind direction (Wind dir, °M)
- Wind direction (Wind dir, °T)
- VMG Wind (calculated)
- Latitude (Latitude, DD°MM.mm’)
- Longitude (Latitude, DD°MM.mm’)
- Water Distance after reset (Wtr dst, distance unit )
- Total water distance (Wtr dst T, distance unit )
- Ground distance after reset (Grnd dst, distance unit)
- Total ground distance (Grnd dst T, distance unit)
- Velocity made good towards wind (Wind WMG, boat speed unit)
- Heel (Heel, °)
- Rudder (Rudder, °)
- Boat target speed through the water (based on current polar table)
- Boat speed of target speed (%)
- Beat VMG boat target speed through the water
- Run VMG boat target speed through the water3
- Leeway (Leeway. °). Calculated difference Course °T - Heading °T

To get started, please see the user's guide at https://pbase.com/pekkal/display0183m.
