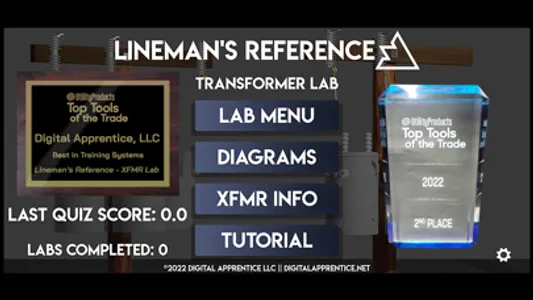

Lineman's Reference - XFMR LAB

This app is a fully functional transformer lab simulator that was designed and developed by a journeyman lineman, for lineman and apprentices. You can use this app to study and learn your transformer connections.

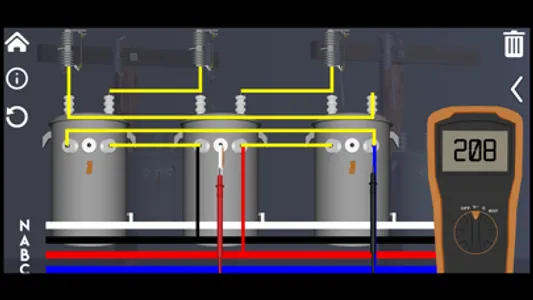

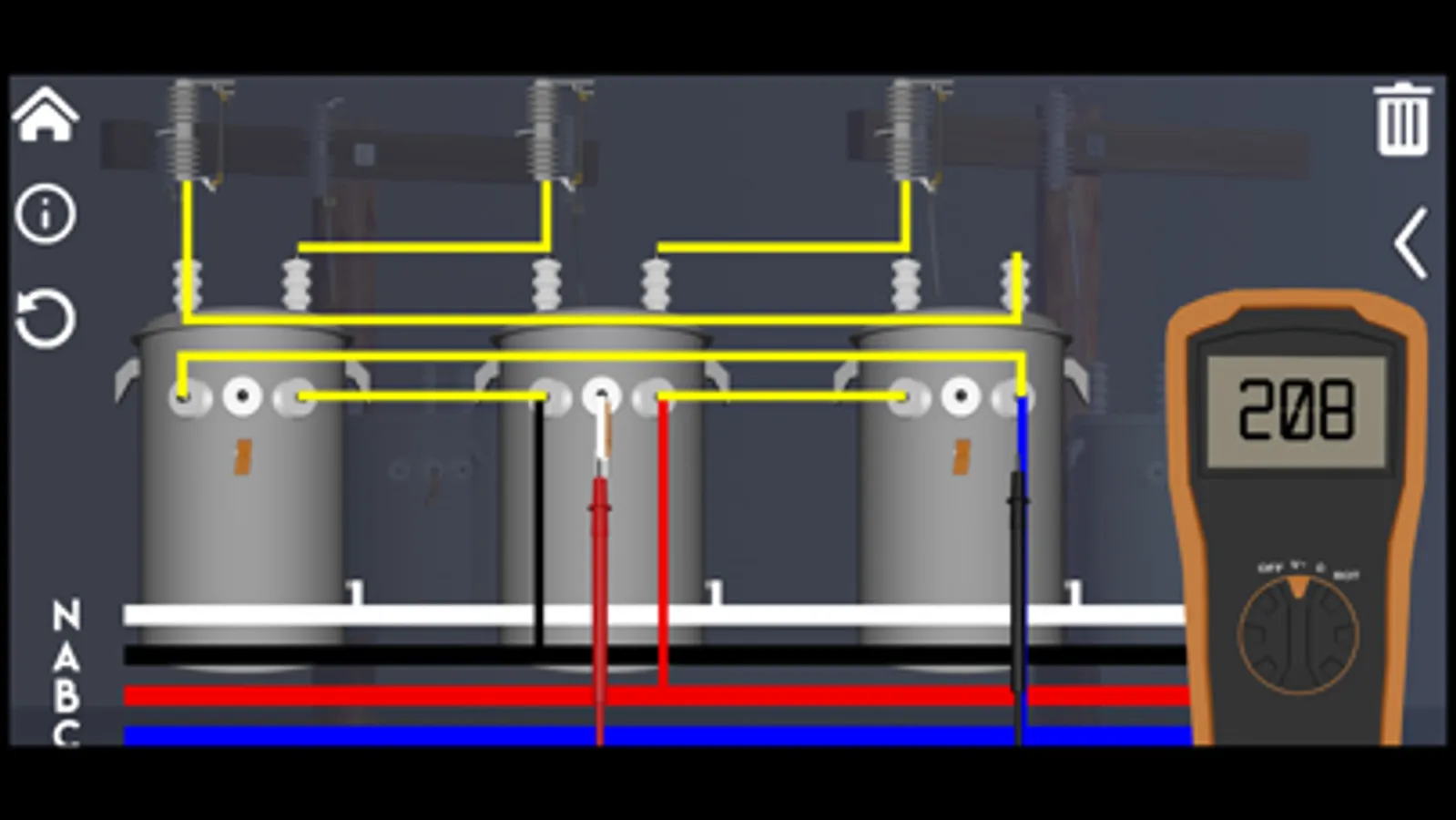

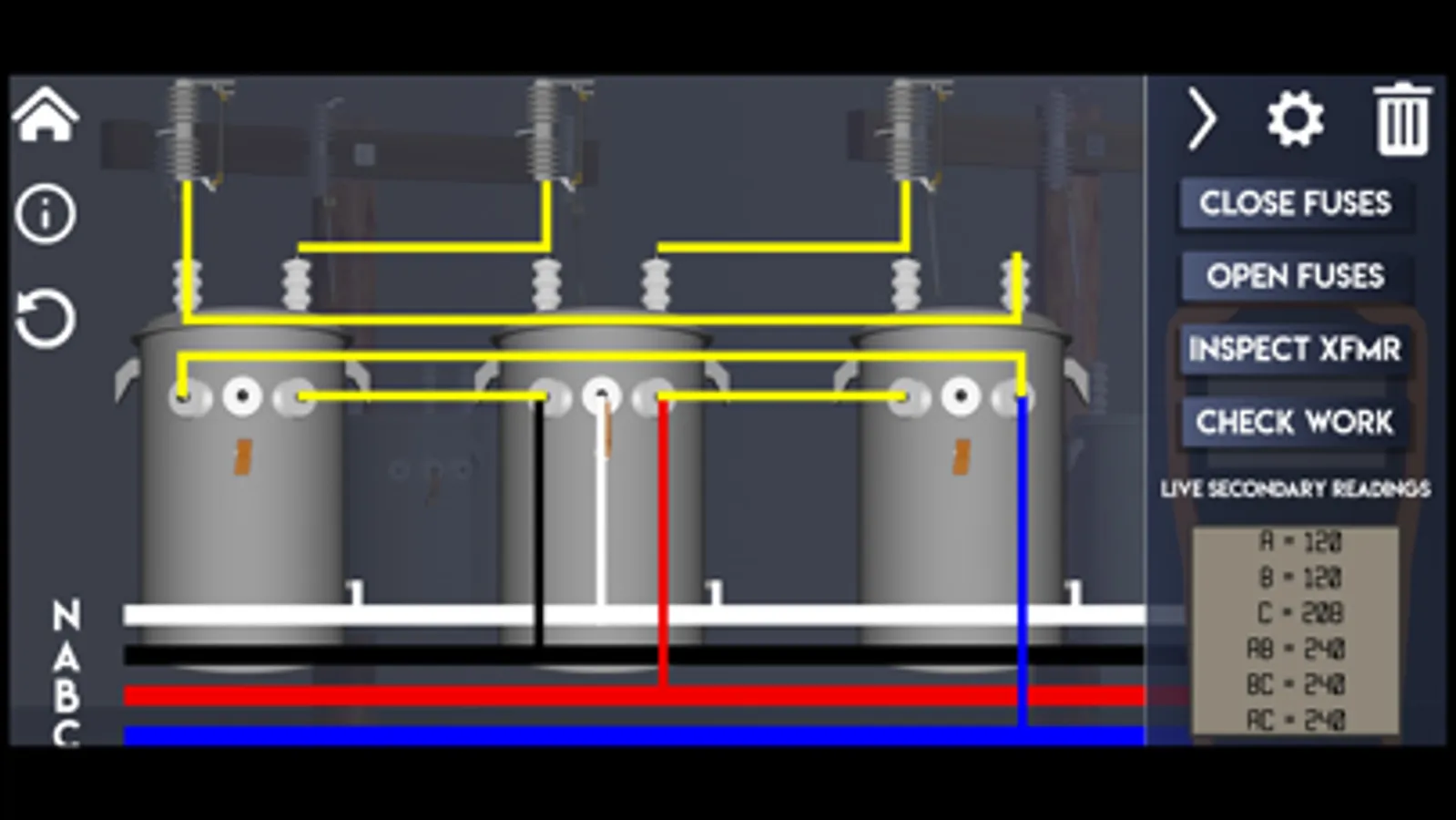

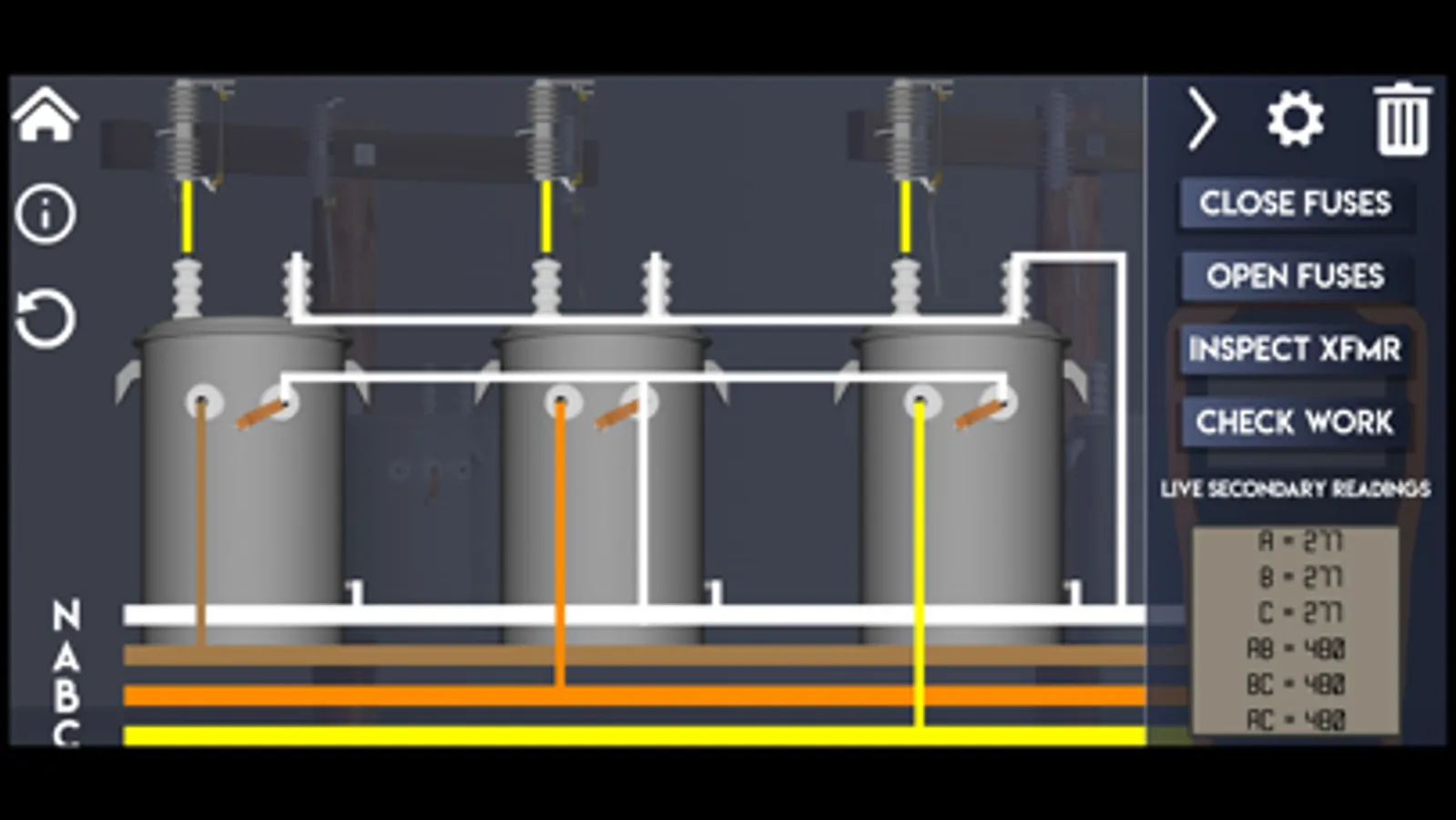

When the fuses are closed in you can test your connections with a volt meter, ohm meter, and a rotation meter. Abnormal voltages and cutout fuses exploding can occur when improper connections are made. In the labs you can also inspect the transformers' nameplates and secondary coils.

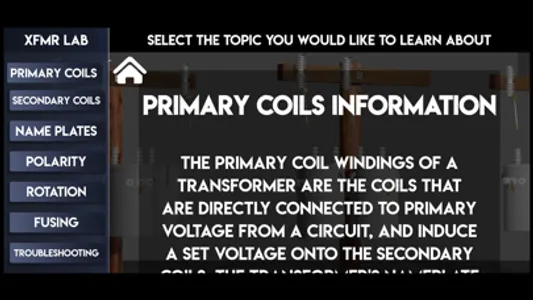

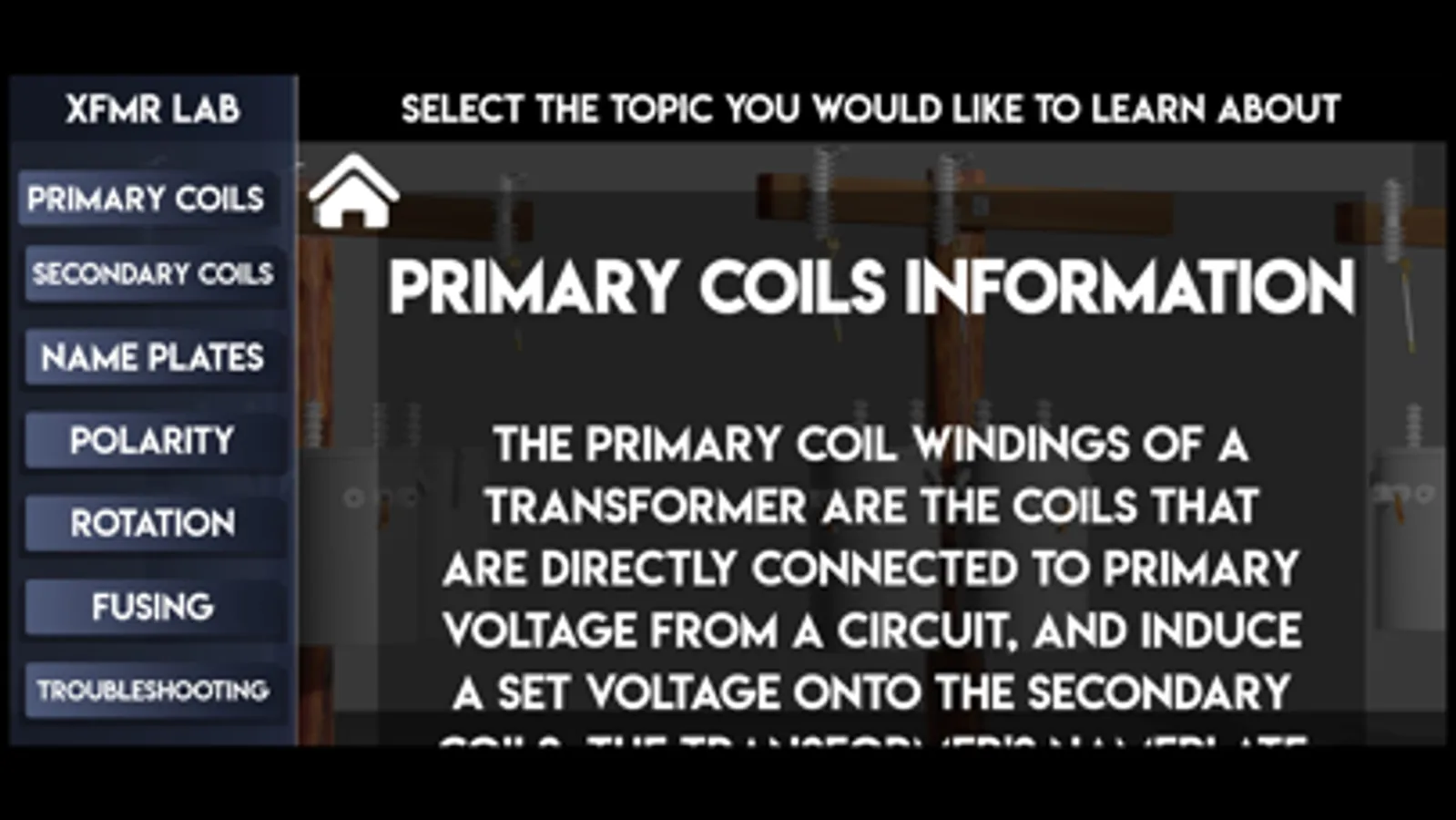

Quick reference diagrams, basic transformer informational reading material and more are available in this application.
The Quiz mode lets you test your knowledge.
The Company Customized Experience is a way for your Power Company to work with us where we will modify the app to match their spec. Tell them to reach out to us if they are interested!

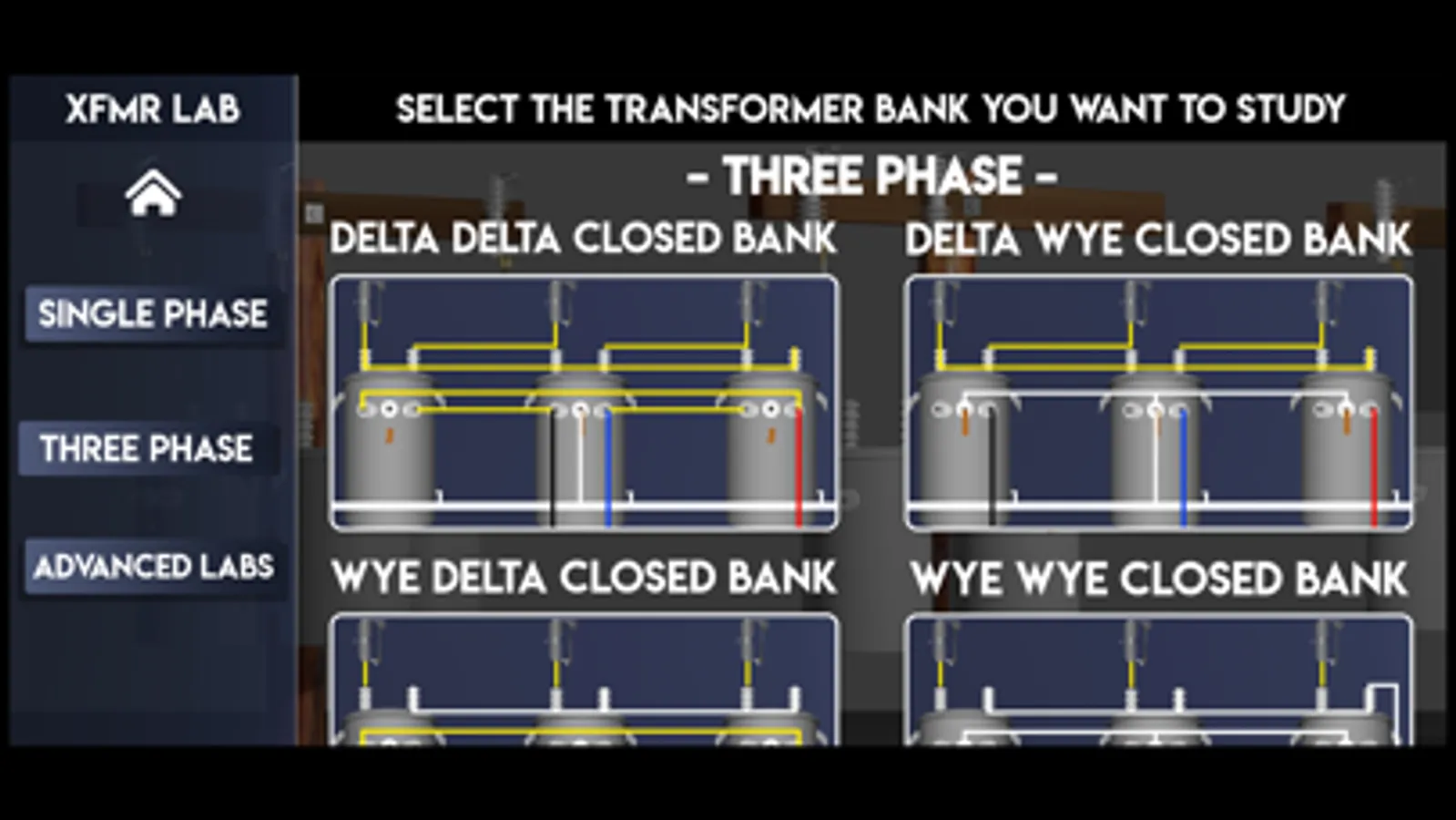

Current Labs in this app:
-Single Phase-
Single Bushing Topside
Dual Bushing Topside

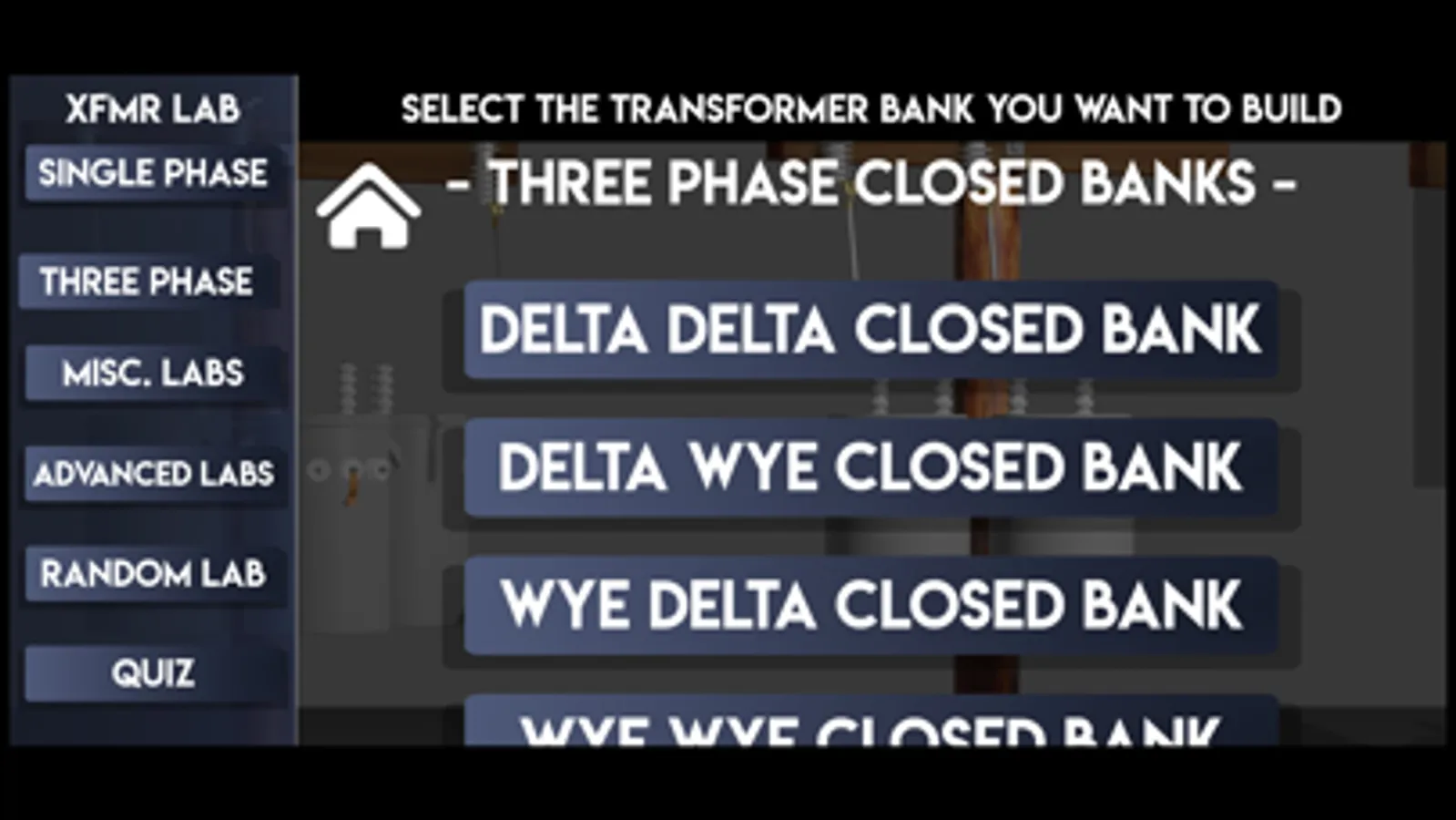

-Three Phase-

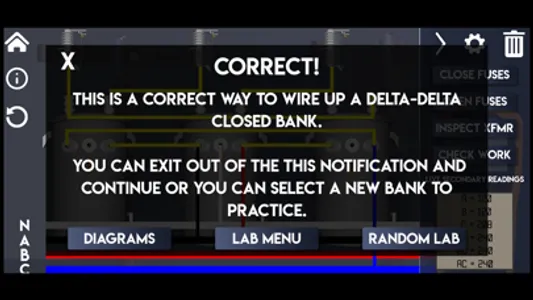

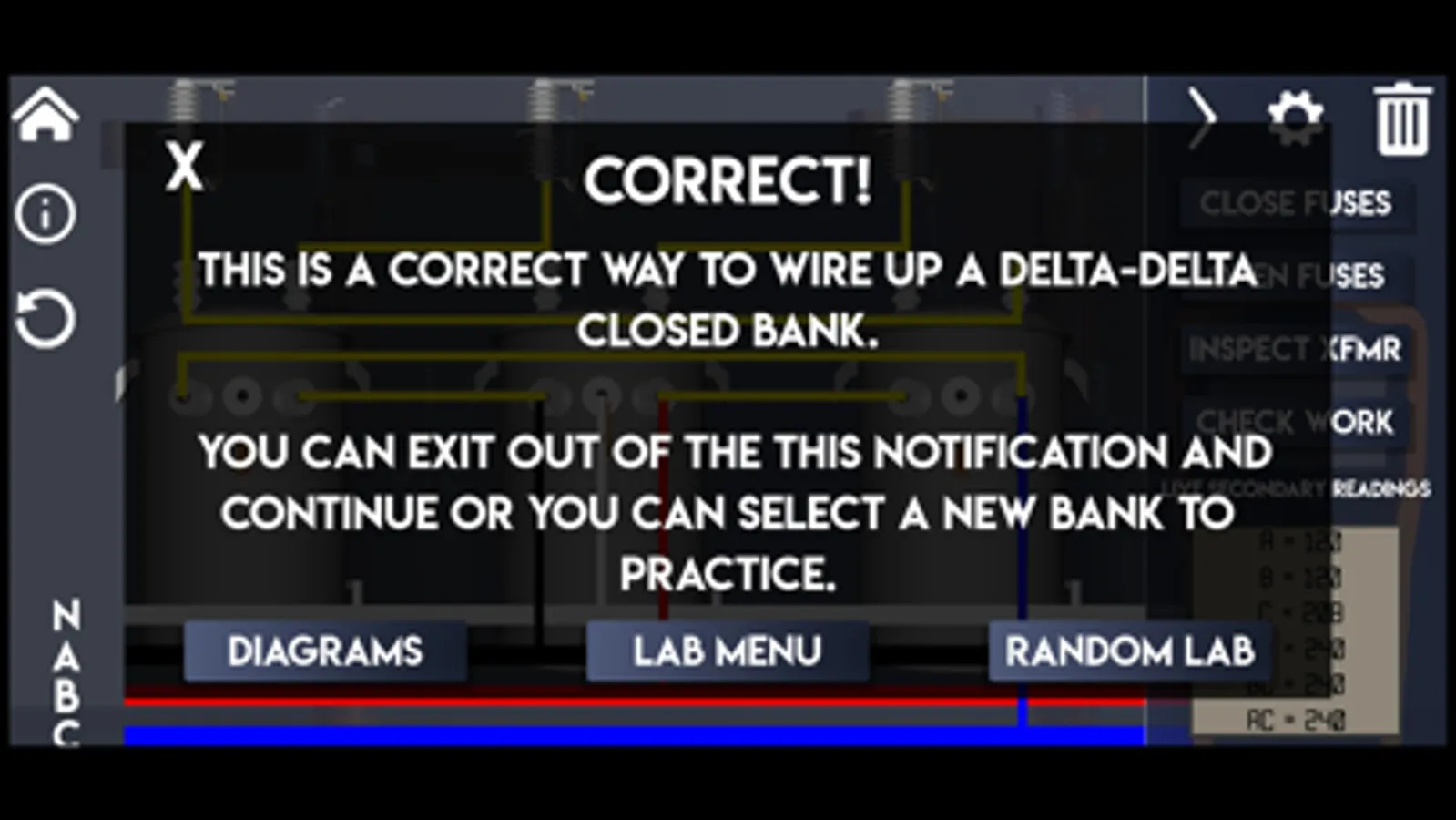

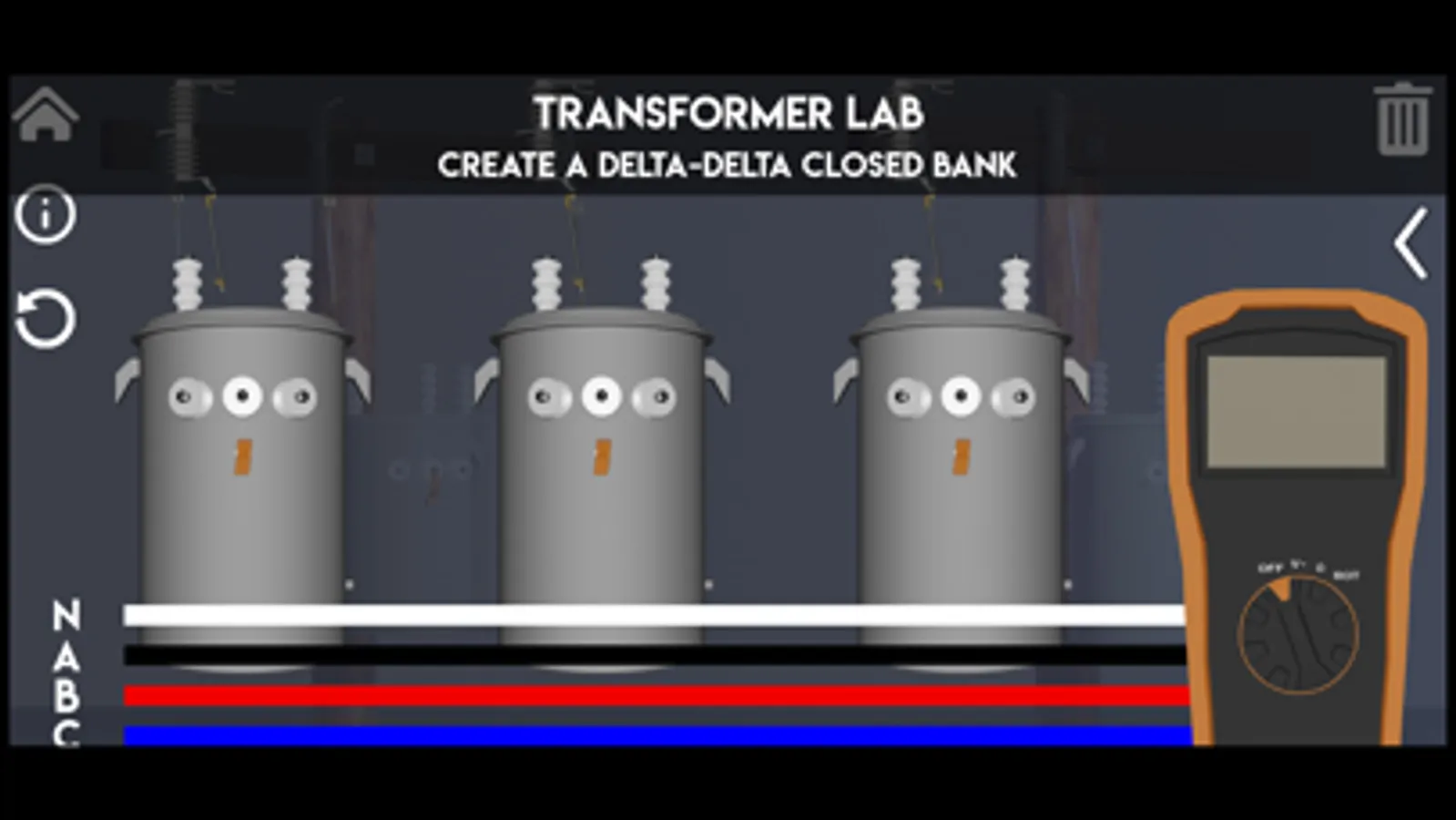

Delta Delta Closed
Delta Wye Closed
Wye Delta Closed
Wye Wye Closed
Delta Delta Open
Wye Delta Open

-Misc-
Paralleling
4th Cutout
Troubleshooting
Tutorial

-Advanced-
Straight 480
240/480

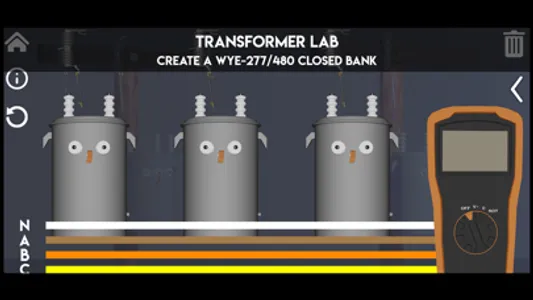

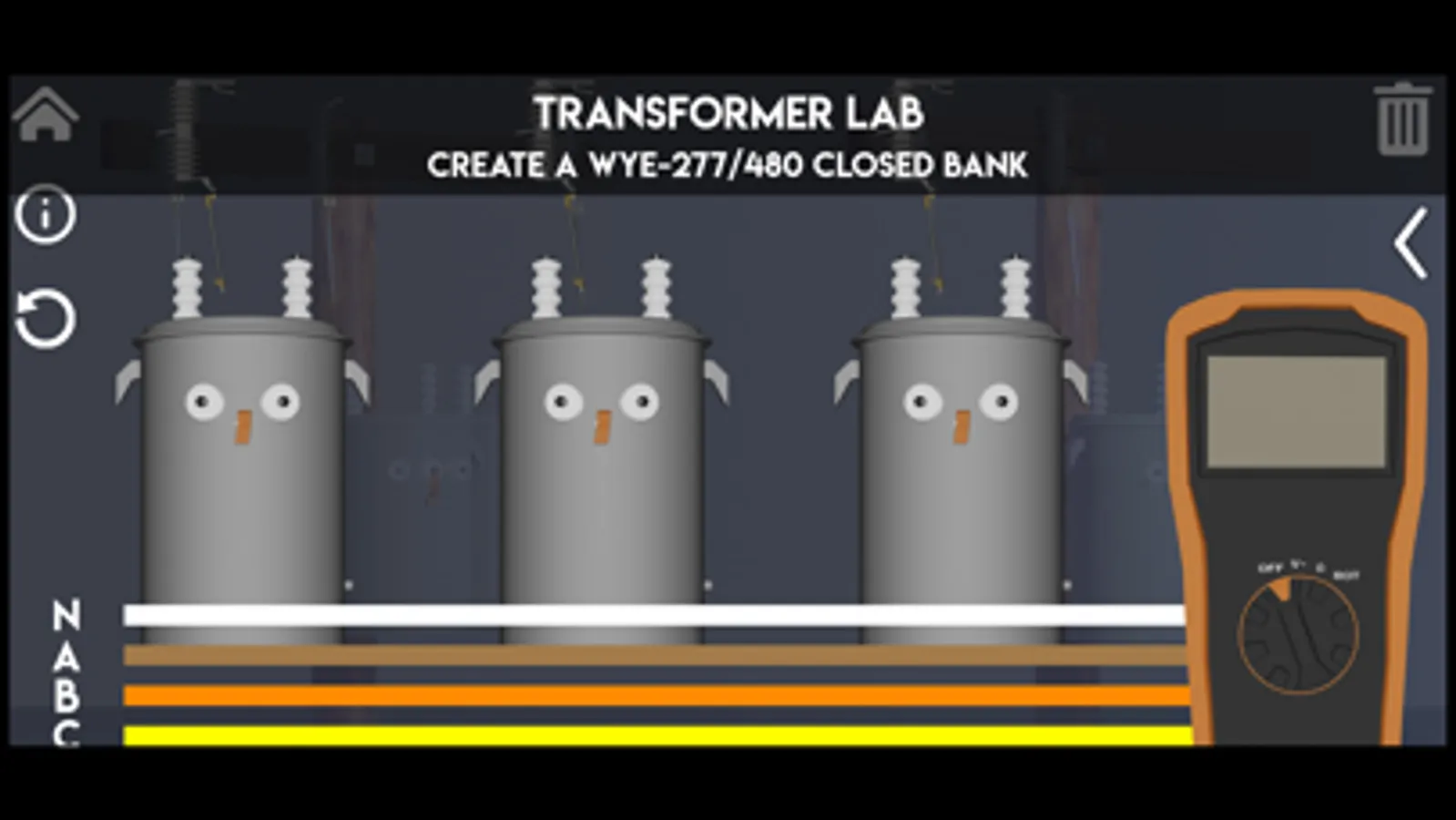

277/480
Corner Grounded 240 or 480
Wye Wye 5 Wire (120/240 & 120/208)

-Quiz-
Test your transformer wiring knowledge by completing a predetermined assortment of labs at random. Blowing fuses and attempting to Check Work subtract from your overall score out of 100.

-Advanced Quiz-
Test your overall transformer knowledge by completing a series of random quizzes where you receive basic job-site information and have to choose the correct transformer nameplate and secondary coil configuration. You will then have the option to wire up the corresponding bank.
