The application presents effortlessly by a fancy touch/move interaction the basic steam/water properties verified for accuracy in accordance with the The International Association for the Properties of Water and Steam IAPWS R7-97(2012) industrial formulation.

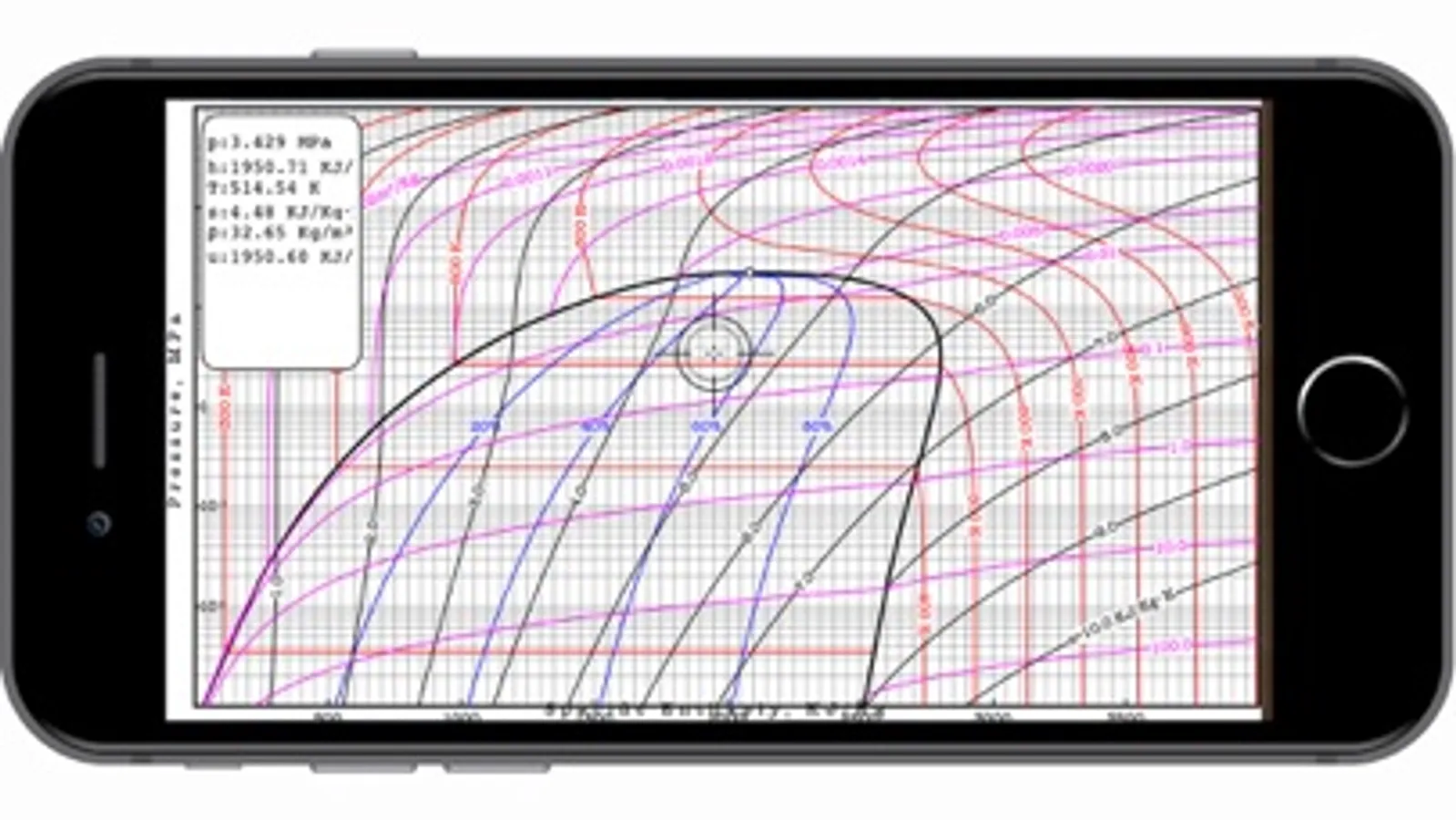

The graph used is a p-h one and the properties are calculated up to 1000 Mpa of pressure.
The application also creates the water phase diagram with p-T axes for pressures ranging from 1Pa to 10GPa
The graph used is a p-h one and the properties are calculated up to 1000 Mpa of pressure.
The application also creates the water phase diagram with p-T axes for pressures ranging from 1Pa to 10GPa
