About VA Kinetic Sentinel Advance

This app is required for standalone device configuration by an installation engineer within an offline environment.

This app is also needed by home users who have a Kinetic device within their home and they will use the app to control and read data from the unit.

The app has the Following features:


-- App physical device connectivity via BLE initially moving onto Wi-Fi using the Kinetic device's embedded access point

-- Two types of users - selectable via the profile setup - A Home User & an Engineer user.

-- Commissioning Wizard - UK -This commissions and sets up the unit with the correct flow ratings for intake and extract. This is a legal requirement for signing off houses in the uk for ventilation certifications. An Engineer would commission a unit before a new house build has been 100% completed and before a home user has the keys and moved in.

-- Commissioning Free Flow - Here an engineer would setup a house/ flat environment and use measurement tools to understand the correct values to be entered within the app. These then can be saved and re-used to commission the same apartment etc again.

-- Fan speed Modes

--System overview : Shows current fan speed, Humidity , Current Co2 and ~Temperature.

--Zone Manager : Setup and configuring different zones within the home - Bedrooms, Bathrooms, Kitchen etc.

--Device Manager : Connections to external temperature / Co2 sensors - showing pair /unpair options and device Firmware.

--Filter Manager : Highlights to the user the type and interval for changing filters. Provides an option to buy filters and reset intervals.

--Services Details : Provides comparing information regarding servicing schedules and contact information

--Holiday Mode : Energy Saving feature providing an option to turn the unit to low or off during a time where the home user will be on holiday.

--Silent Hours : Provides the home user the ability to reduce the devices noise whilst e.g. asleep

--About Device : Current device statistics, serial numbers etc

Advanced Settings -Mode Speeds : Provides granular adjustment to fan speeds for home and engineer users.

Advanced Settings -IAQ Manager : Provides granular adjustment to Humidity, Co2 and fan RPM combinations in order to provide precise settings per location.

Advanced Settings -Mode Speeds : Night-time Cooling - Provides granular adjustment and threshold configurations based on external and internal temperatures. Provides a summer bypass of the heat exchanger to provide cooling when the desired indoor temperature is above the ambient temperature.

Advanced Settings -Port Allocation : Provides the home user and Engineer the ability to map a port to a type of ventilation mode required. e.g Continuous fan mode. Other options include , PIR , Momentary switch & Fire Alarm. 0v -10v Outputs for types of Sensors including Co2, Temp, Humidity, Pure


Advanced Settings -Service Manager : Kinetic device information such as firmware versions, Serial Numbers, App Version, Commissioning by and Date.


Advanced Settings -Data Manager : Realtime data displayed on Airt Supply and Extract , Running hours and cell data.

Advanced Settings -Firmware Manager : Provides the ability for an Engineer and Home User to upgrade the Kinetic Advanced unit to the latest firmware via the app.

Advanced Settings -Save/Load config : This feature allows an engineer create a config for a house or apartment and then re-use that config to apply it to other houses and apartments which are of the same floorplan and design.

Advanced Settings -Pin lock Manager : Provides the ability to lock out technical information in which only engineers have access to and in which tenants for example are not allowed to adjust.

Advanced Settings -Commission Report : This details the commission report and provides the engineer the ability to share that via e.g email in order to certify an installation.

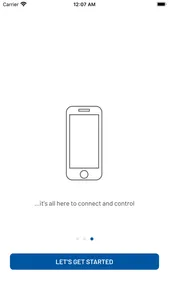

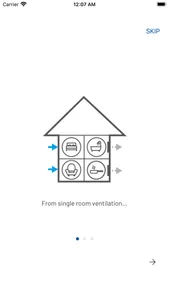

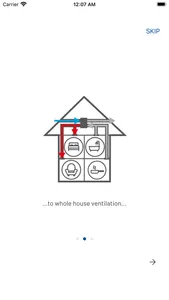

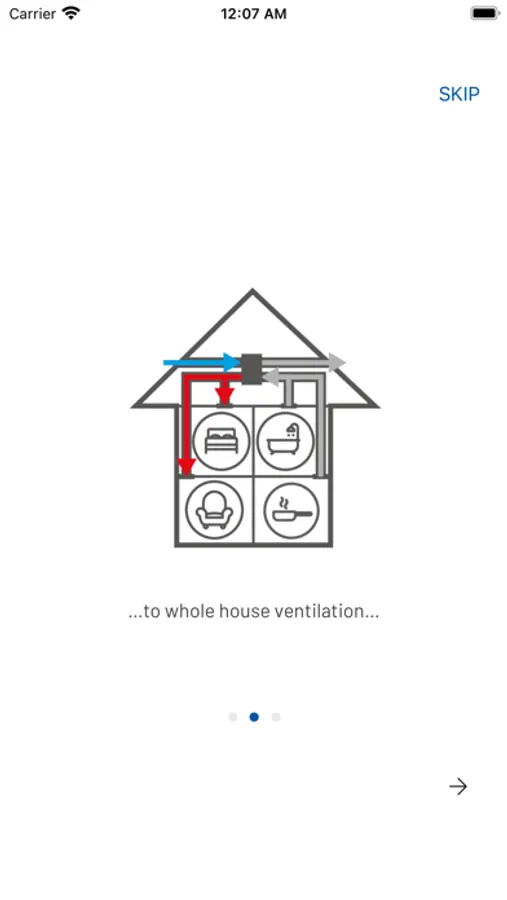

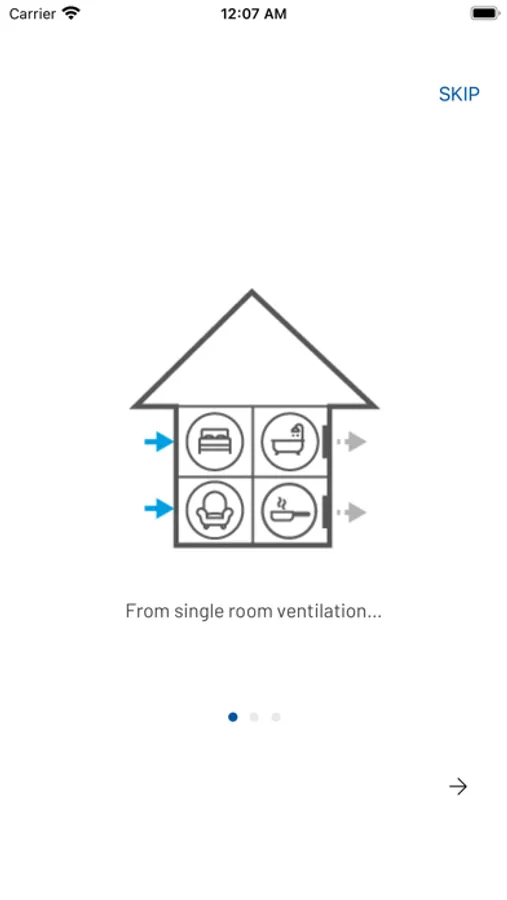

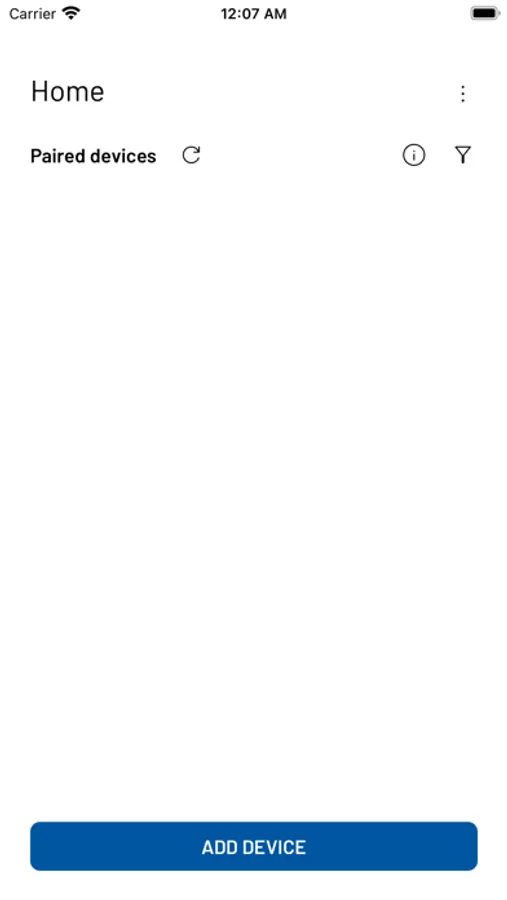

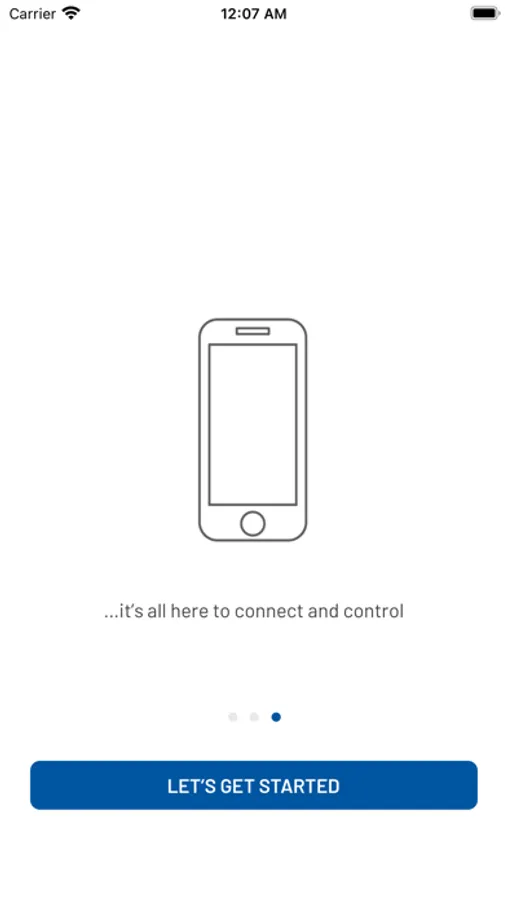

VA Kinetic Sentinel Advance Screenshots
