The "HVAC Pipe Sizer - Gas Plus" application allows you to quickly size a simple low (less than or equal to 1.5 psi) and/or high (greater than 1.5 psi) pressure gas piping system by inputting a number of piping and gas properties. This application combines the functionality of our popular "HVAC Pipe Sizer - Gas Low" and "HVAC Pipe Sizer - Gas High" applications.
This app is now a universal app meaning that it works on both the iPhone and iPad and adjusts its screen size accordingly.

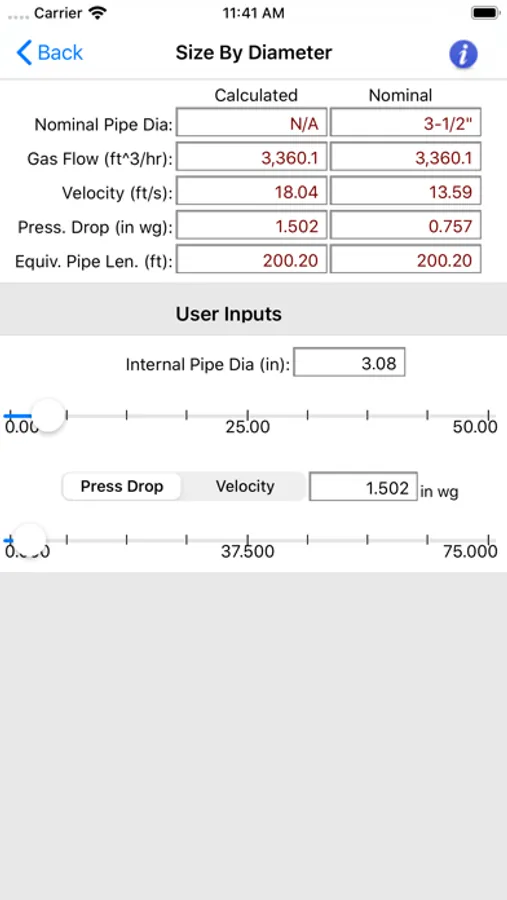

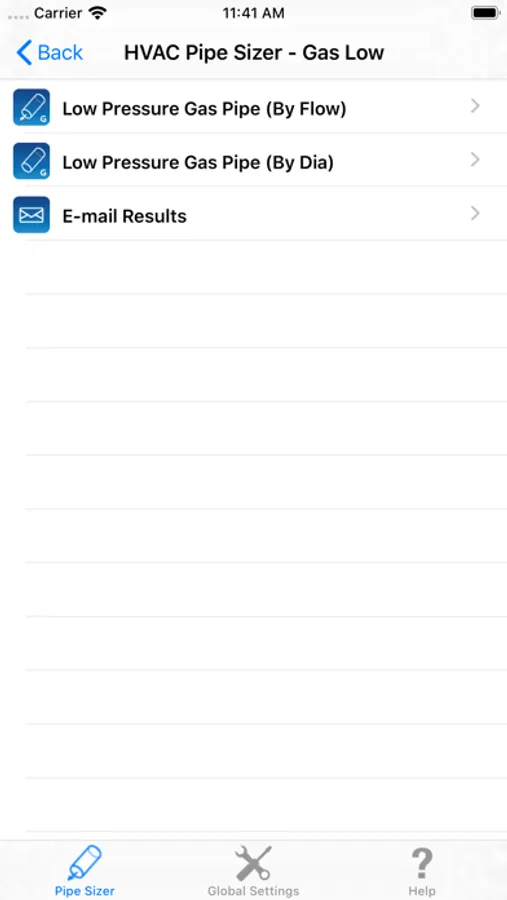

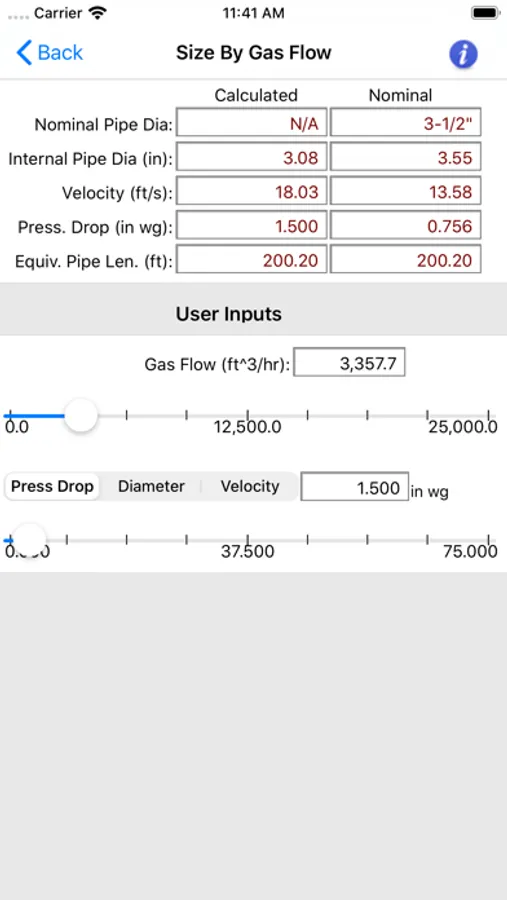

For low pressure gas piping, you can specify the total gas flow in ft3/hr (m3/hr) and one of either pressure drop (in. wg or Pa), pipe internal diameter (inches) or gas velocity (ft/s) parameters. The results include both the exact and nominal pipe diameters and the calculated velocity and total pipe equivalent length. If you are analyzing an existing pipe system, there is an option to input the existing pipe internal diameter and one of either pressure drop or gas velocity parameters to derive the calculated gas flow and other remaining properties.

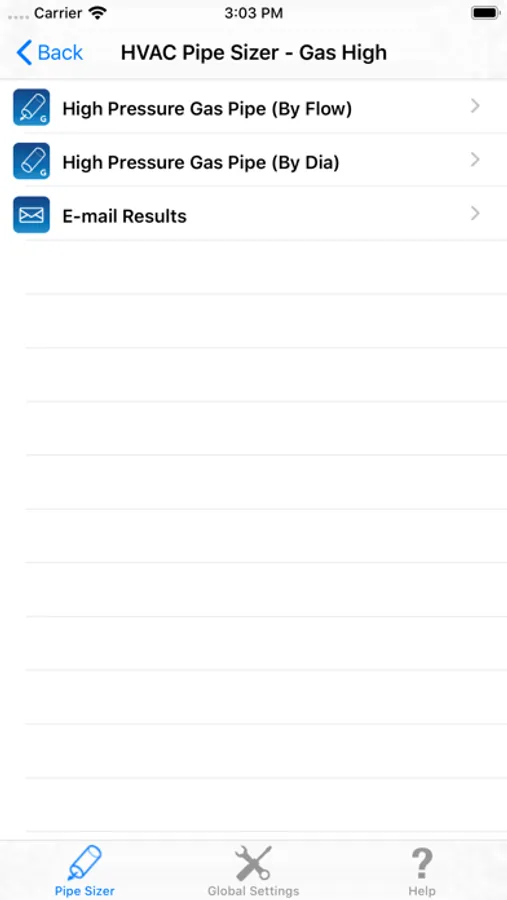

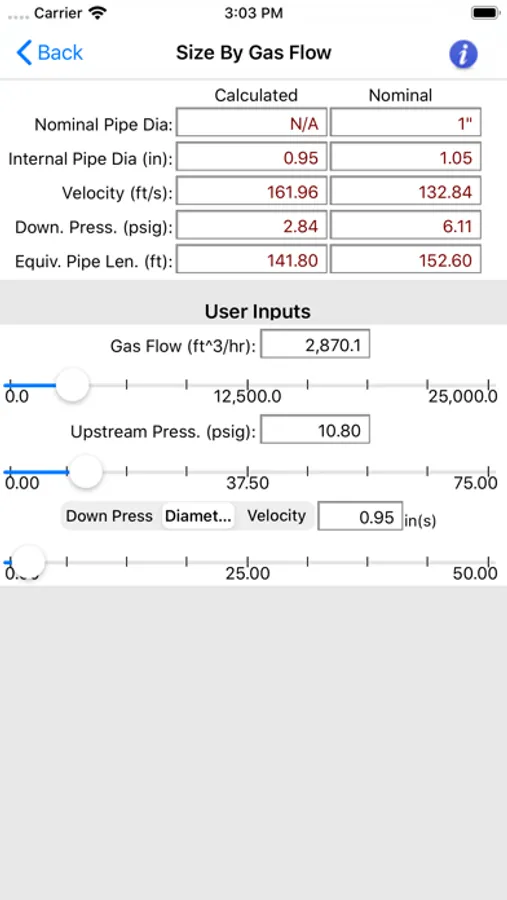

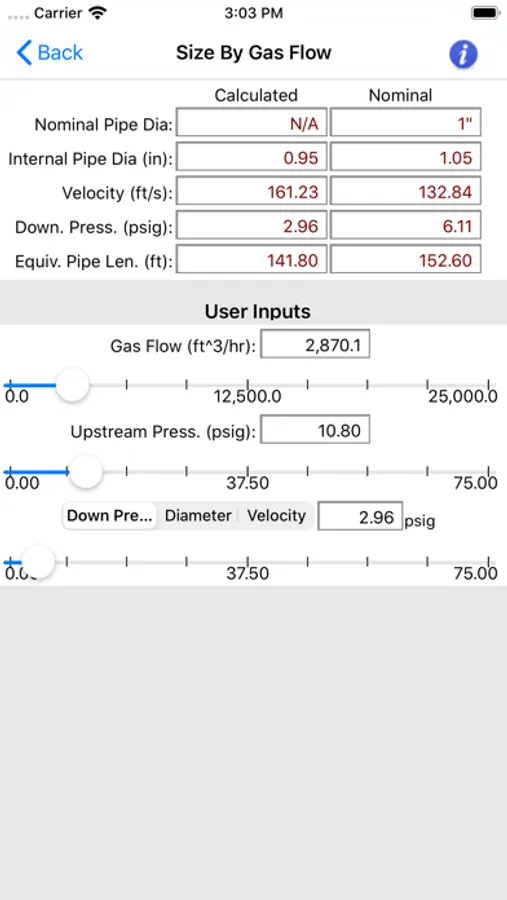

For high pressure gas piping, you can specify the total gas flow in ft3/hr (m3/hr), the upstream pressure (psig or kPa), and one of either downstream pressure (psig or kPa), pipe internal diameter (inches) or gas velocity (ft/s) parameters. The results include both the exact and nominal pipe diameters and the calculated velocity and total pipe equivalent length. If you are analyzing an existing pipe system, there is an option to input the existing pipe internal diameter, the upstream pressure, and one of either downstream pressure or gas velocity parameters to derive the calculated gas flow and other remaining properties.

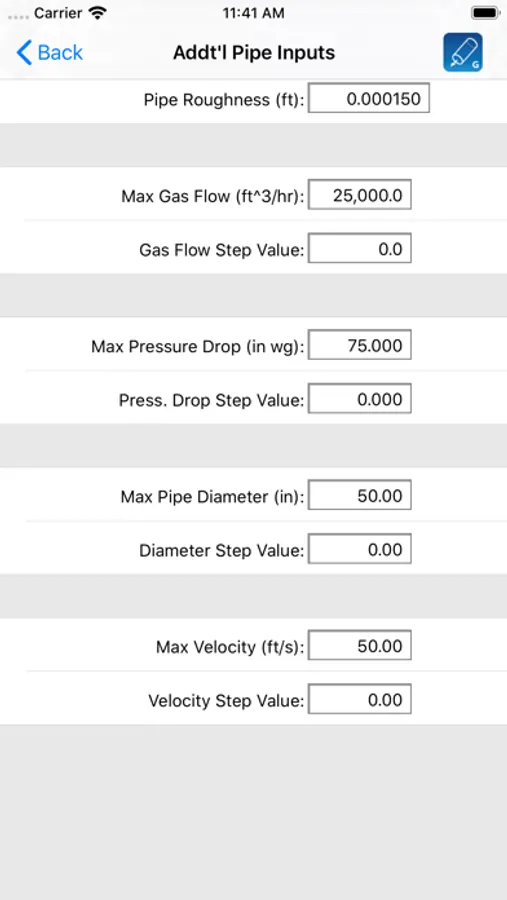

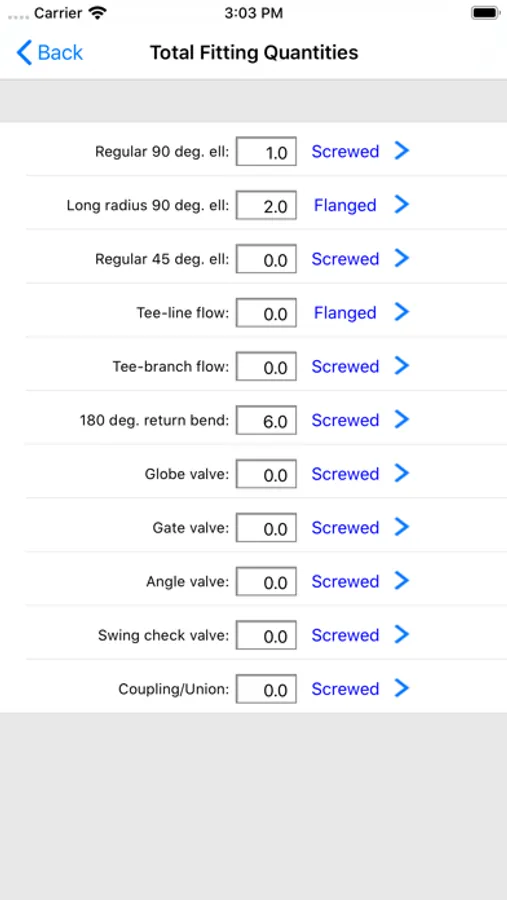

You can specify additional parameters such as the type of gas, various properties of the gas, the pipe material type, the total length of pipe, quantities for up to 11 different types of pipe fittings, and much more. You can also choose to display values in either english or metric units.

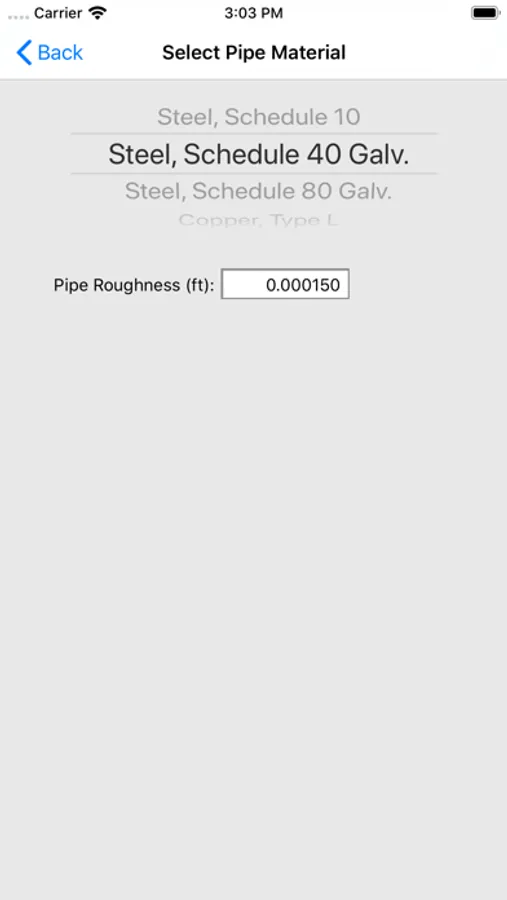

This application includes built-in pipe fitting equivalent length and nominal pipe sizing tables for a wide variety of pipe material types and diameters.
This application uses slider controls that allow you to quickly increment or decrement the input values and immediately observe the calculated results. You can also manually input exact values.
This app now includes the HVAC Equipment Locator. Click here for details: http://bit.ly/1yTq539
The "HVAC Pipe Sizer - Gas Plus" application was designed by Carmel Software Corporation, a leader in HVAC design software since 1995. In fact, Autodesk (the makers of AutoCAD) acquired our load calculation software and incorporated it into their leading 3D modeling software called Revit. In addition, we developed a number of customized apps for ASHRAE, DNV GL, and other organizations.
