Color sender lets you send a color after a touch inside the color wheel with your personal URL you specify it in setting.
Use this application for color setting of some RGB lamp and on/off function or setting something at web pages.
You can check this application with direct background color setting of html frame at web location : http://pautex.fr/colorsender

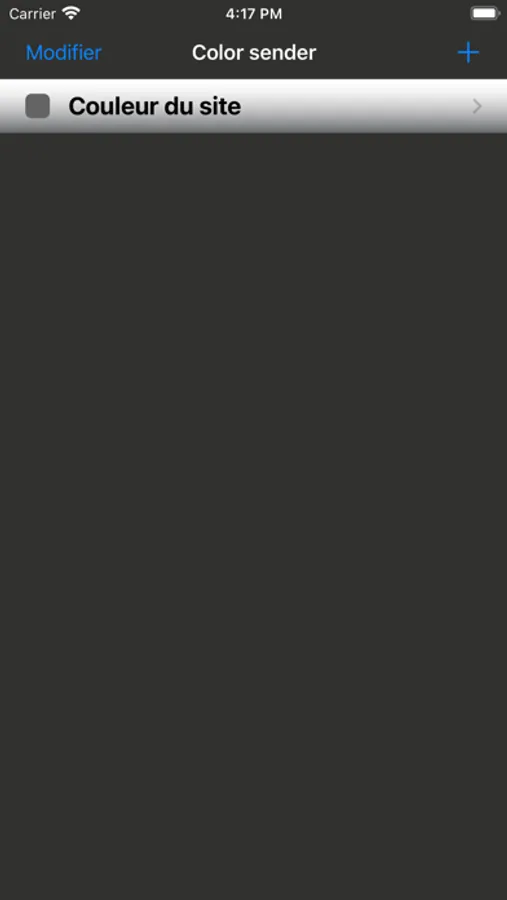

First application screen shows available inputs as a list, you can edit list very classically, add or delete. An entry include a name and destination URL.

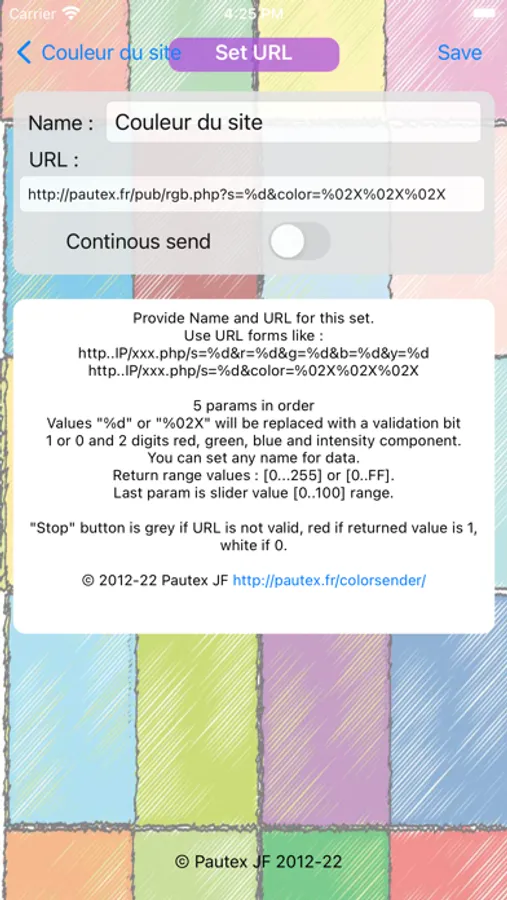

Destination URL must be edited before use with your own server. You include maximum 5 tags "%d" or "%02X" in the URL and set each parameters with some names for your convenience.
You will first provide a validation parameter (value 0 or 1) for stop button, and 3 parameters as red, green and blue color components, last param is slider value in 0..100 range.
URL form is :
- http://IP/xxx.php?s=%d&rR=%d&G=%d&B=%d&Y=%d (decimal values)
- http://IP/xxx.php?s=%d&color=%02X%02X%02X (hexa values) - add # if needed.
Color coding is 1 byte, numerical values are between decimal 0 and 255 (0xFF)and 0..100 for last value (slider).

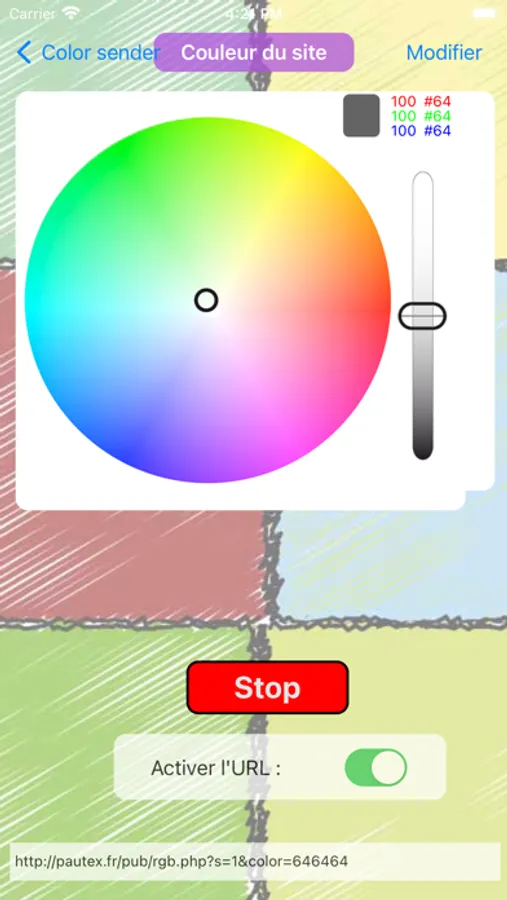

Each hit on the wheel or onto the brightness slider make a call with the specified URL after parameters replacement and with "1" for the first parameter value.
A hit on the "stop" button set first parameter to "0" all other remind unchanged.
© Pautex JF, Nancy v1.2 - 2012 - 2022
