PipingData

With version 2.4.8, PipingData is now available in 19 languages.
Discover the power of data visualization applied to industrial piping.

Instantly explore results by hovering over piping accessories, combined with a flat design, a clean and intuitive interface, optimized for a modern professional experience.

Branch connections (tappings) are now available, with the ability to print templates directly from the print interface and/or share templates as PDF files, with selectable generators (4, 8, 12, 16, 24, 32).

Features

Interfaces:

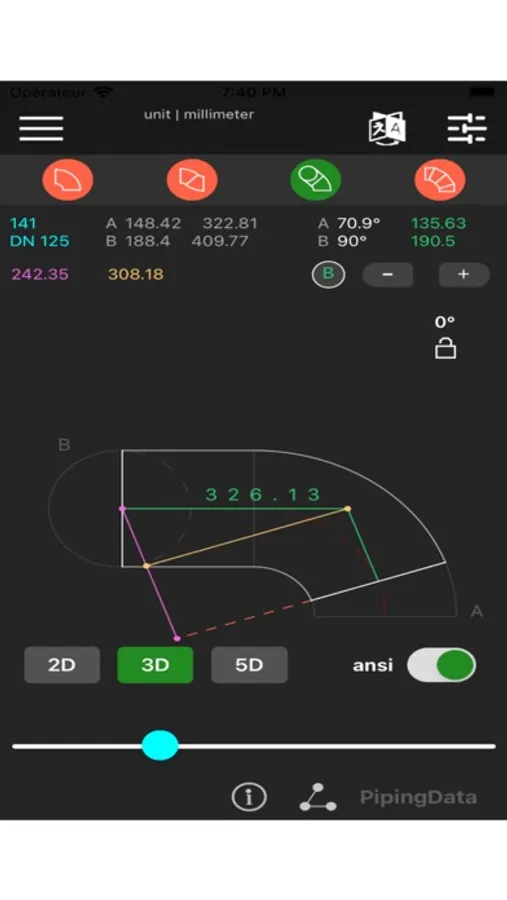

Interactive elbow

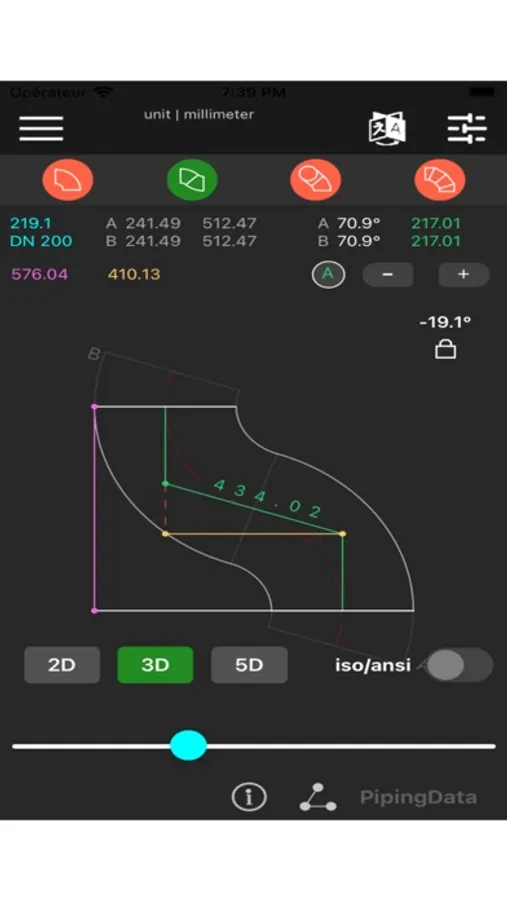

Interactive double elbows (same plane)

Interactive oriented double elbows

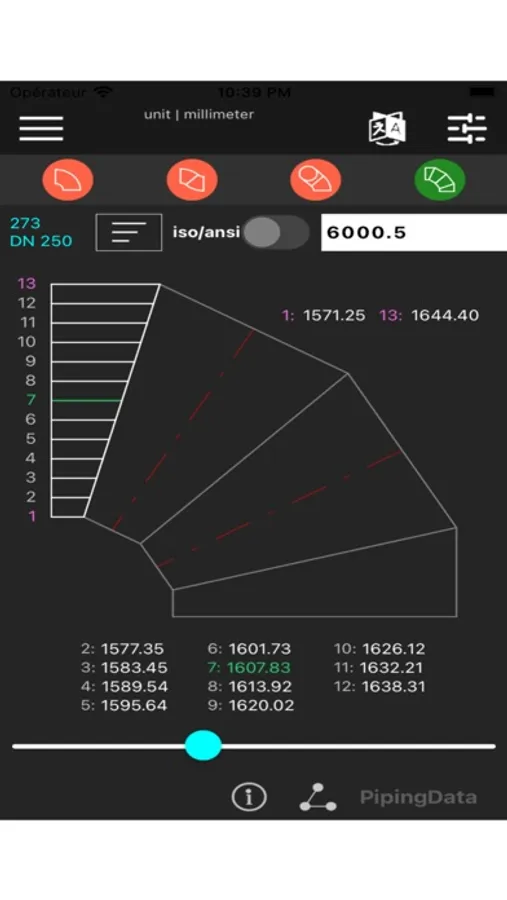

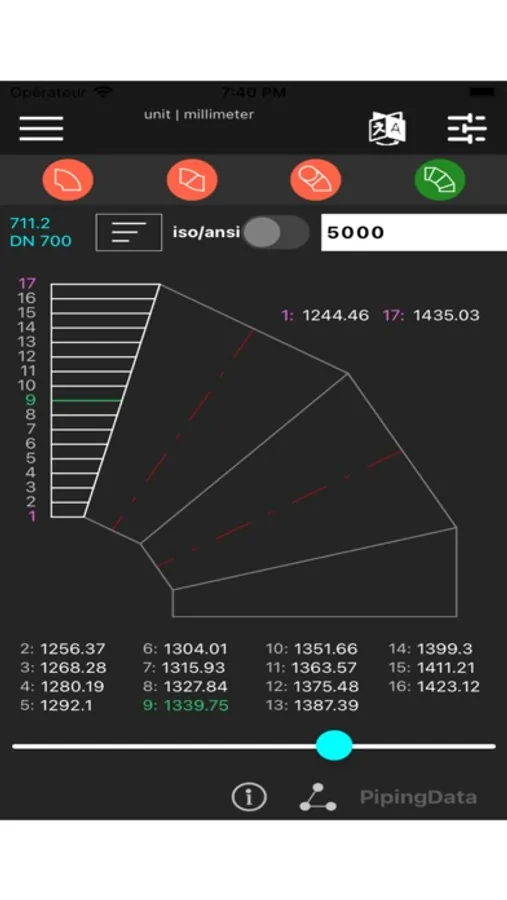

Interactive segmented elbow

Concentric and eccentric reducers

Straight tapping (same diameter)

Straight tapping (different diameter)

All interfaces use a flat design with hover-based data exploration.
Angles are automatically optimized based on cursor position.
This process is called DATA VISUALIZATION.

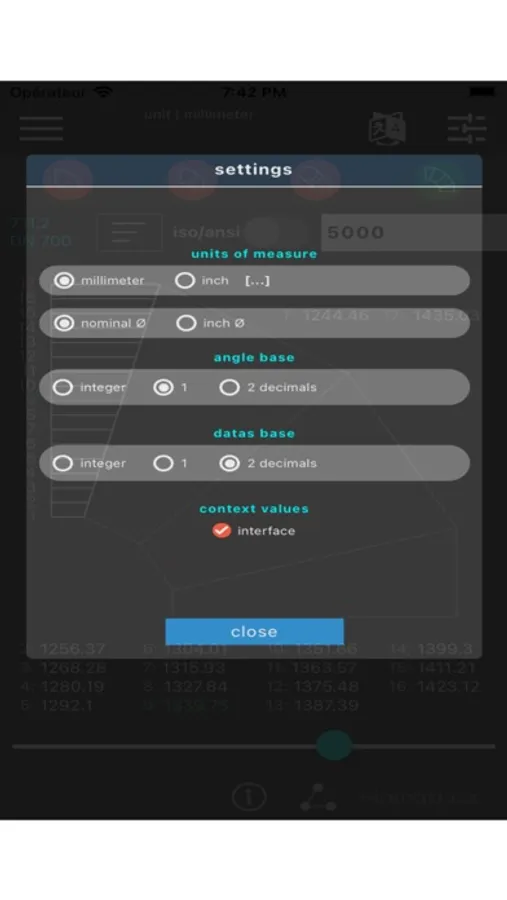

Settings:

Numeric data with integer, 1 or 2 decimal precision

Adjustable font sizes for visual comfort

Preferred language saving

Inch / mm conversion

Languages:
Available in 19 languages, English is the default.

Utilities:

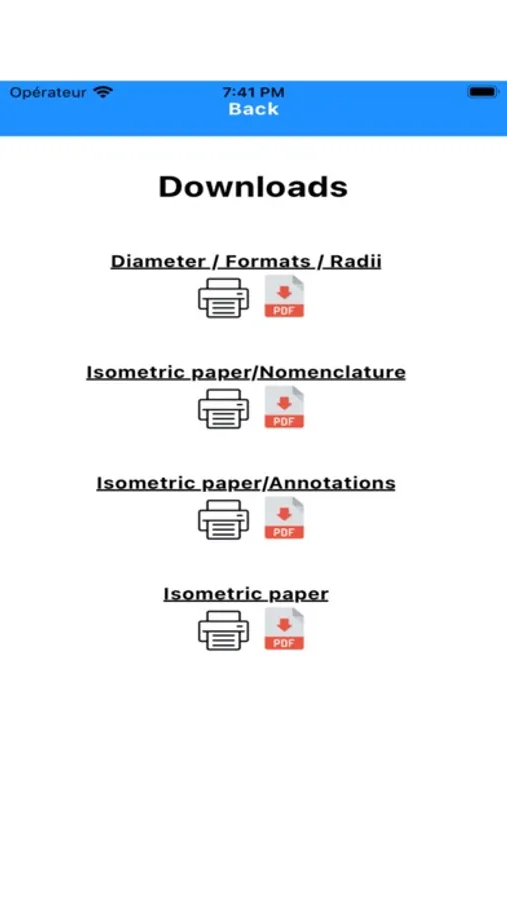

The Download section provides documents to download / print / share
(ABAC tables, isometric sheets with or without nomenclature).
Useful website links are also included.

Improvements:

Added SMS diameters

Optimized graphical layout

Performance improvements

Developed with three core principles:

Flat design

Data visualization

Ergonomics
