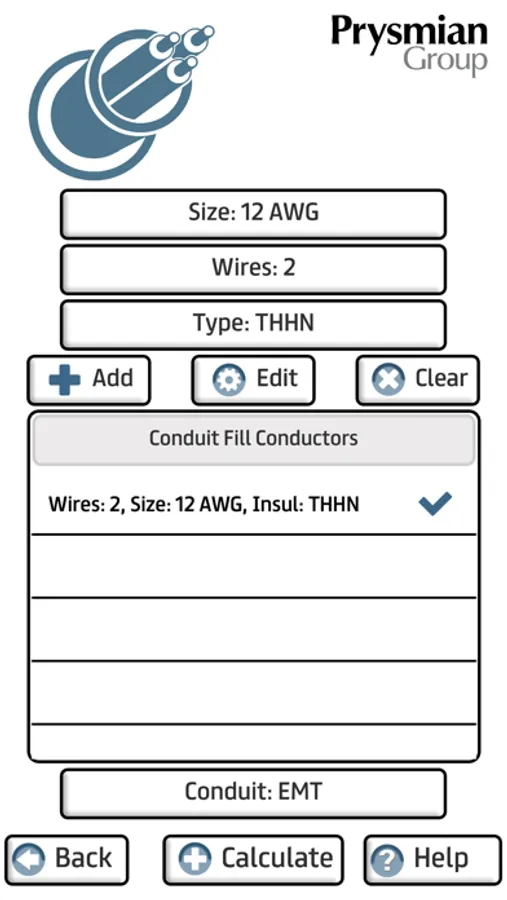

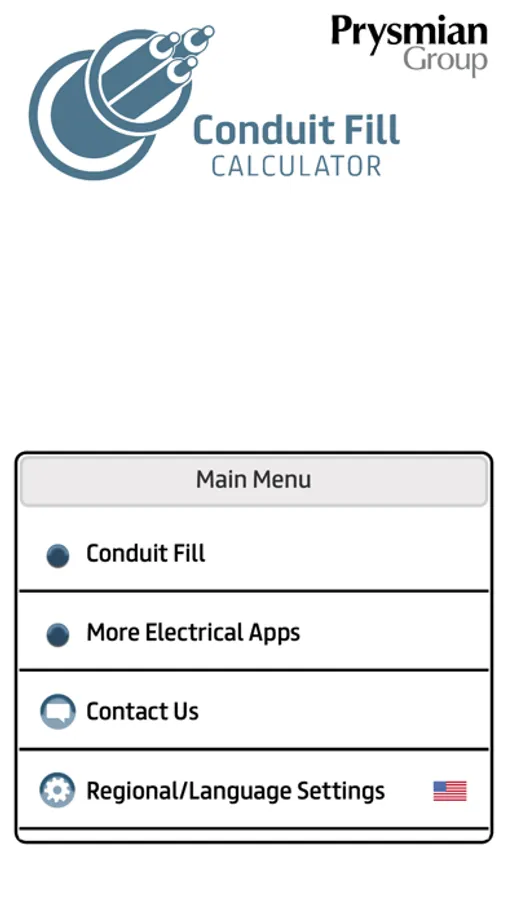

Prysmian Group’s Conduit Fill calculator is a quick and easy tool to calculate the minimum conduit size per National Electrical Code. It is designed for engineers, contractors, and other electrical professionals to find quick answers without spending hours on lengthy calculations.
Features:

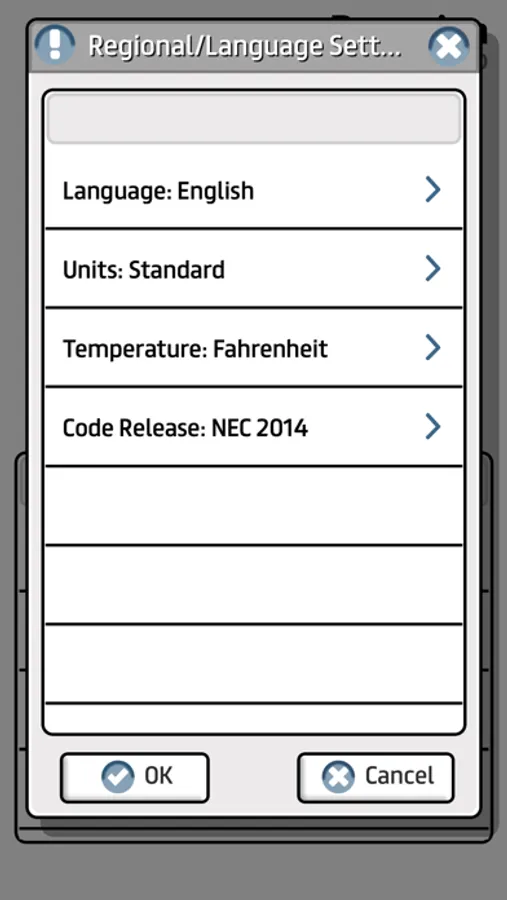

Code Selection for NEC® 2011, 2014, and 2017.
Metric or standard conductors
Allowable fill rates for combination of conductors
Calculates minimum conduit size for compact stranded conductors
Over fifty different types of insulation
Over ten different conduit types

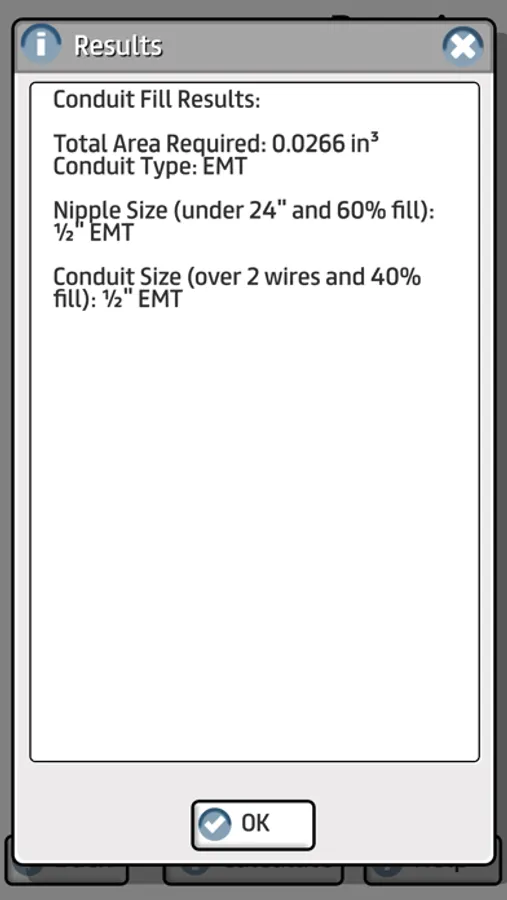

Results show total area required, nipple size, and minimum conduit size
