In this app, engineers can access detailed dimensions for pipes, flanges, fittings, and materials. Includes standard data for ANSI, BS, DIN, IS, JIS standards, material composition, and weight calculations.
AppRecs review analysis
AppRecs rating 2.3. Trustworthiness 65 out of 100. Review manipulation risk 26 out of 100. Based on a review sample analyzed.
★★☆☆☆
2.3
AppRecs Rating
Ratings breakdown
5 star
19%
4 star
0%
3 star
0%
2 star
19%
1 star
62%
What to know
✓
Low review manipulation risk
26% review manipulation risk
⚠
Mixed user feedback
Average 2.3★ rating suggests room for improvement
About Flange Pipe Fittings Pro
The Application is very useful tool for Engineers who deals with Pipes, Flanges and fittings dimensions in there day to day life. The app is having the dimensions of many different standard and material type as shown below:
1) Flanges ANSI B16.5
2) Flanges BS 10 Tables
3) Flanges for API (26" and larger size)
4) Flanges of BS4504
5) Flanges (or Blind Flanges) as per DIN
6) Flanges as per IS6329
7) Flanges as per IS1538
8) Pipes as per IS1239

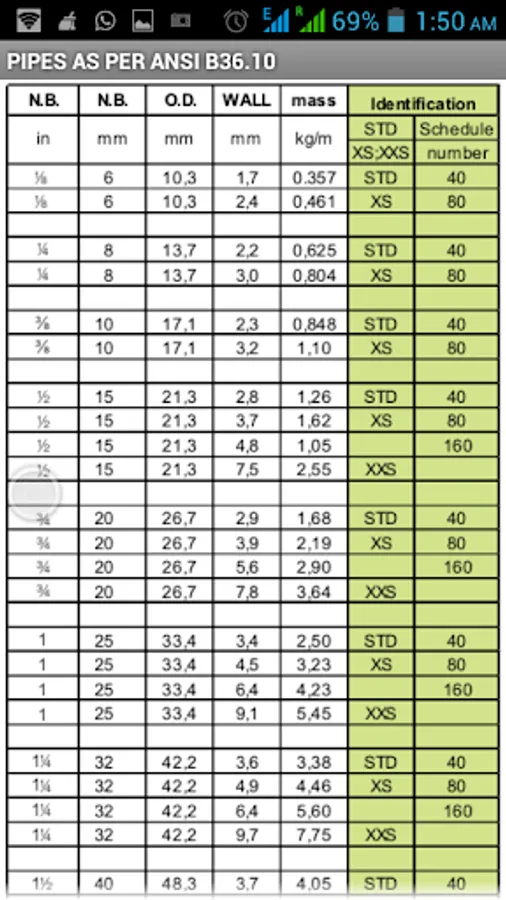

9) Pipes as per ANSI 36.10 dimensions and weight
10) Fitting Dimensions ( Butt weld reducer, tee, elbow, cap, stubs etc.)
11) Screw fitting of 3000# and 6000#

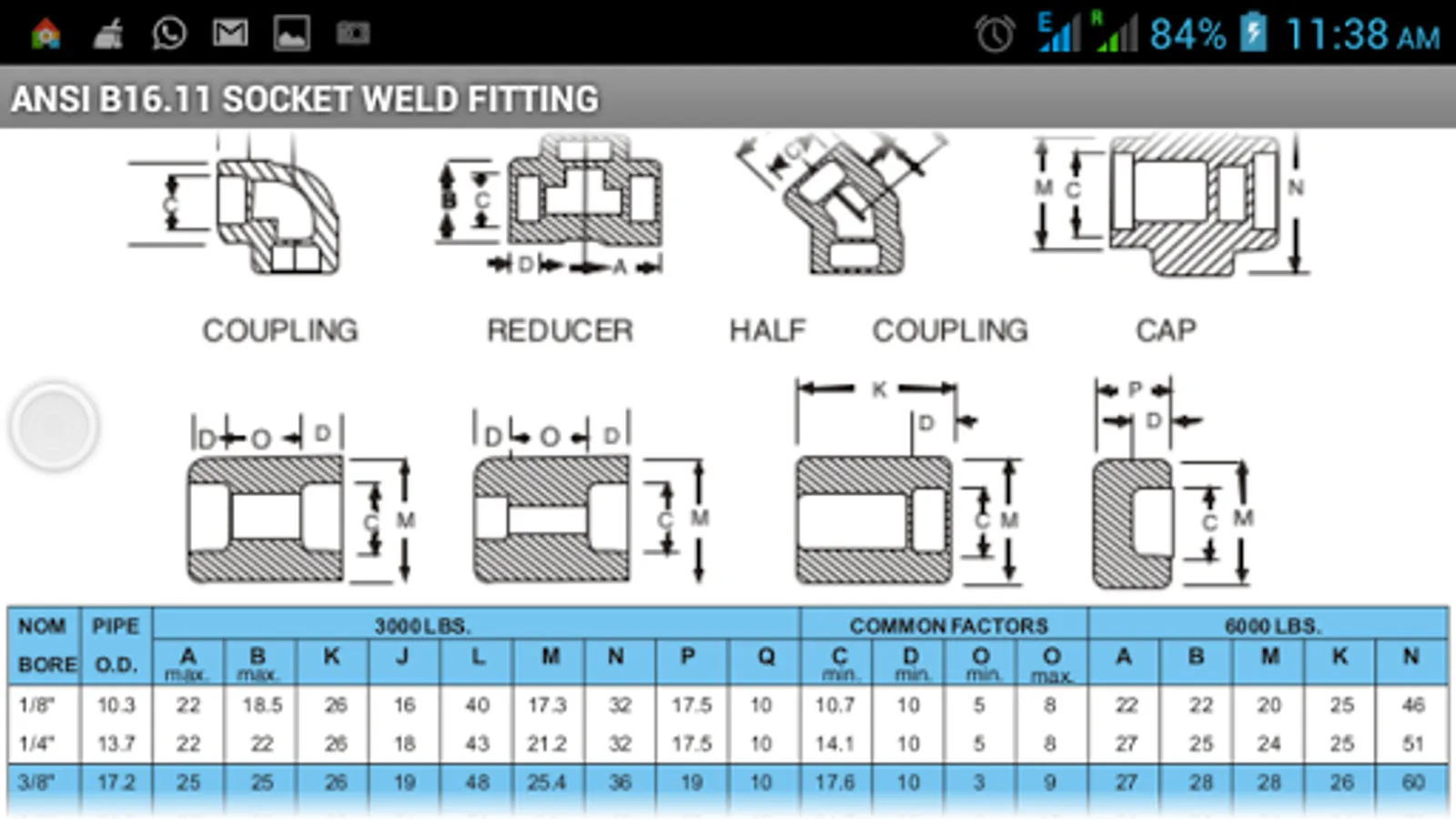

12) Socket weld Fitting
13) Material Composition (SS plates and commonly used material)
14) Equivalent material specification for different standards.

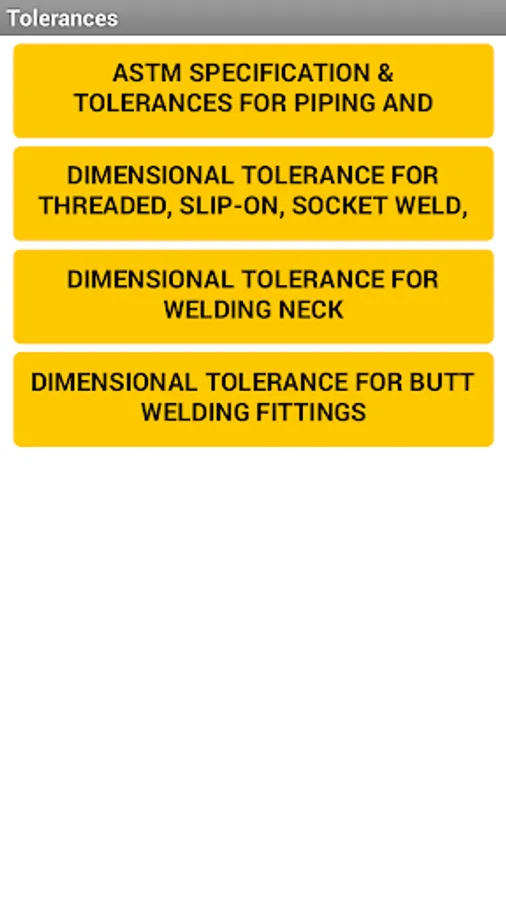

15) Allowable tolerances

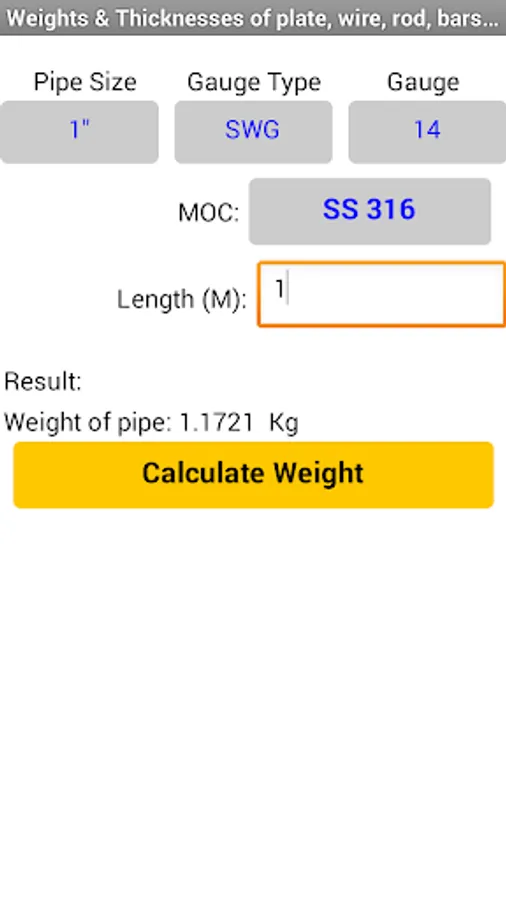

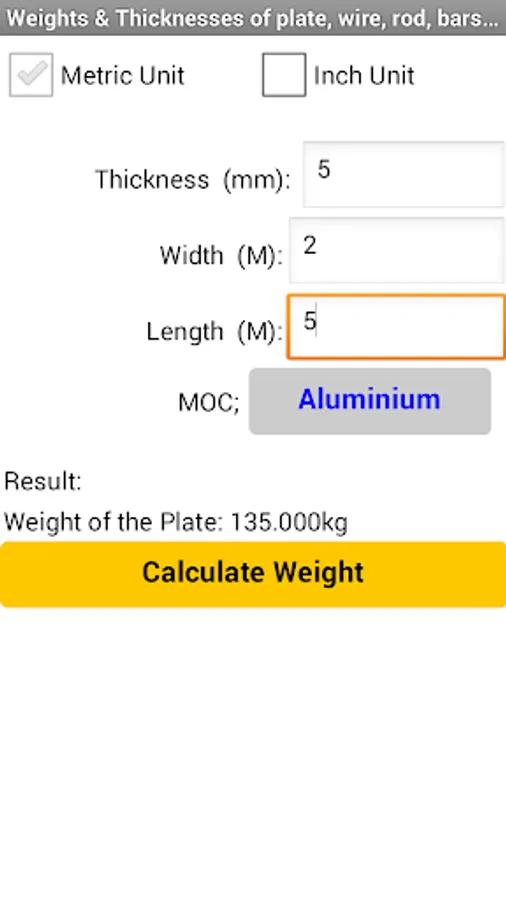

16) Weights calculation for Plate, wire, rod, bars and gauge pipe for various commonly materials

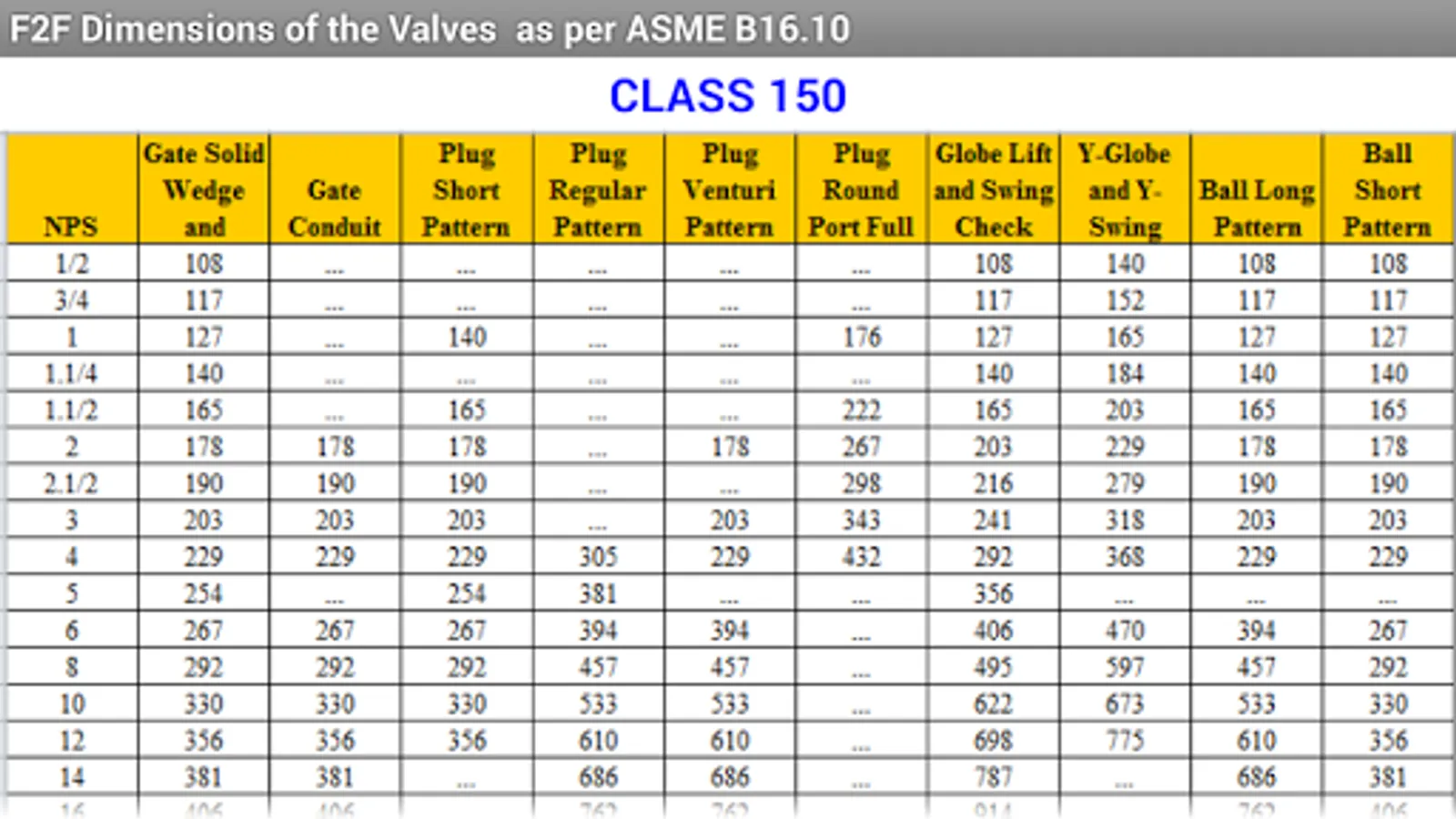

17) Face to face dimensions for metallic valves as per AMSE B16.10 for gate, plug, globe,ball valves
18) Flange dimensions as per ASME B 16.47 Series A & B
19) Flange dimensions as per AWWA C-207
20) Flange dimensions as per BS 3293
21) Pipes as per JIS (Japanese Pipe and flanges dimensions) G3452, G3454, G3447, G3448, G3459, C8305, H3300,
22) Flanges as per JIS-B2220
Disclaimer: This app is just for quick reference purpose only, for actual values please verify with original std & codes.
Please notify me if you find and misprints. We invite your suggestion before rating this app.
