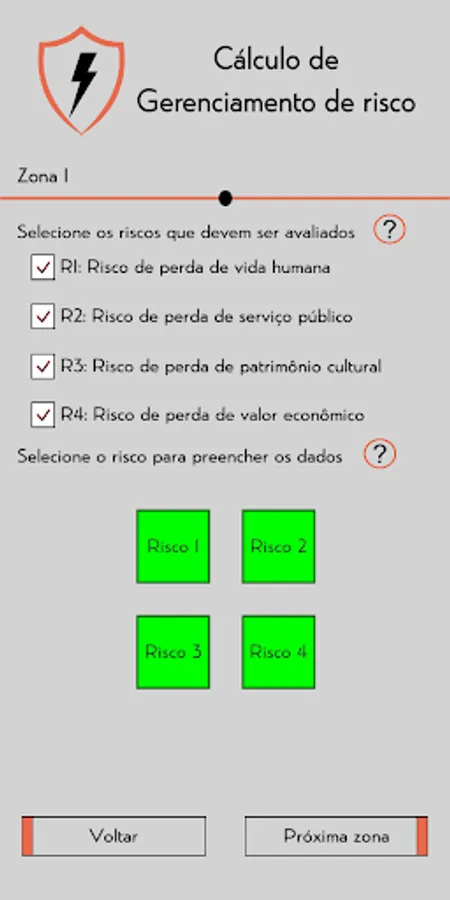

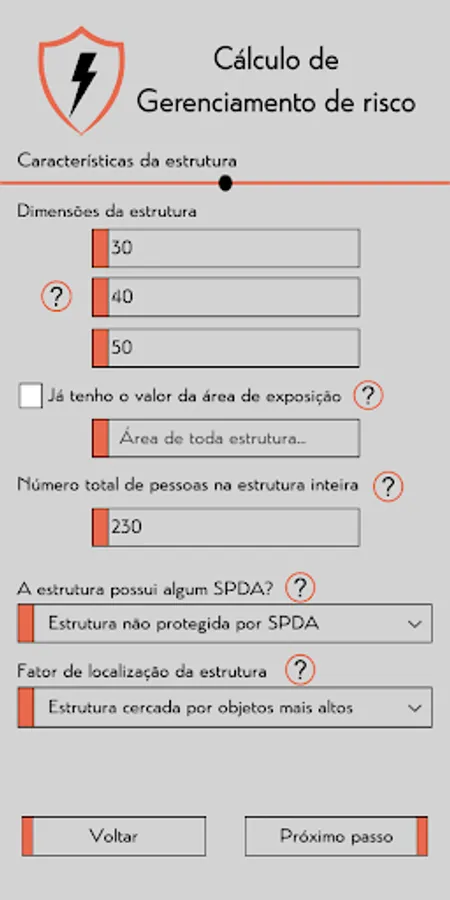

Following the concepts presented in the ABNT NBR 5419:2015 standard, the application allows you to calculate the risk management for SPDA from information on the structure and its location, analyzing the risks R1, R2, R3 and R4, being,
R1: Risk of loss of human life
R2: Risk of loss of service to the public
R3: Risk of loss of cultural heritage
R4: Risk of loss of economic value

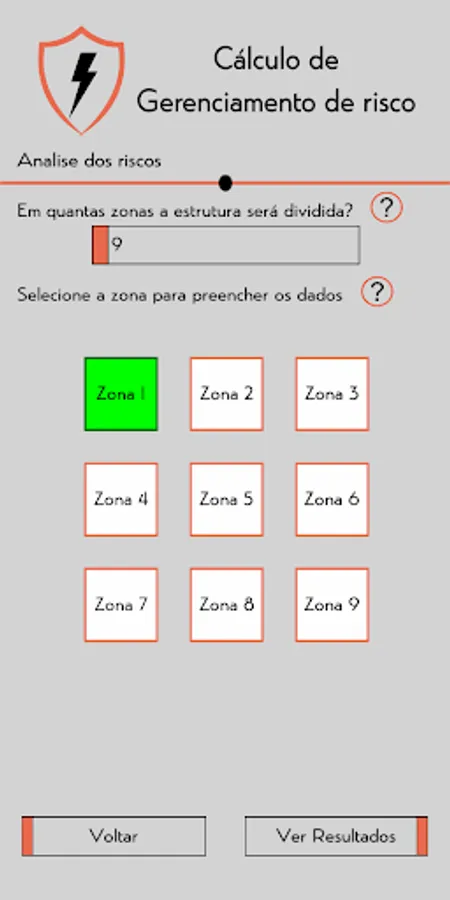

Our solution allows the study of the structure in up to 9 (nine) distinct zones. With this, it is possible to evaluate lightning protection measures only for areas that present results above the limits defined by the ABNT NBR 5419:2015 standard

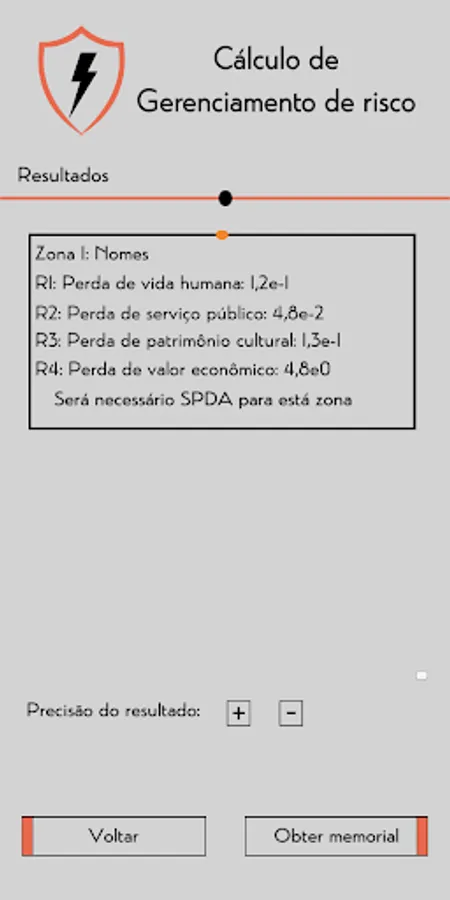

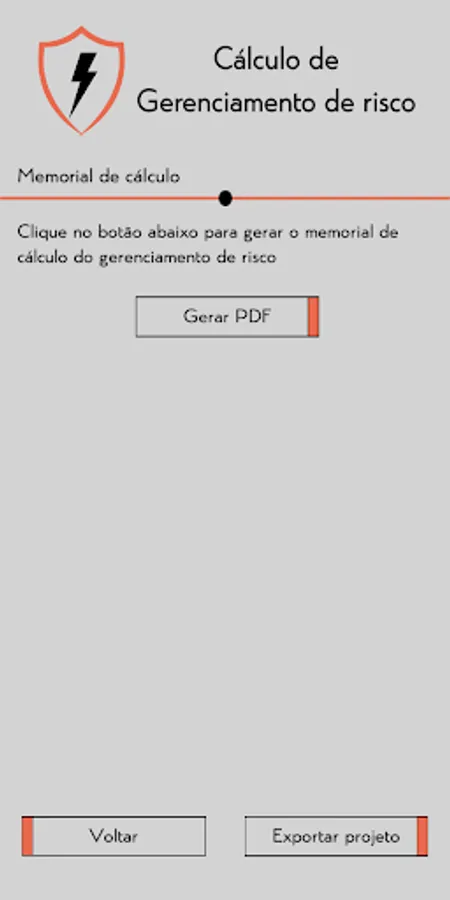

As a result, a descriptive memorial is generated in PDF format, presenting the calculations and whether there is a need to adopt lightning protection measures.
R1: Risk of loss of human life
R2: Risk of loss of service to the public
R3: Risk of loss of cultural heritage
R4: Risk of loss of economic value
Our solution allows the study of the structure in up to 9 (nine) distinct zones. With this, it is possible to evaluate lightning protection measures only for areas that present results above the limits defined by the ABNT NBR 5419:2015 standard
As a result, a descriptive memorial is generated in PDF format, presenting the calculations and whether there is a need to adopt lightning protection measures.
