About Electronics Calculator

Electronics Calculator is a utility application consisting of various calculators, conversions, reference tables and basic pocket calculator.

Calculators:

DC Circuits:

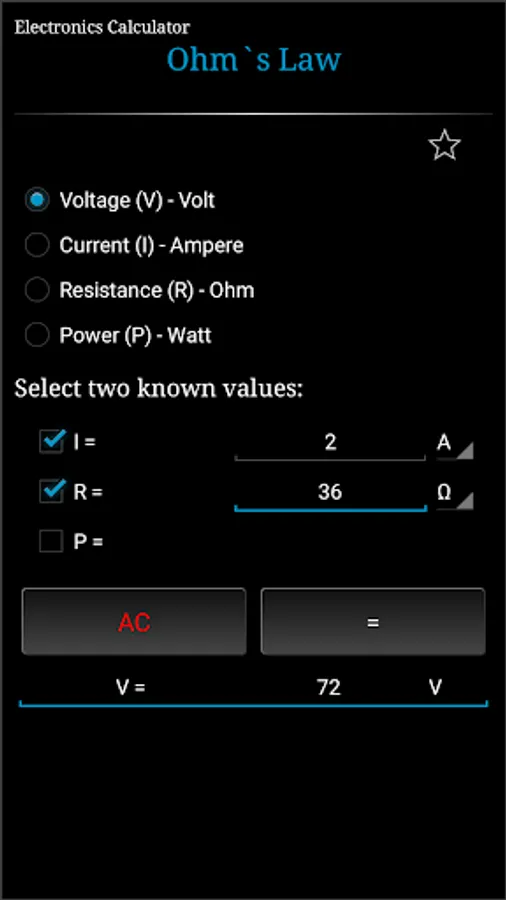

• Ohm`s Law
• Voltage divider - resistive
• LED resistor
• 555 Timer
• RL Circuits
• RC Circuits

AC Circuits:

• Reactance
• Impedance
• Star Delta Transformation
• AC Power
• Decibel

Power Supply:

• Transformer ratios

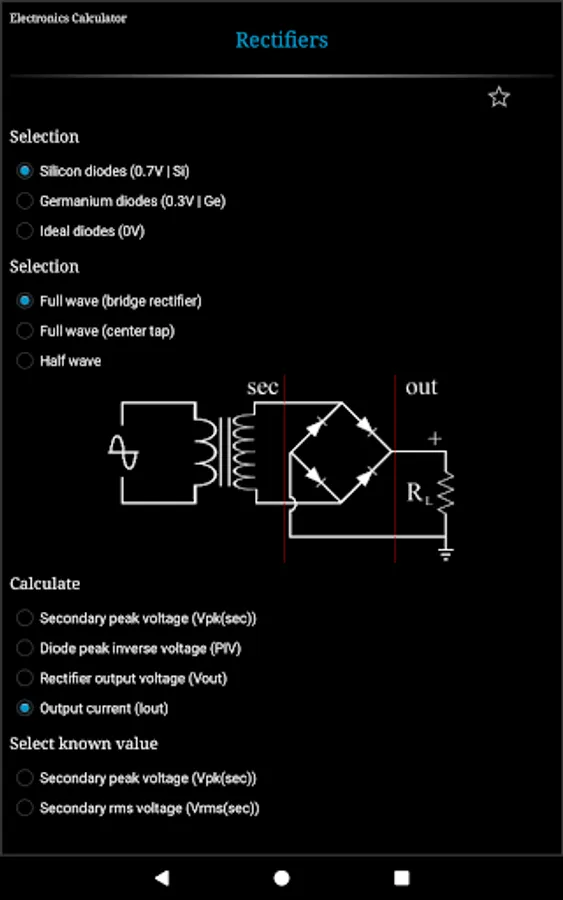

• Rectifiers
• Capacitor filter
• Transformer efficiency

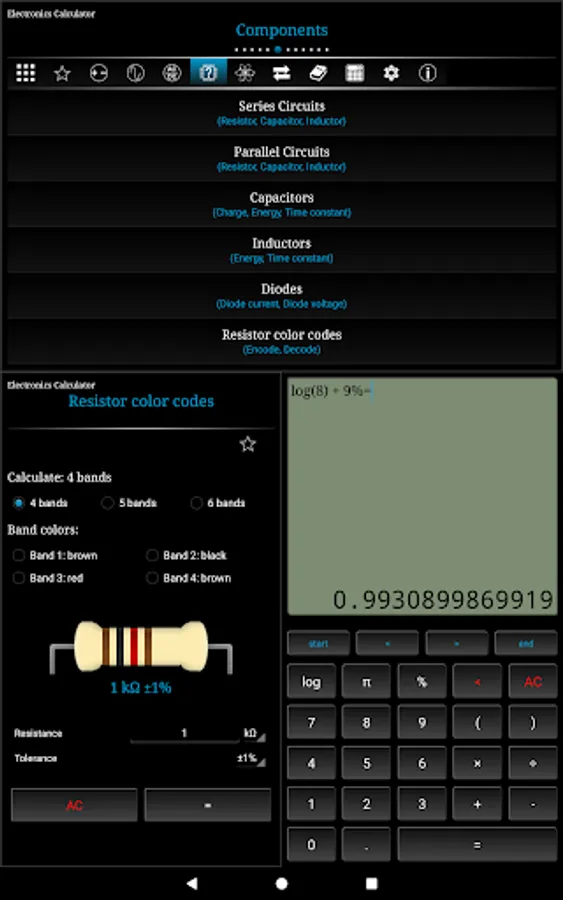

Components:

• Series Circuits (resistor, capacitor & inductor)

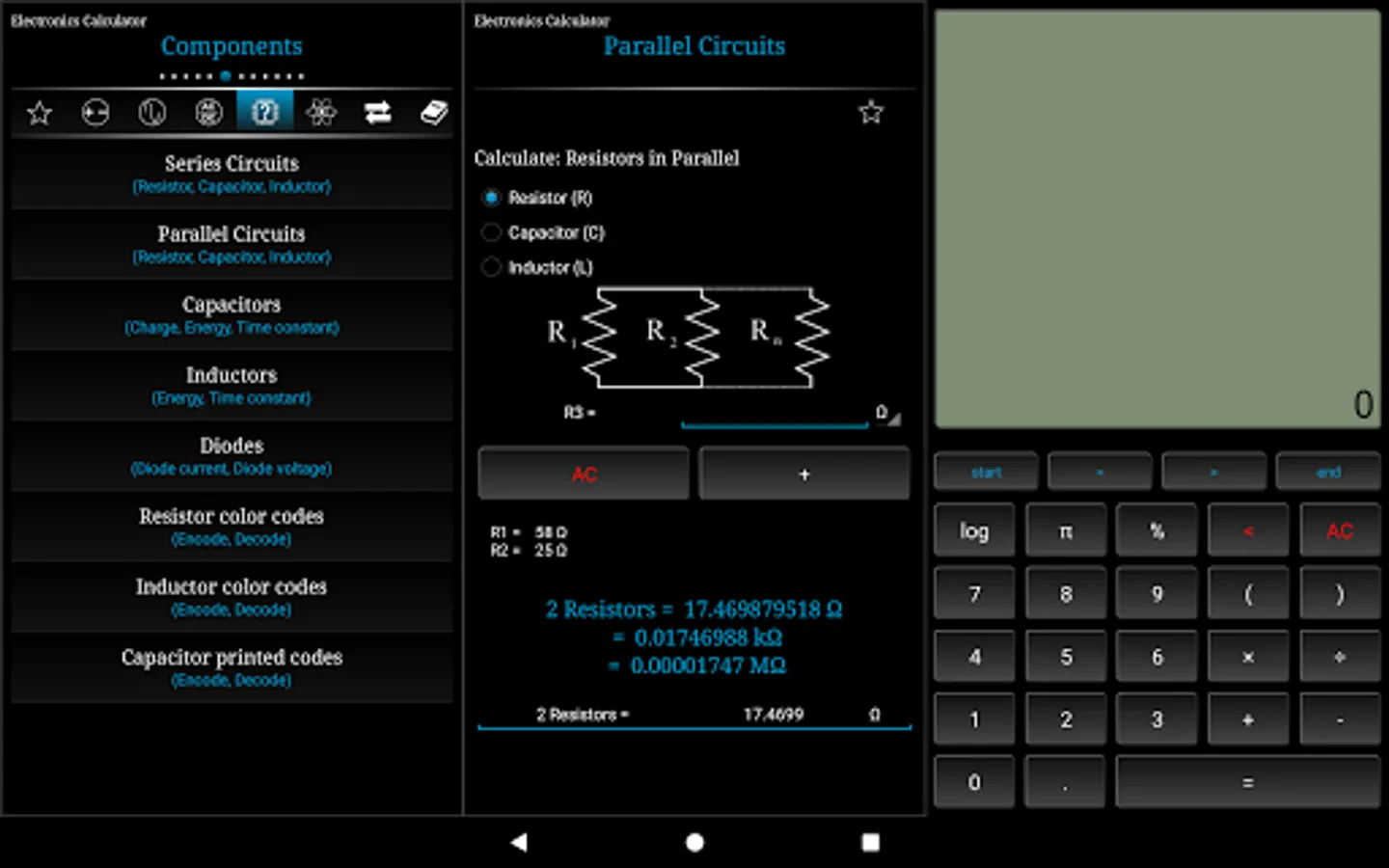

• Parallel Circuits (resistor, capacitor & inductor)
• Capacitors (charge, energy stored, time constant)
• Inductors (energy stored, time constant)
• Diodes (Diode current, diode voltage)
• Resistor color codes (encode & decode 4, 5 & 6 bands)
• Resistor color codes (encode & decode 4 & 5 bands)

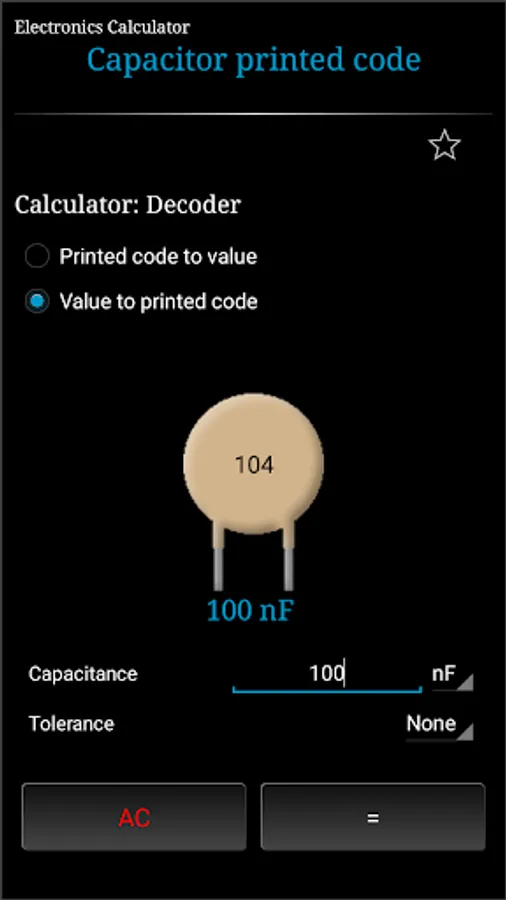

• Capacitor printed codes

Physics:

• Coulomb`s Law
• Magnetism
• Joule`s Law - heating

Converters:
• Area (sq in., mm², cm², sq ft., m², ha, km²)

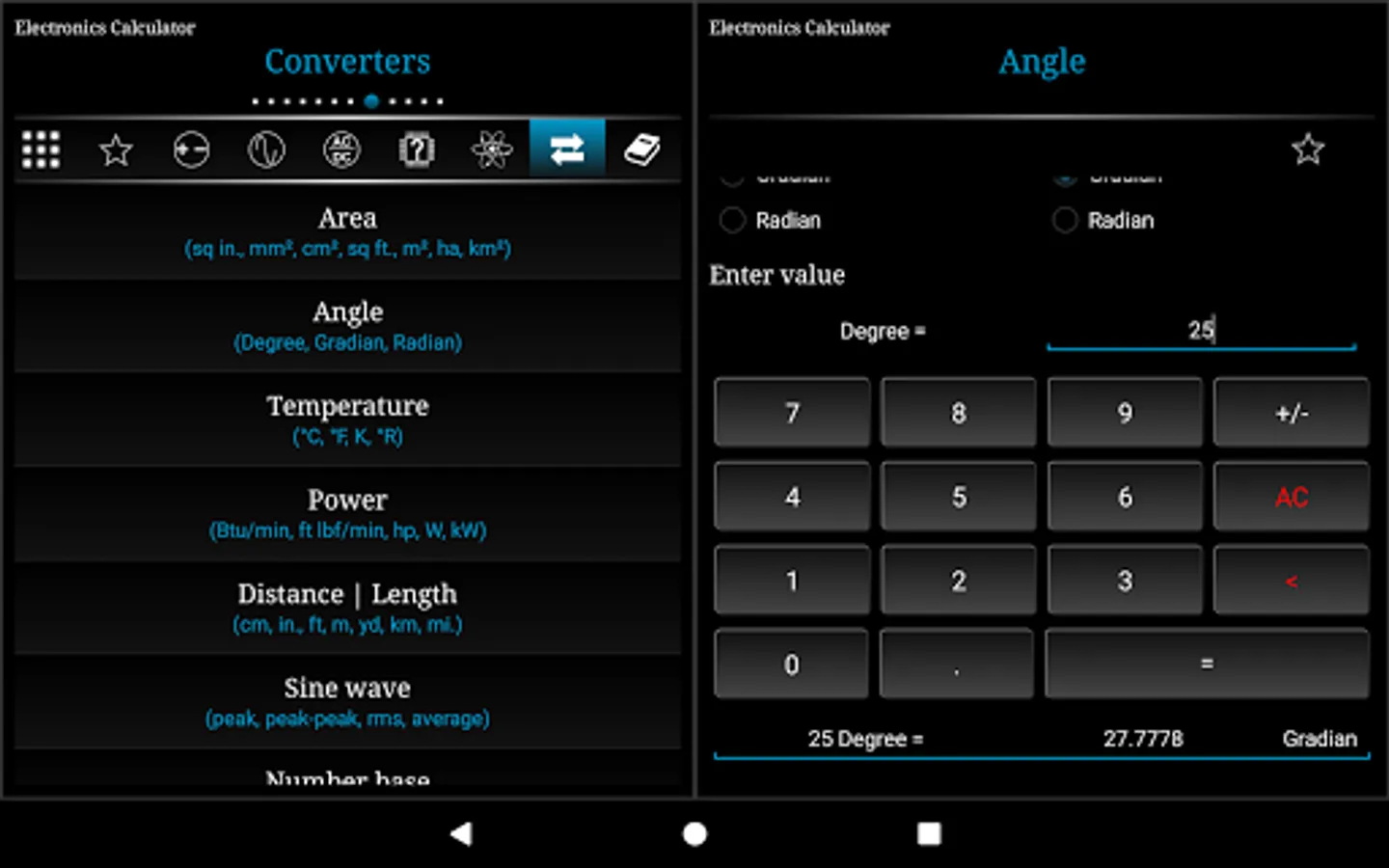

• Angle (Degree, Gradian, Radian)
• Temperature (°C, °F, K, °R)
• Power (Btu/min, ftlbf/min, hp, W, kW)
• Distance/length (cm, in., ft, m, yd, km, mi)

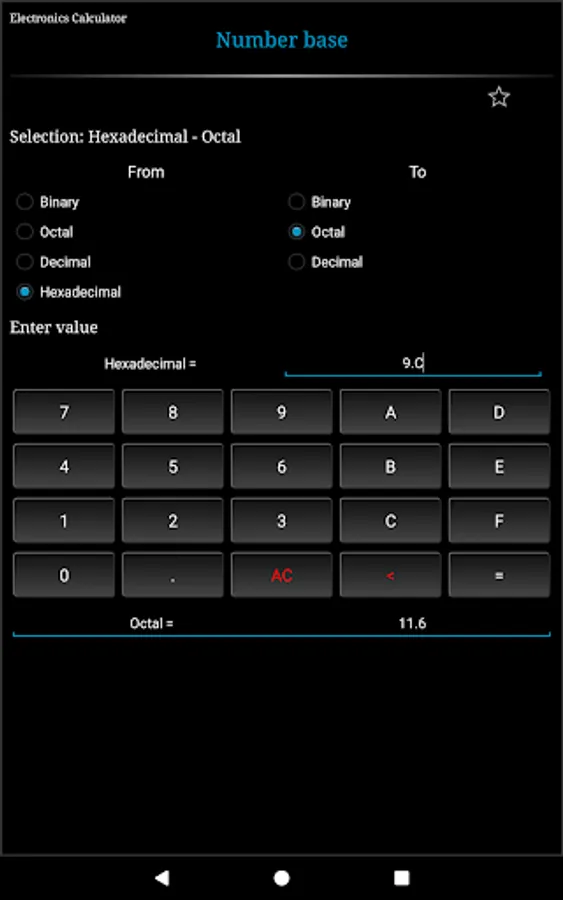

• Number base (binary, octal, decimal, hexadecimal)

Reference:

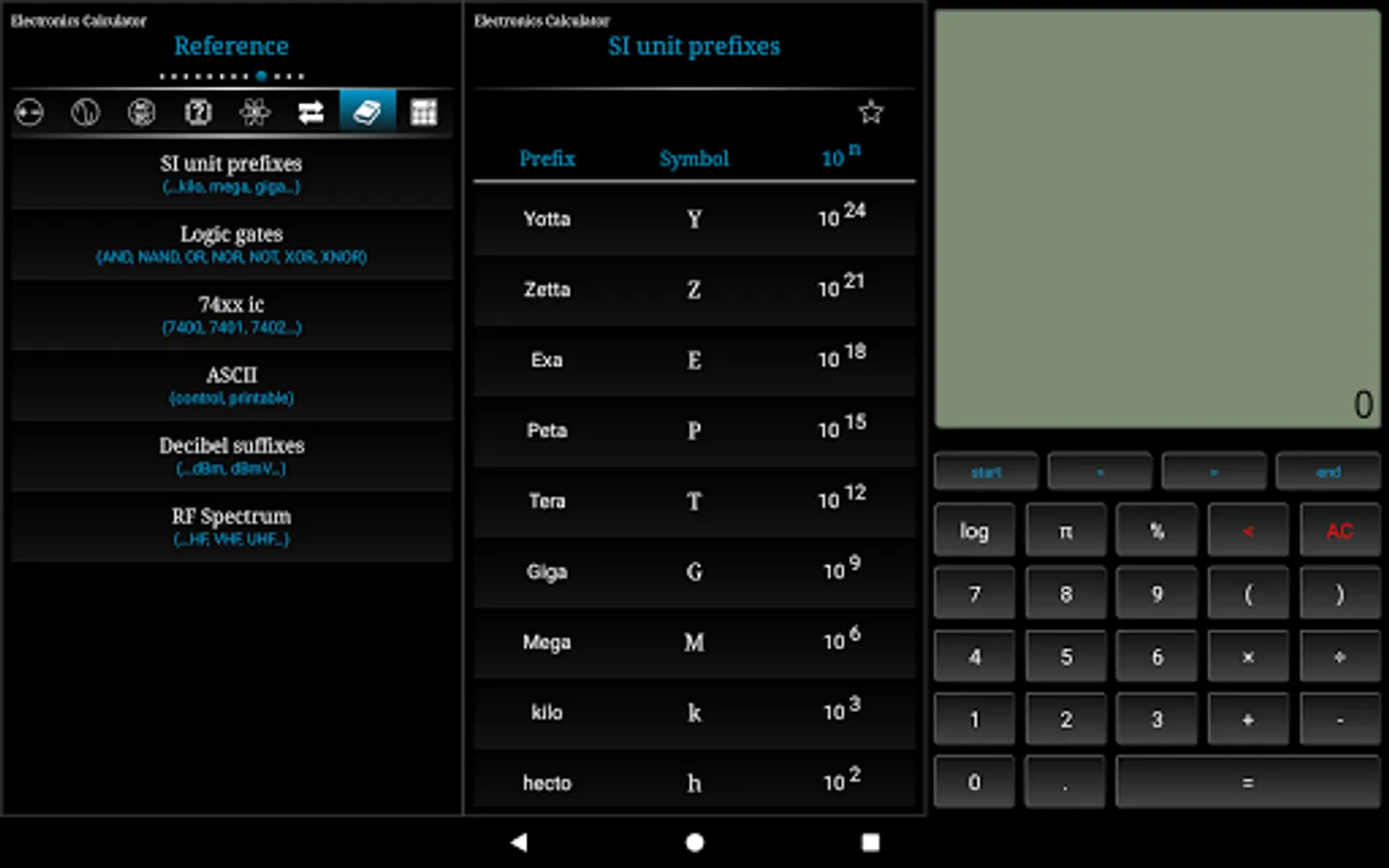

• SI unit prefixes
• Logic gates
• 74xx ic

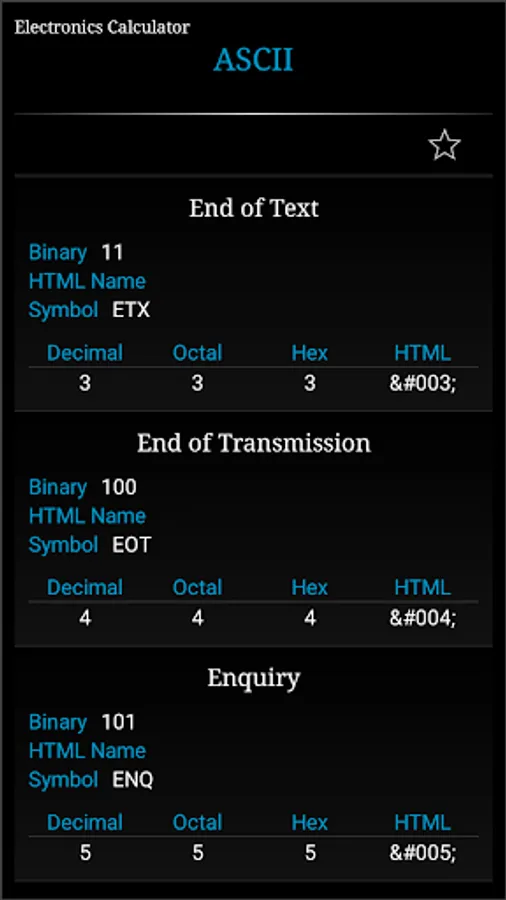

• ASCII
• Decibel suffixes
• RF spectrum

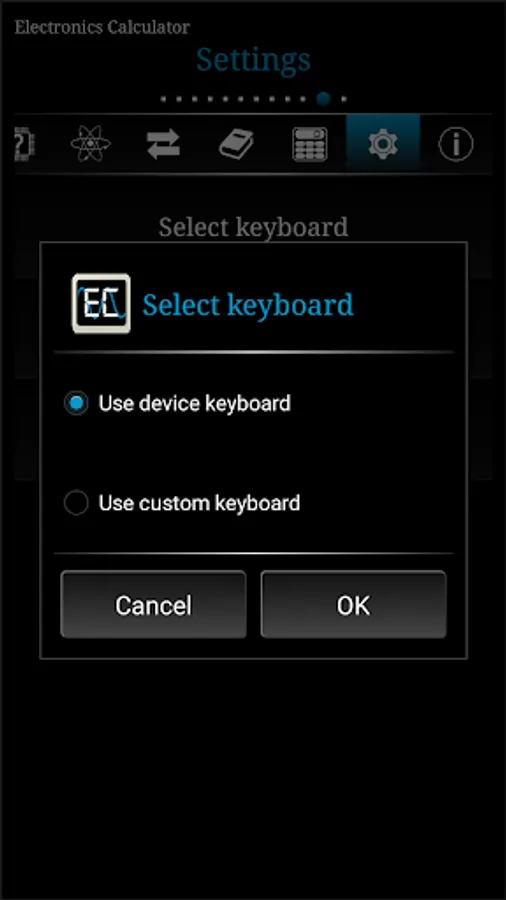

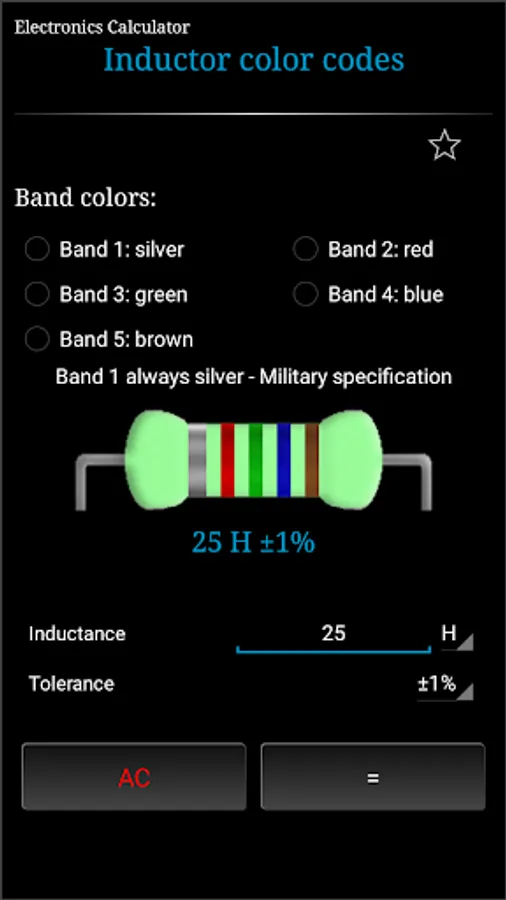

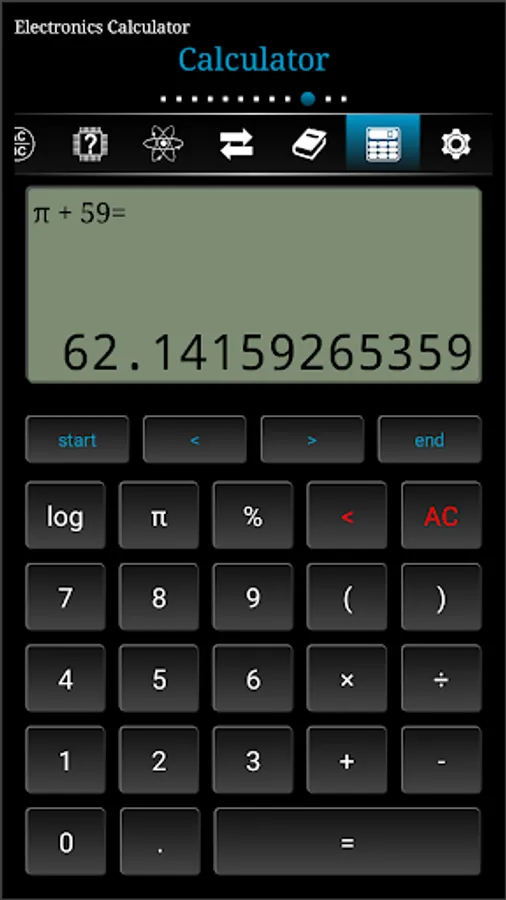

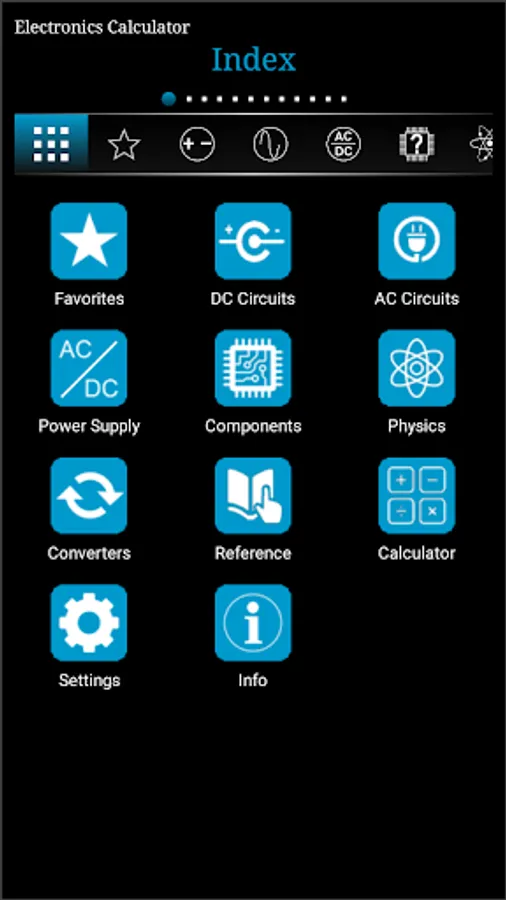

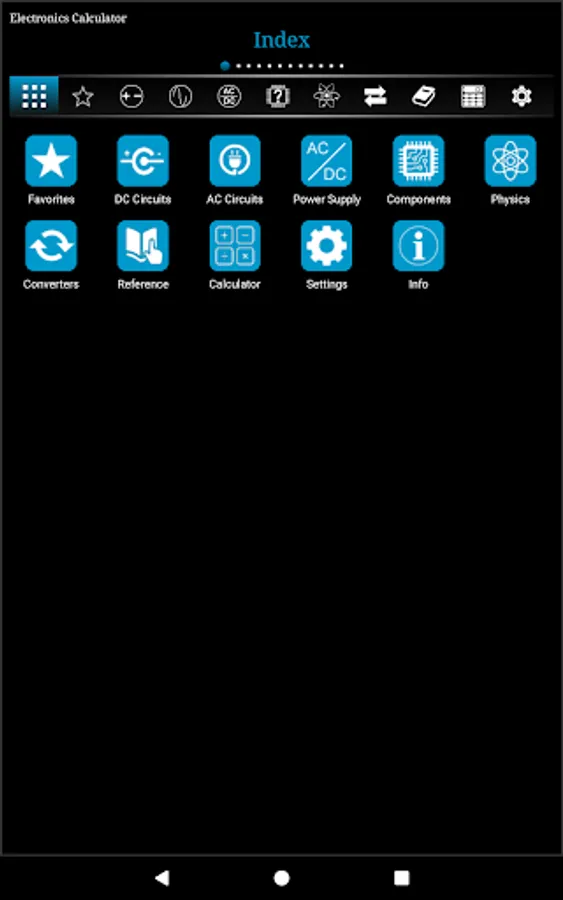

Electronics Calculator Screenshots
