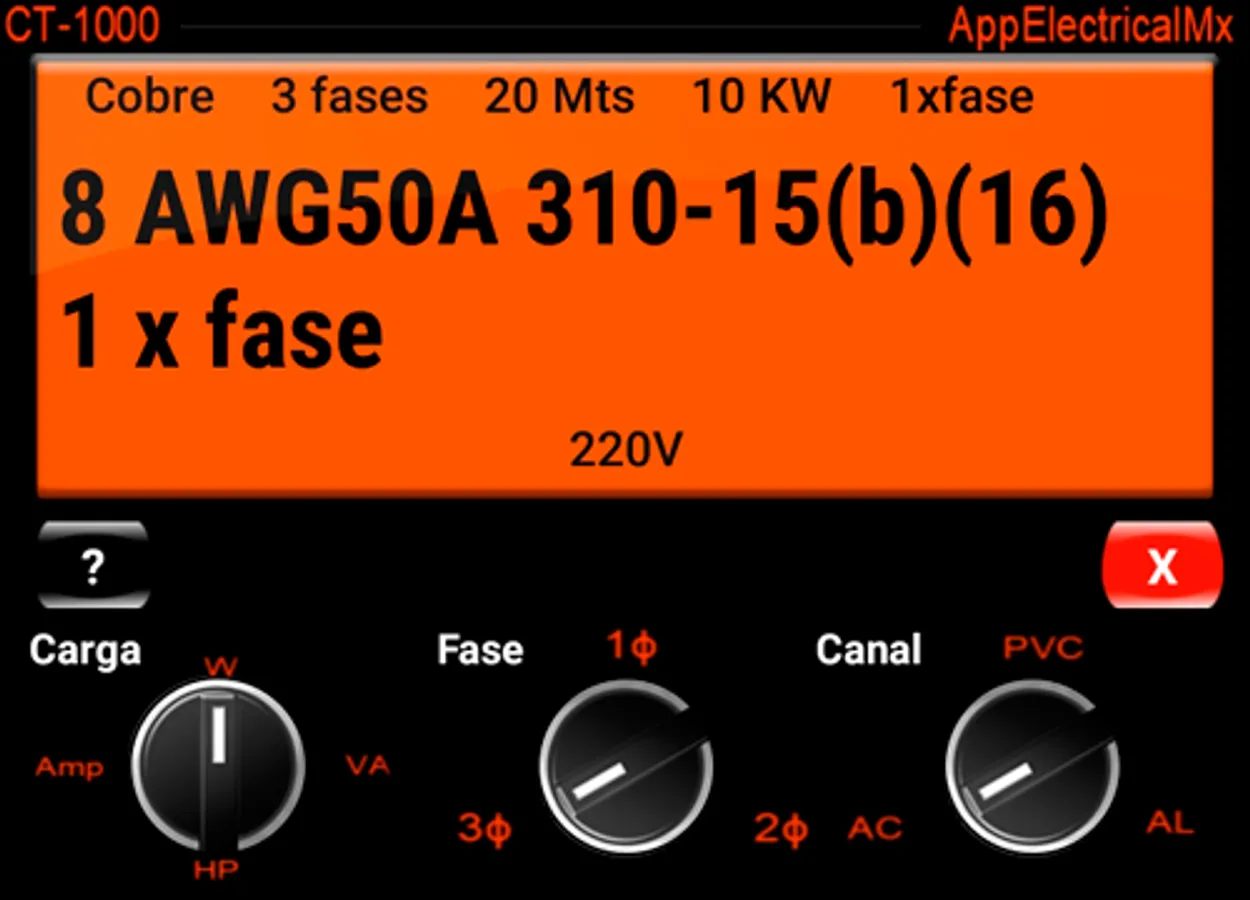

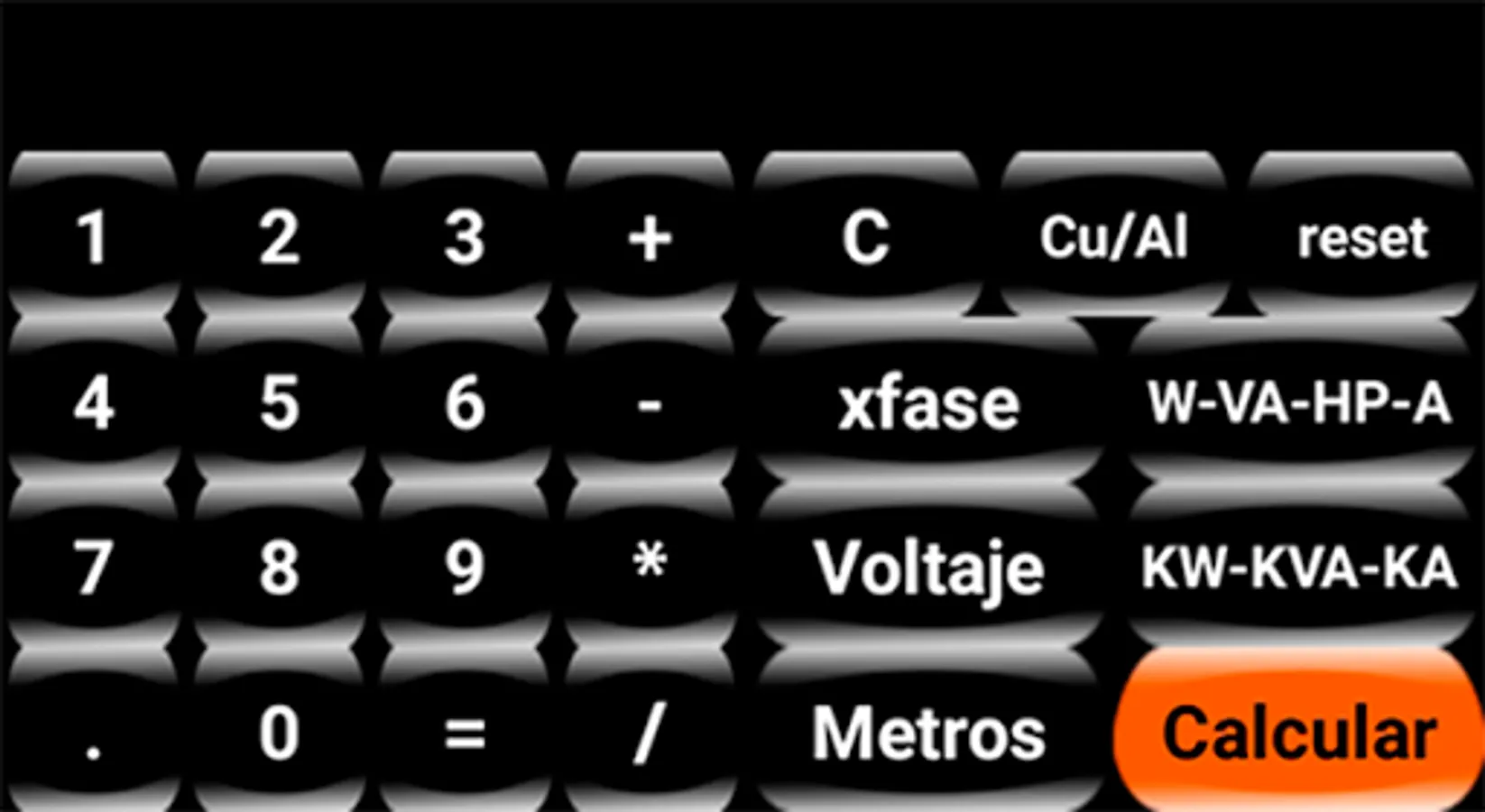

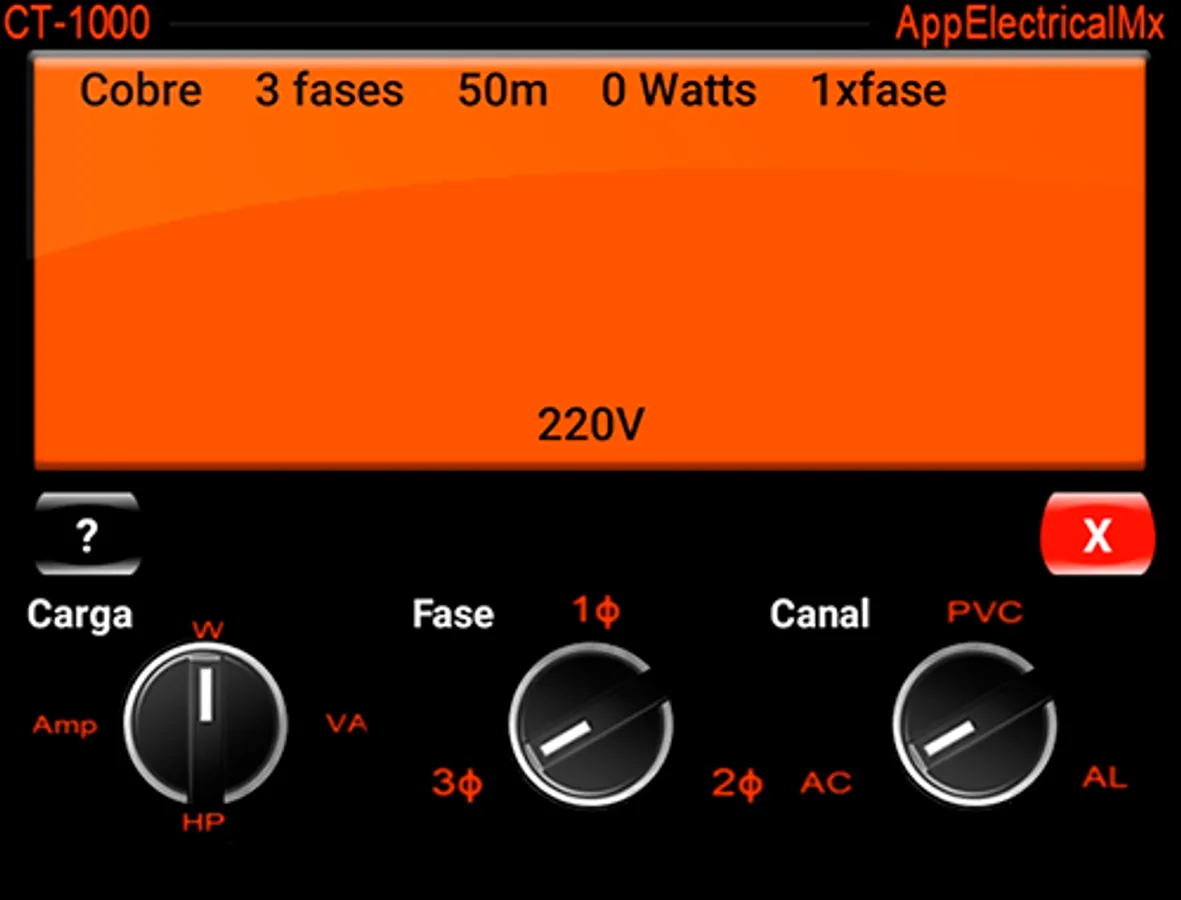

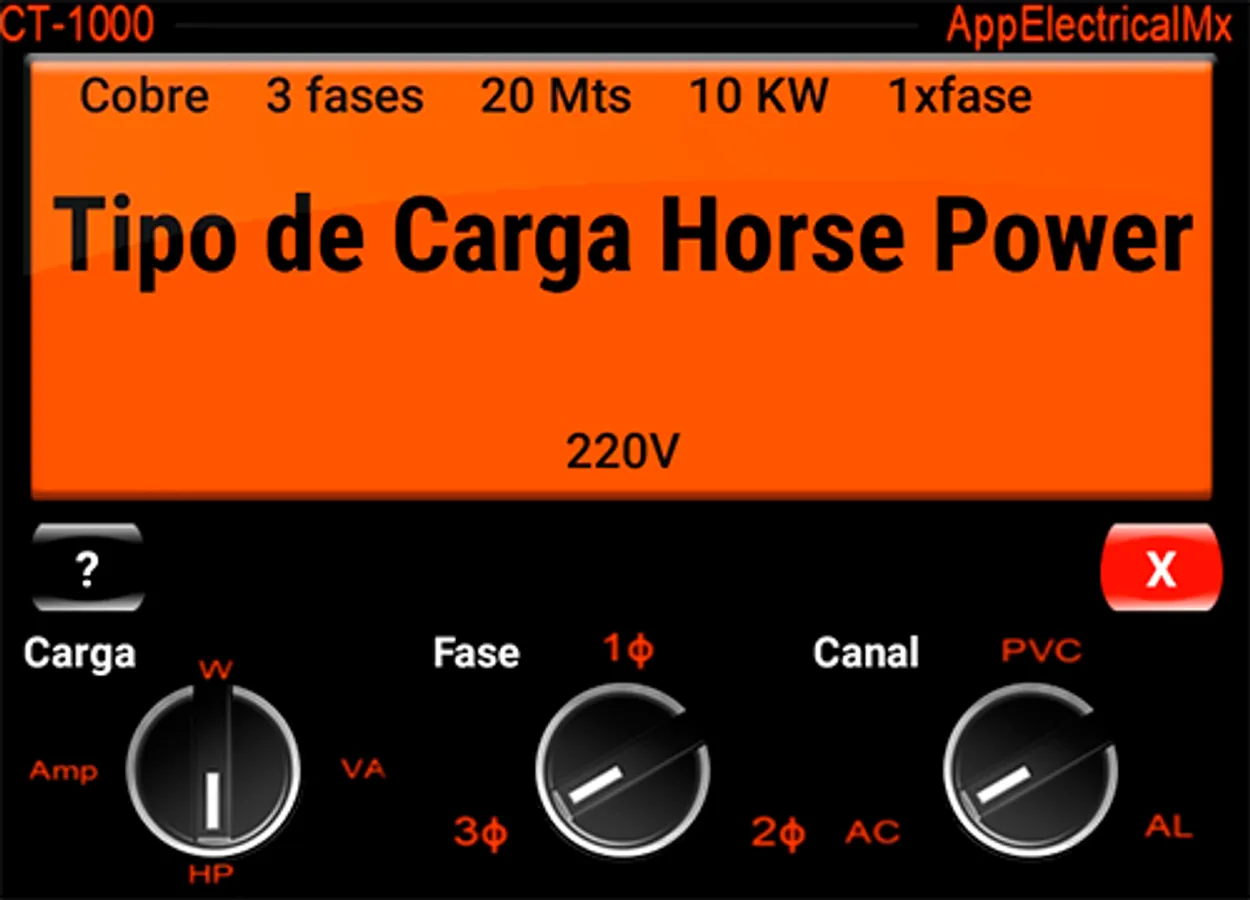

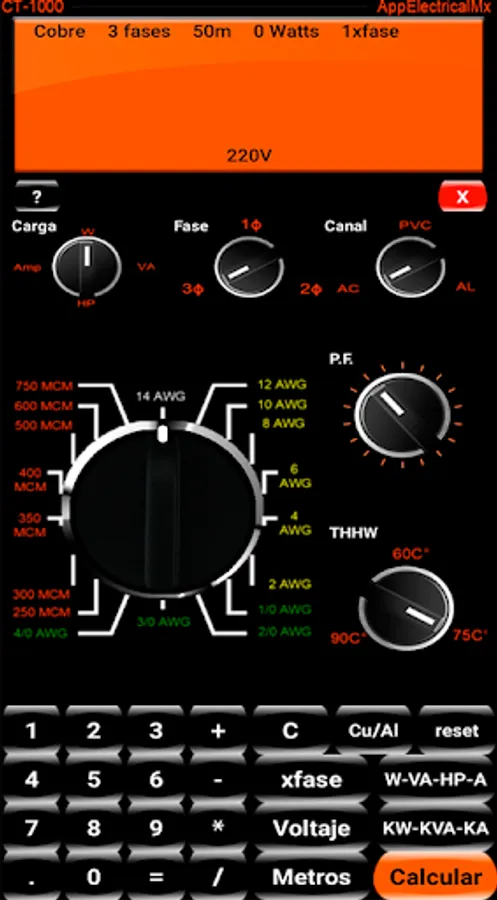

Calculator designed for the calculation of voltage drop, based on the tables of current capacity per conductor 310-15 (b) (16), of the NOM-001 SEDE 2012.
Functions:
- Calculation of Amperage.
- Watts Power Calculation.
- Calculation of Volt-Amper.
- Calculation in three-phase and single-phase electrical systems.
- Calculation in metal, aluminum and PVC pipes.
- Calculation by power factor.

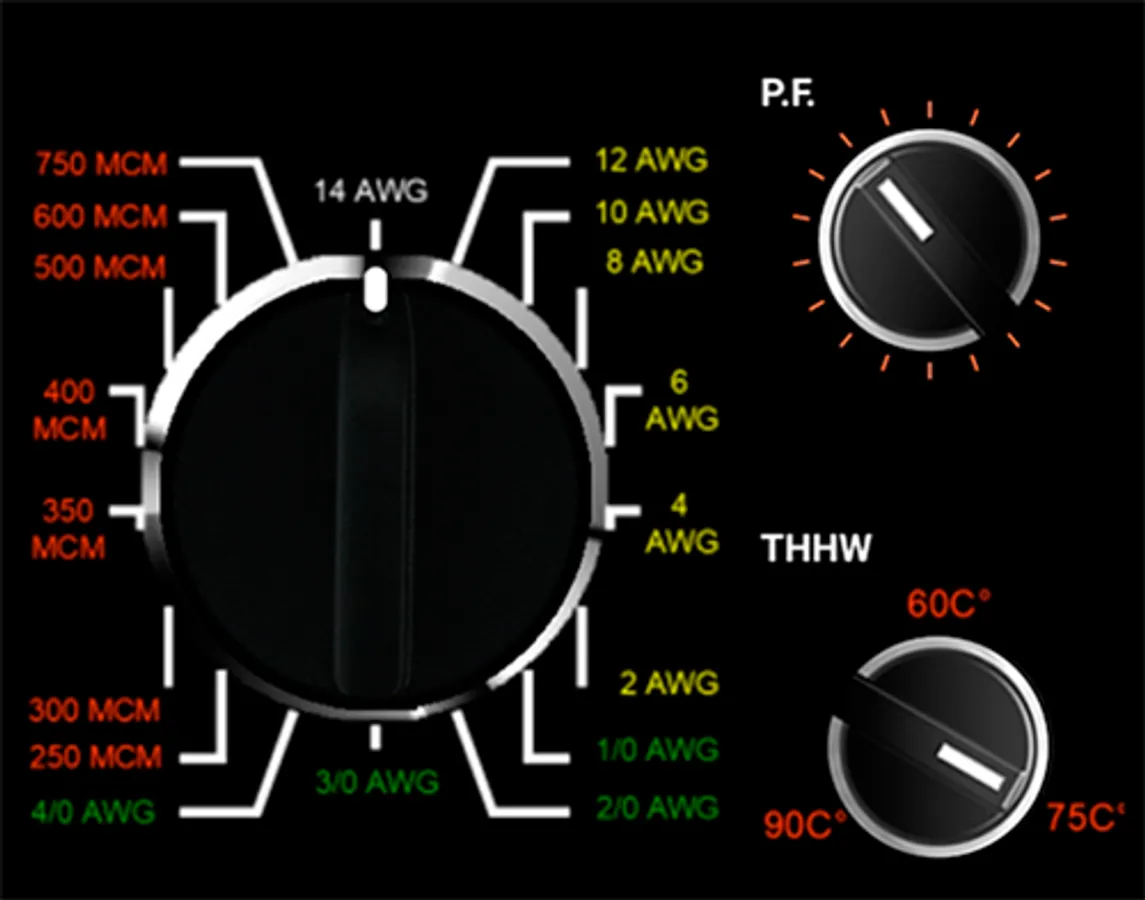

- Calculation in conductors from gauge # 14 awg to 750 MCM.
- Calculation in THHW insulation.
- Calculation in x number of conductors per phase.
- Calculation in aluminum or copper electrical conductors.
- Calculation in temperatures of 60 °, 75 ° and 90 °.
- Unit of measure of length in meters.

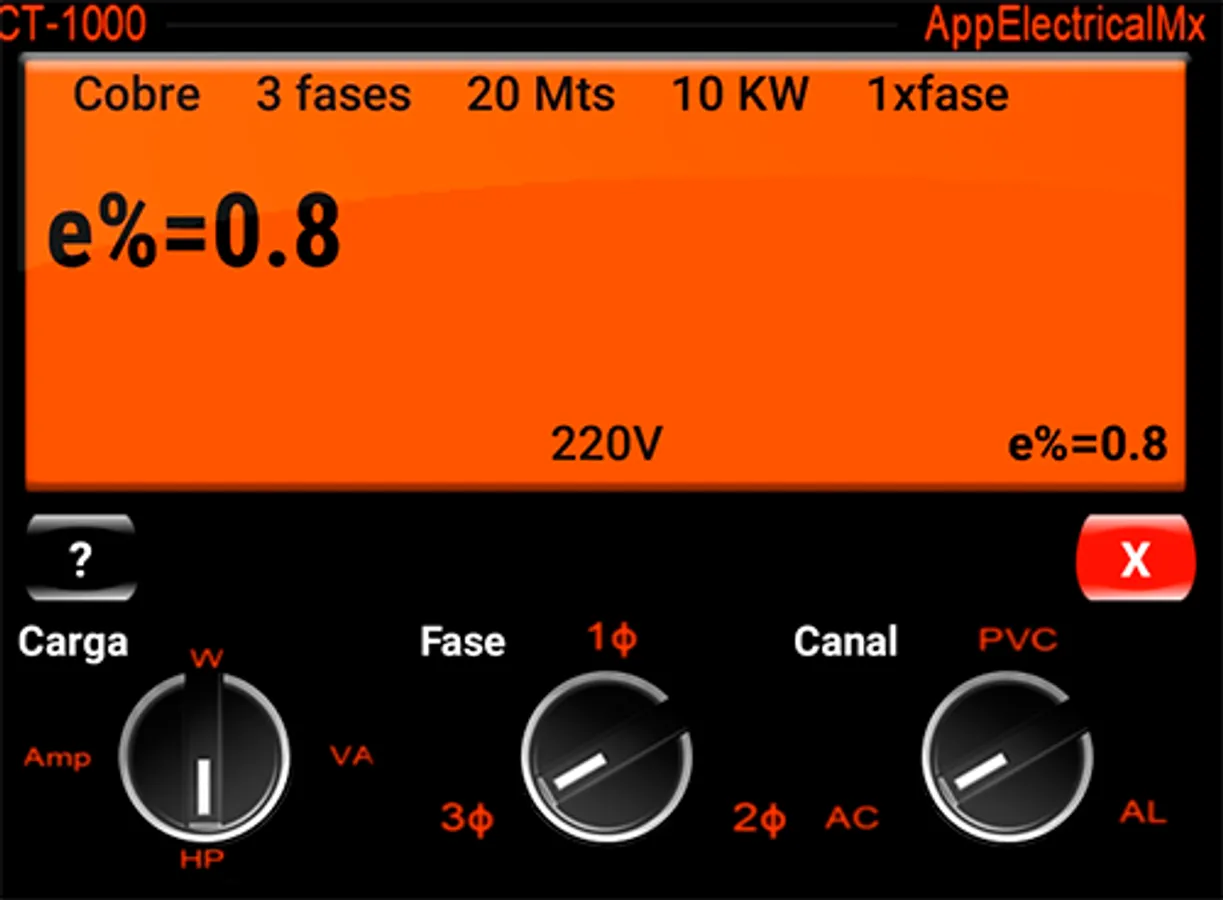

- Result of the calculation of voltage drop in%.
The application is designed to perform quick calculations in the field of work.
All calculations made with the calculator must be verified with calculation reports made by an electrical engineer before applying in the field.
Functions:
- Calculation of Amperage.
- Watts Power Calculation.
- Calculation of Volt-Amper.
- Calculation in three-phase and single-phase electrical systems.
- Calculation in metal, aluminum and PVC pipes.
- Calculation by power factor.
- Calculation in conductors from gauge # 14 awg to 750 MCM.
- Calculation in THHW insulation.
- Calculation in x number of conductors per phase.
- Calculation in aluminum or copper electrical conductors.
- Calculation in temperatures of 60 °, 75 ° and 90 °.
- Unit of measure of length in meters.
- Result of the calculation of voltage drop in%.
The application is designed to perform quick calculations in the field of work.
All calculations made with the calculator must be verified with calculation reports made by an electrical engineer before applying in the field.
